Automatic Valve Body Inlet Port Press Fitting Equipment 3D model
Description
Automatic Valve Body Inlet Port Press Fitting Equipment
Introduction

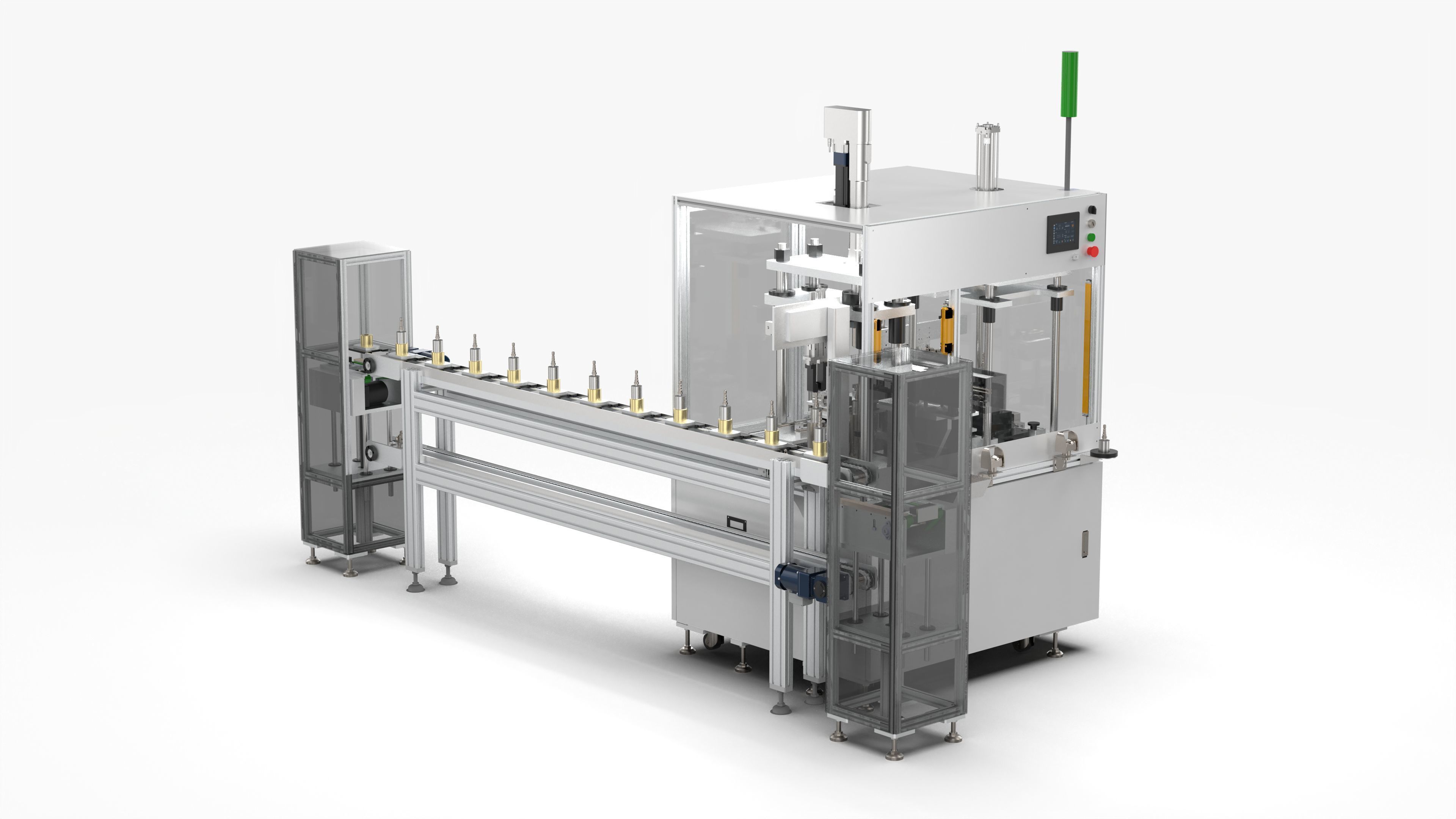

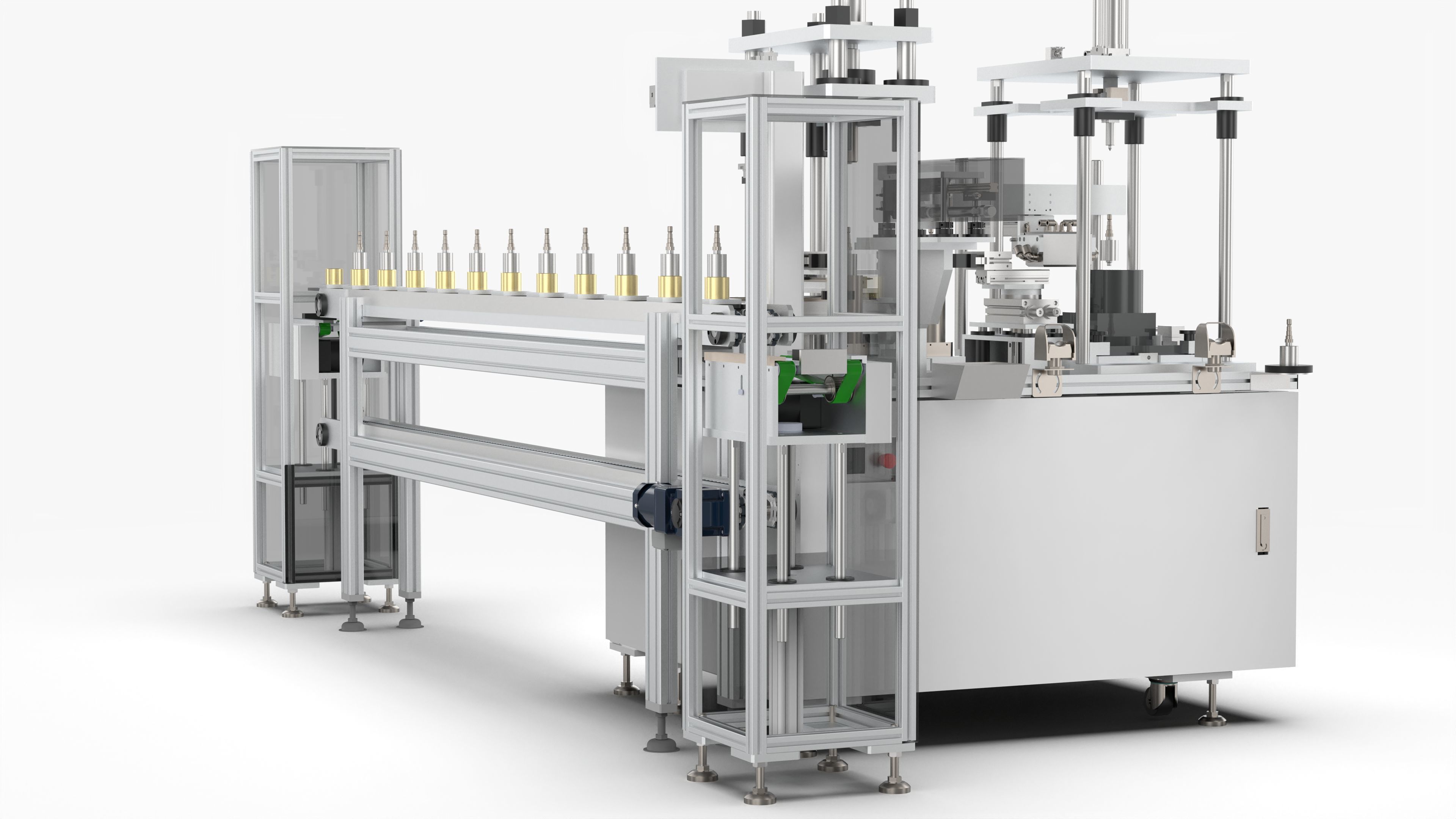

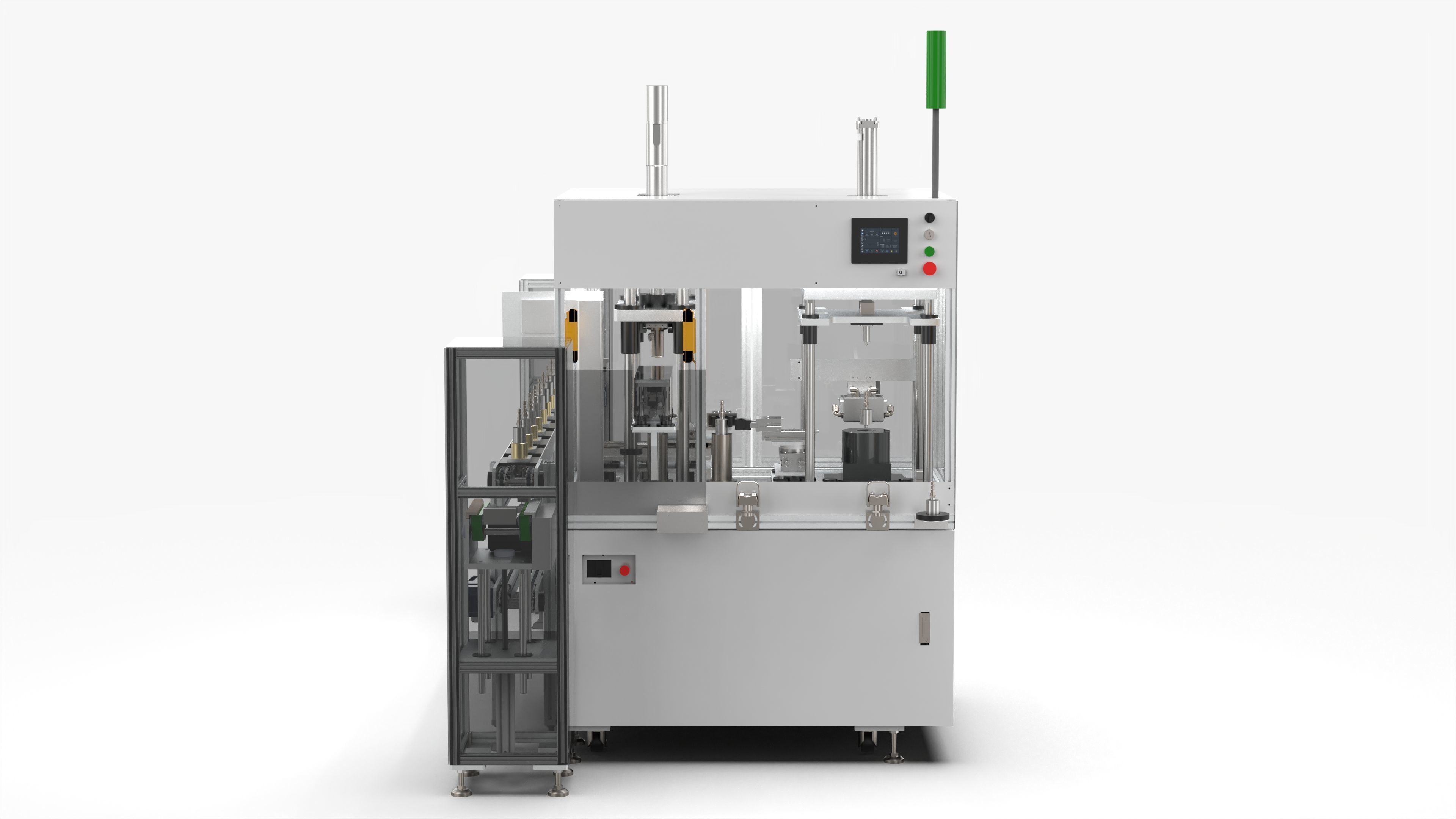

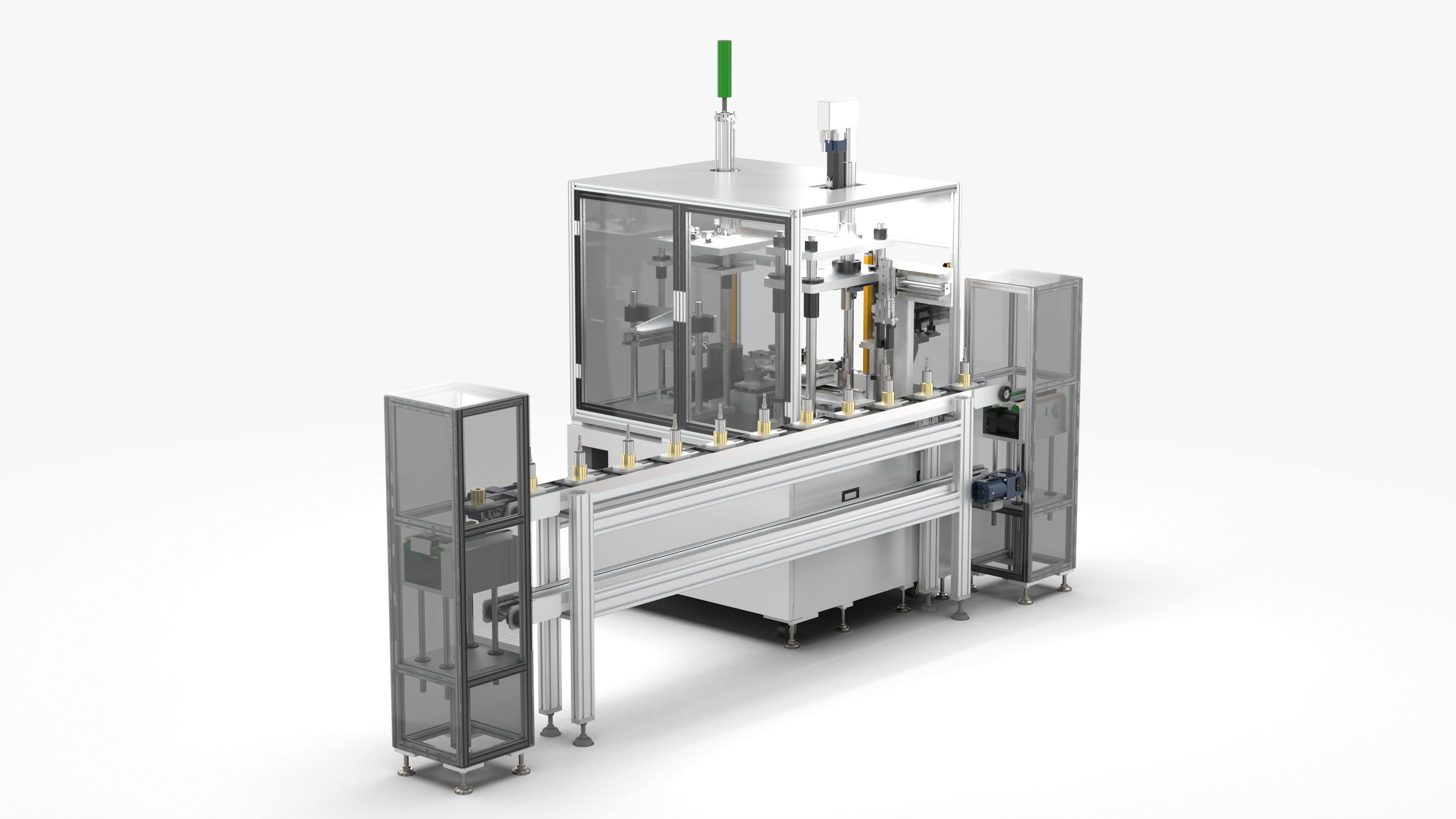

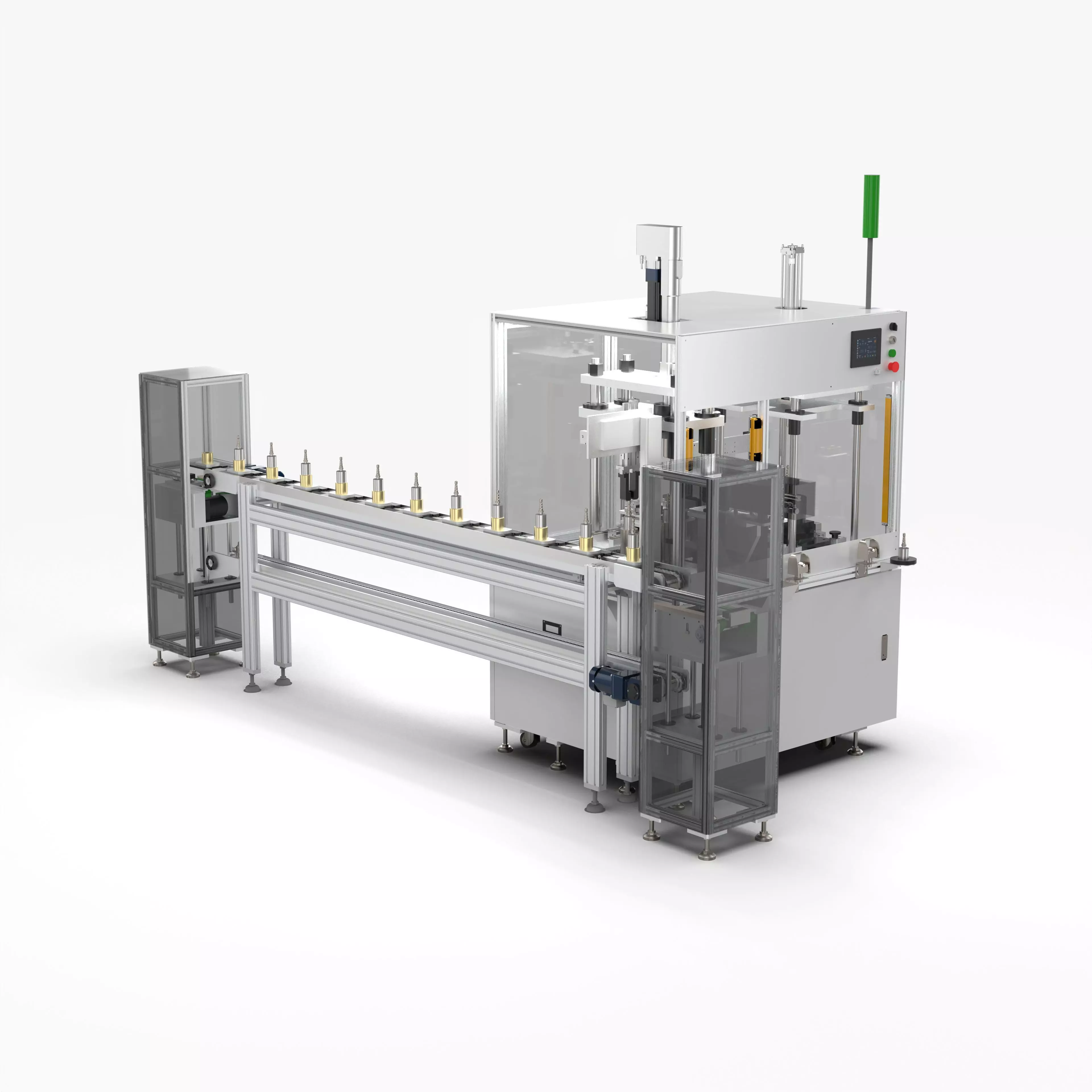

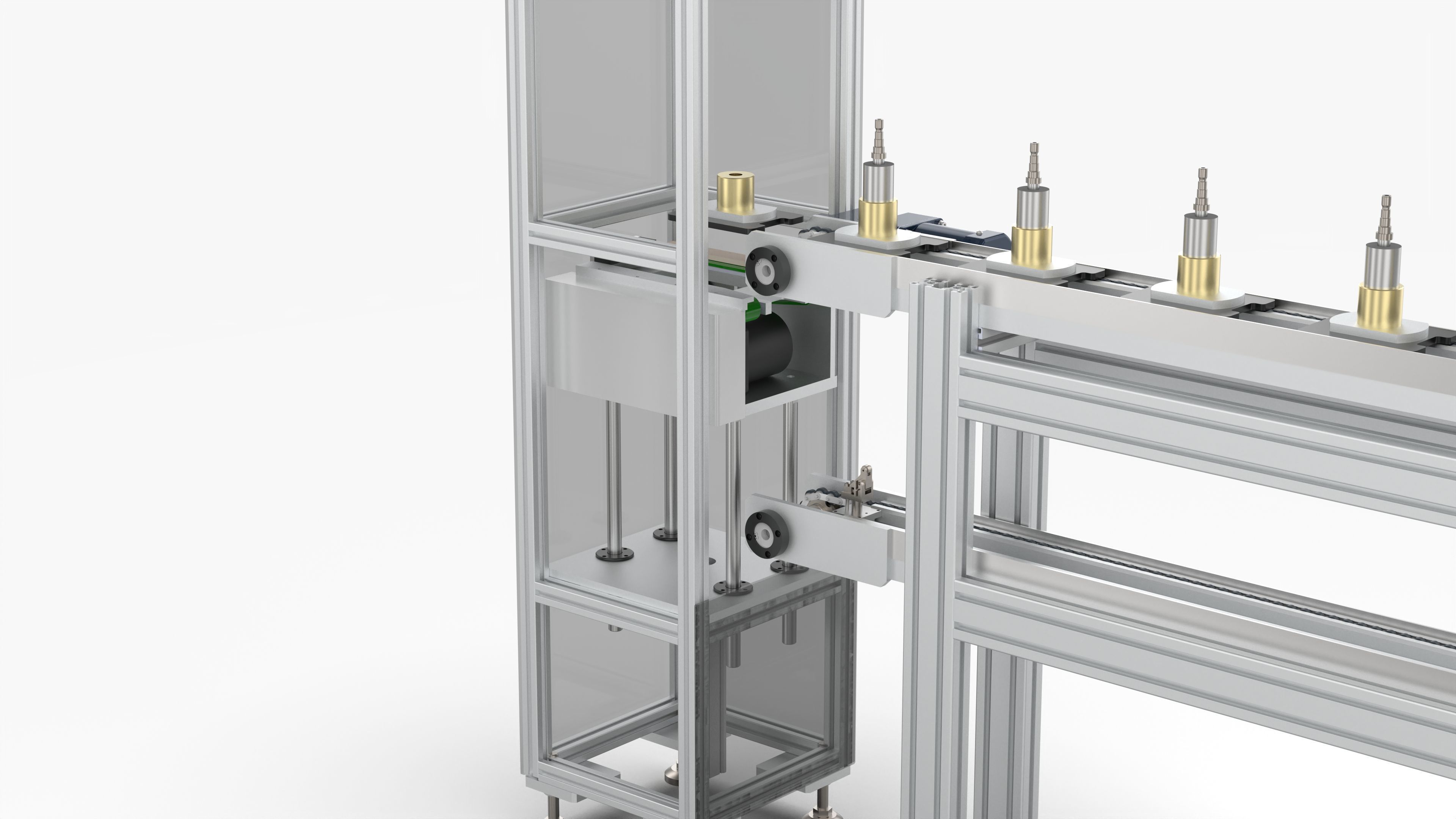

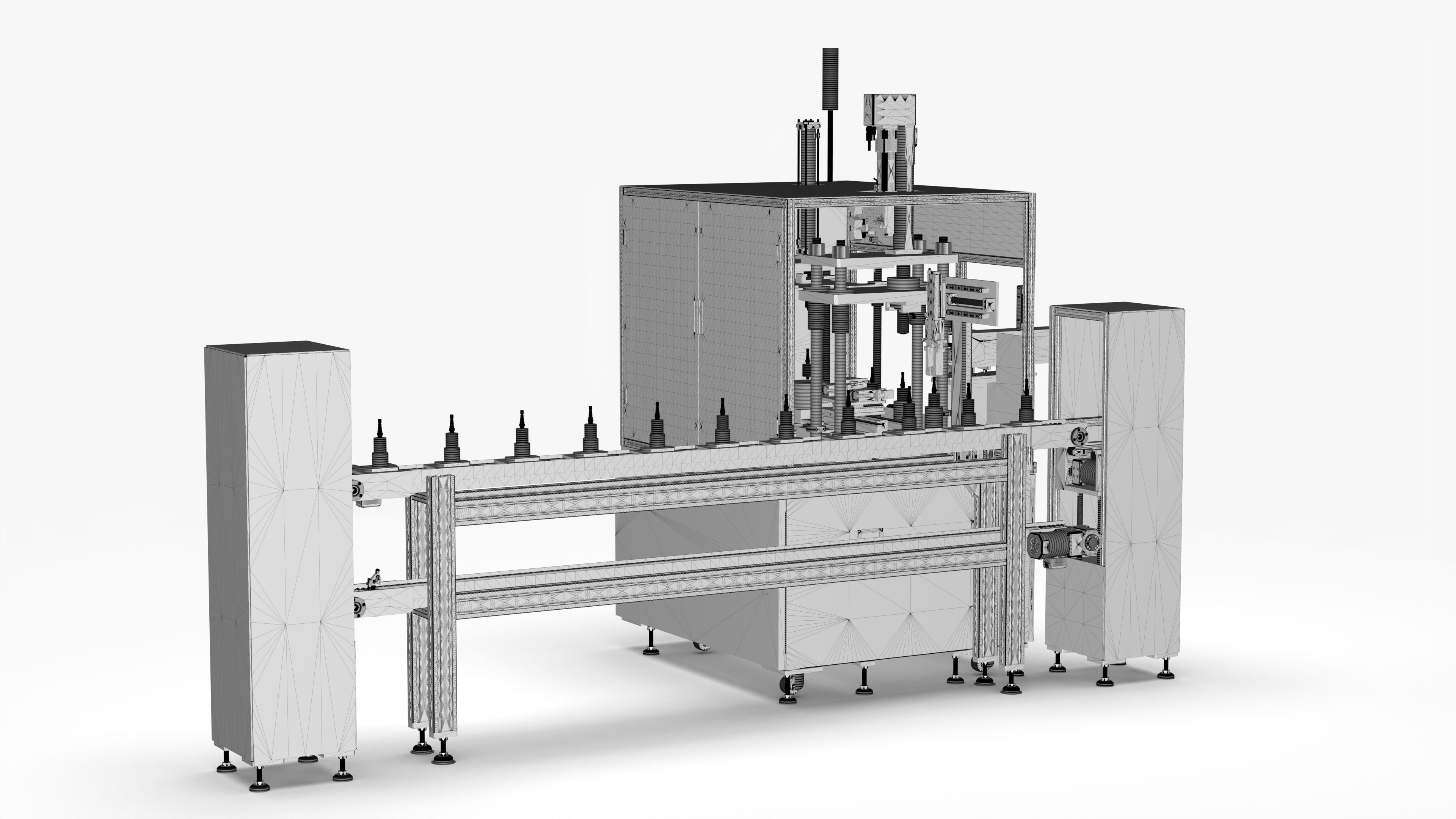

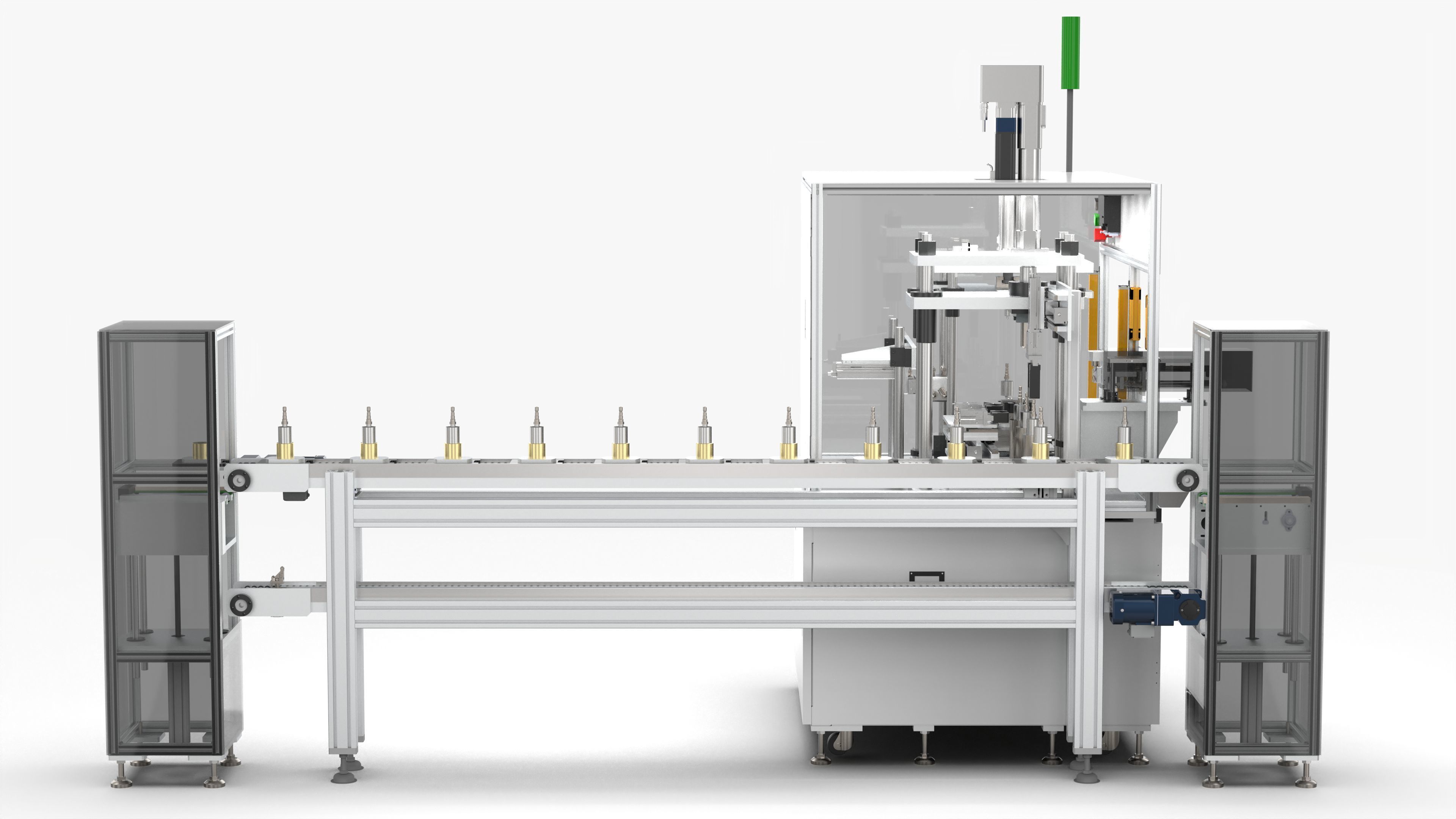

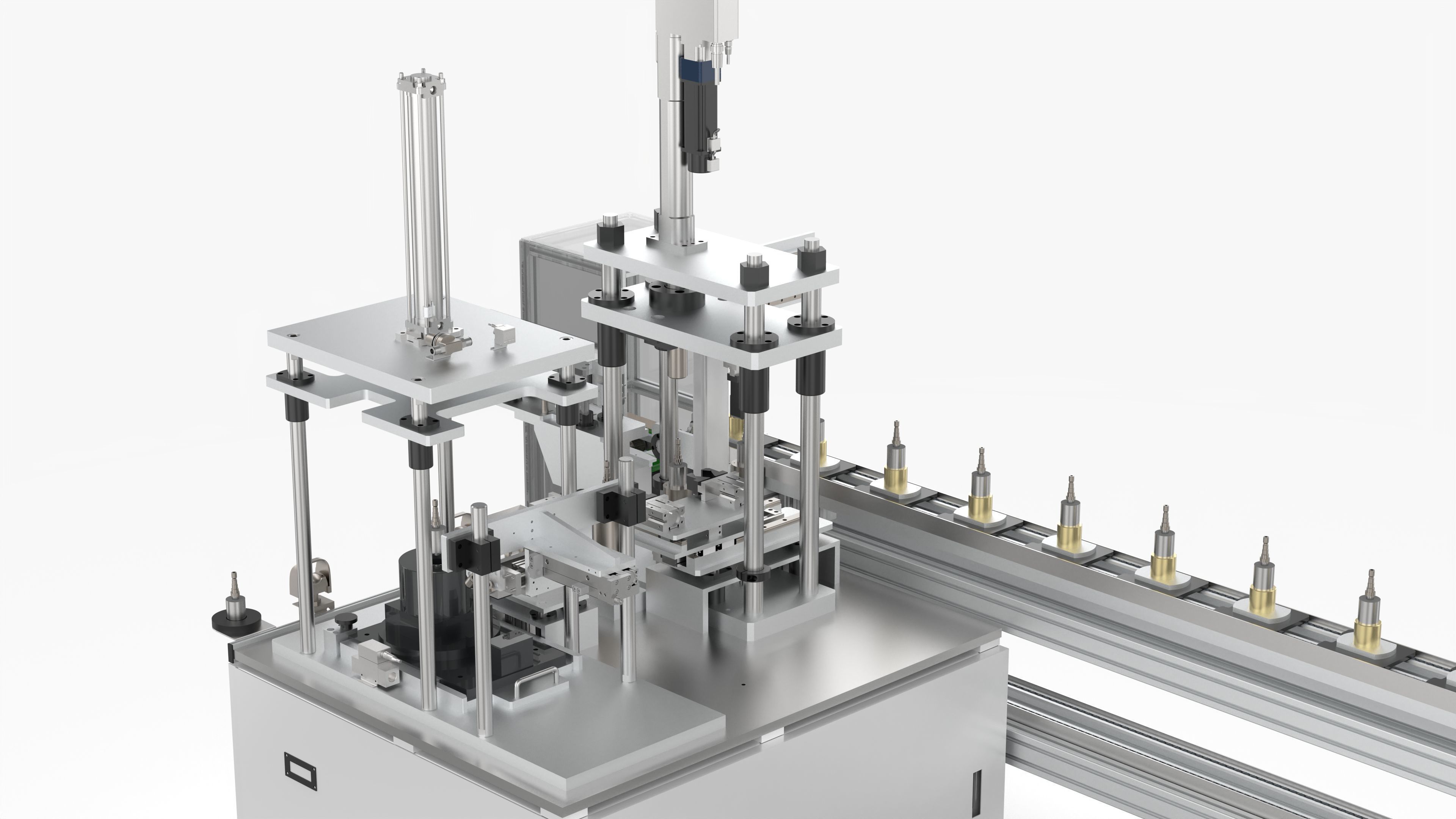

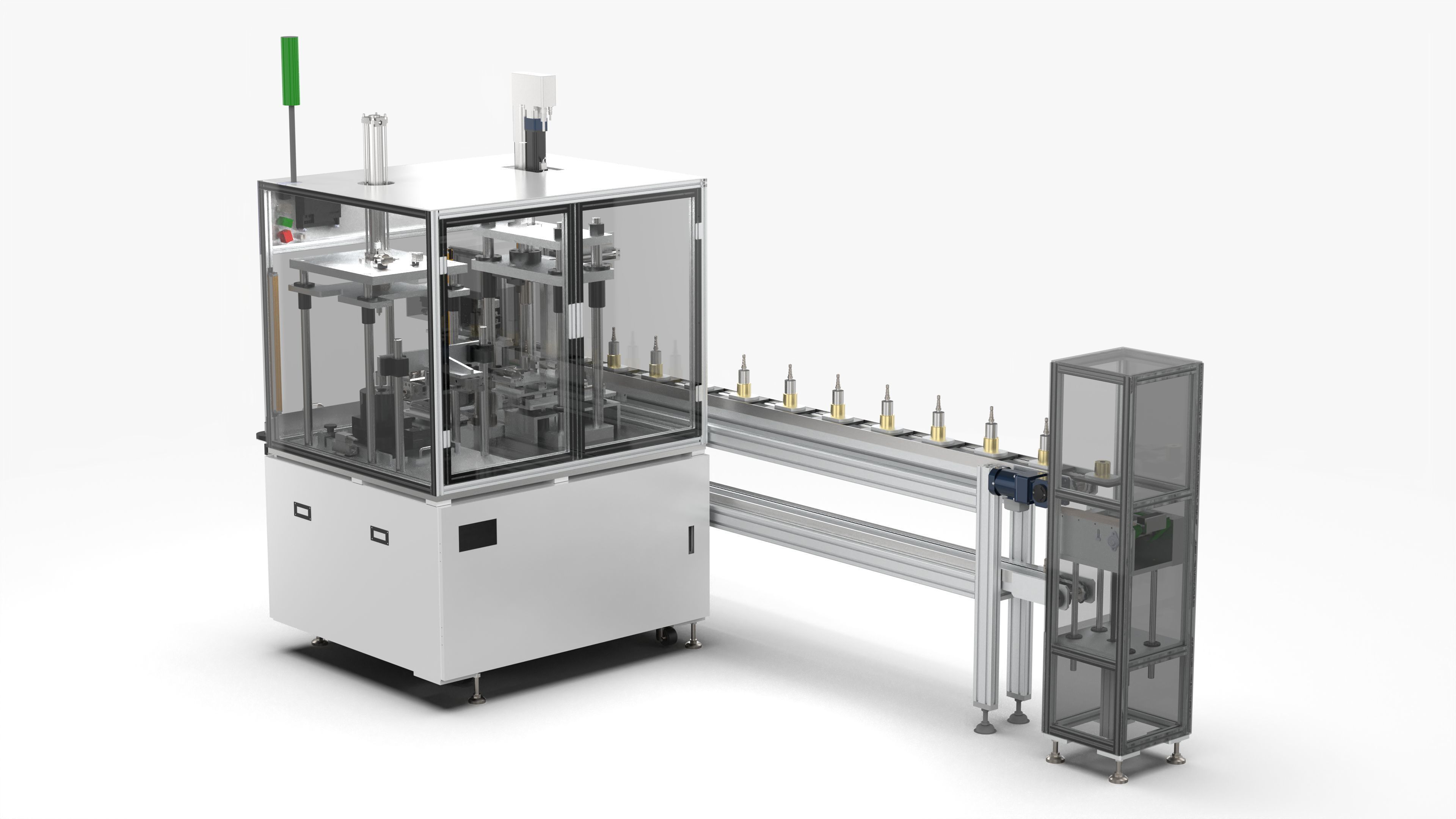

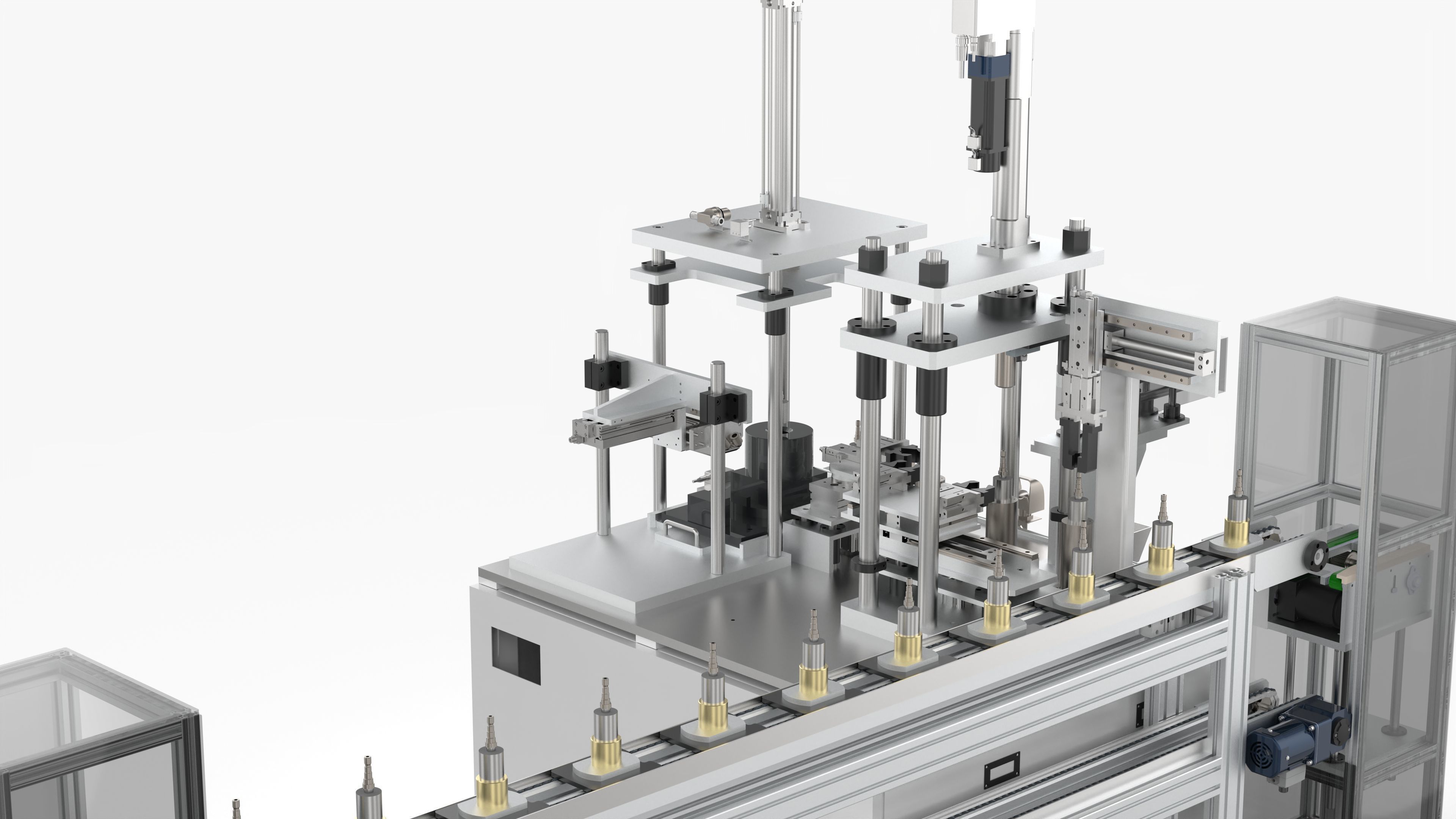

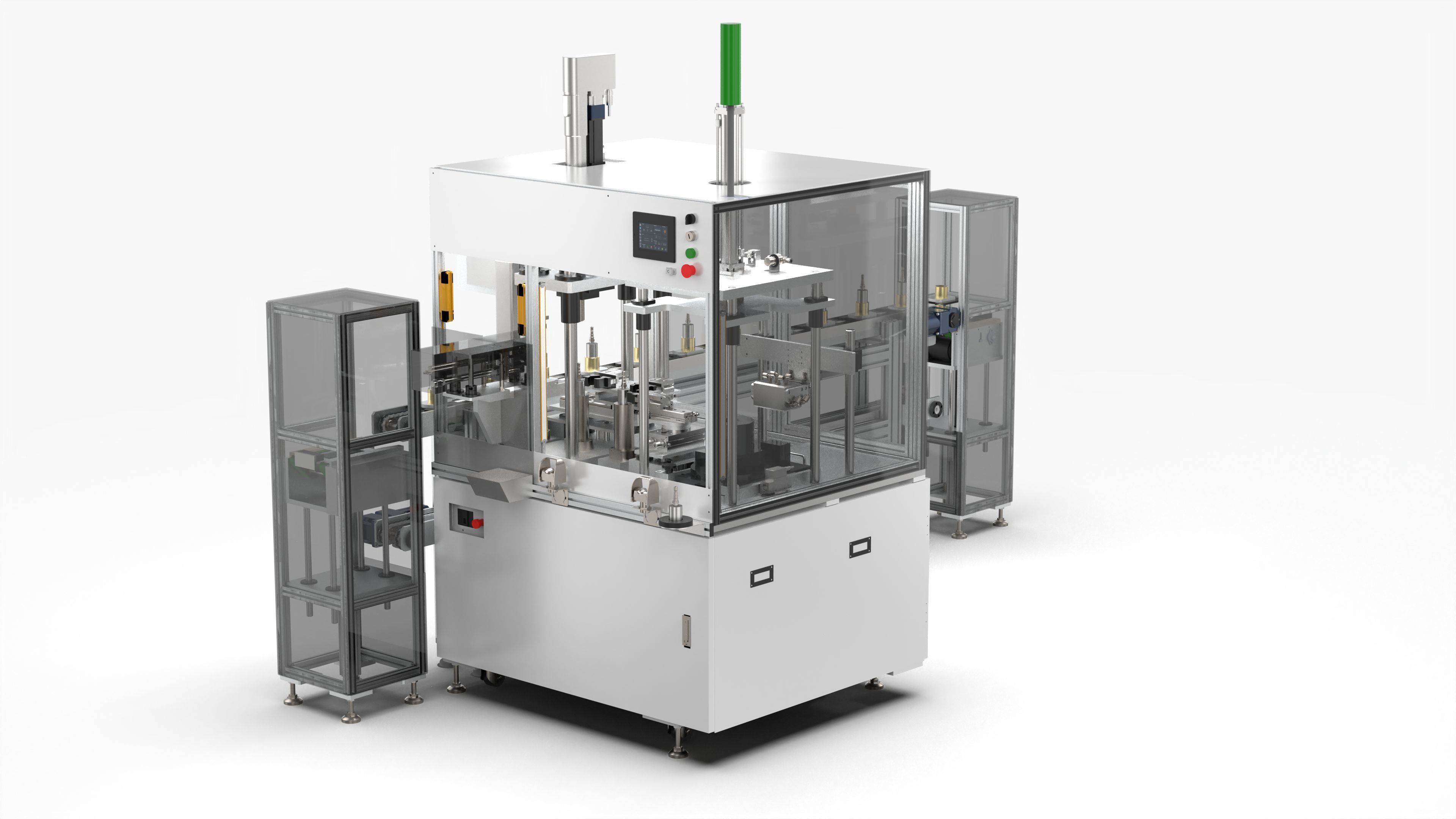

The equipment is used for the press-fitting machine of the inlet port of the valve body. The double lifter and the lower assembly line can be used for the circular feeding of the jig. The products in the jig are manually taken and placed, and the press-fitting action is completed automatically. The press-fitting height and pressure are possible, and the pressing is completed. After automatic grabbing and cleaning, the equipment has been running stably.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 11,040,292
- Vertice: 33,120,876
Automatic Valve Body Inlet Port Press Fitting Equipment
Royalty Free License
Automatic Valve Body Inlet Port Press Fitting Equipment
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)102 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- STEP (.stp)41.1 MB
- IGES (.ige, .igs, .iges)158 MB
- OBJ (.obj, .mtl)835 MB
- Stereolithography (.stl)526 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351779
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 11,040,292
- Vertices 33,120,874
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
