Automatic IGBT Radiator Assembly Machine 3D model
Description
Automatic IGBT Radiator Assembly Machine
Introduction

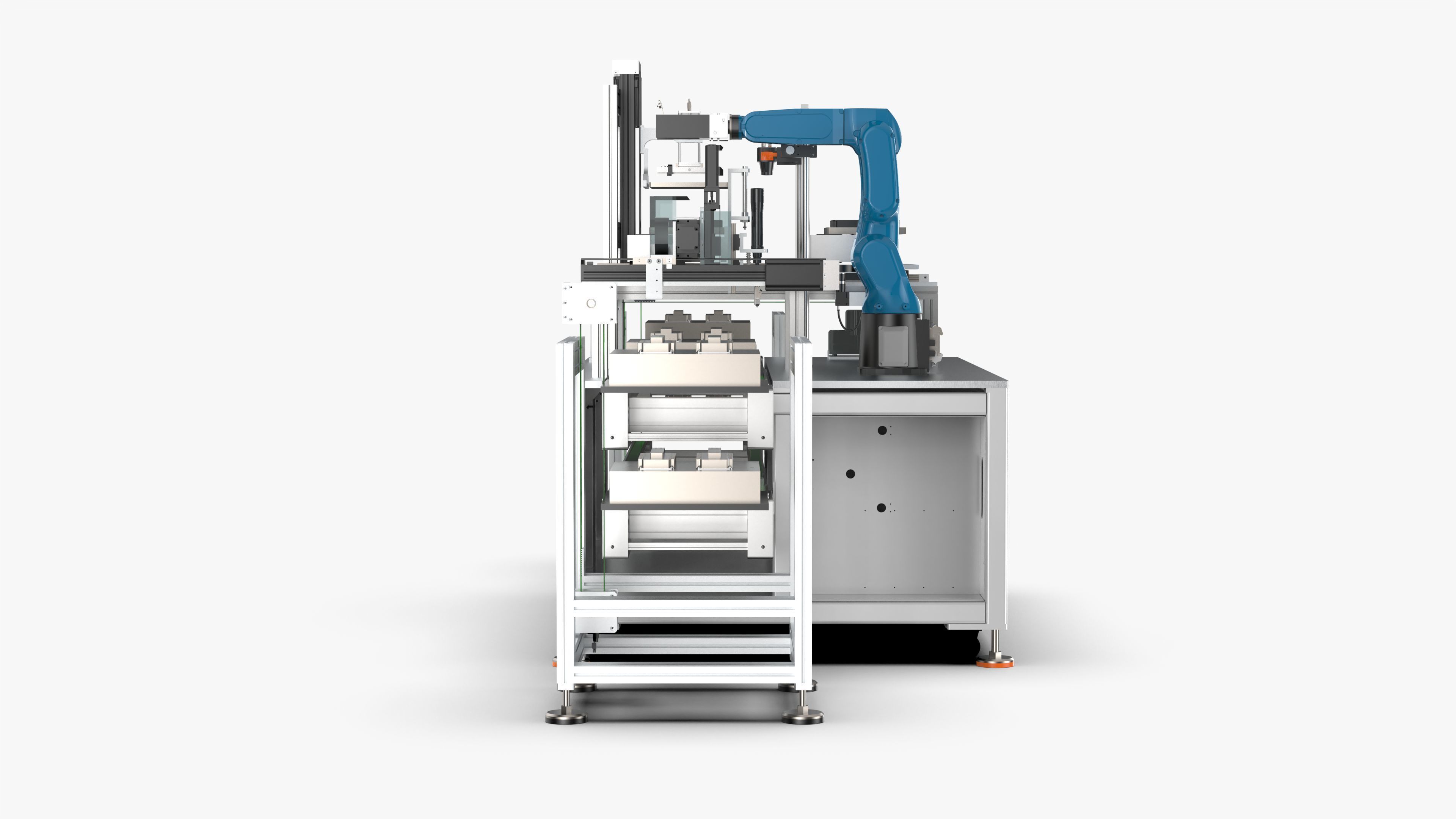

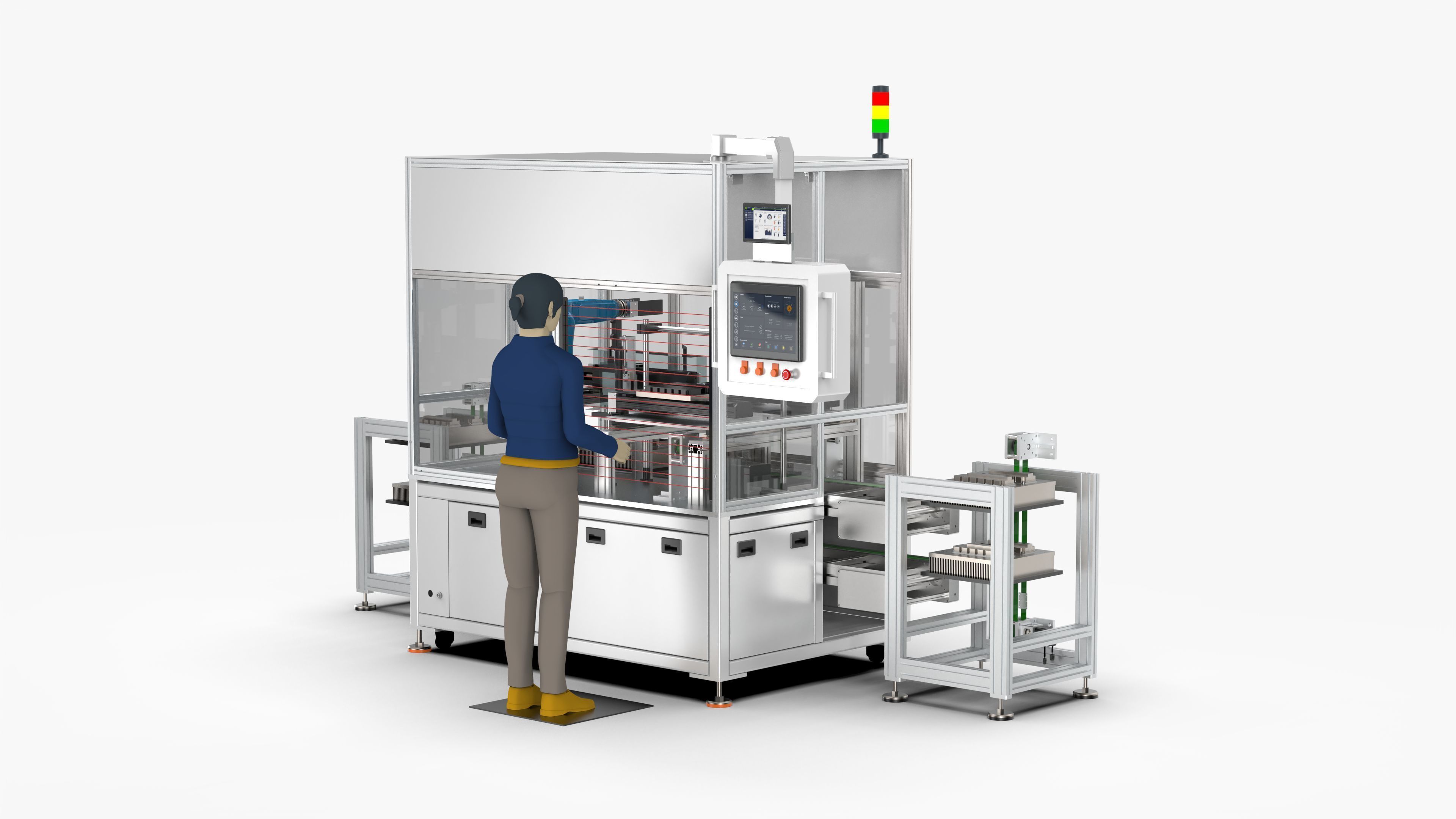

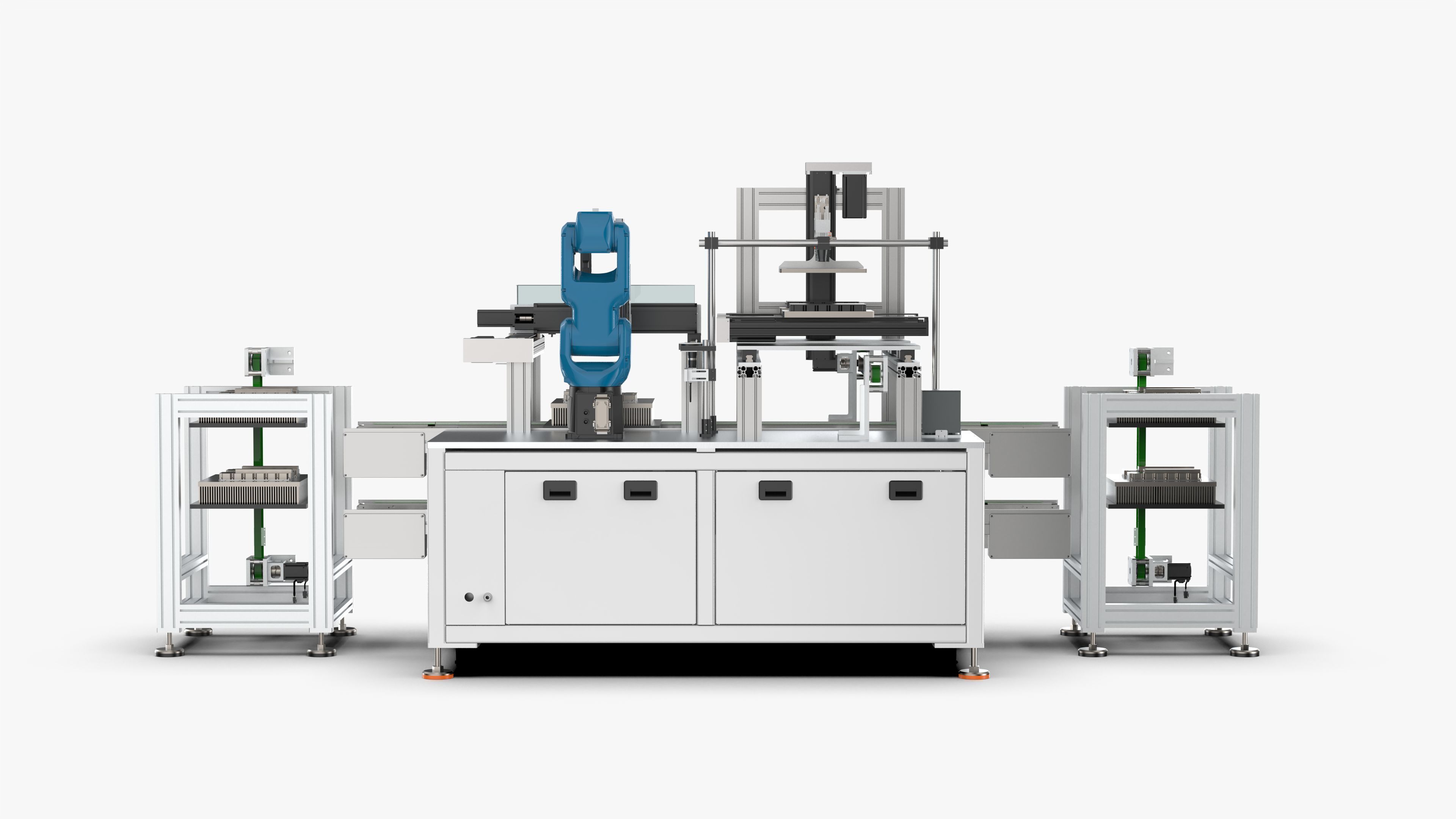

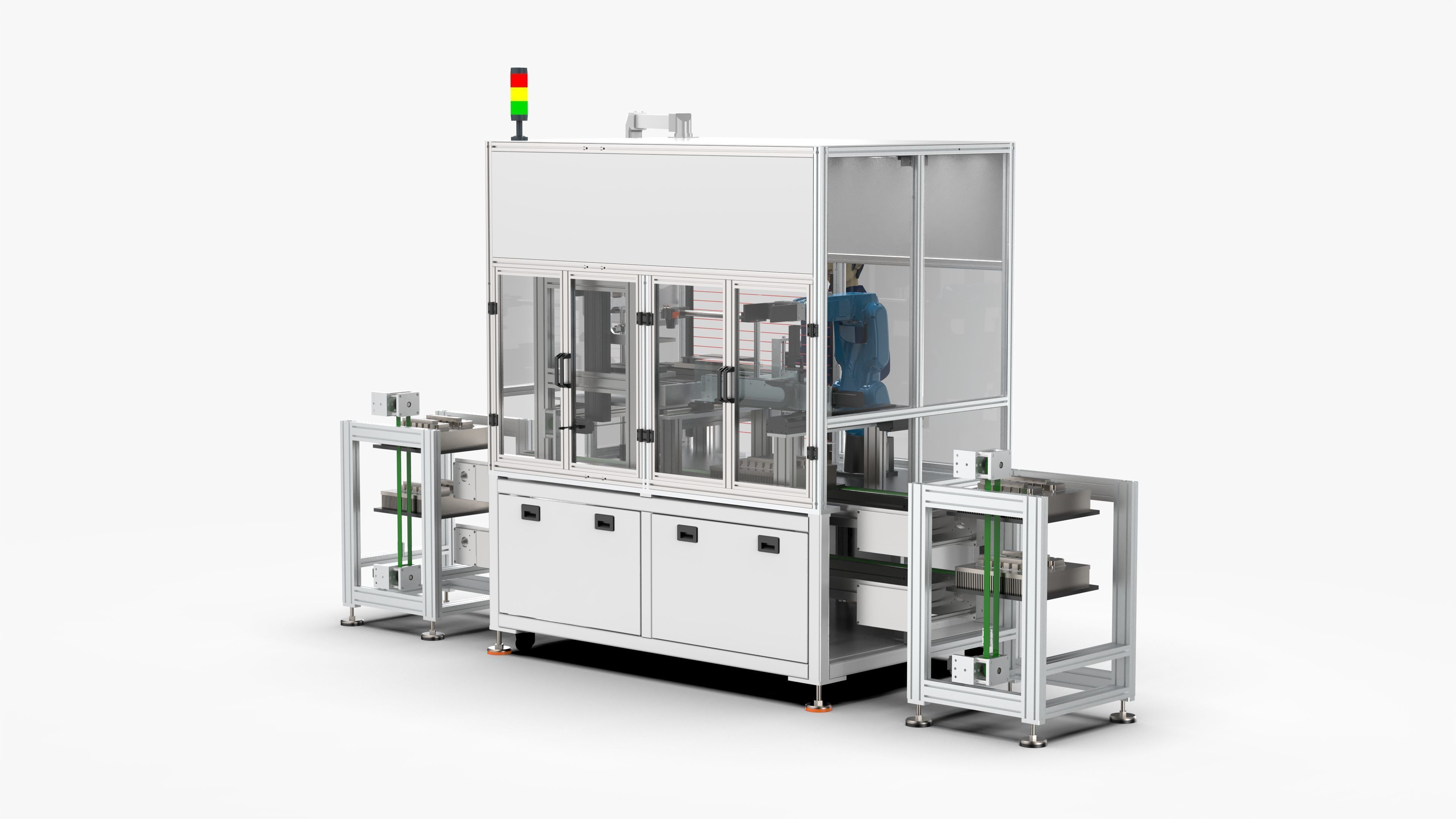

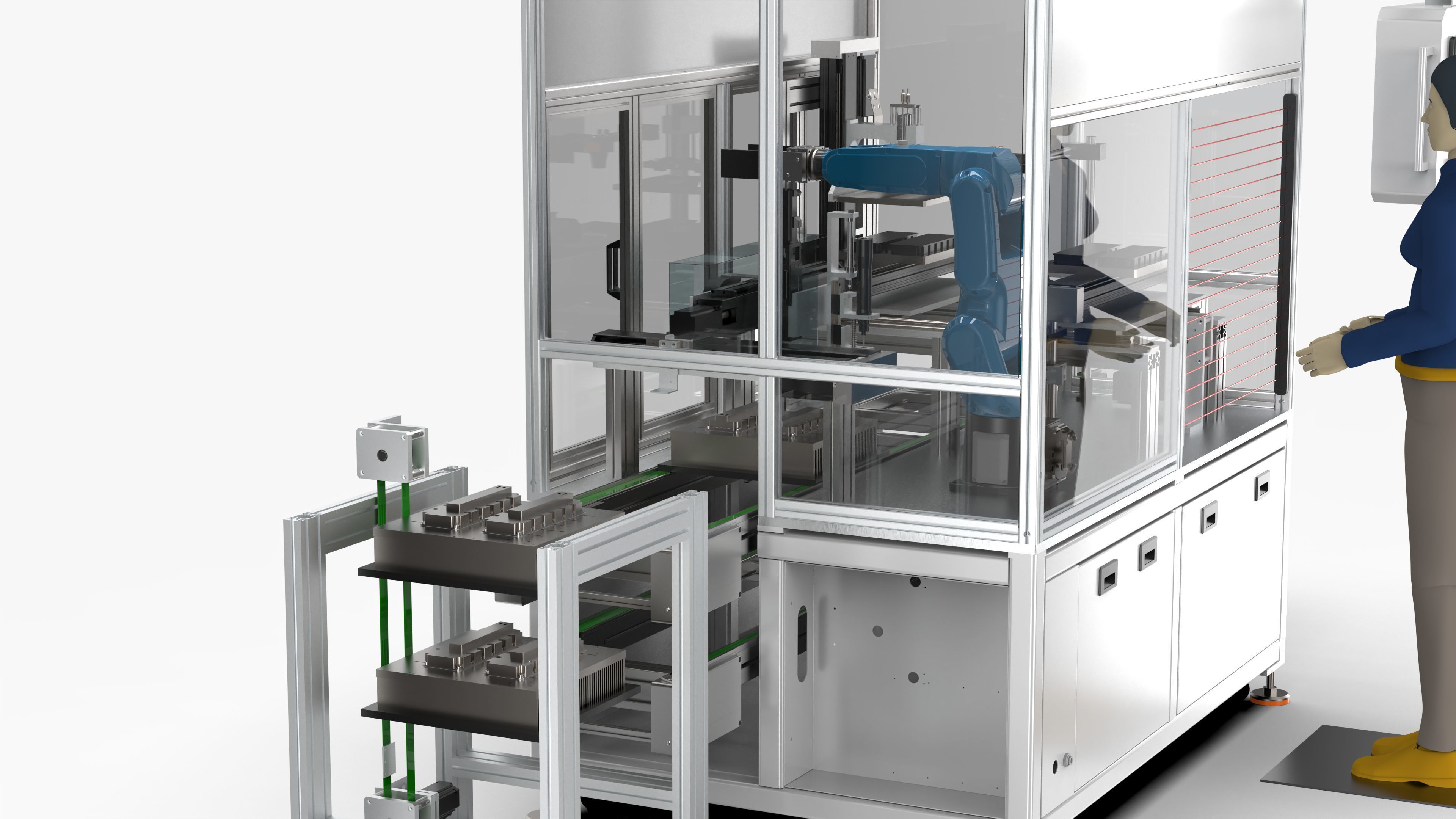

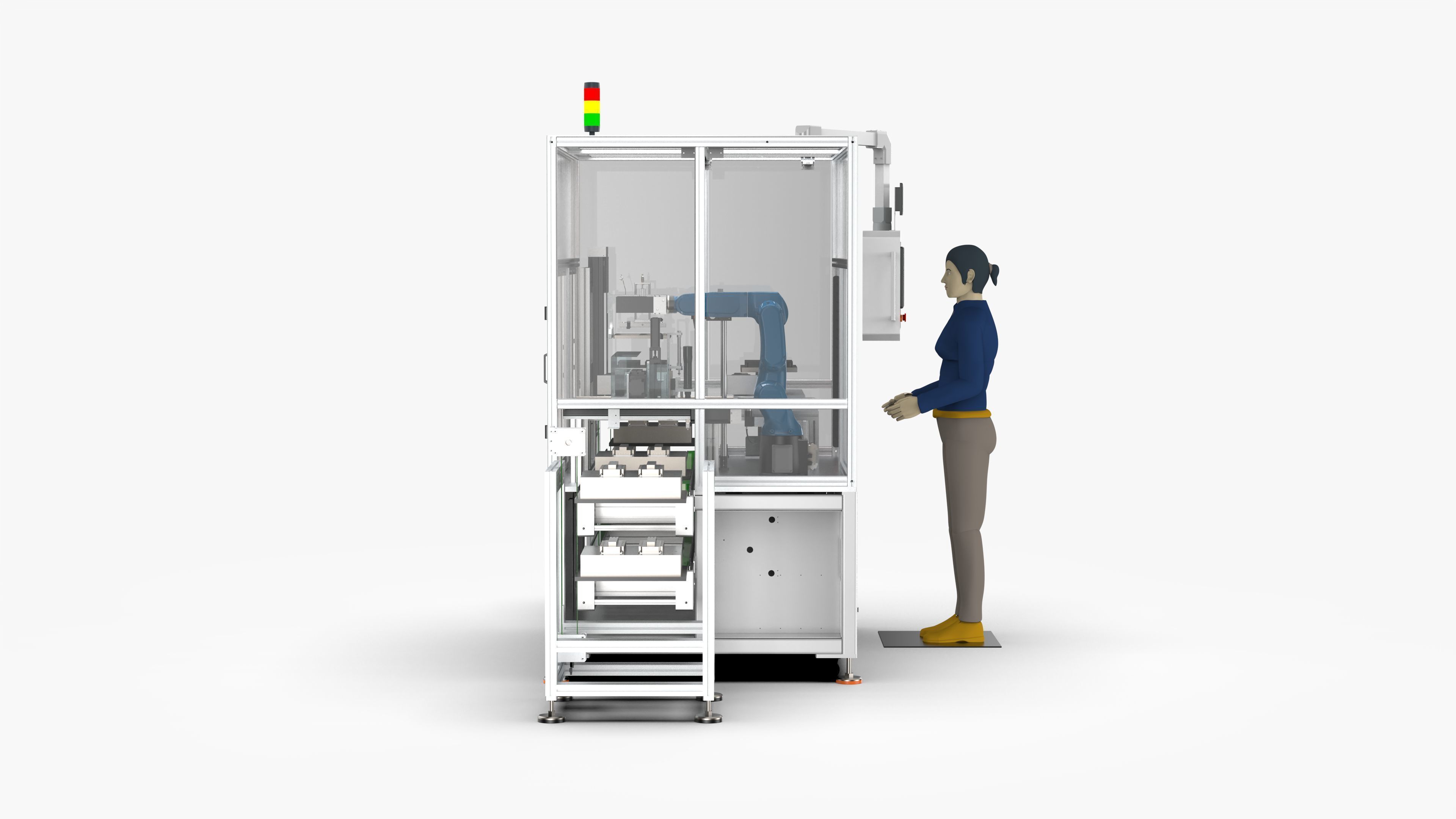

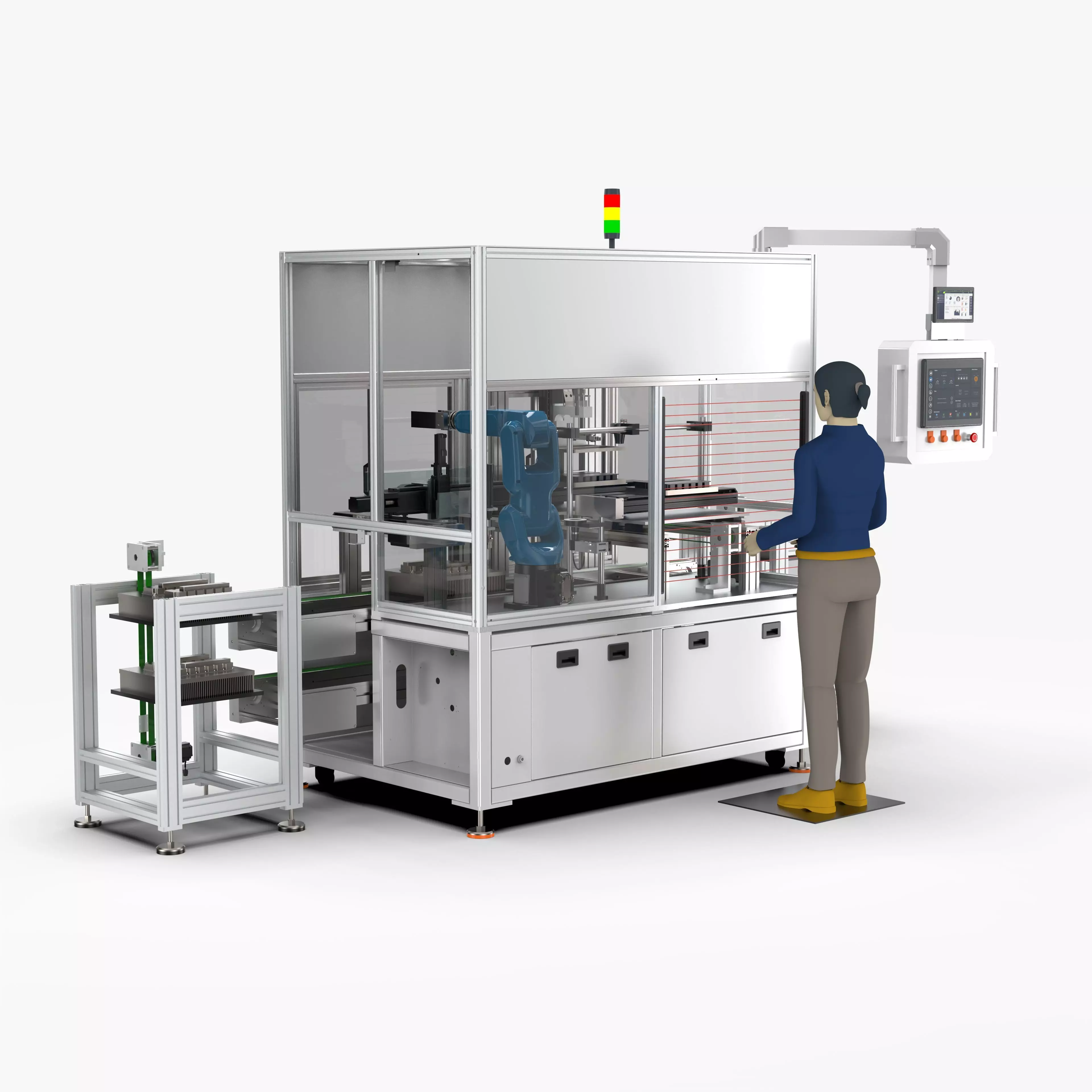

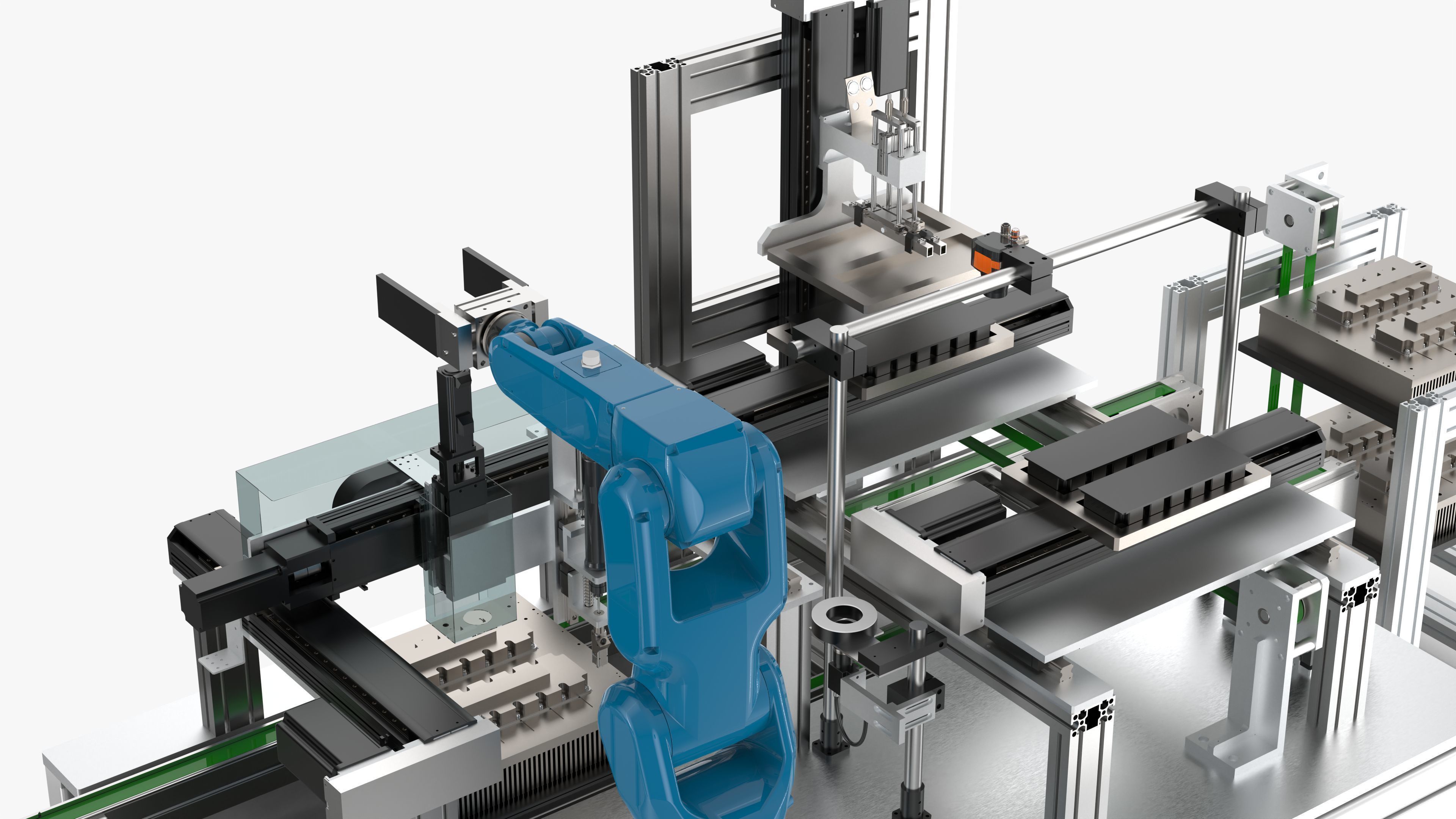

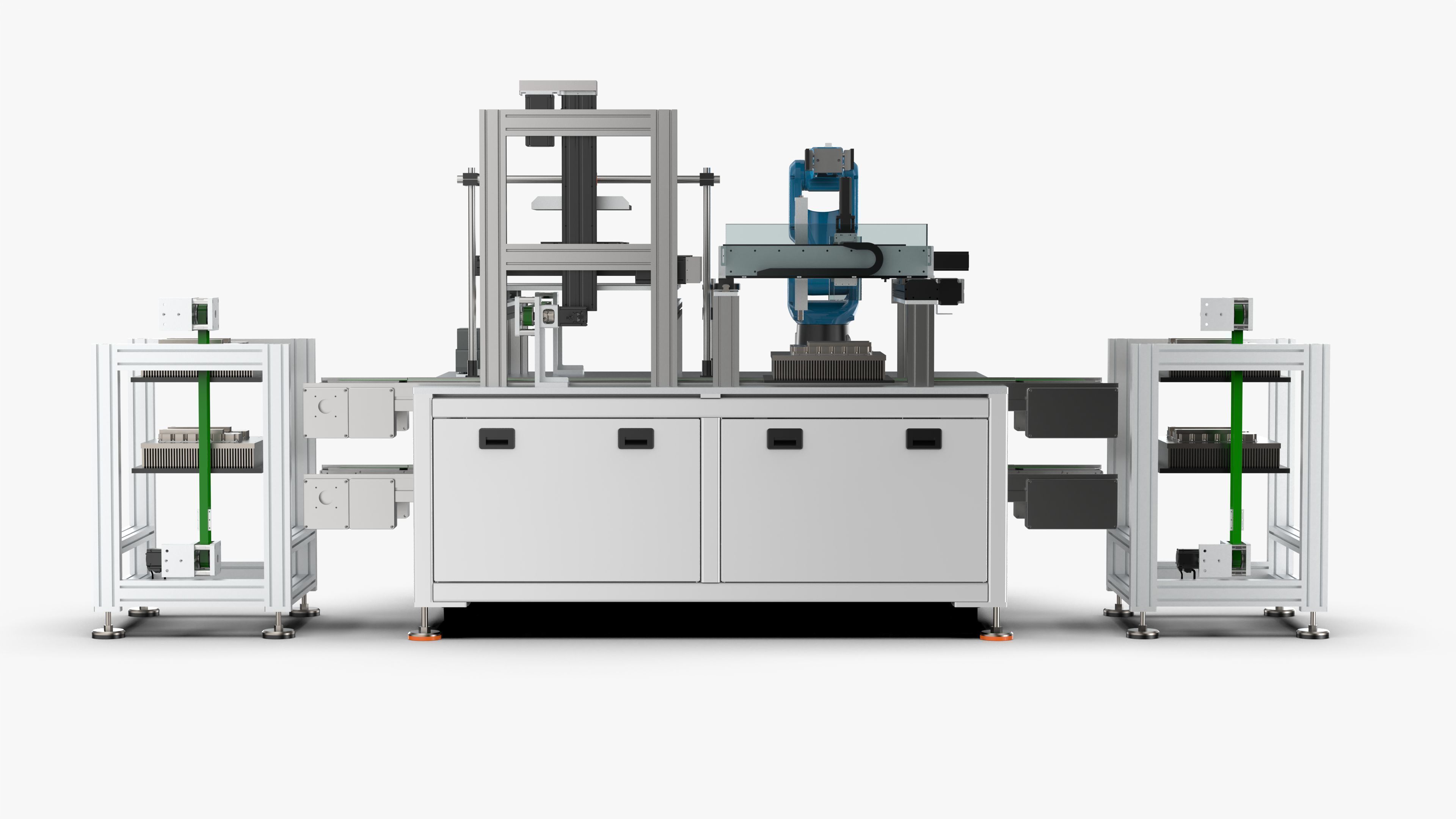

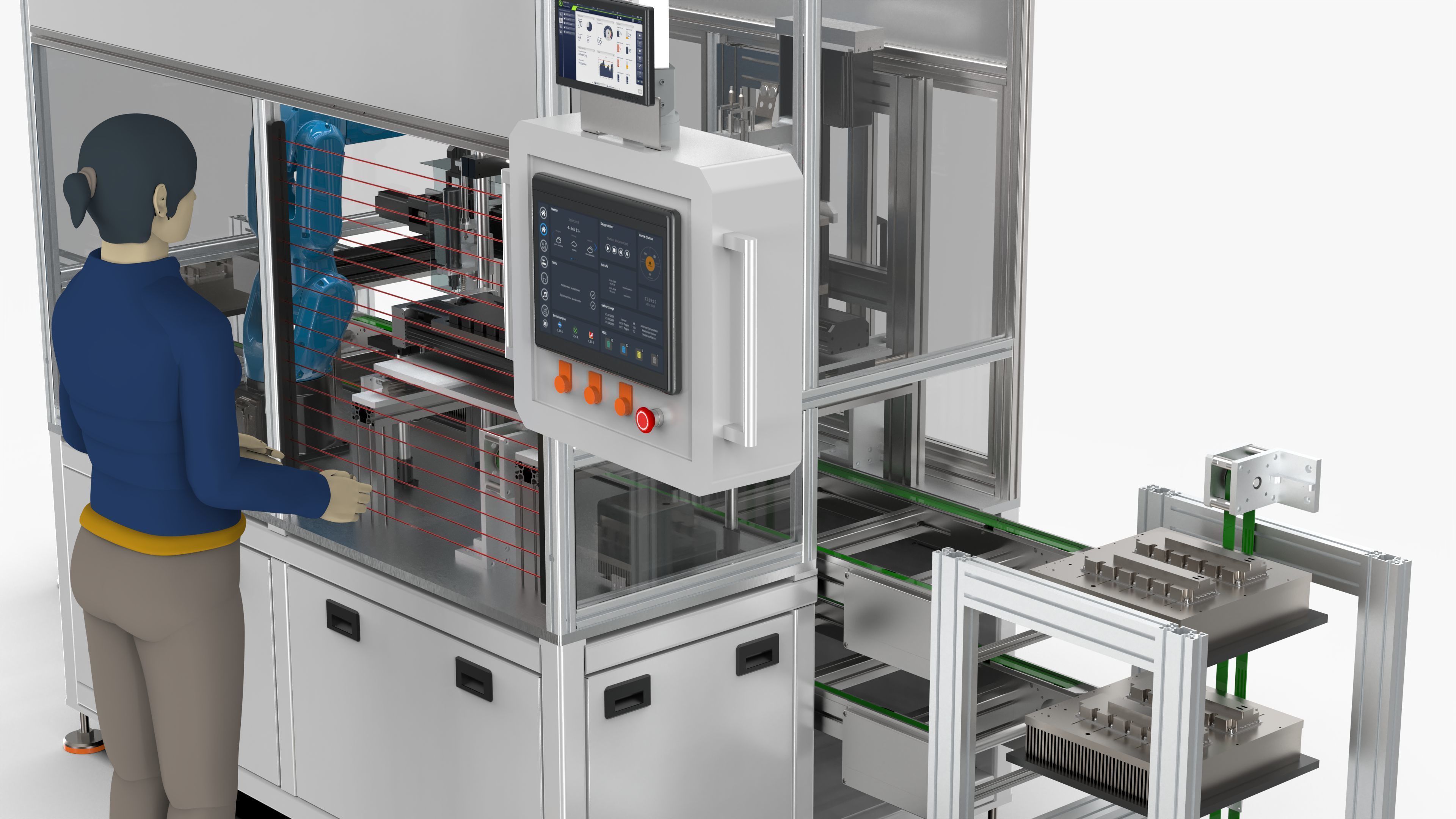

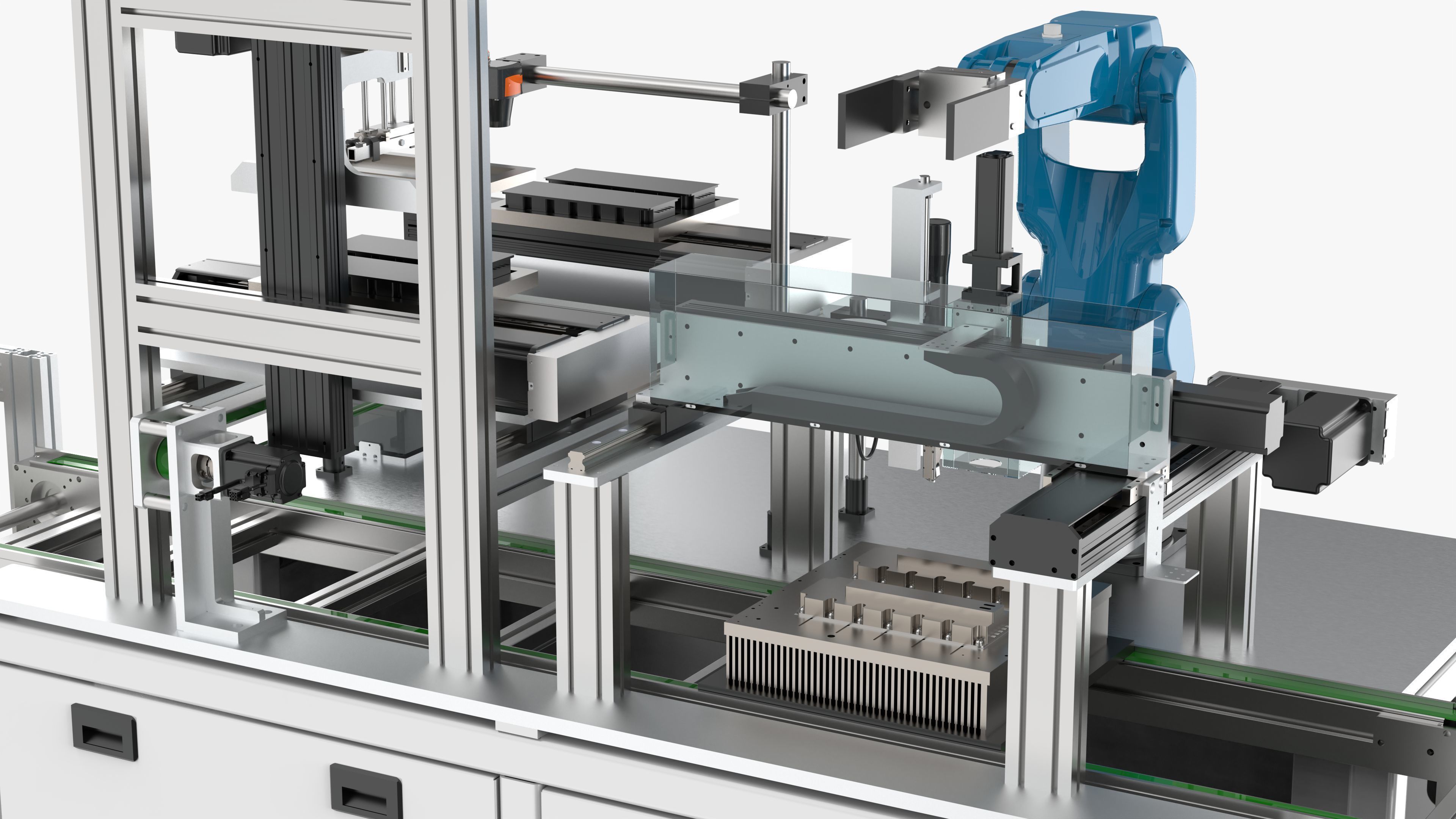

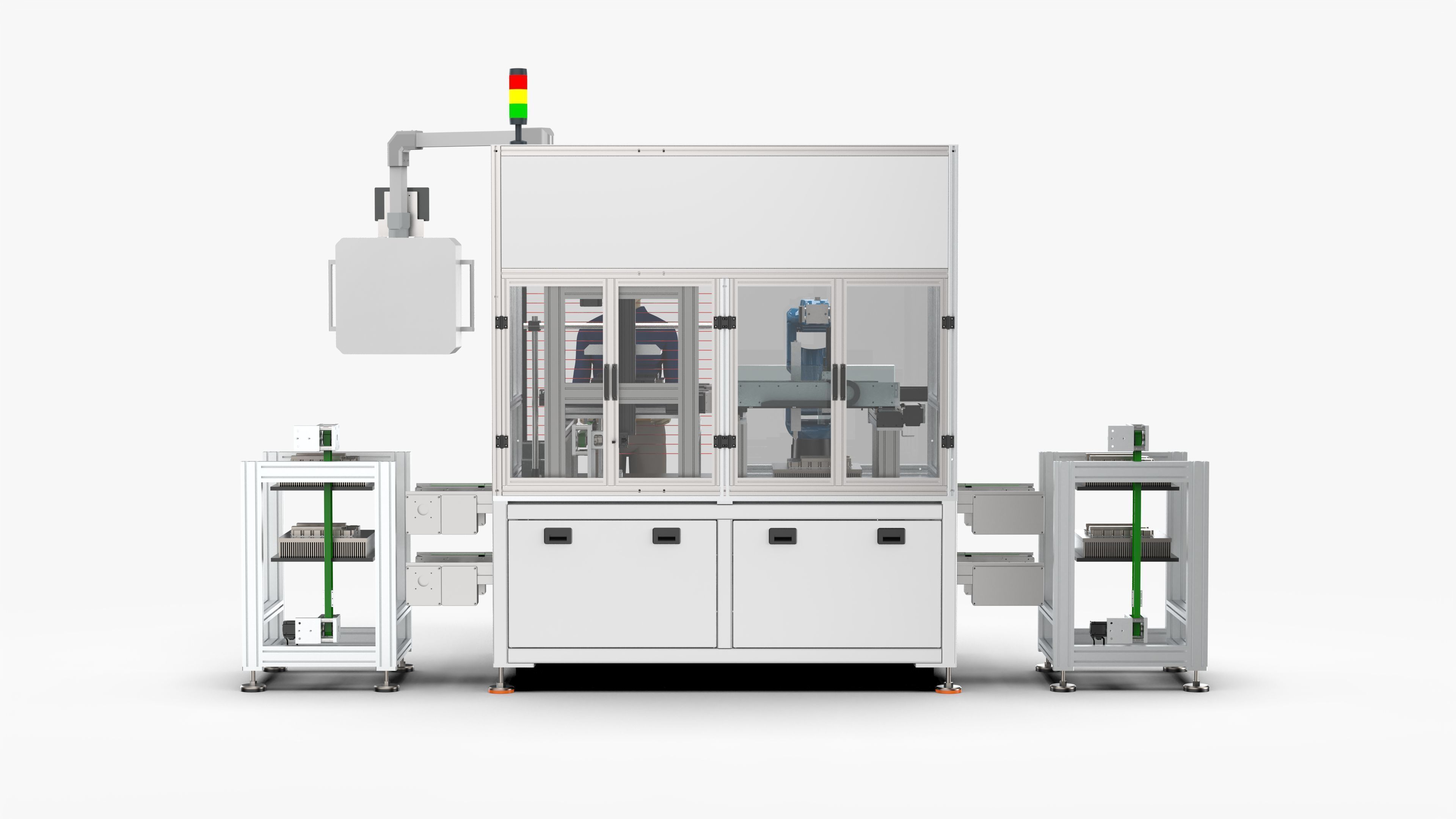

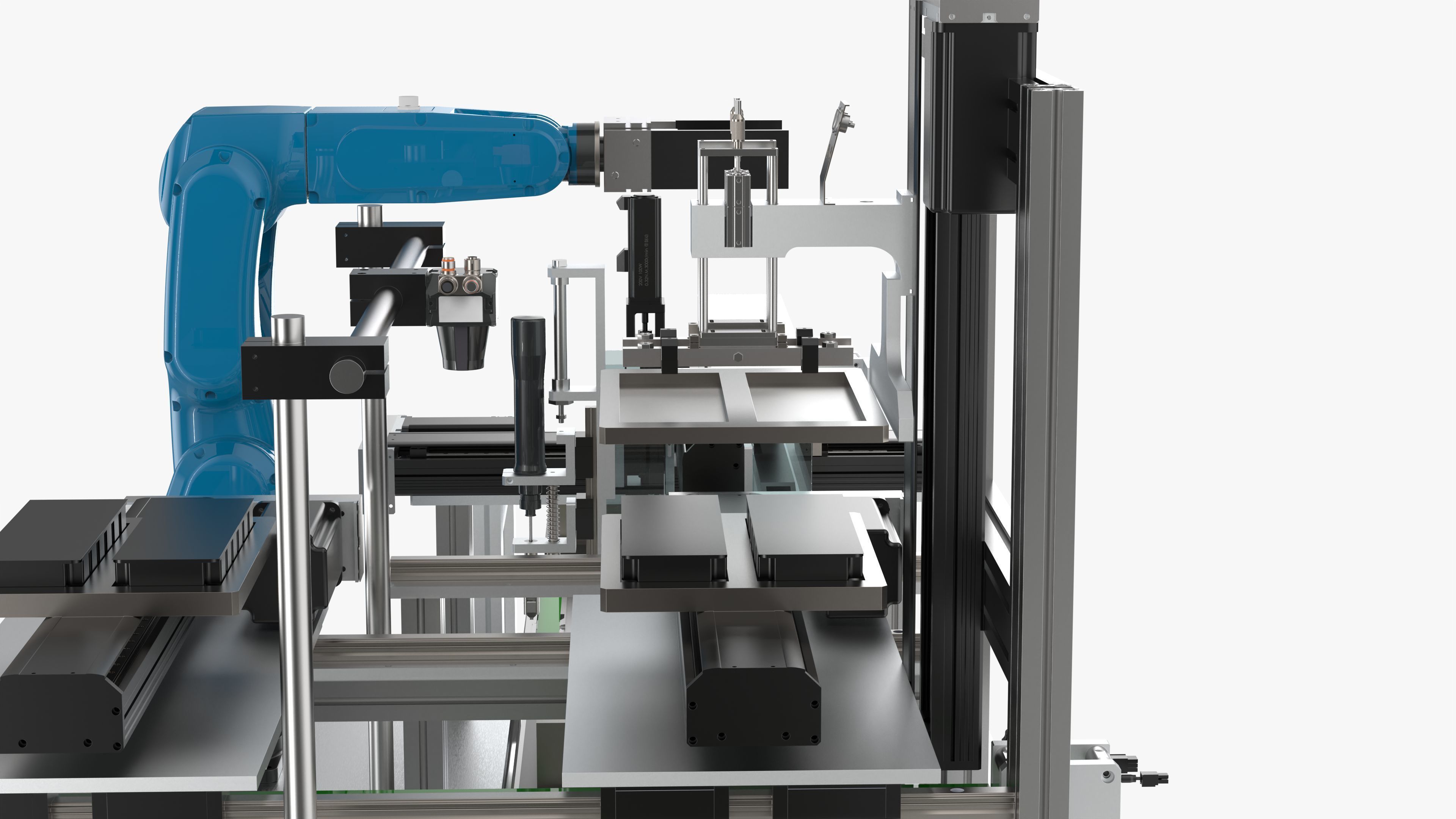

3D scheme of automatic assembly equipment for IGBT radiators. The equipment completes automatic screwing and printing of IGBT radiators, including double-speed chain double-layer return mechanism, XYZ automatic screwing mechanism, synchronous belt transmission mechanism, and automatic printing mechanism.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 4,700,195
- Vertice: 14,100,585
Automatic IGBT Radiator Assembly Machine
Royalty Free License
Automatic IGBT Radiator Assembly Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)149 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- OBJ (.obj, .mtl)380 MB
- IGES (.ige, .igs, .iges)277 MB
- Parasolid (.x_t, .x_b)127 MB
- STEP (.stp)97.9 MB
- Stereolithography (.stl)224 MB
- KeyShot (.bip, .ksp)754 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 4,700,195
- Vertices 14,100,585
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2024-02-01
- Model ID#5065778
