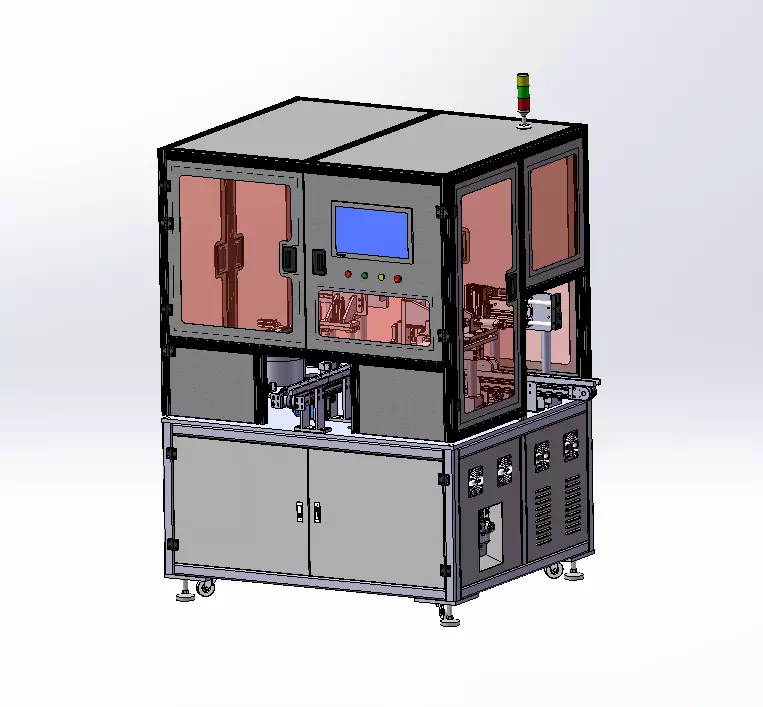

Automatic Assembly Machine for Valve Bodies and O-rings 3D model
Description
This document introduces an automatic assembly equipment for valve bodies and O - rings. The equipment operates with a four - station turntable, which is divided into a valve body feeding station, an O - ring feeding station, an O - ring assembly station, and a blanking station. The external dimensions of the equipment are LWH = 1400mm1200mm1800mm. The overall layout of the machine is reasonable, the mechanism design is compact, and the details in the drawings are well - refined. I hope you will like it.
Automatic Assembly Machine for Valve Bodies and O-rings
Royalty Free No Ai License
Automatic Assembly Machine for Valve Bodies and O-rings
Royalty Free No Ai License
3D Modeling
3D Model formats
Format limitations
- SolidWorks 2016 (.sldprt, .sldasm, .slddrw)132 MB
- IGES (.ige, .igs, .iges)211 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-03-09
- Model ID#5929951
