Automatic Cartons Packaging and Palletizing Machine 3D model

Automatic Cartons Packaging and Palletizing Machine

Introduction

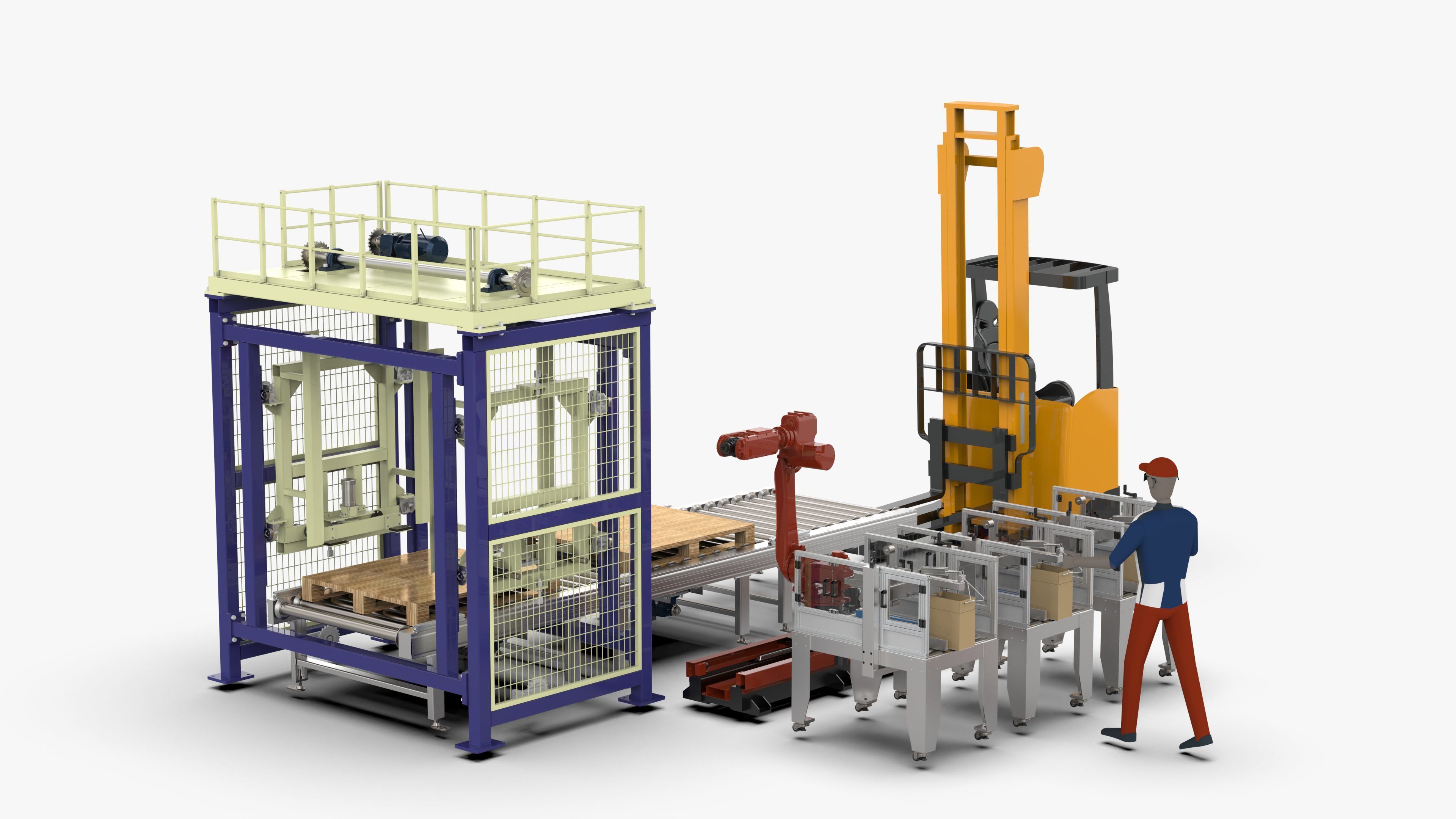

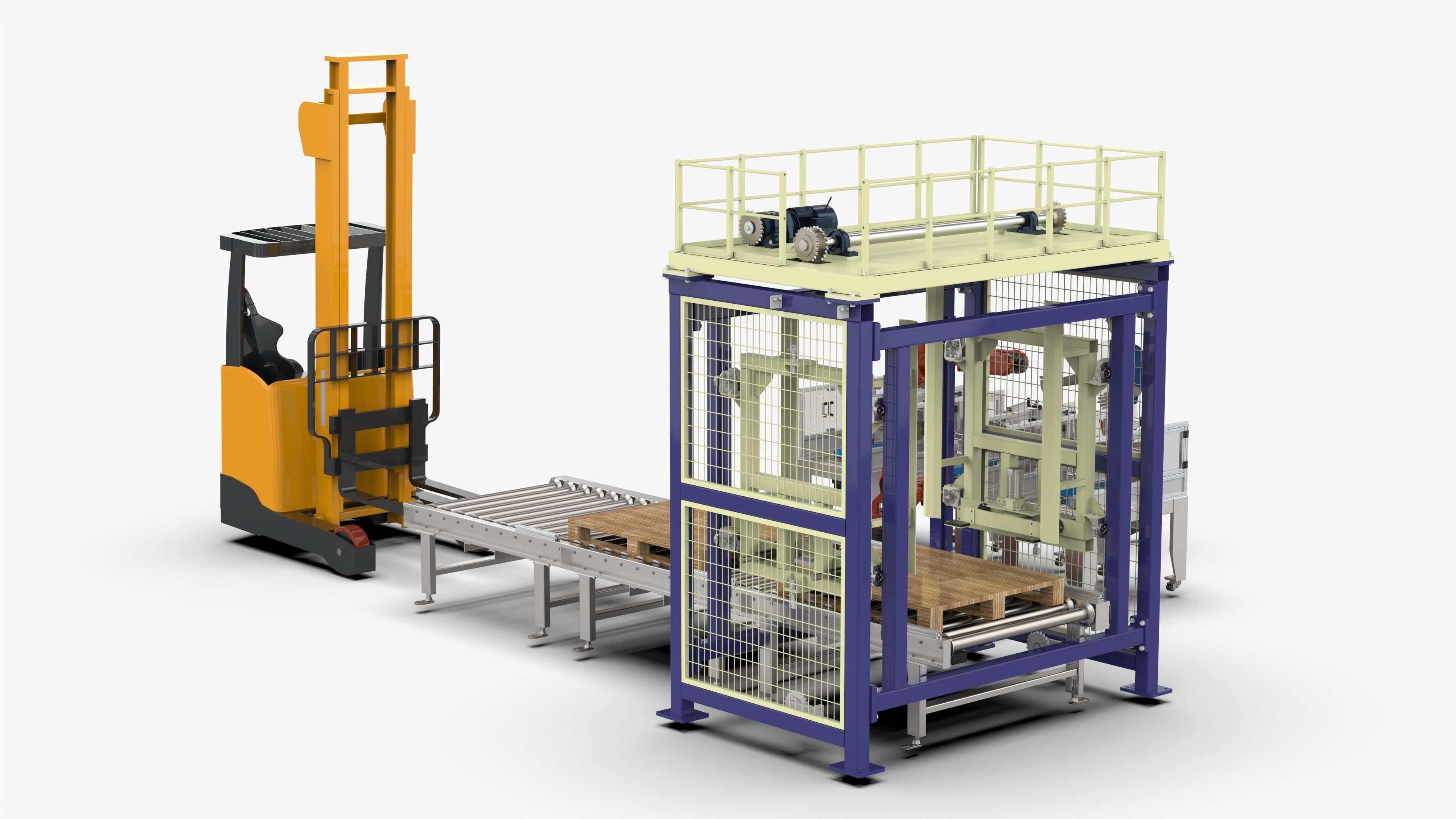

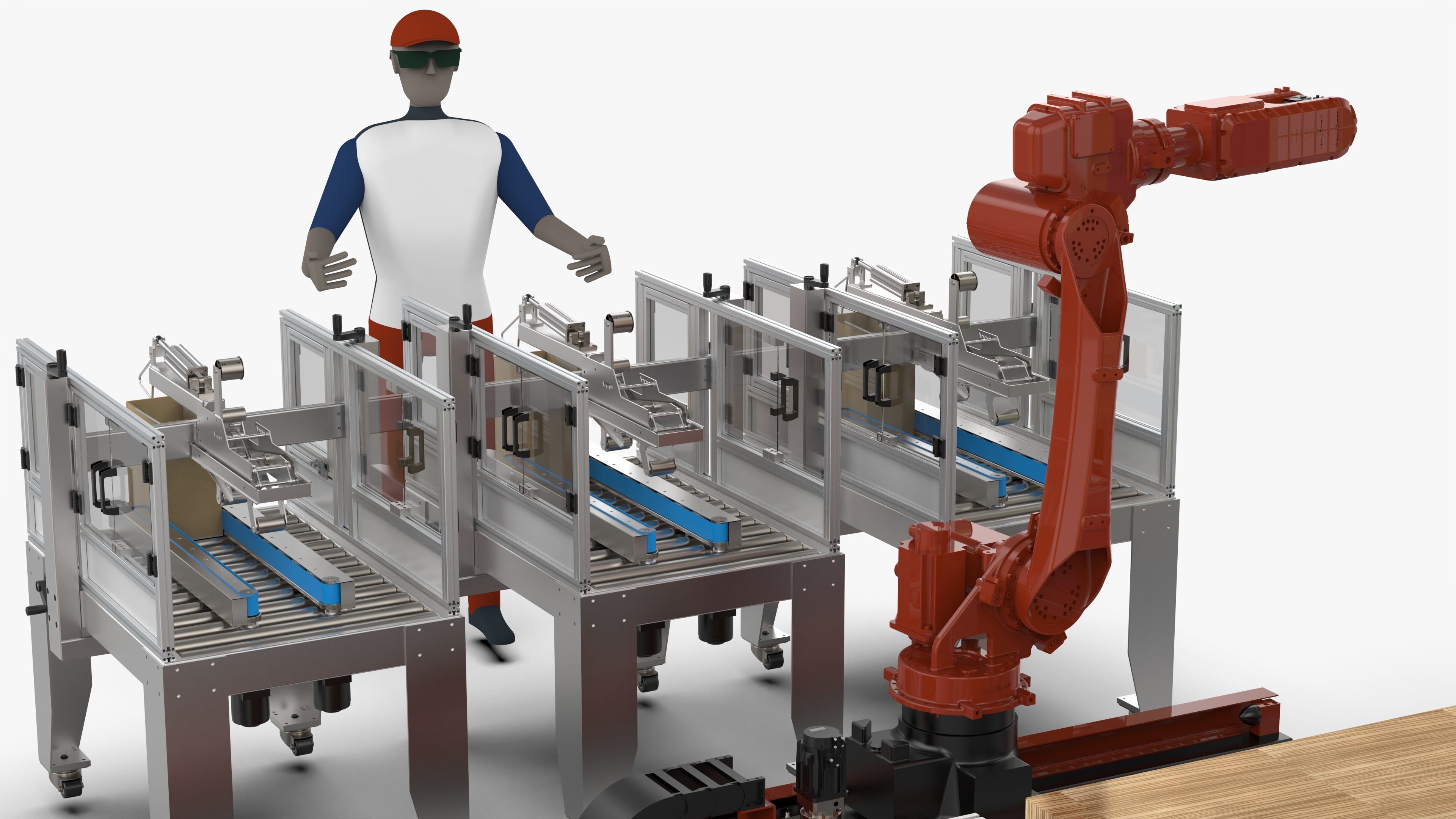

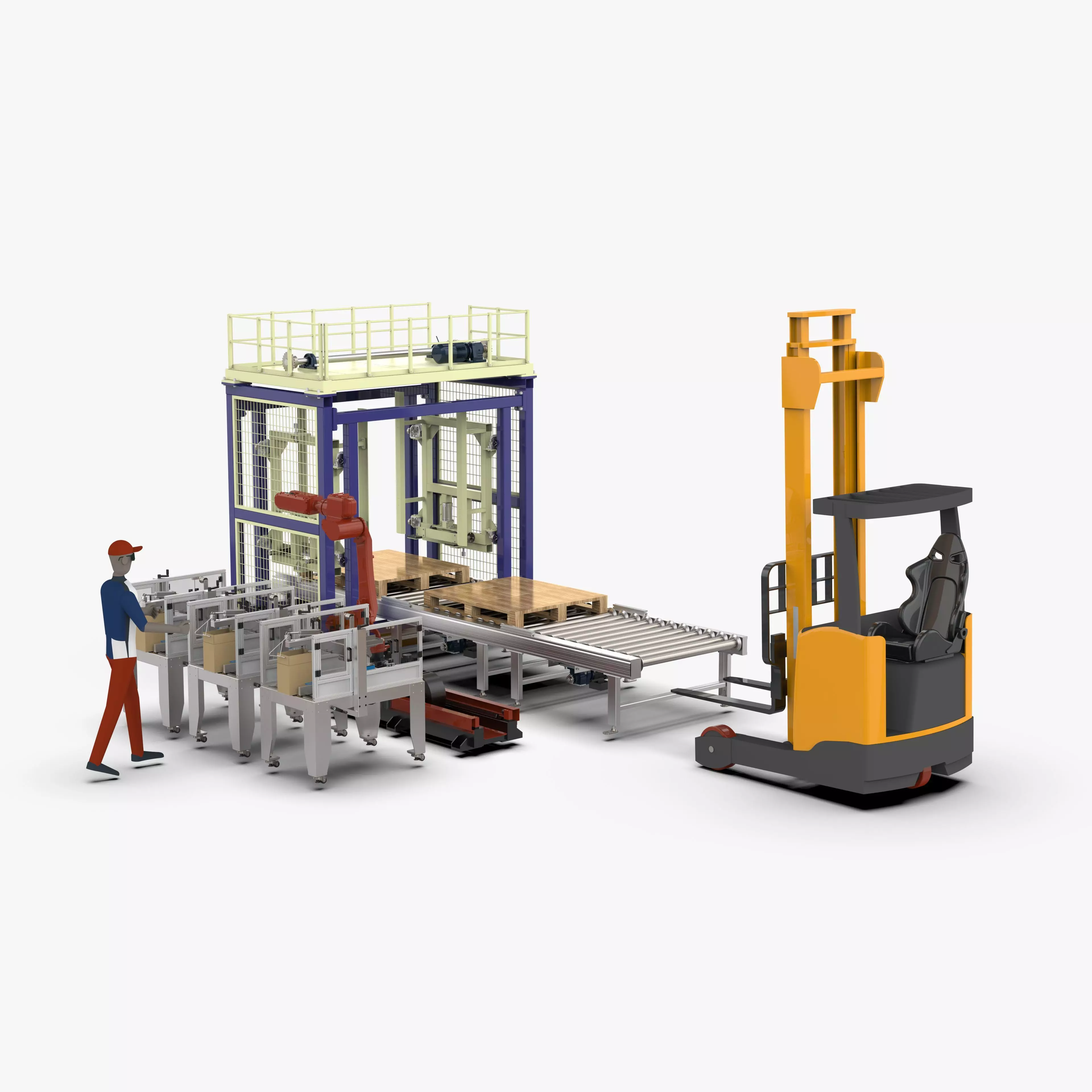

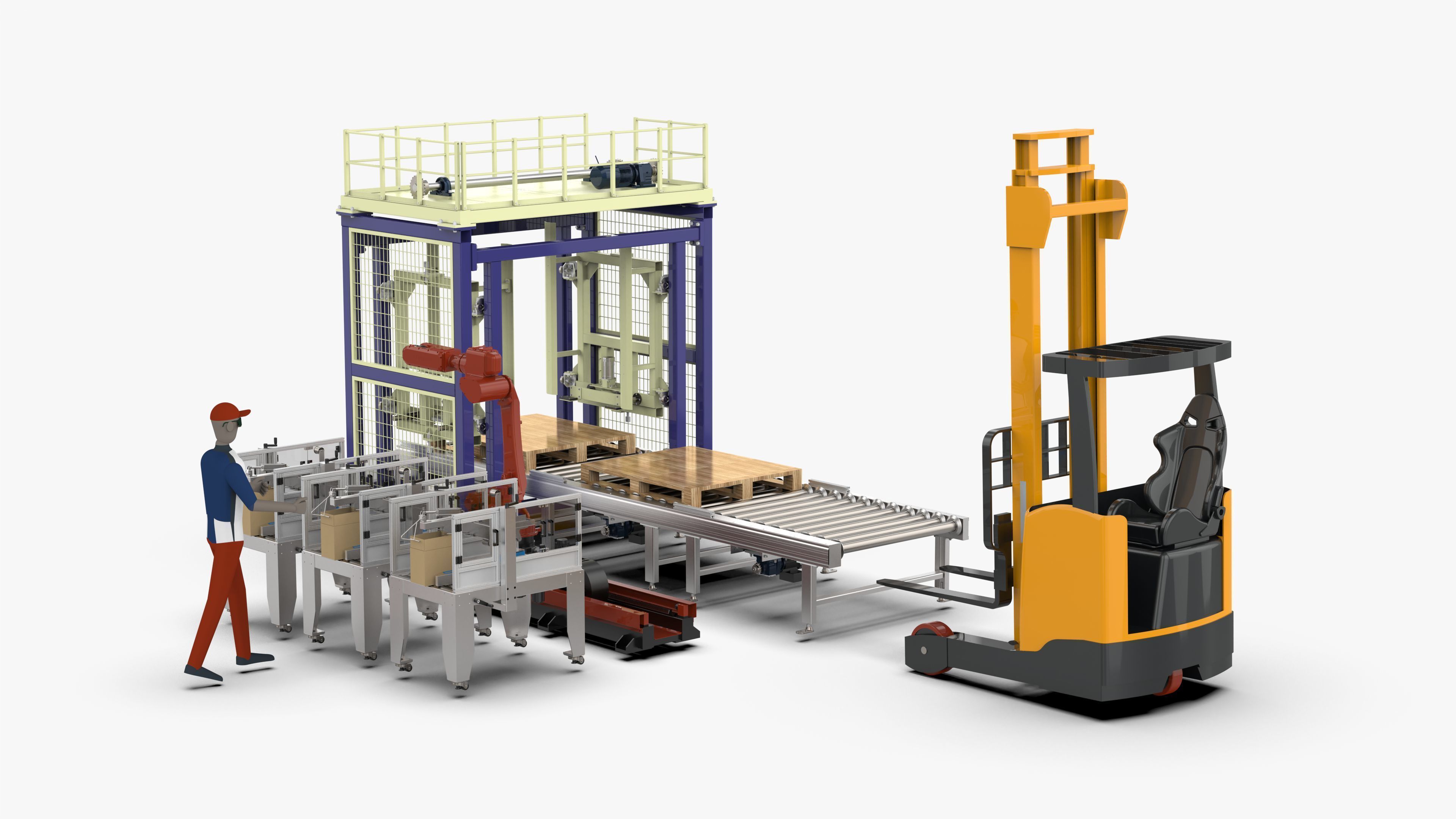

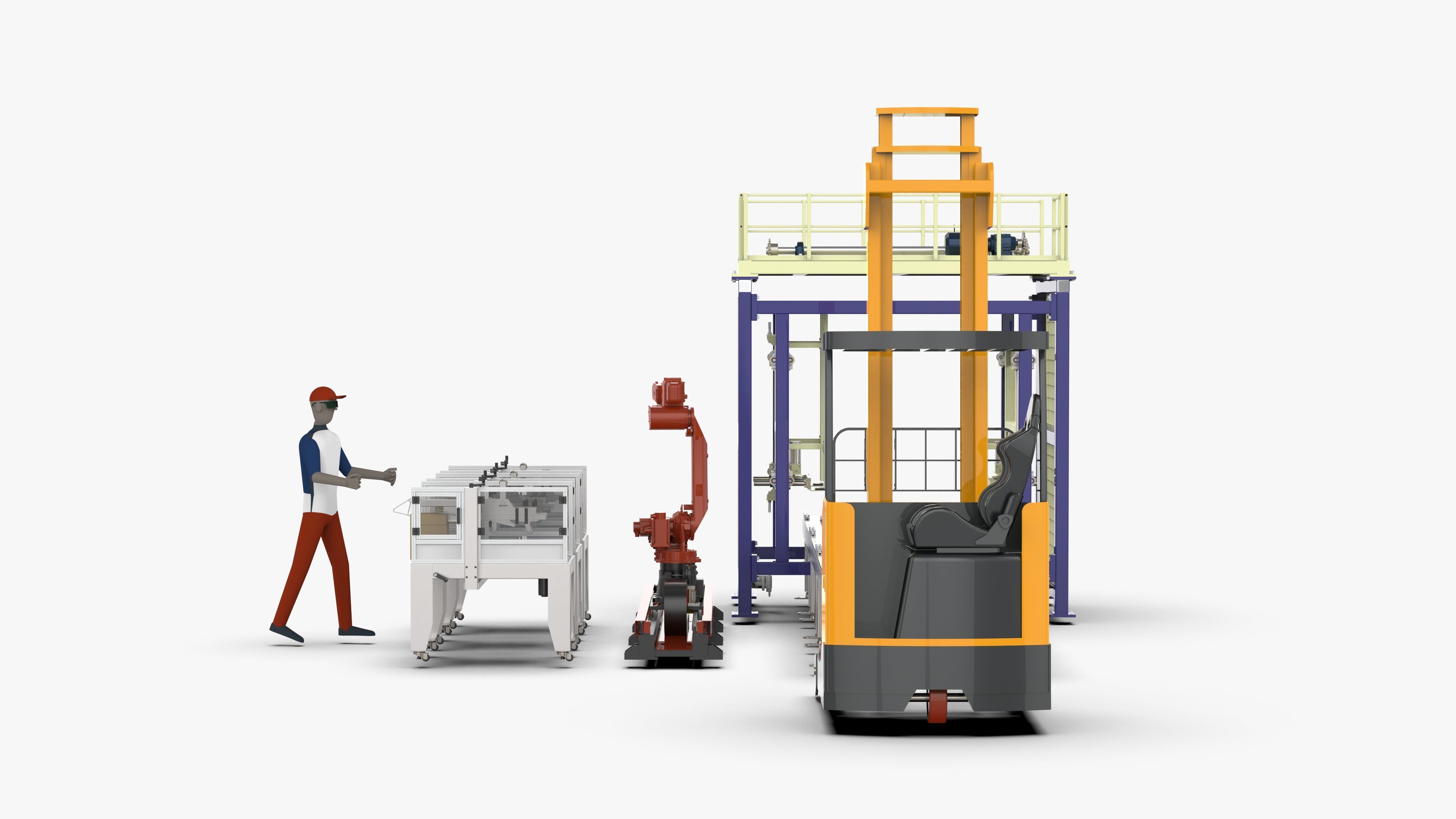

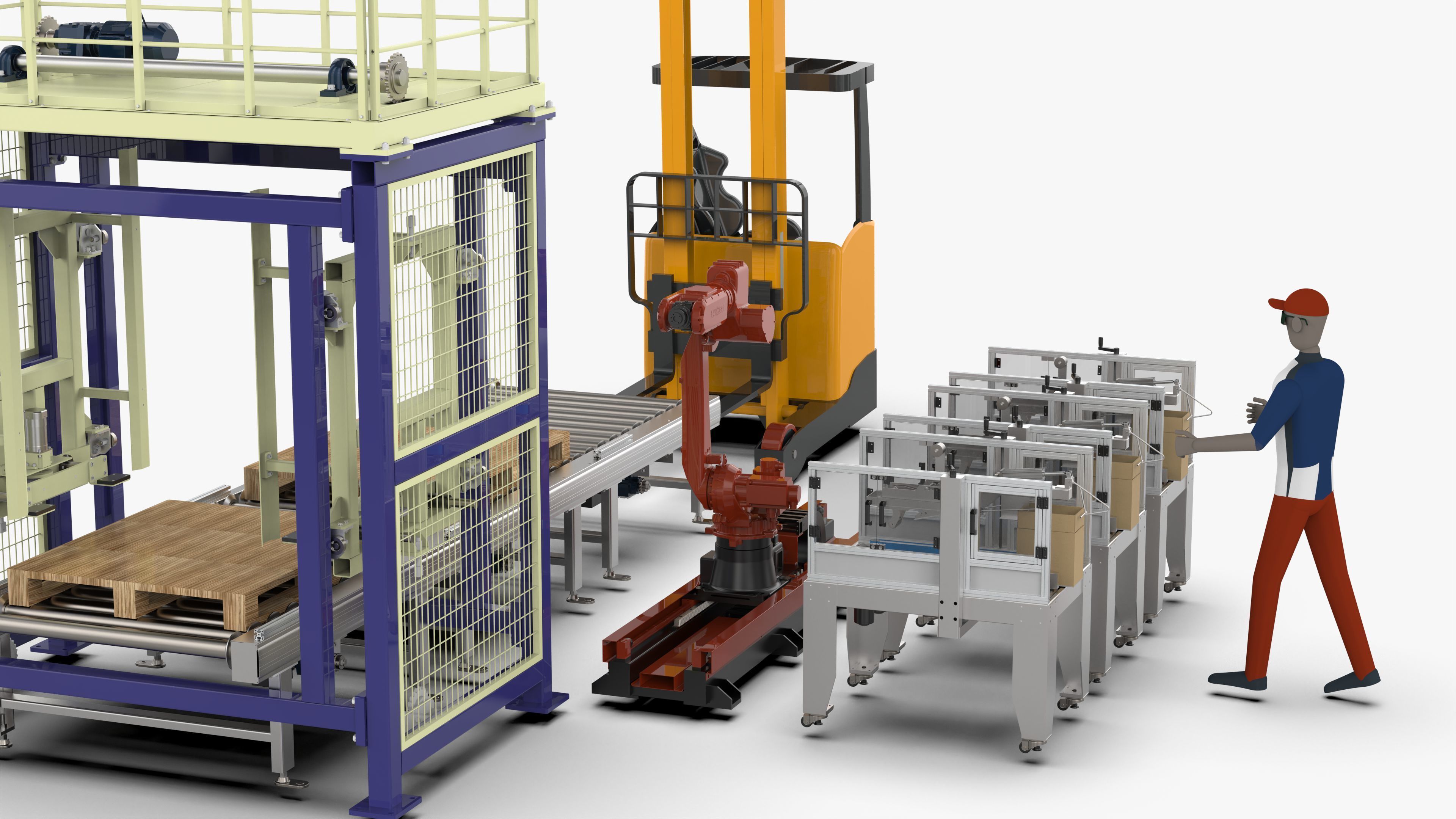

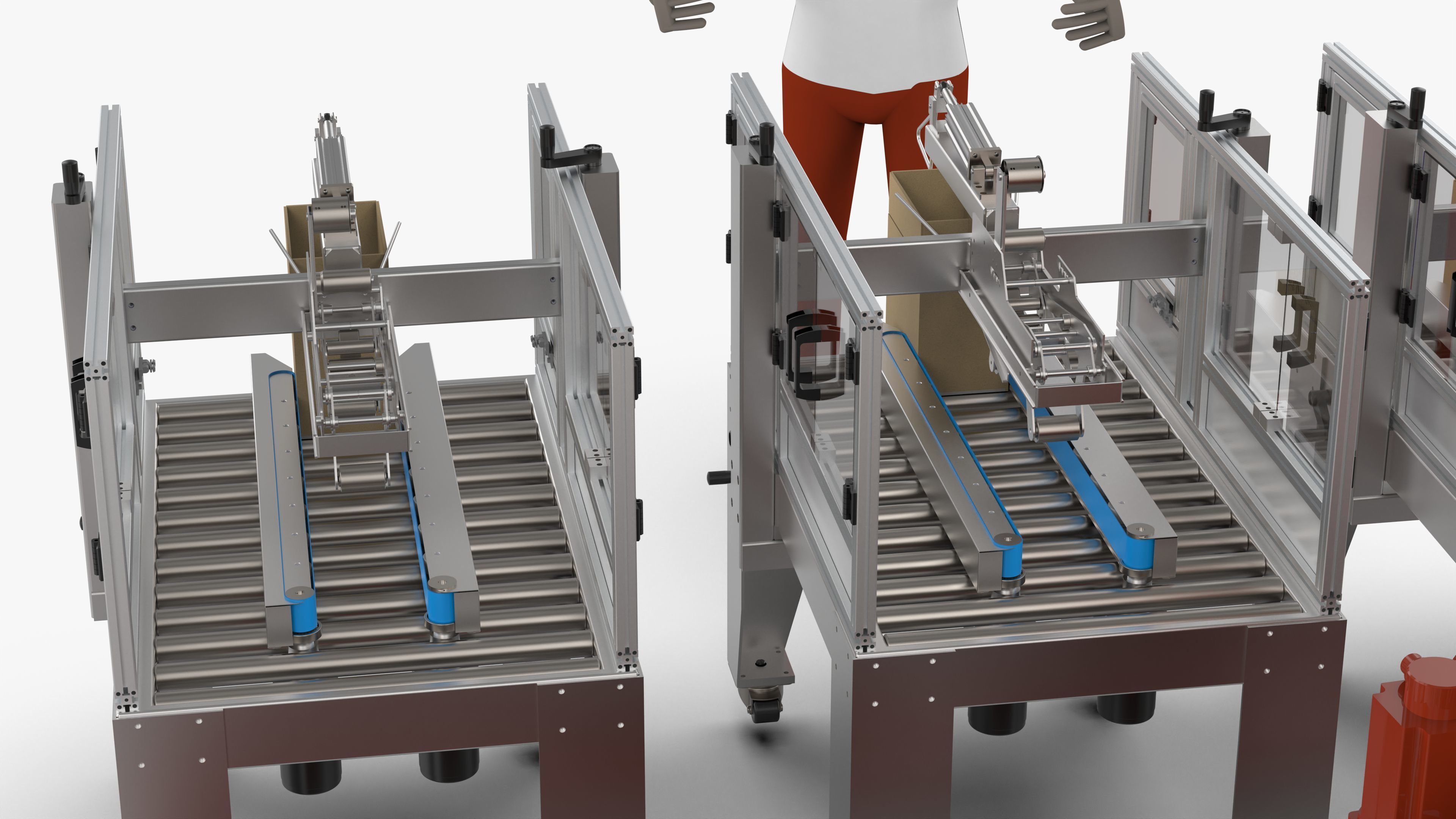

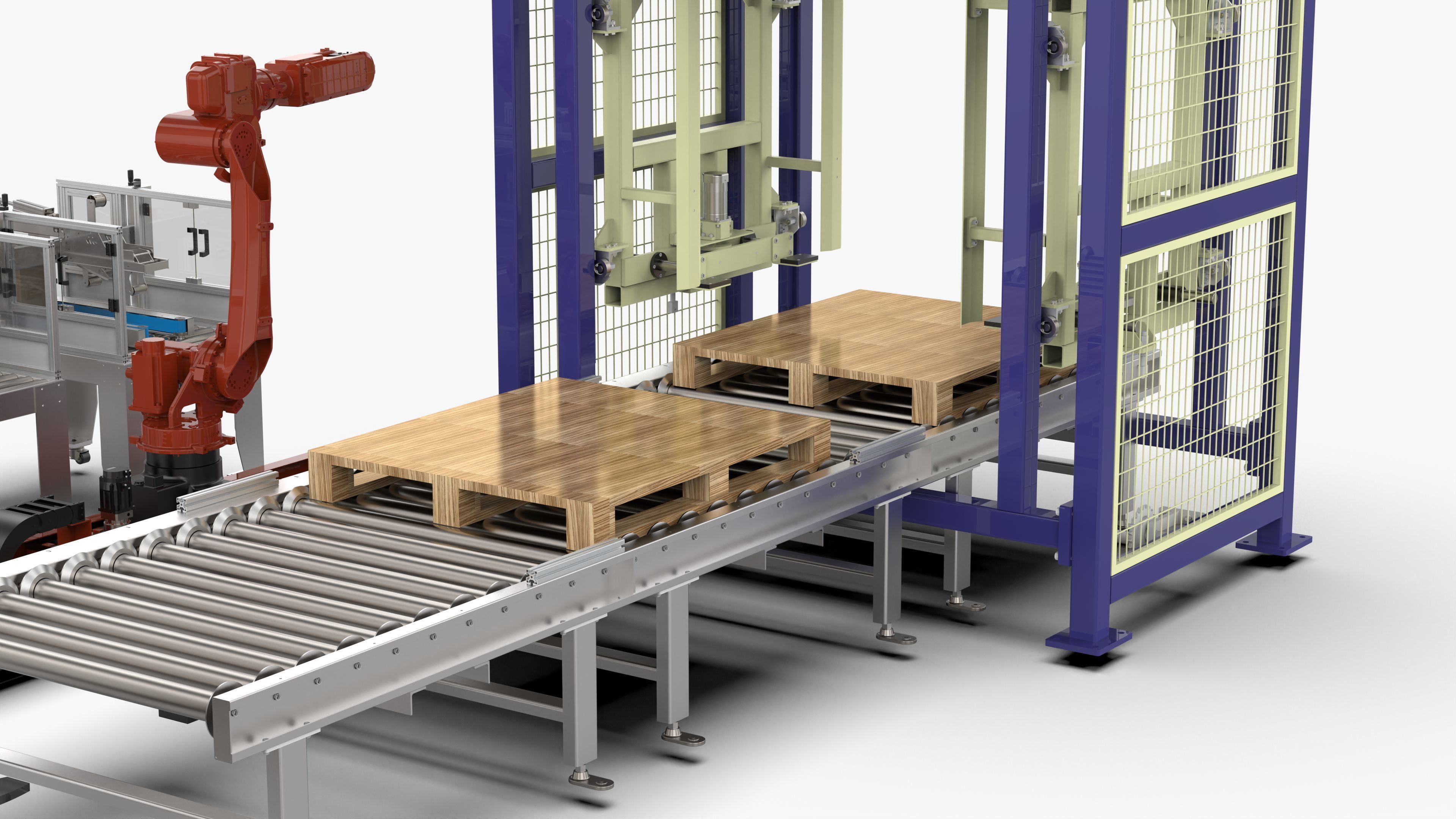

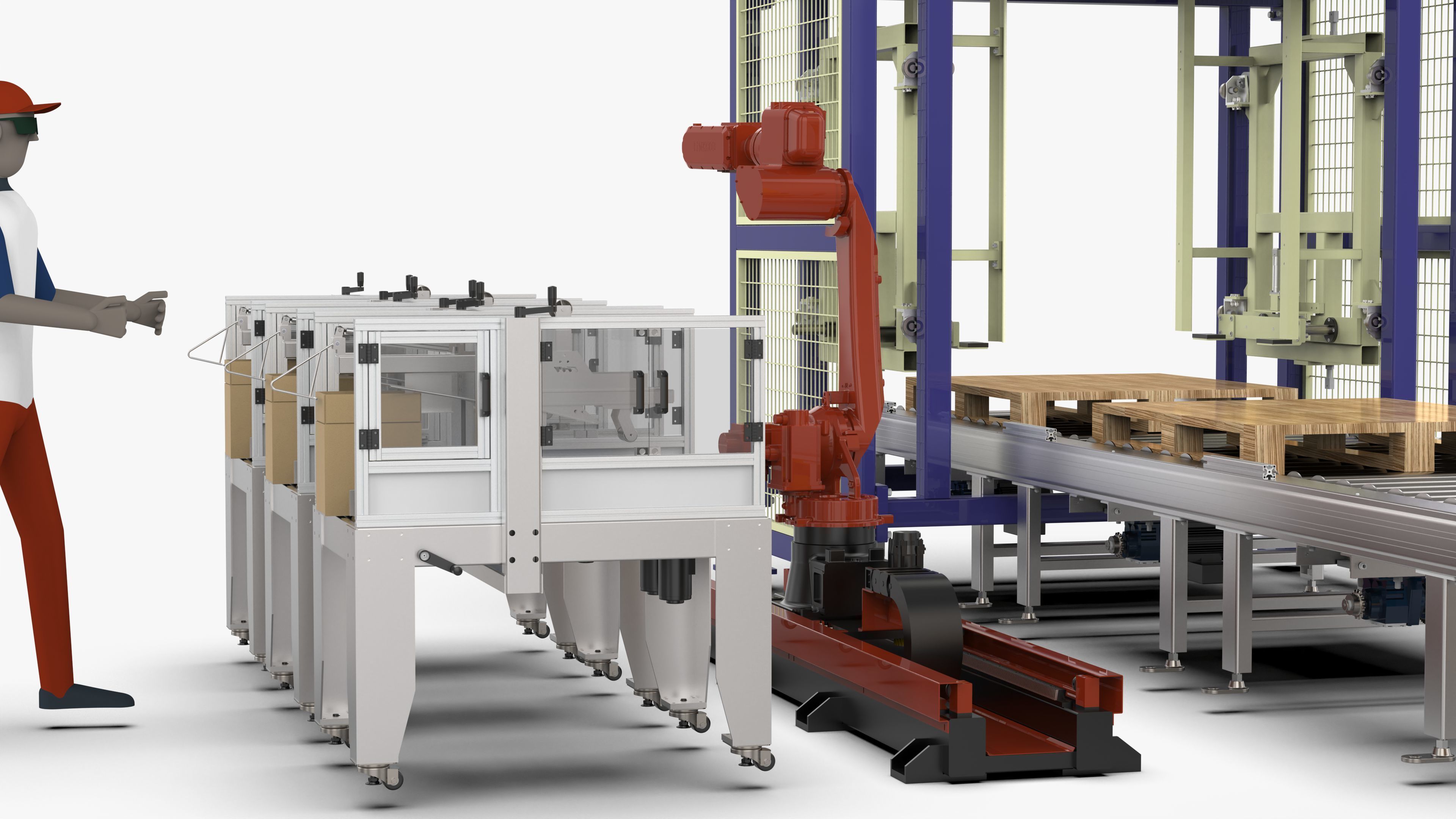

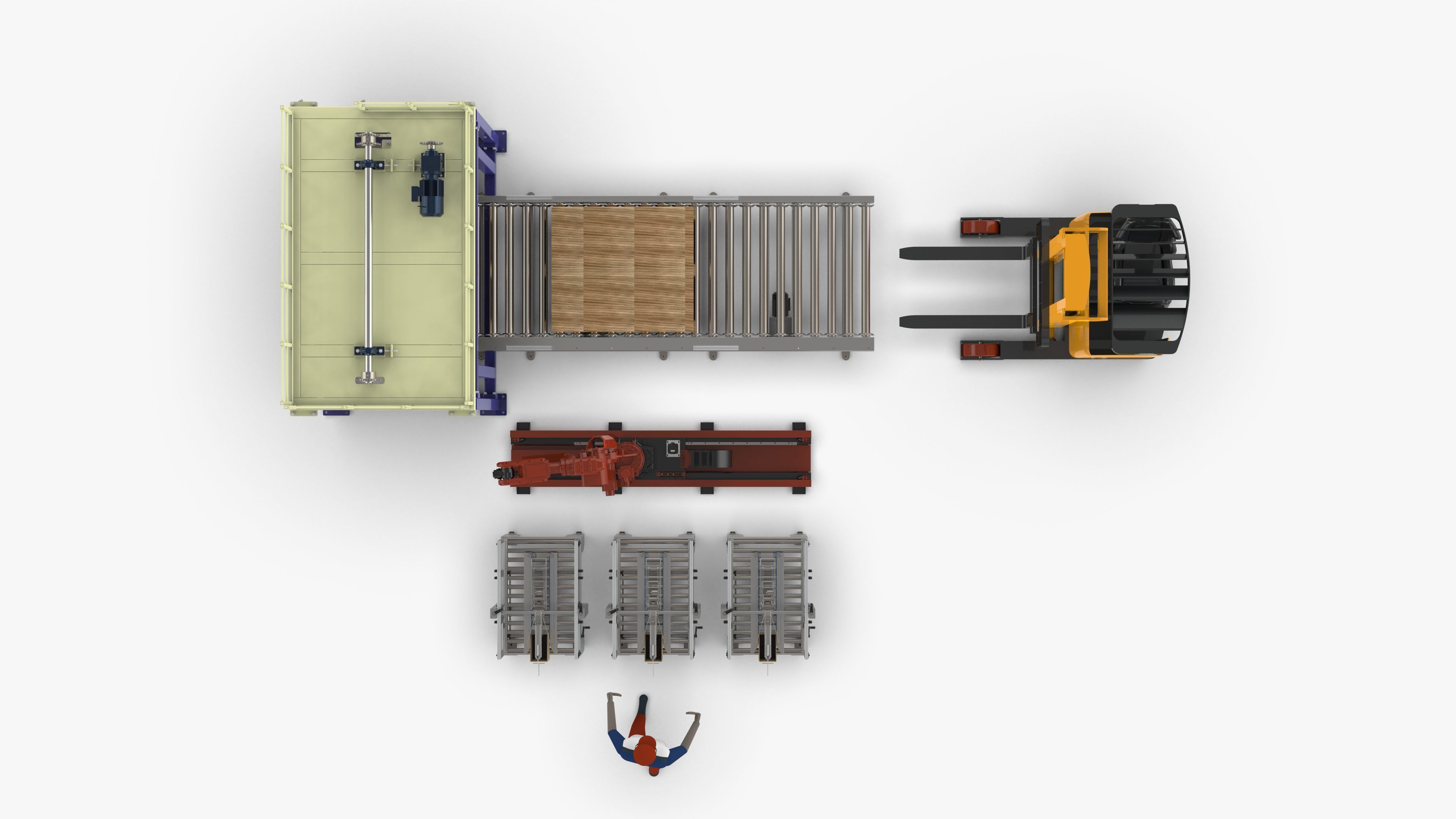

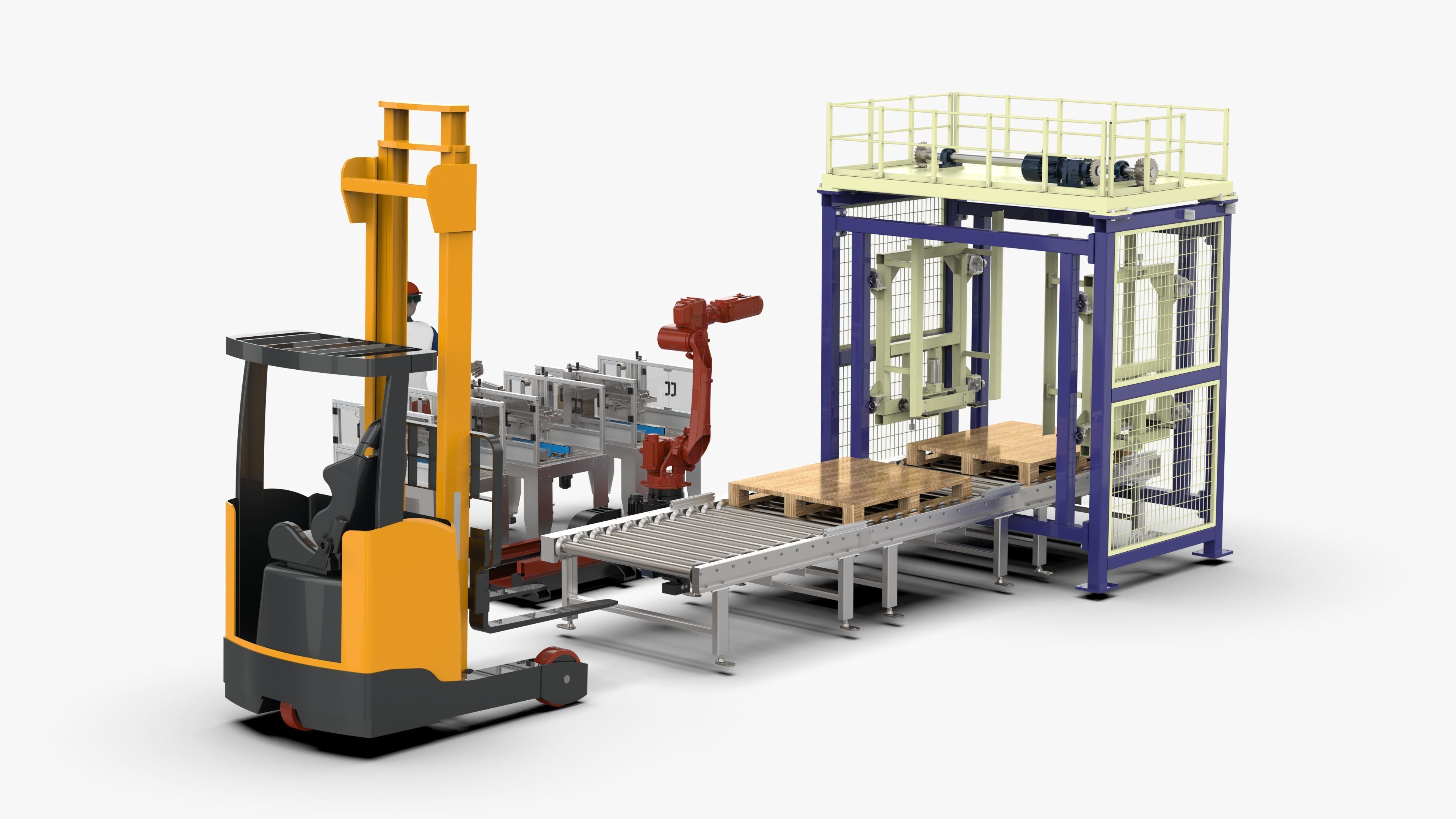

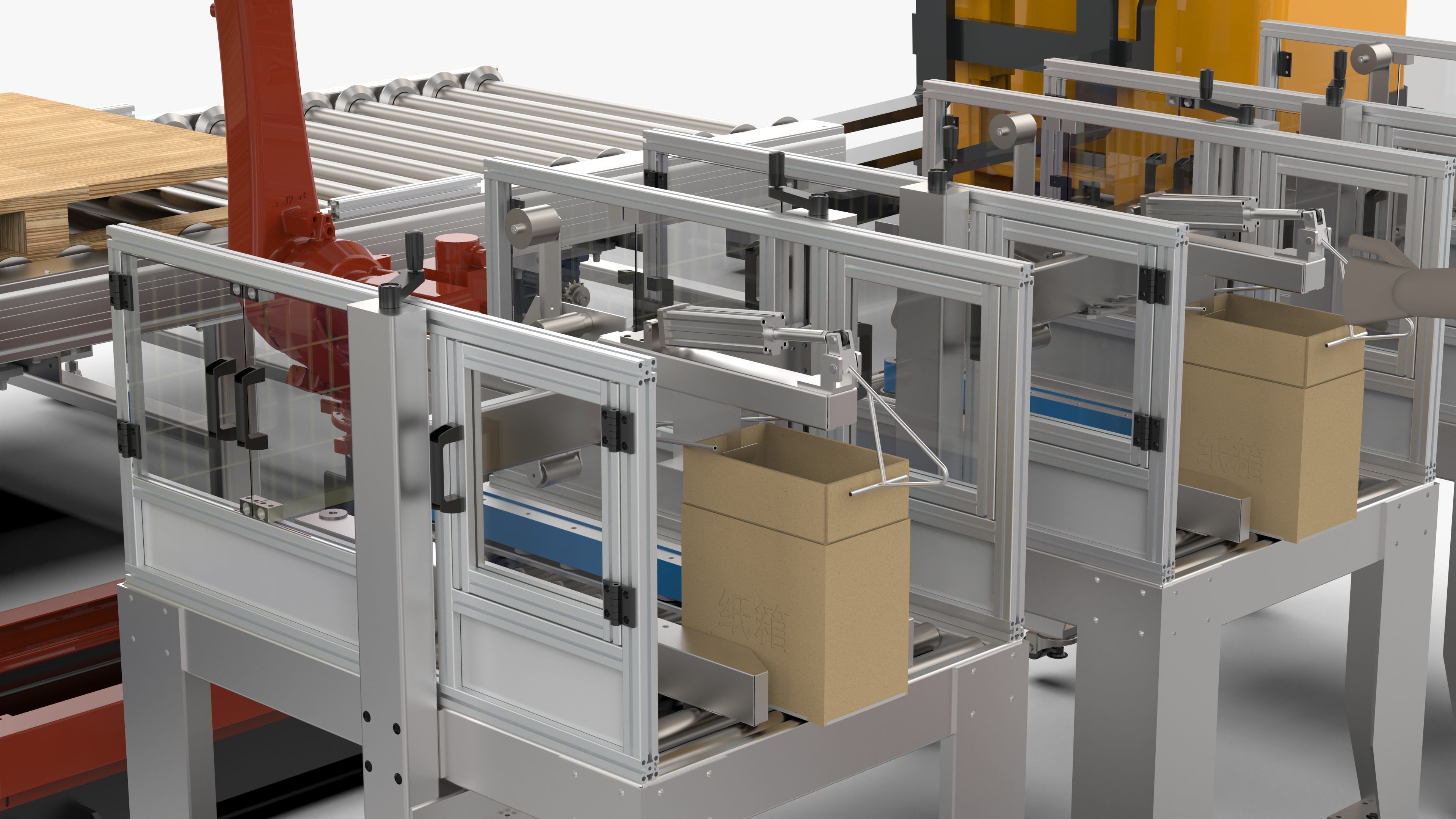

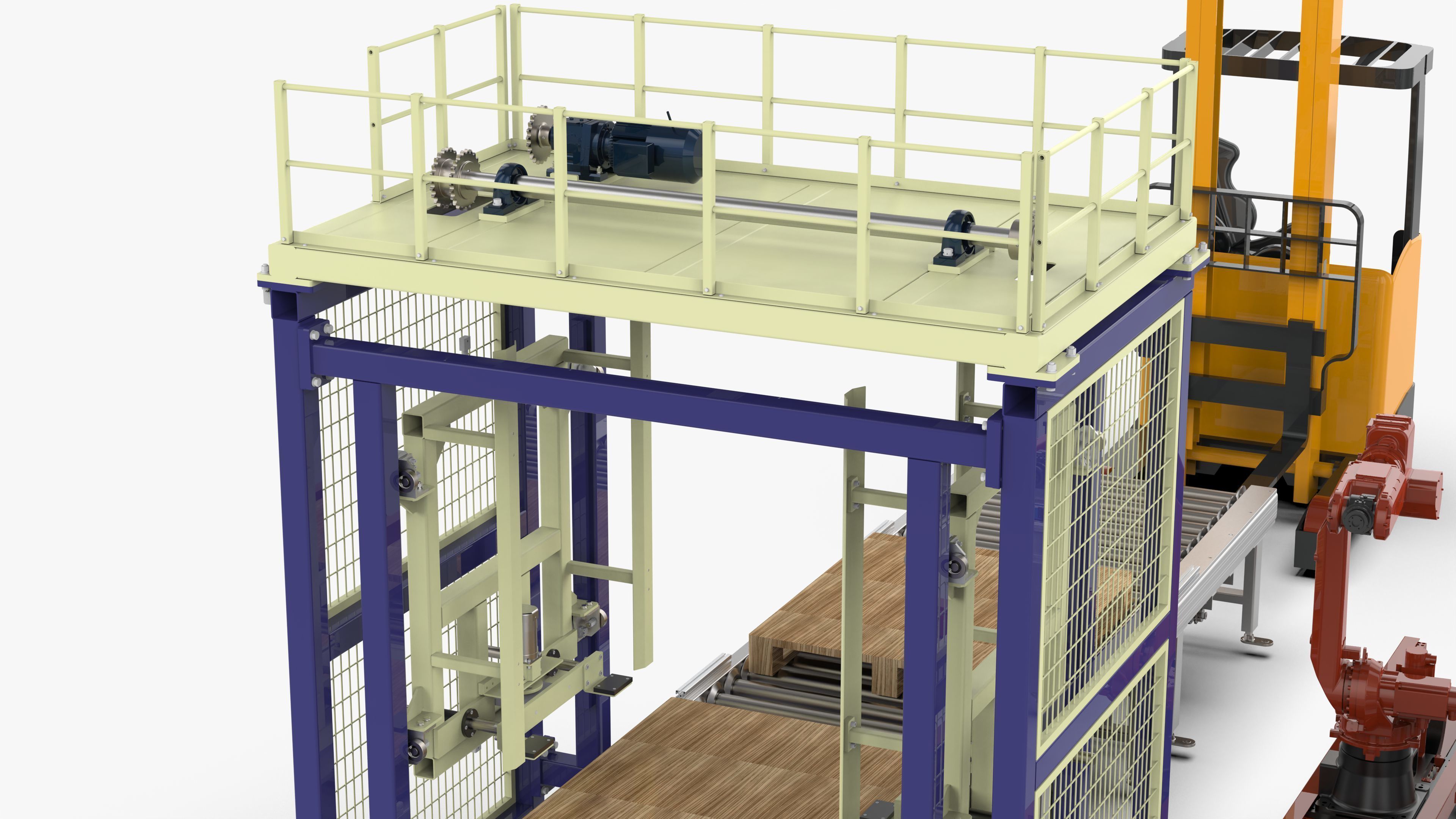

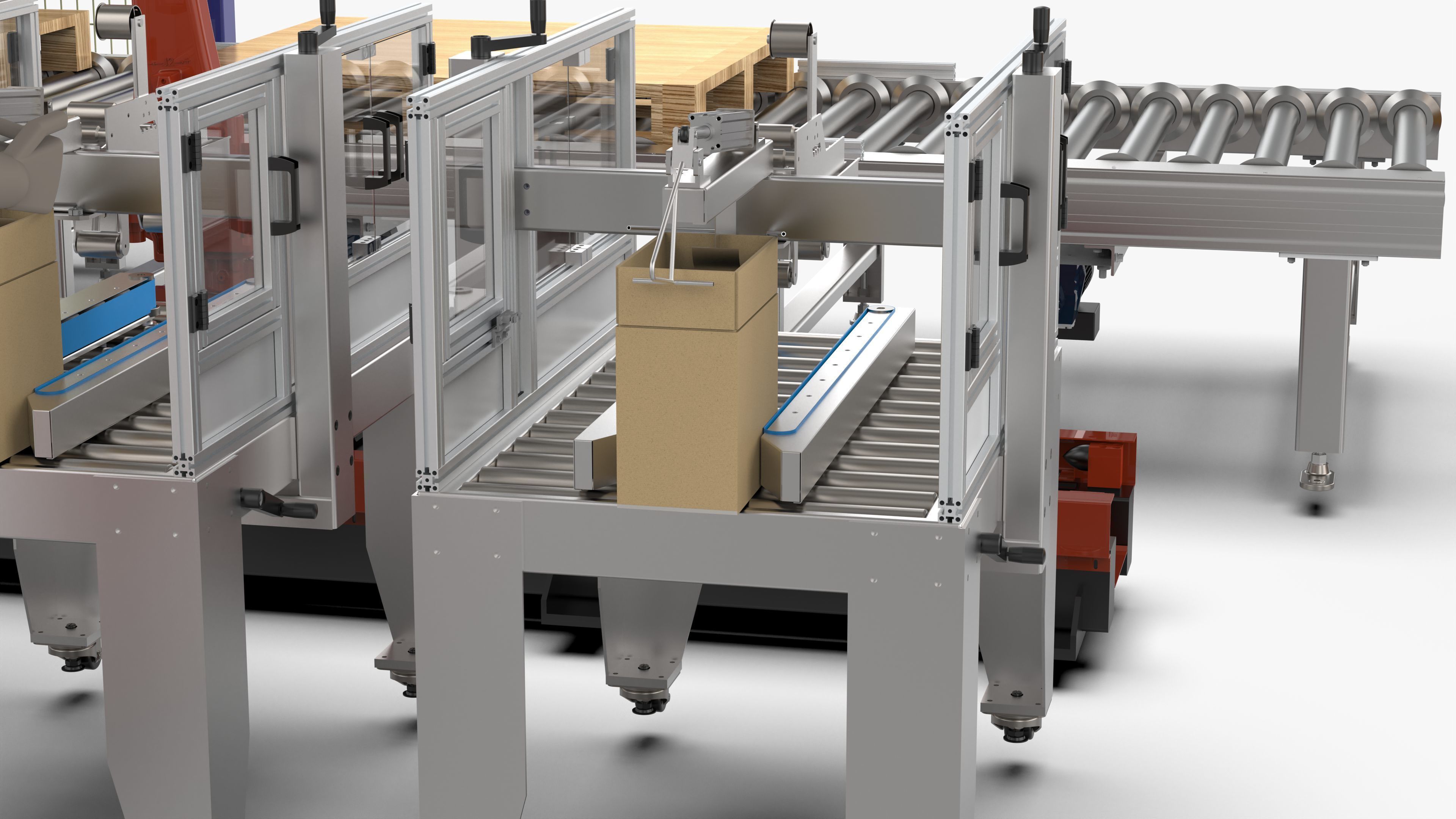

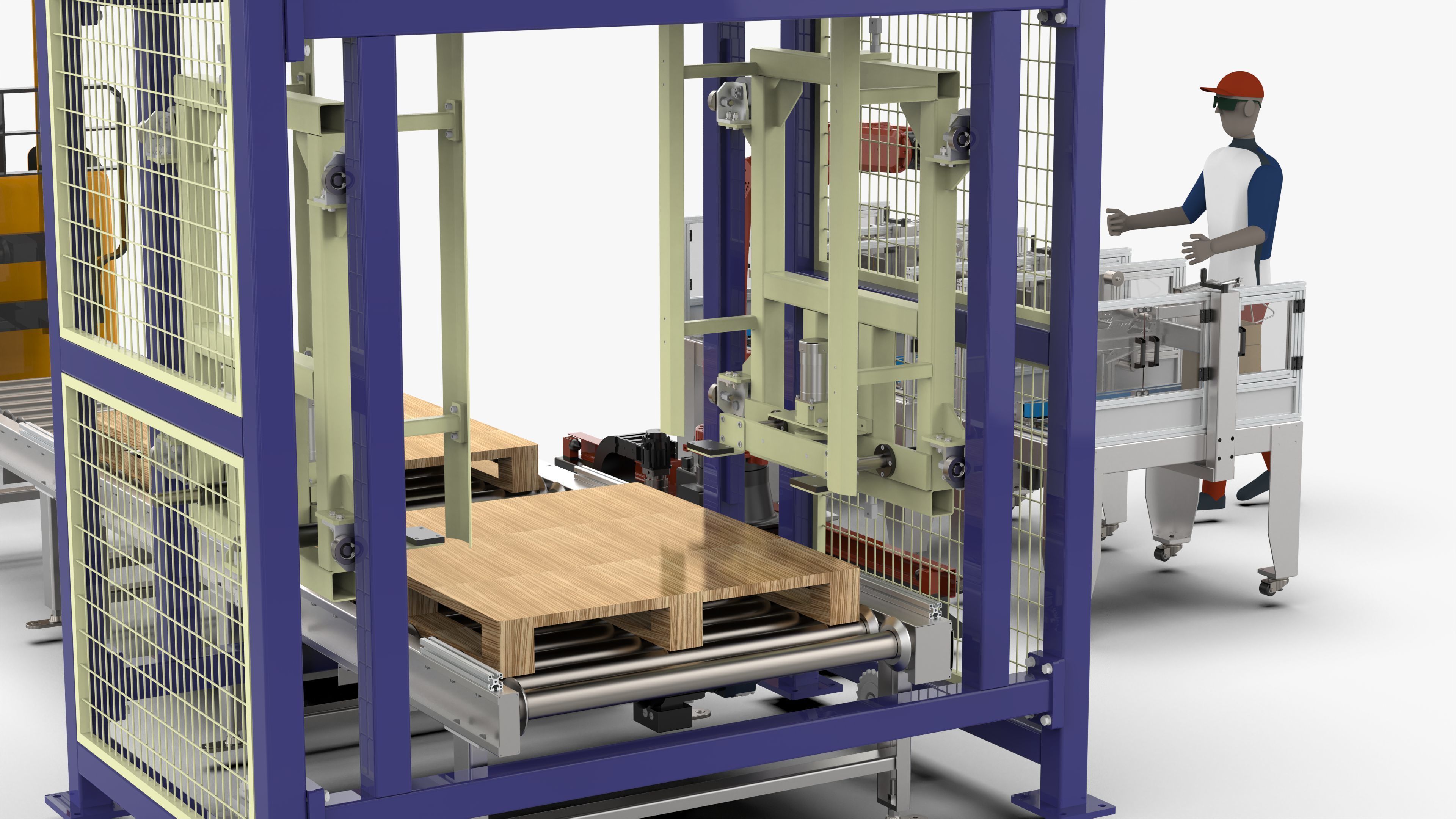

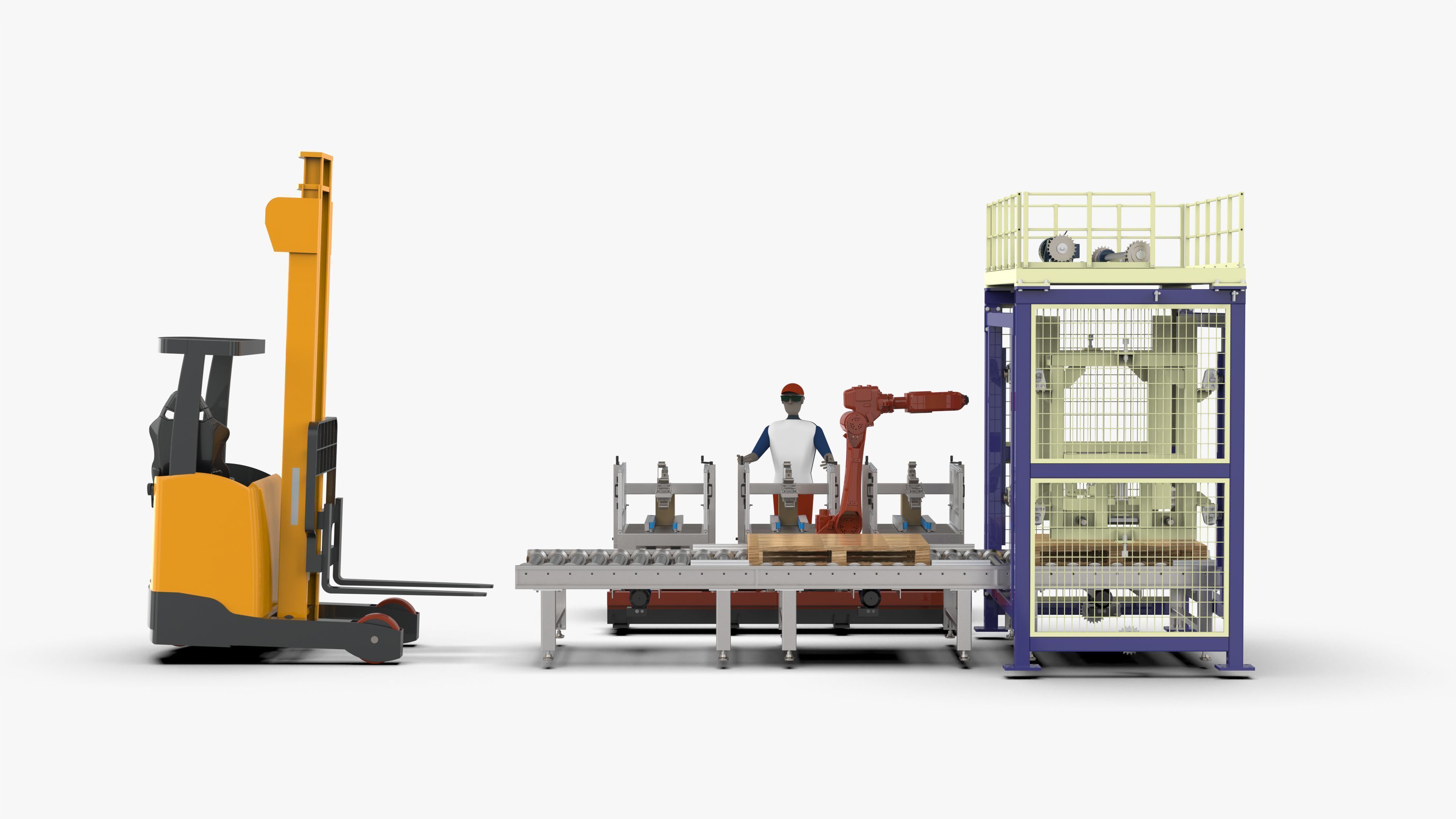

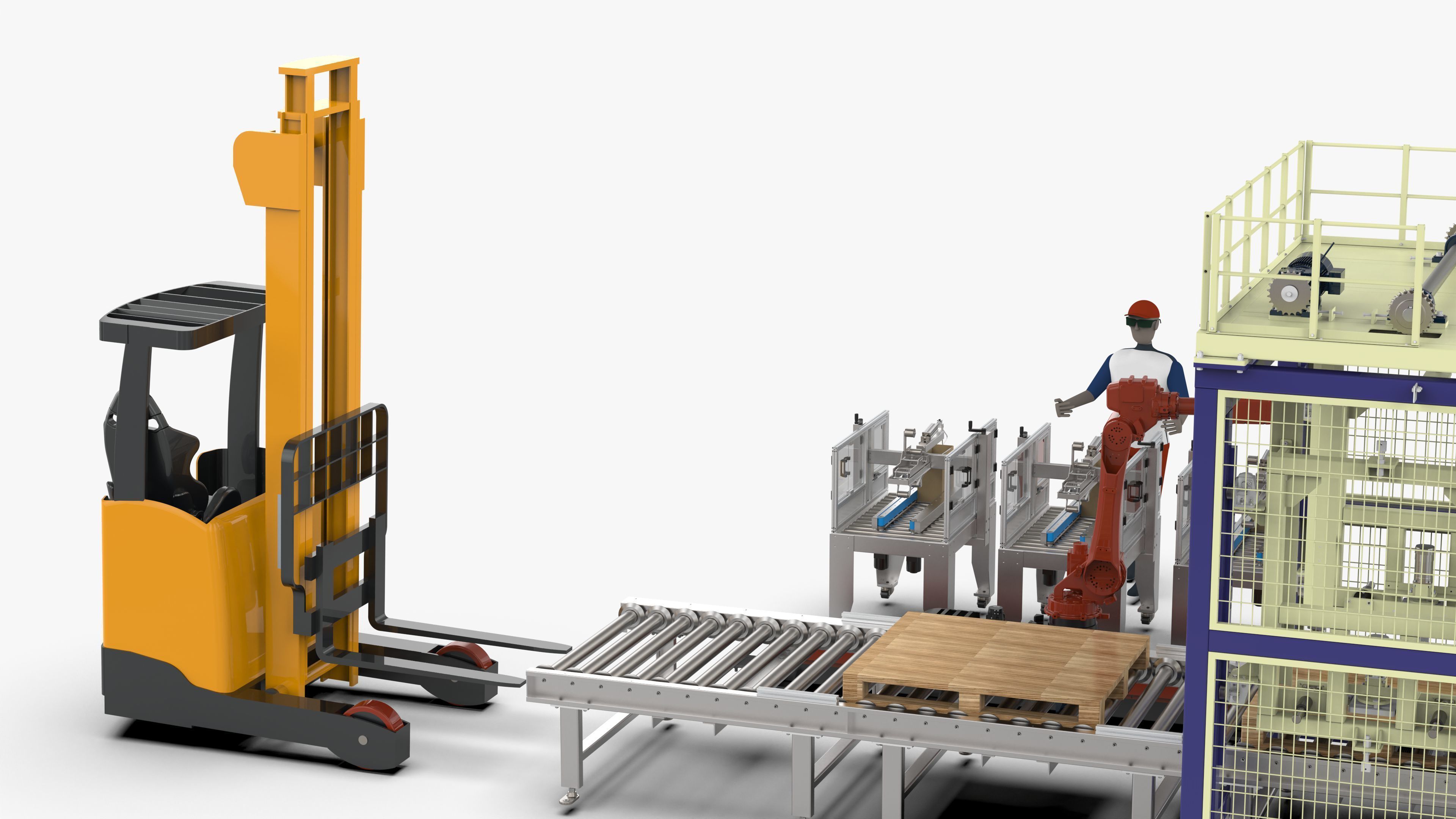

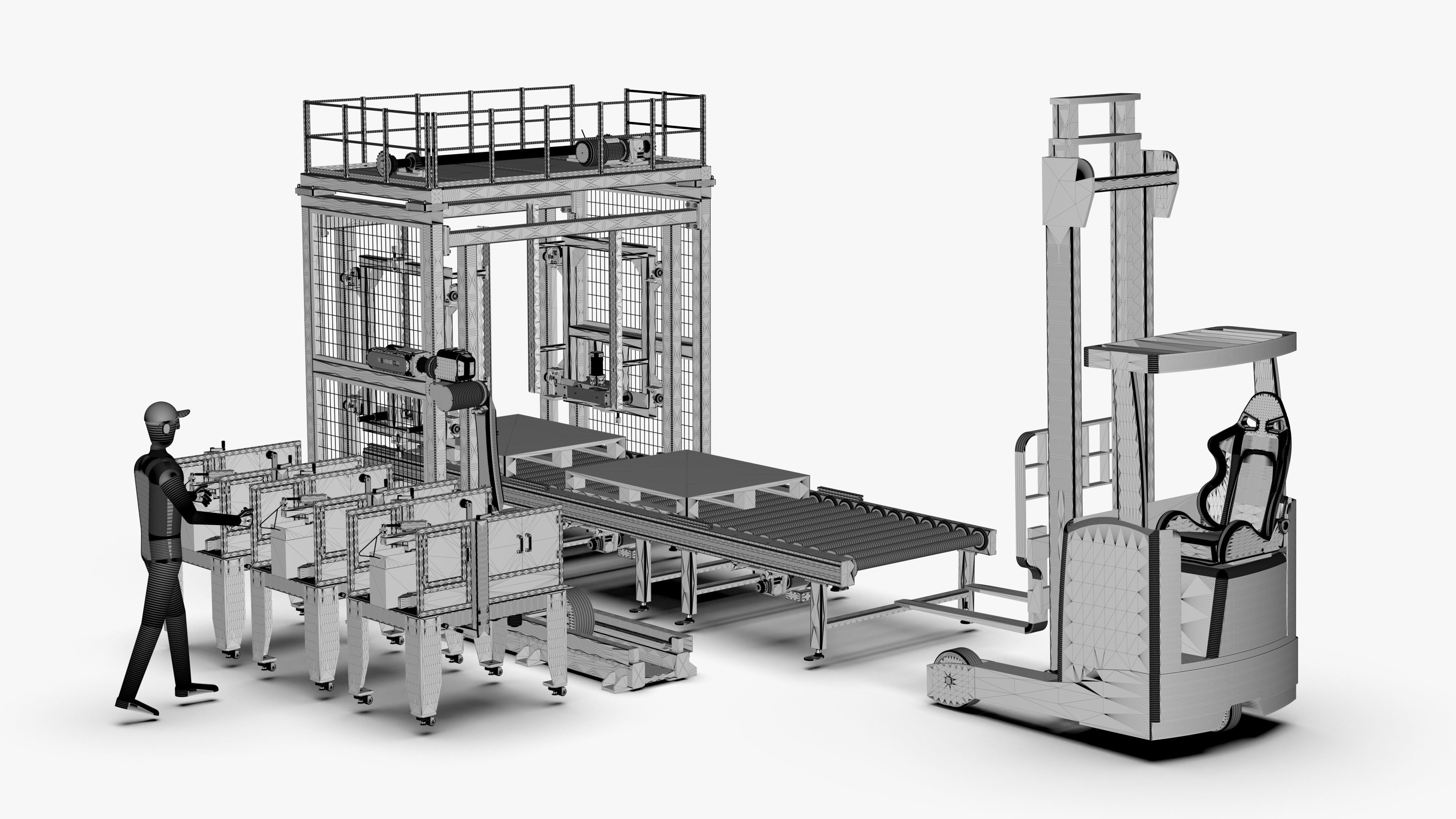

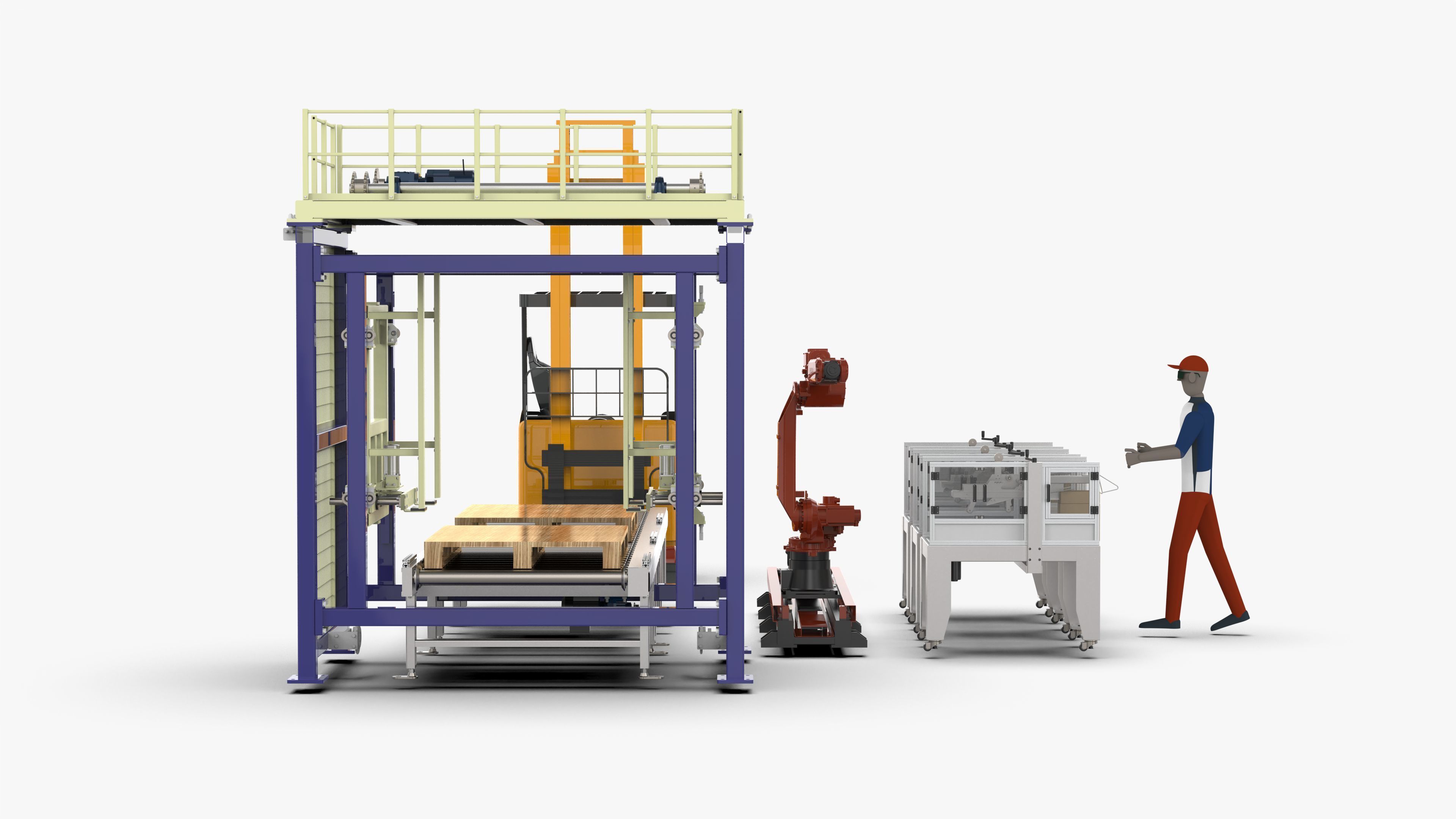

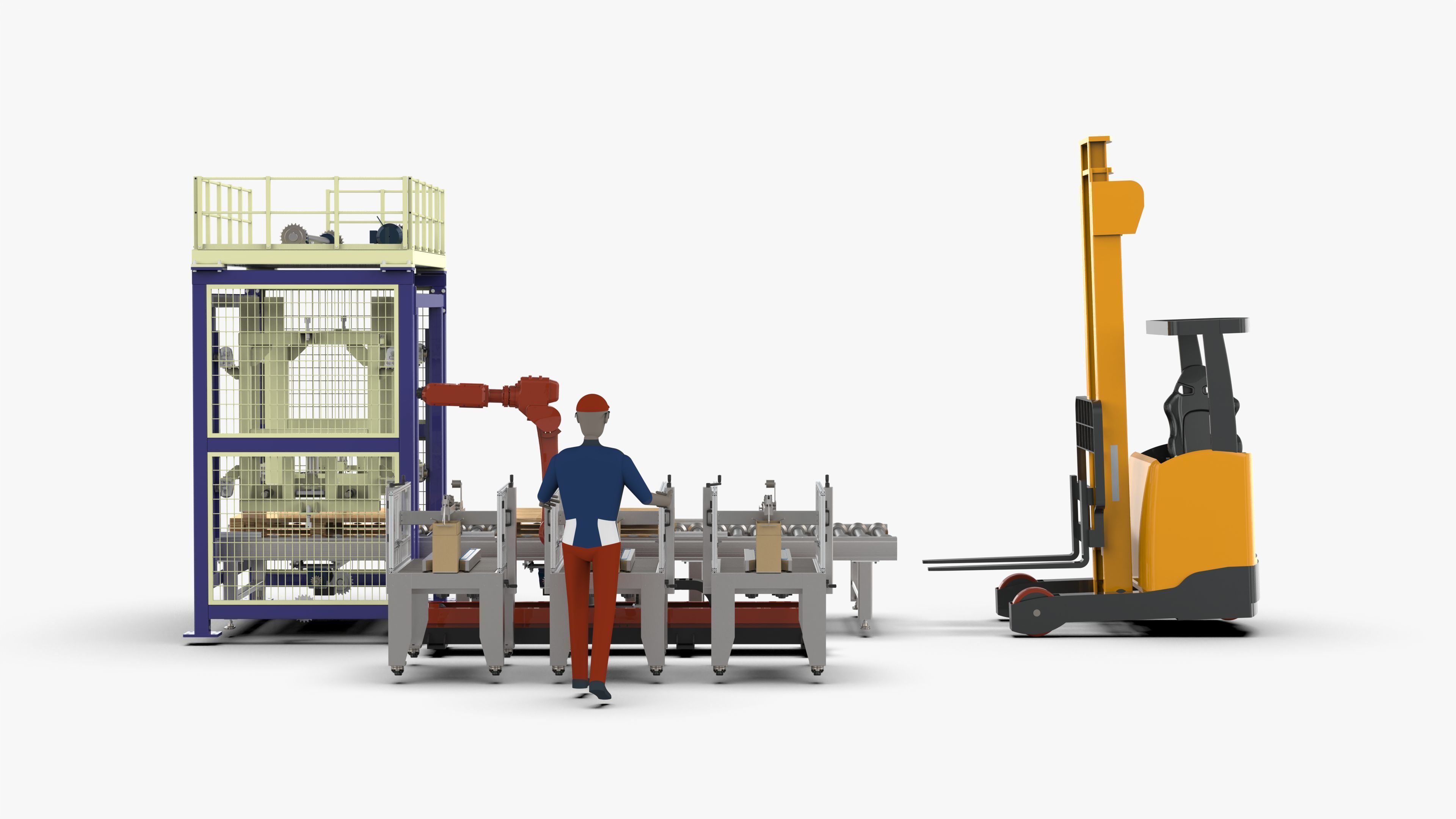

The drawing shows the carton automatic packaging and palletizing production line. The cartons are manually put into the sealing machine, and the sealing machine packs them automatically. After the completion, the robot automatically grabs and places it on the pallet, and the pallet is discharged from the roller line by the pallet warehouse on one side. After the packaging and palletizing is completed, the manual forklift takes the entire pallet away.

File Formats

• SolidWorks 2020 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 6,433,493
• Vertice: 19,300,479
