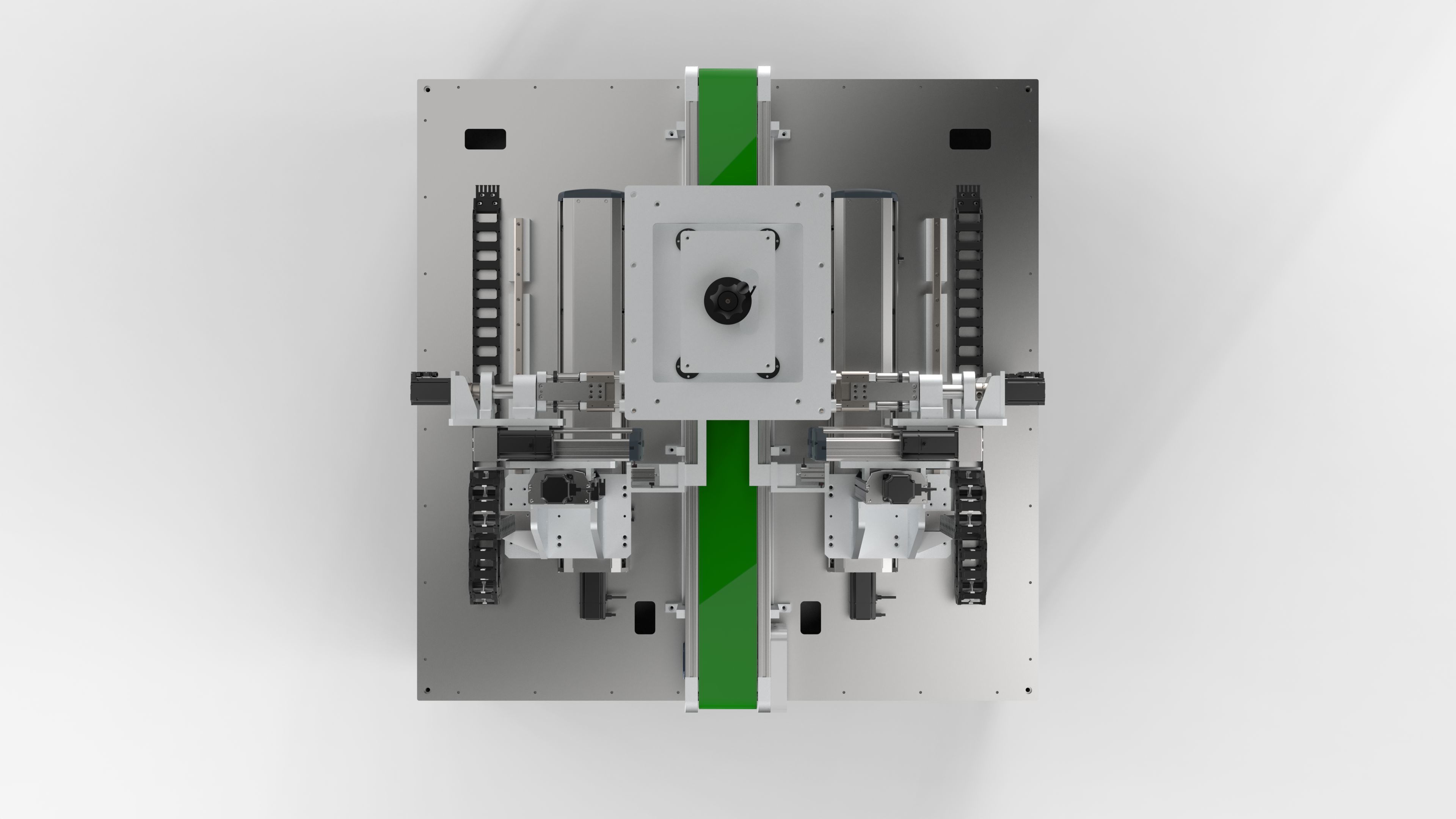

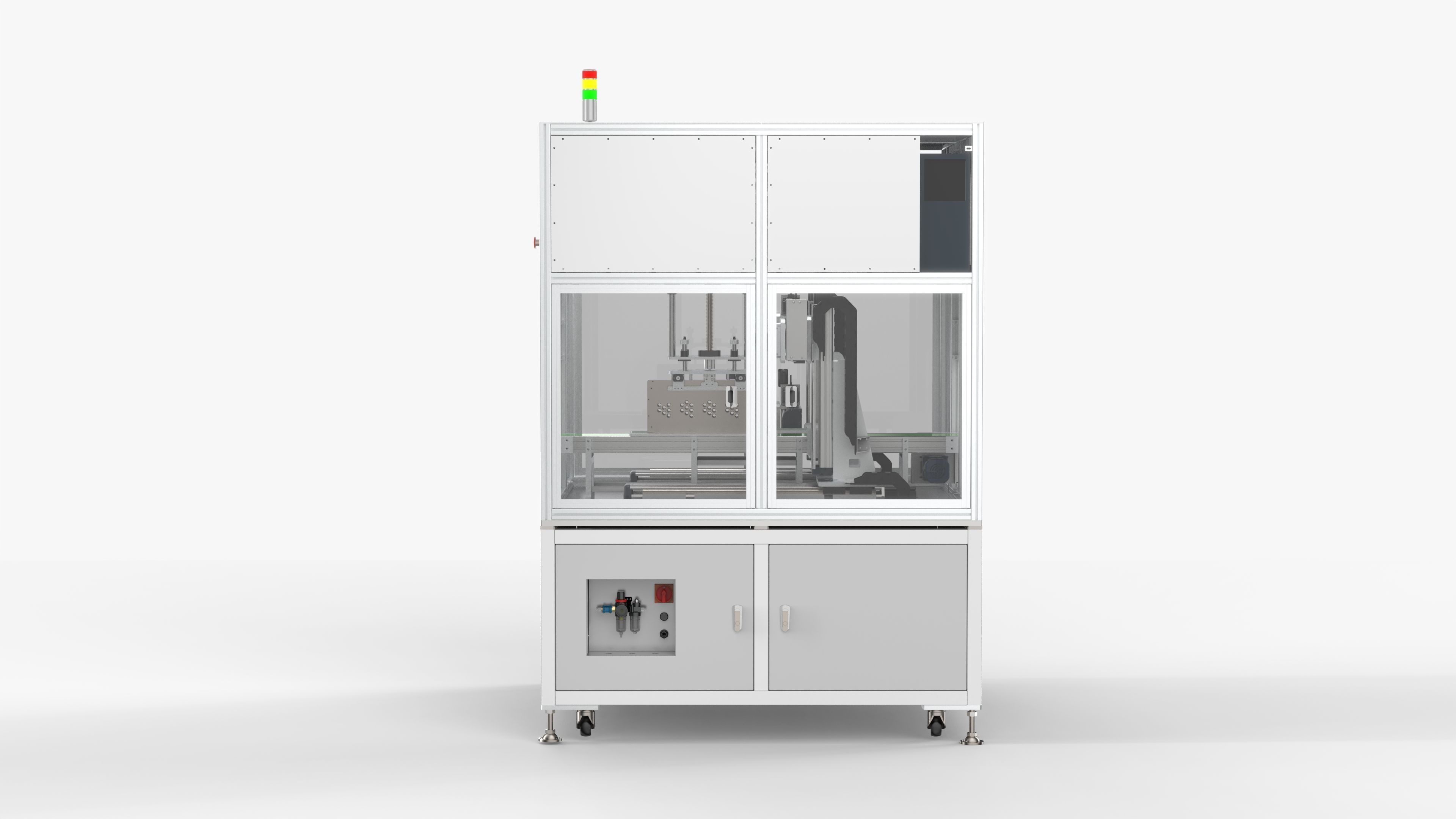

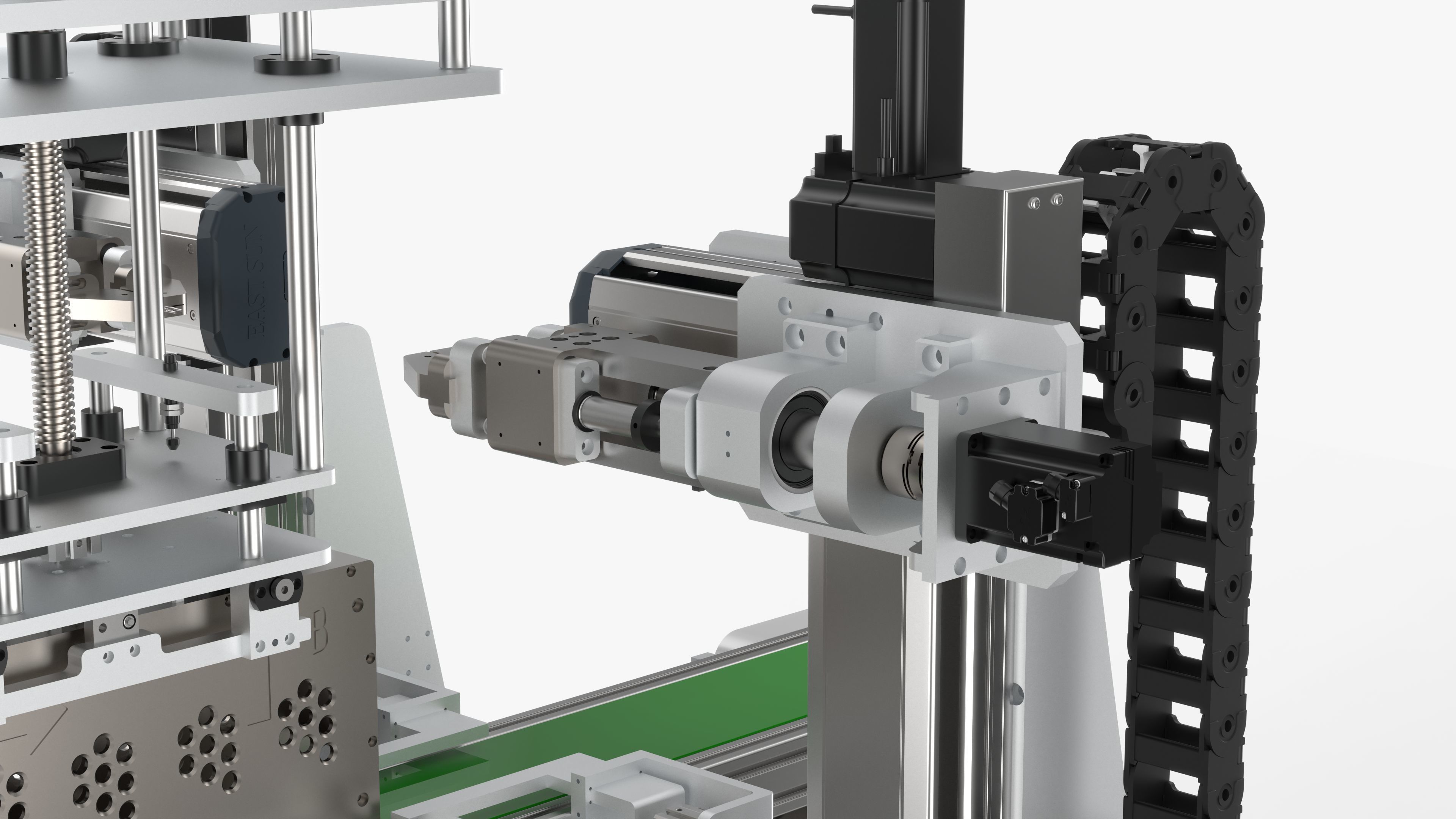

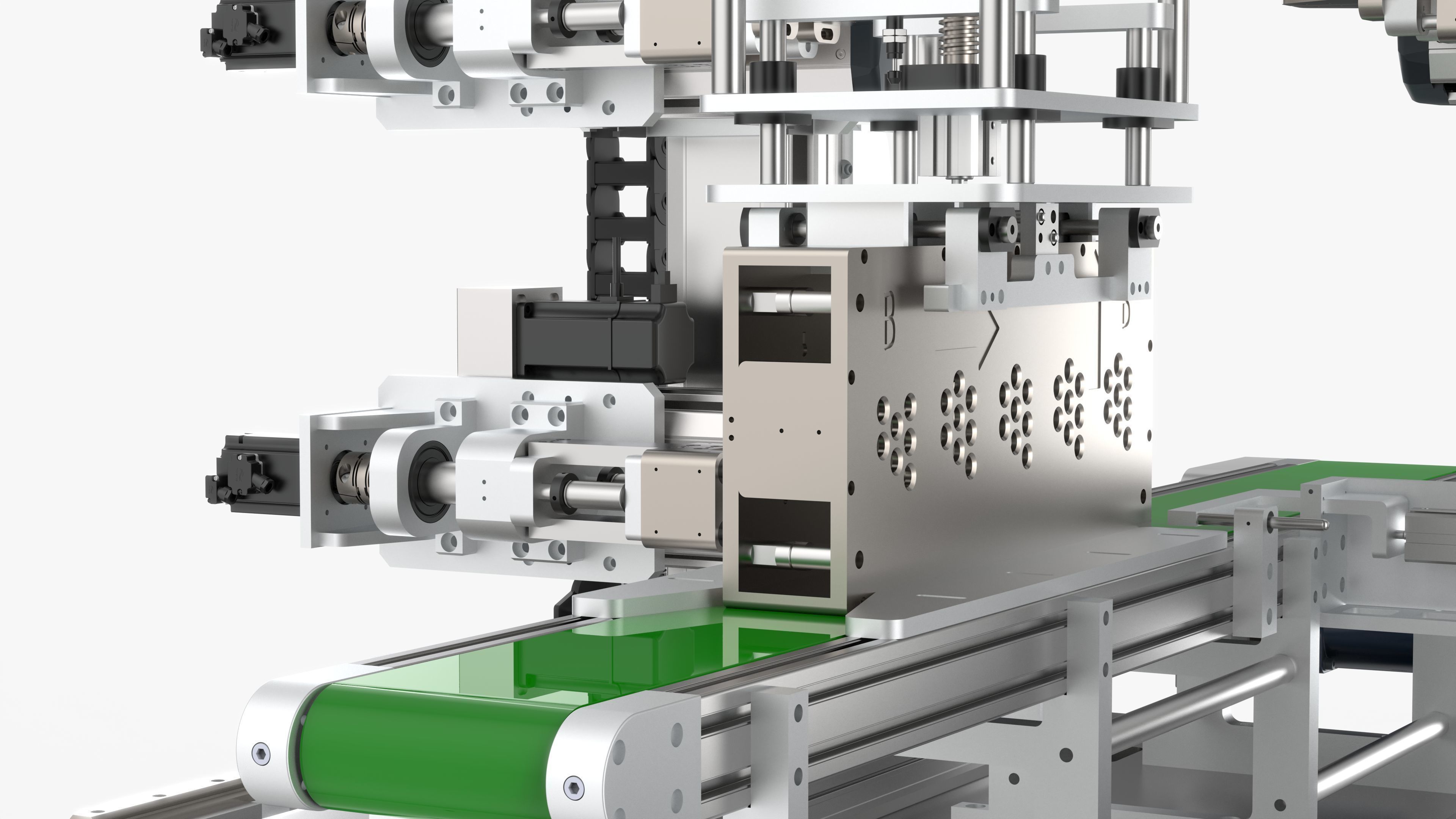

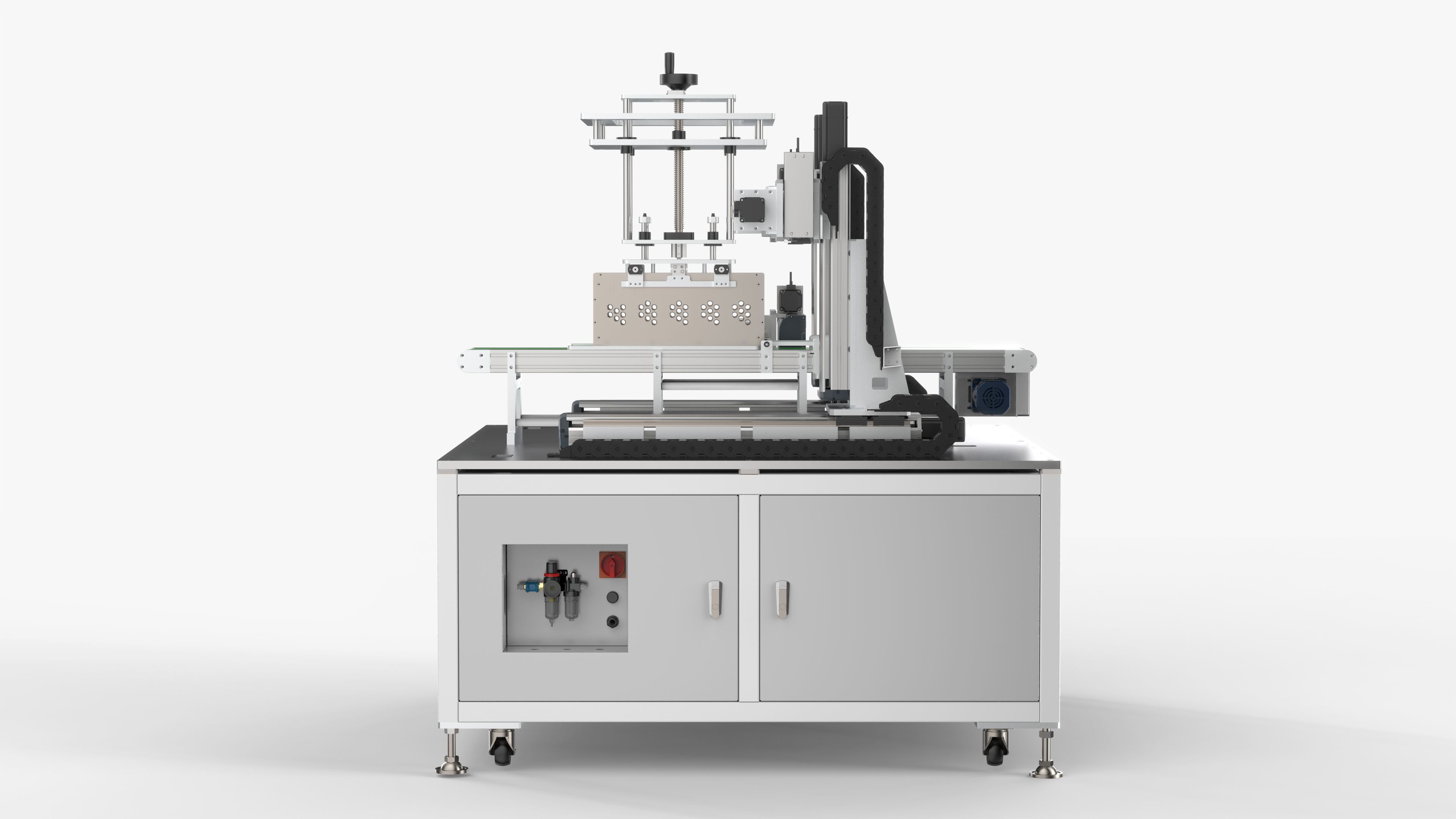

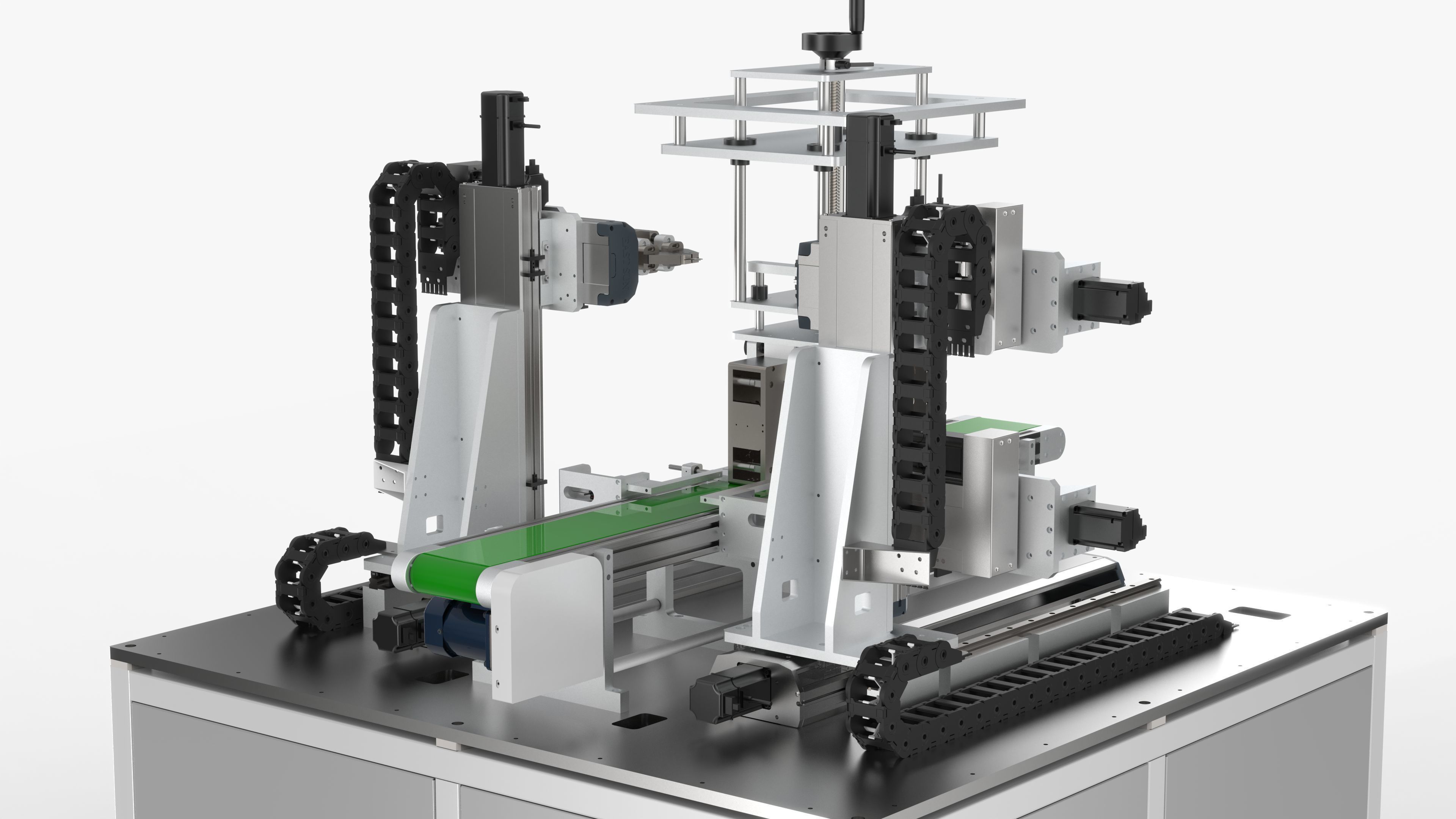

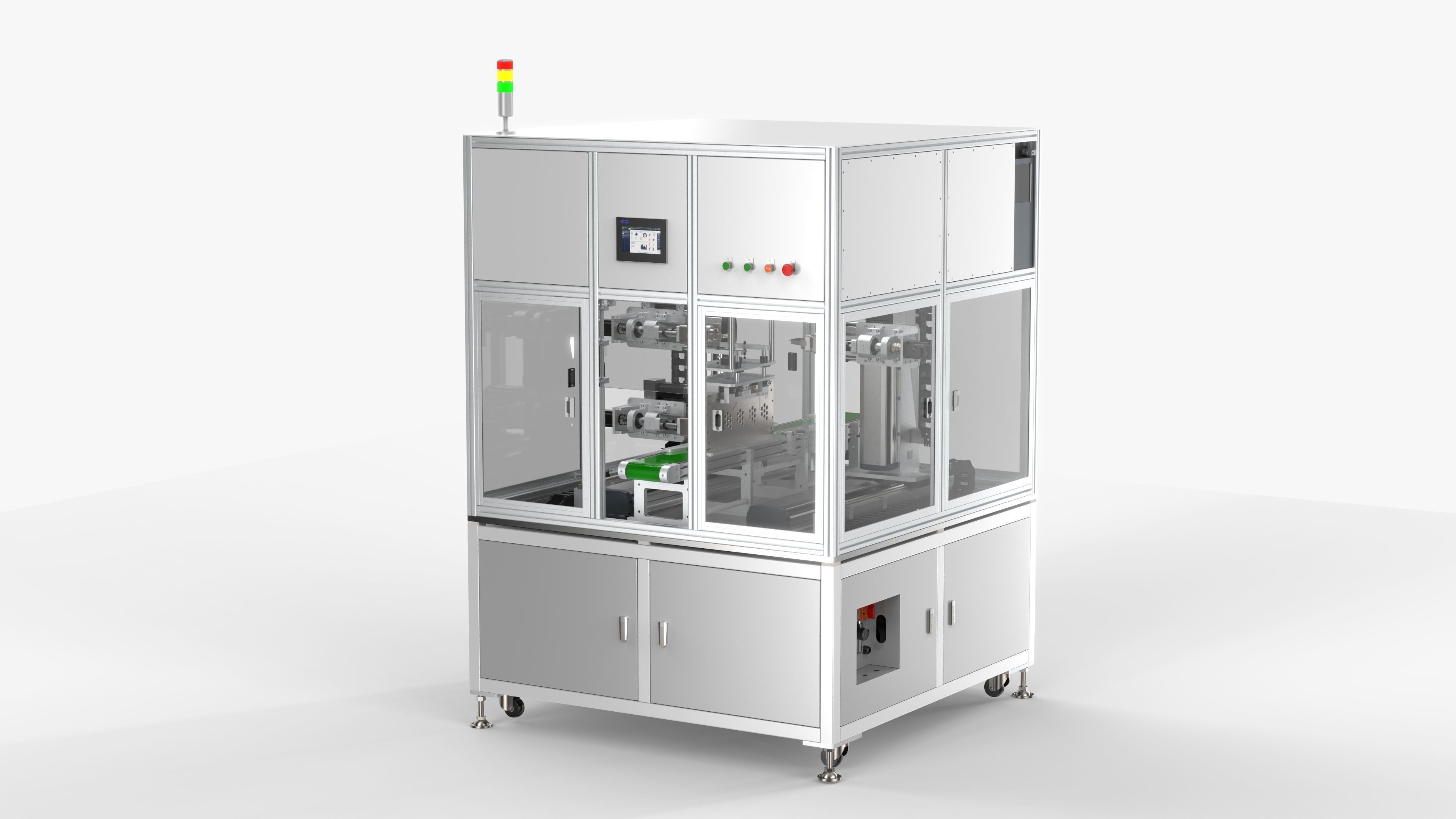

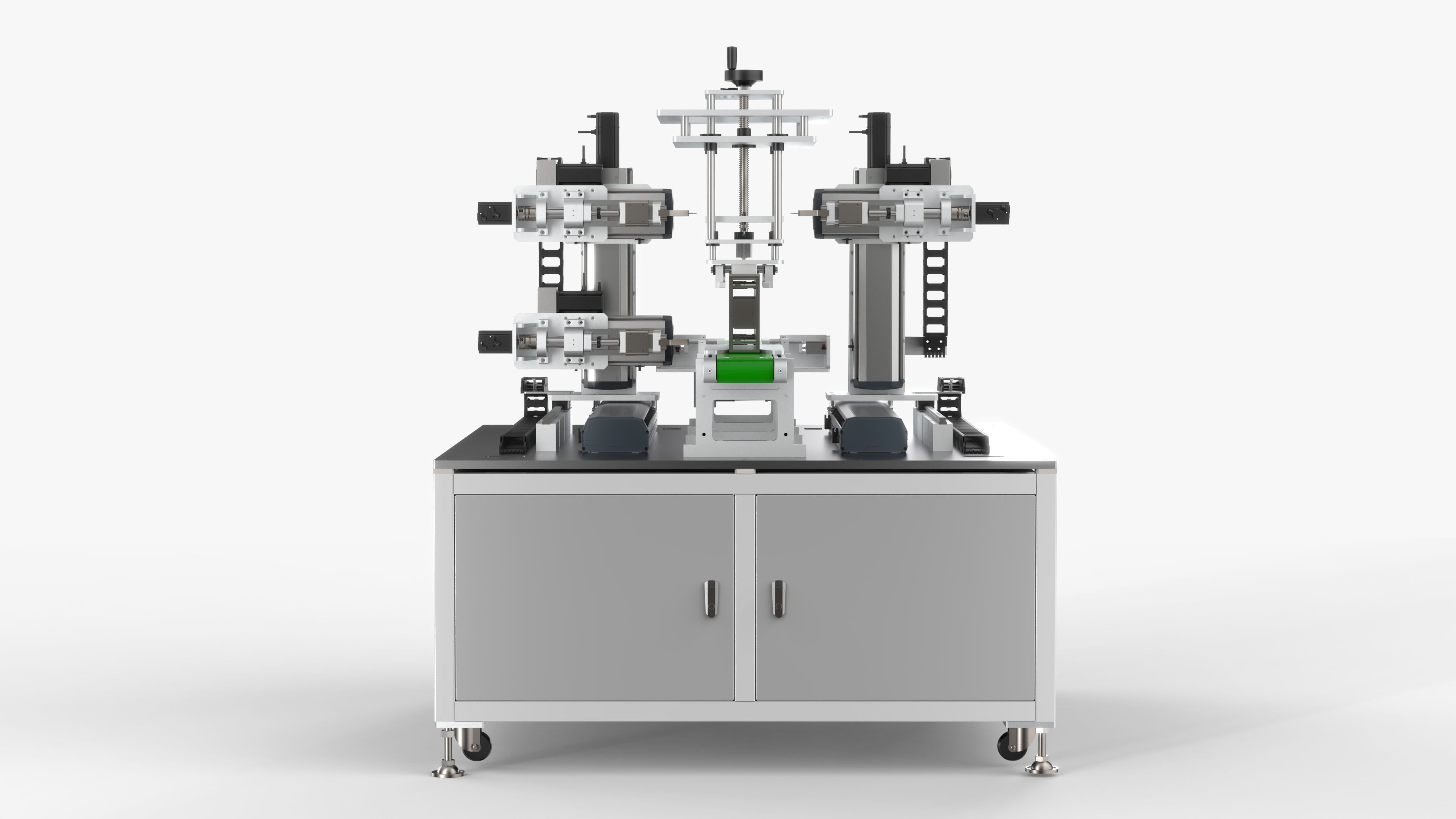

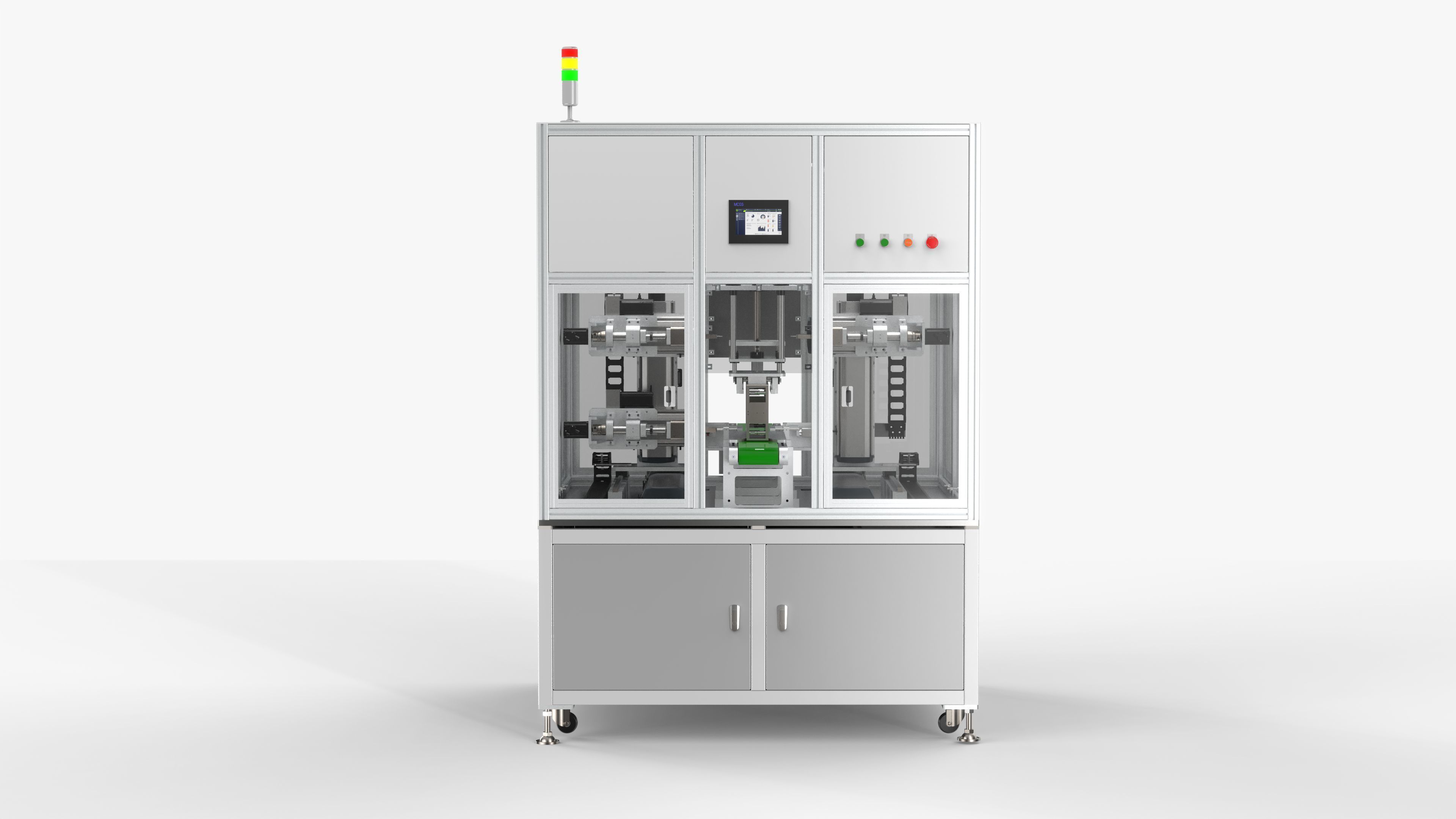

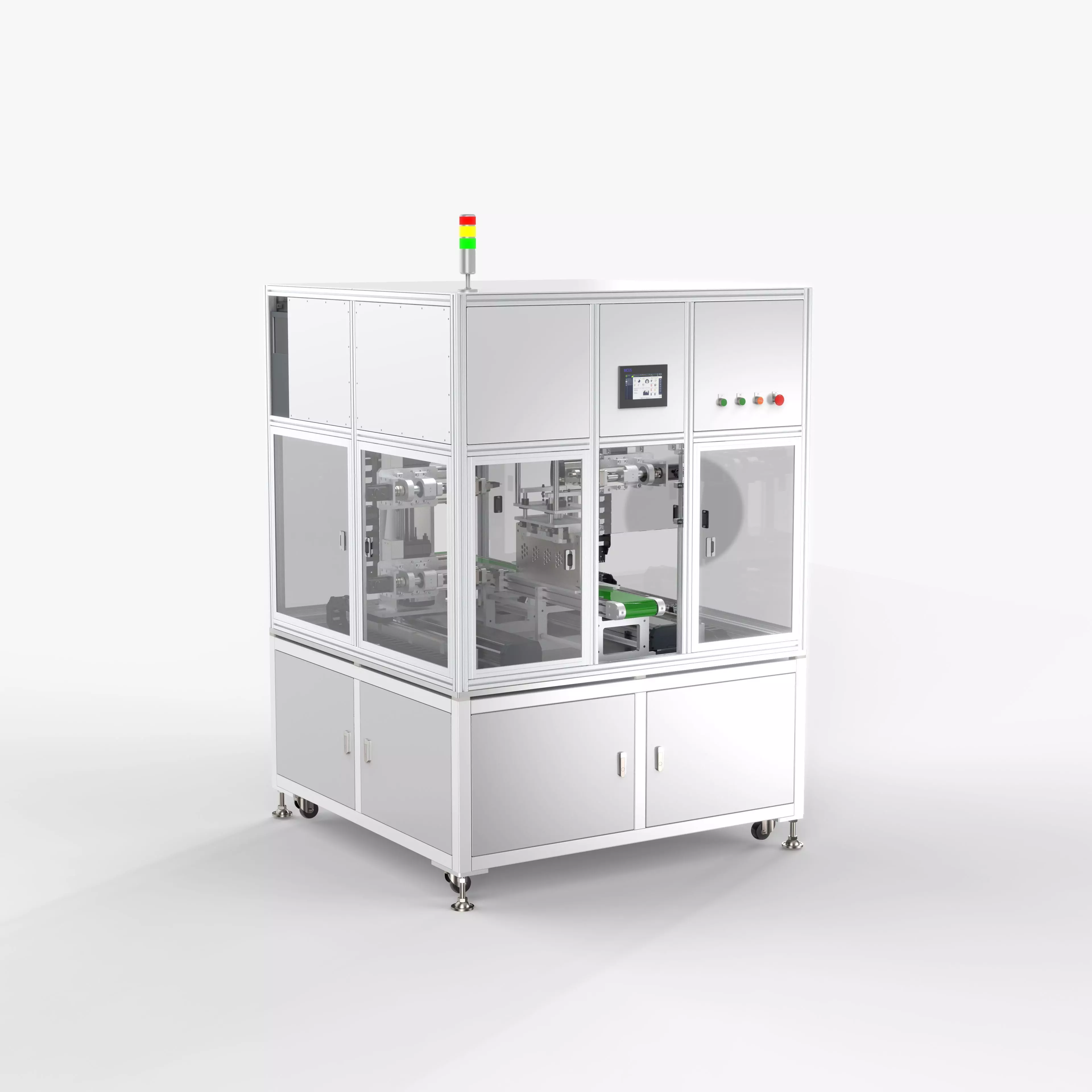

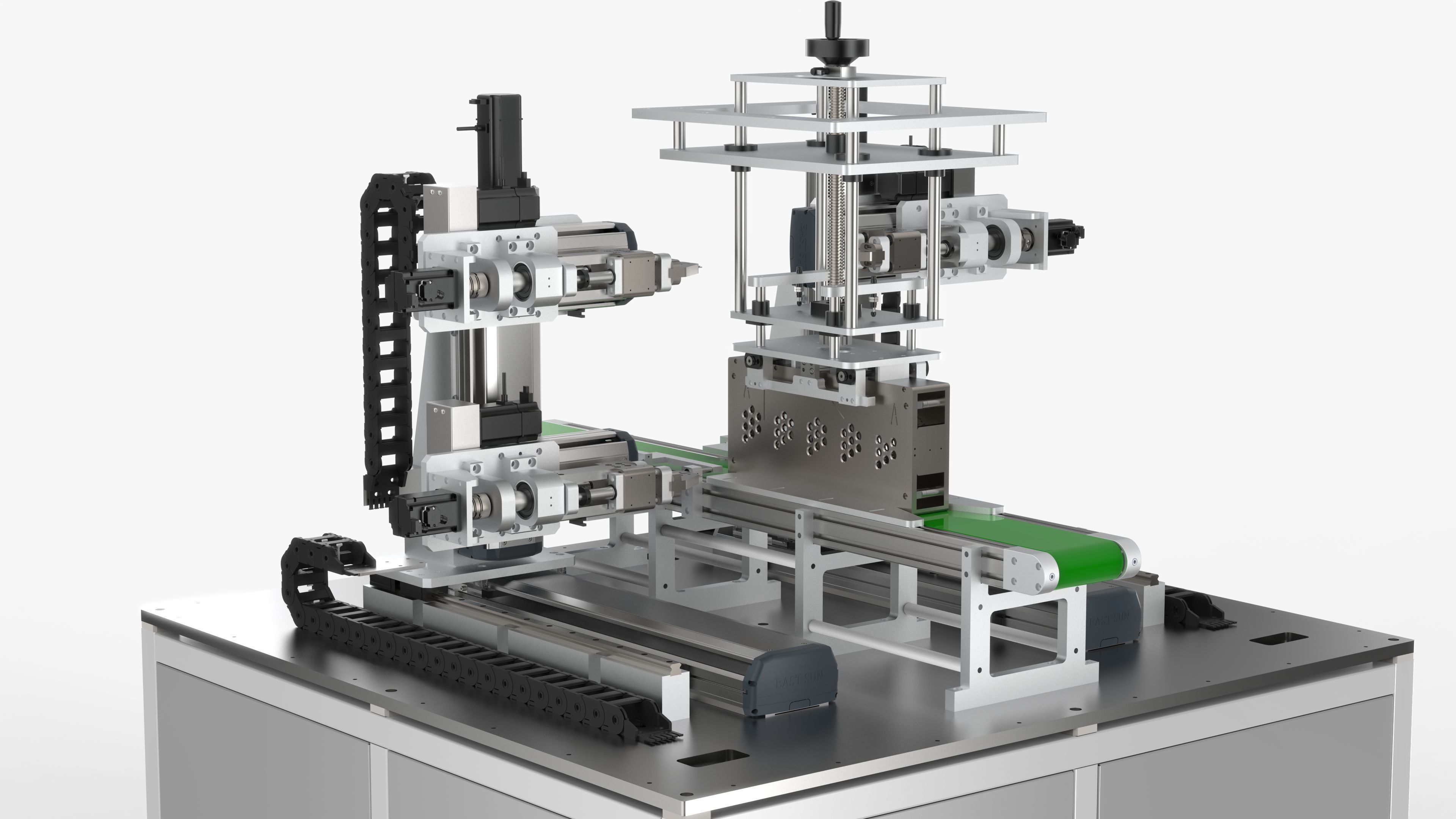

8 Axis Double Sided Spot Welding Machine 3D model
Description

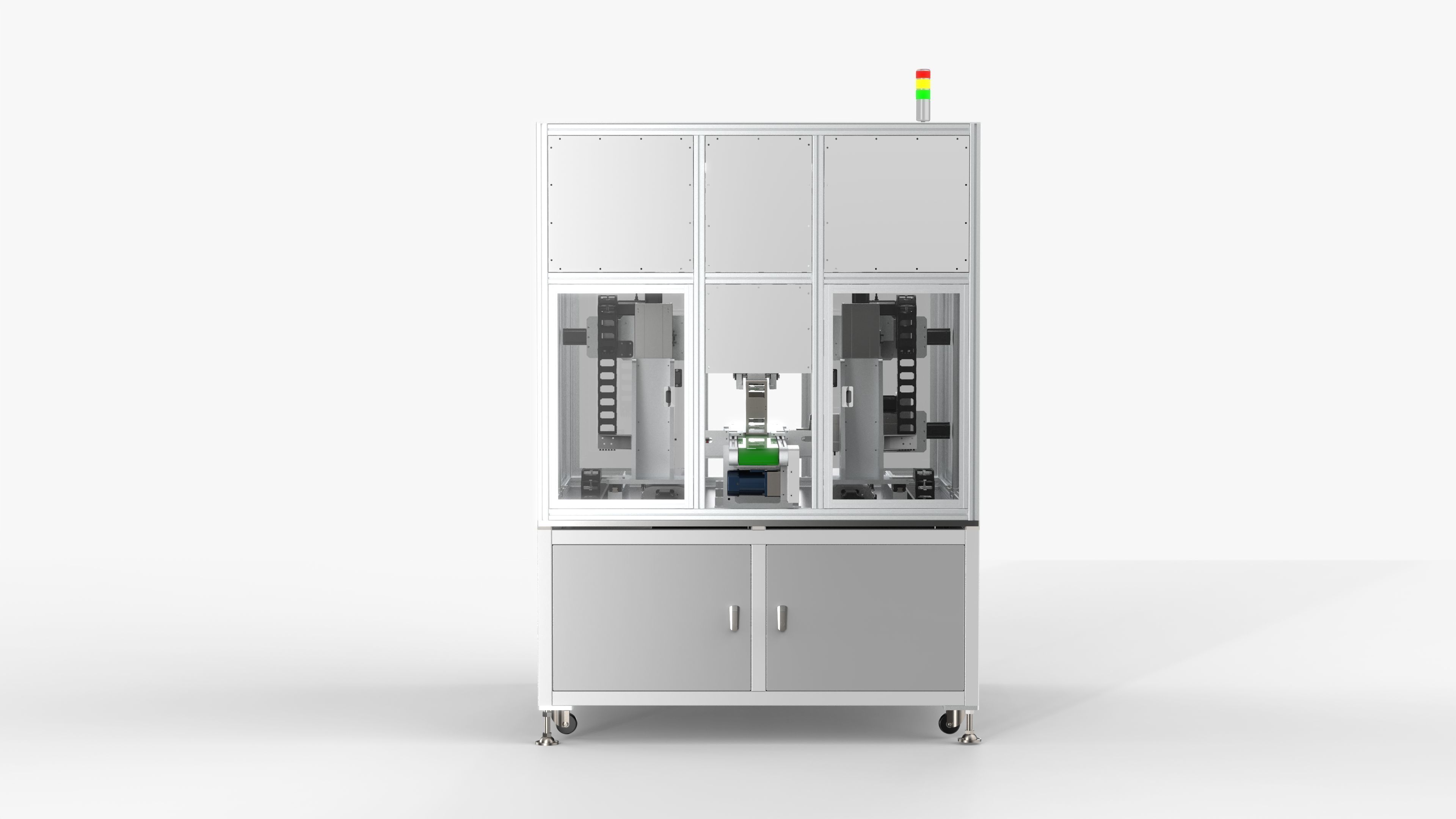

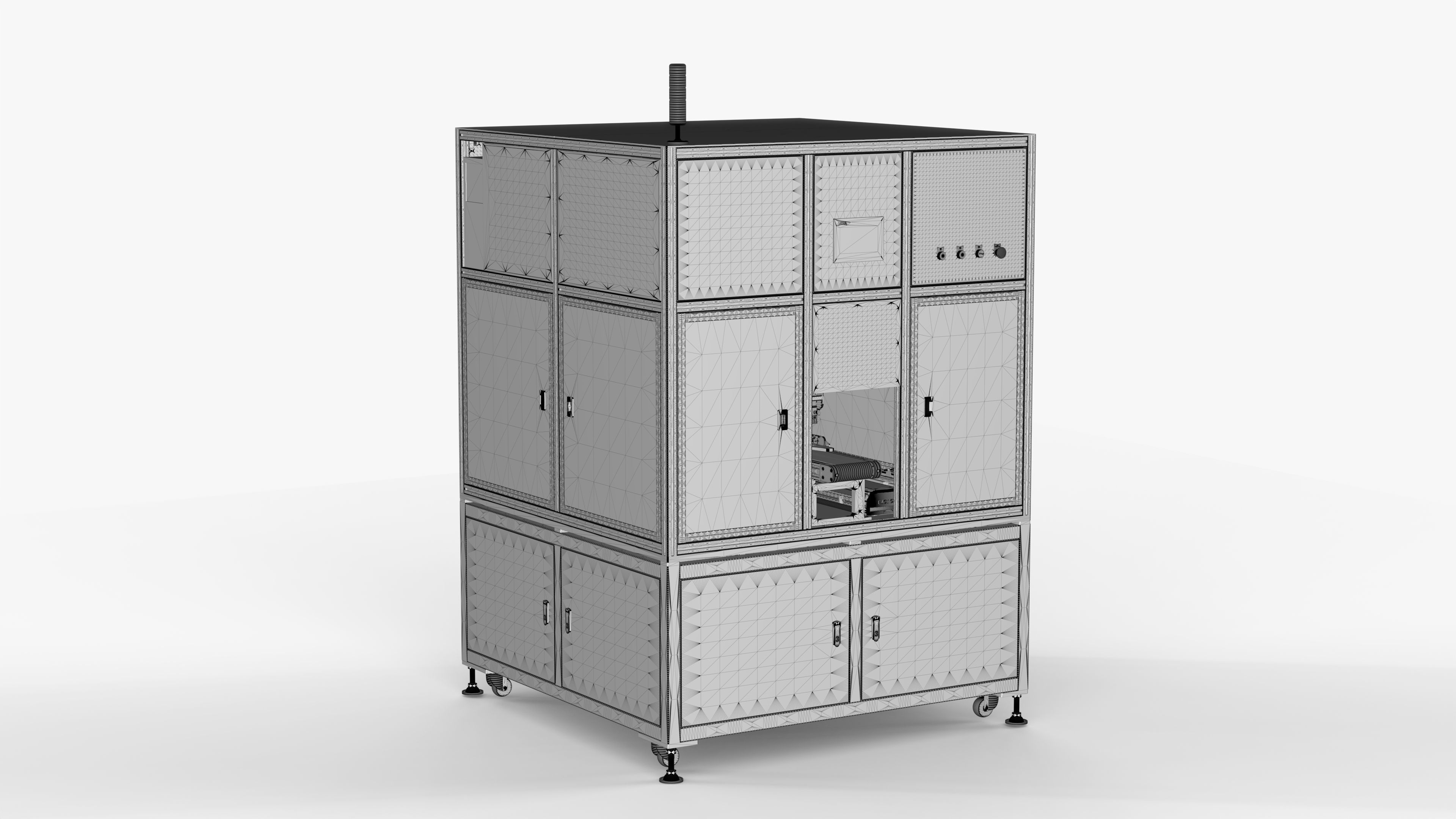

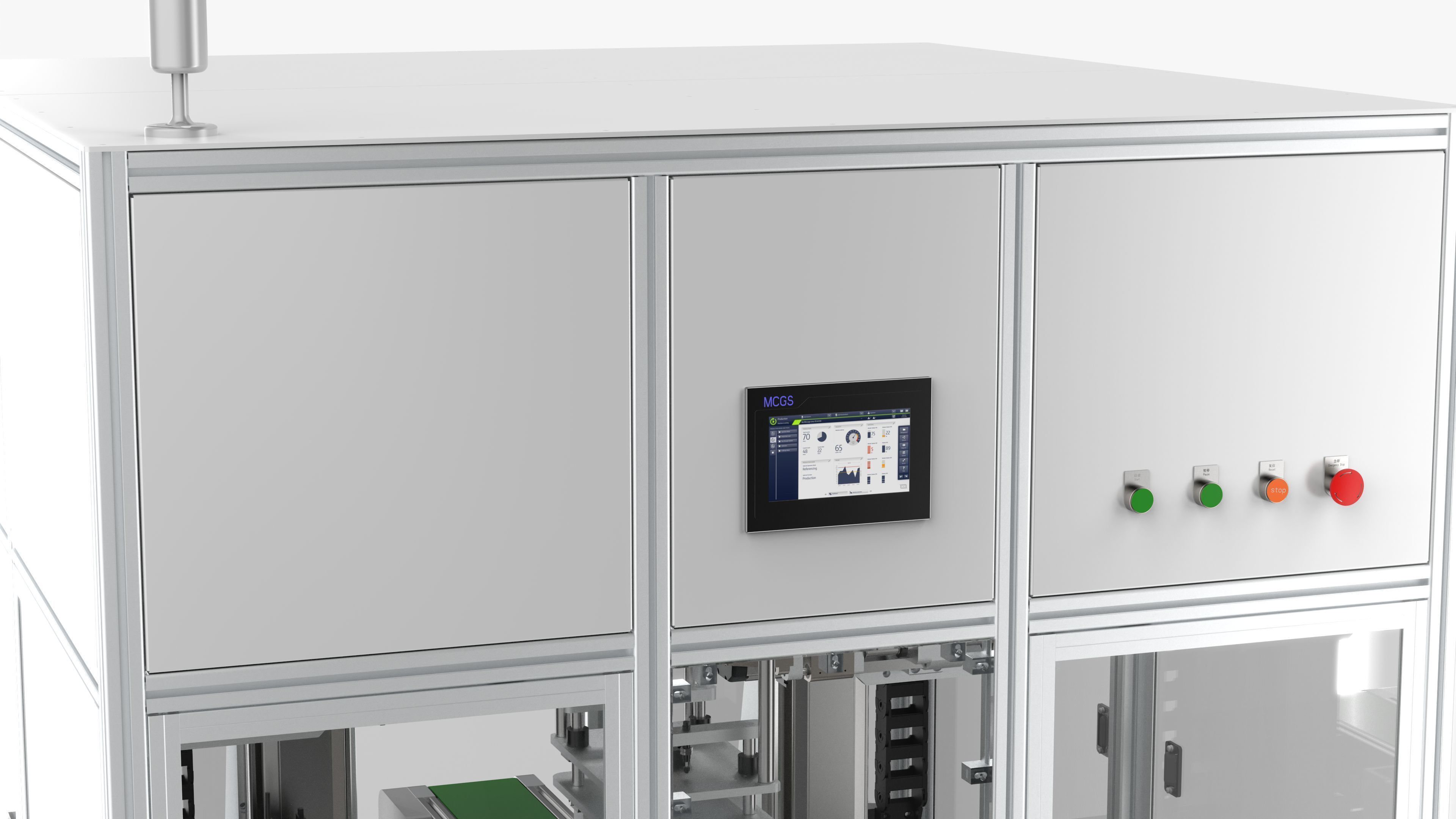

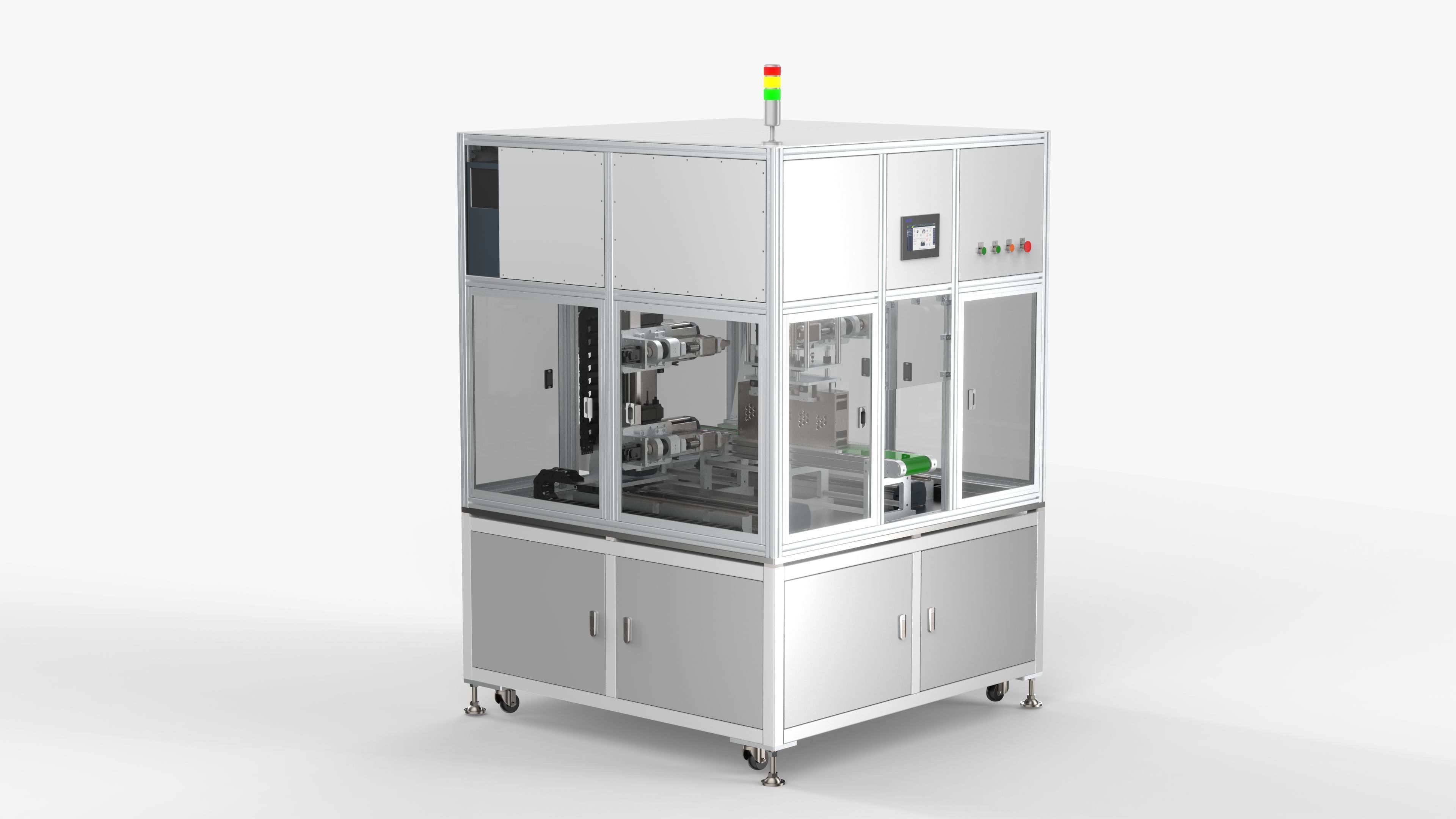

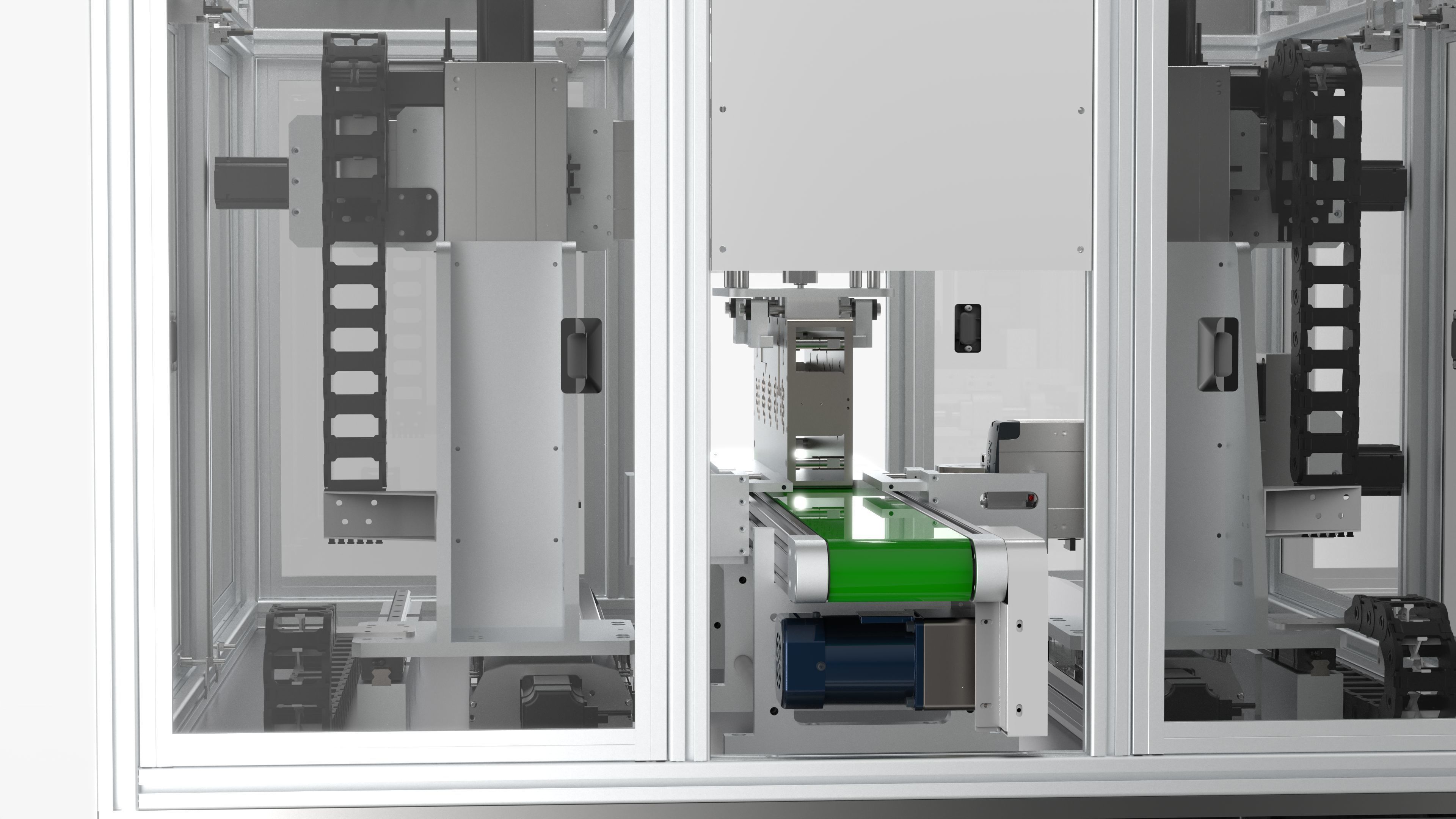

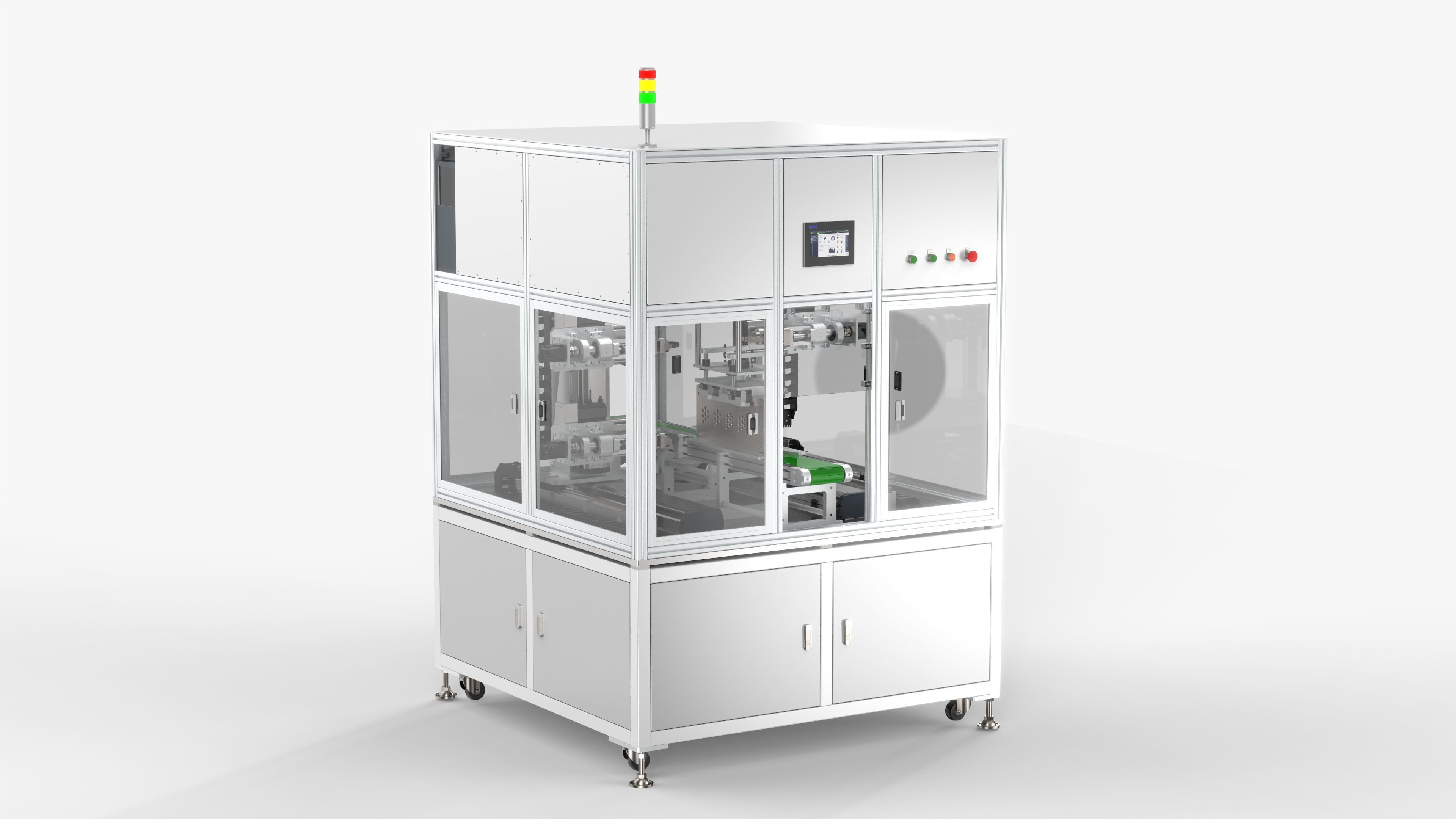

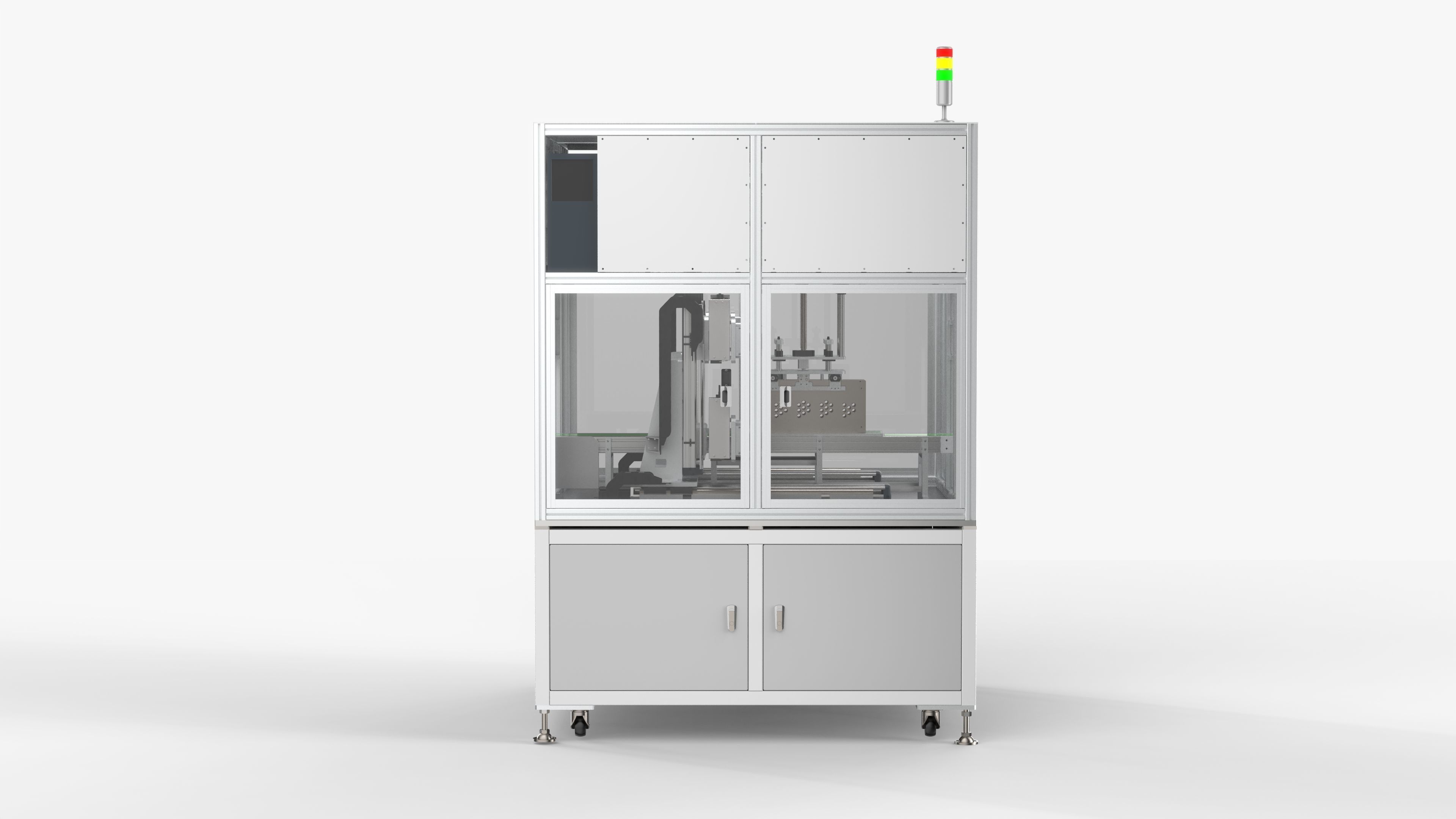

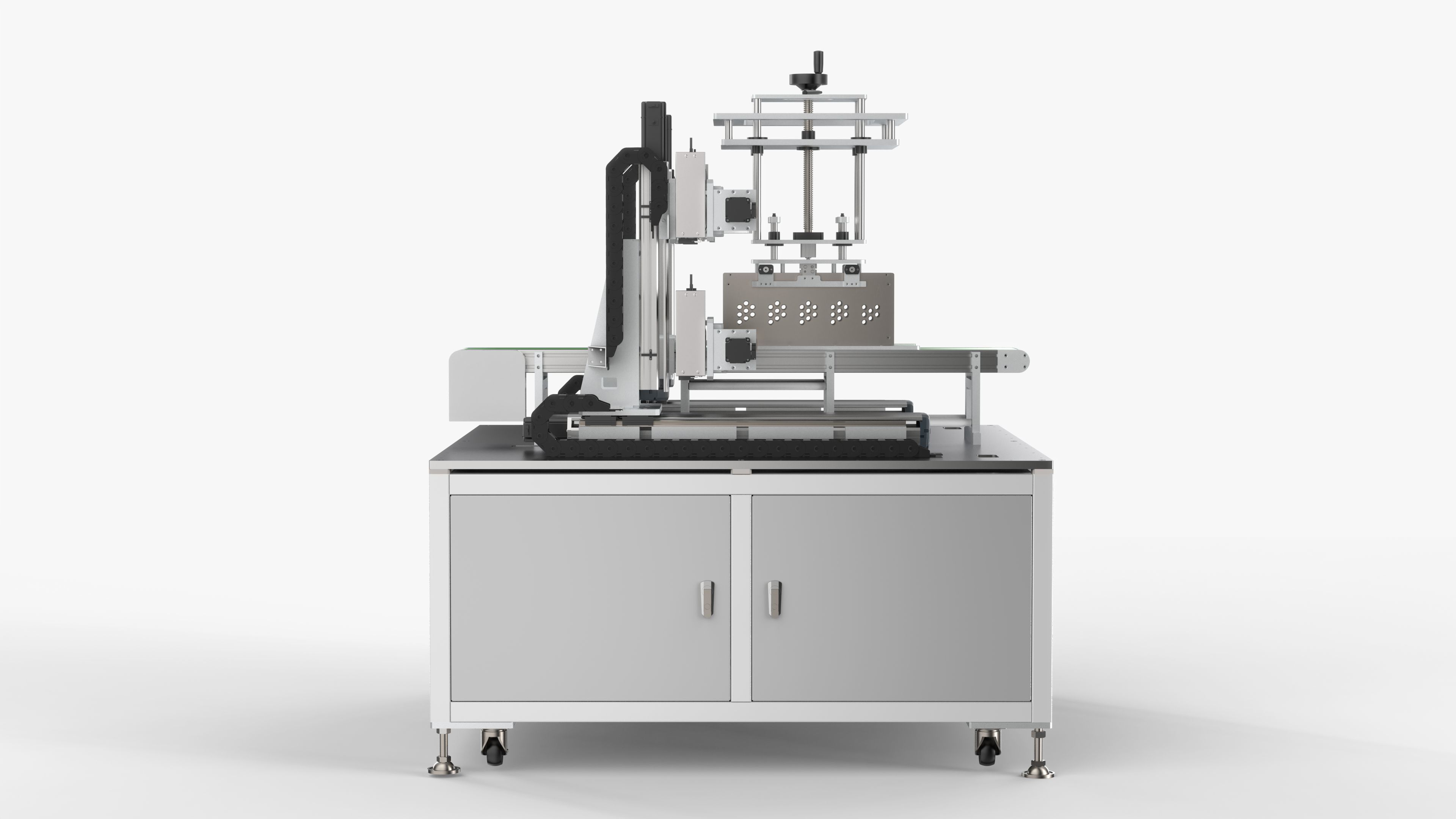

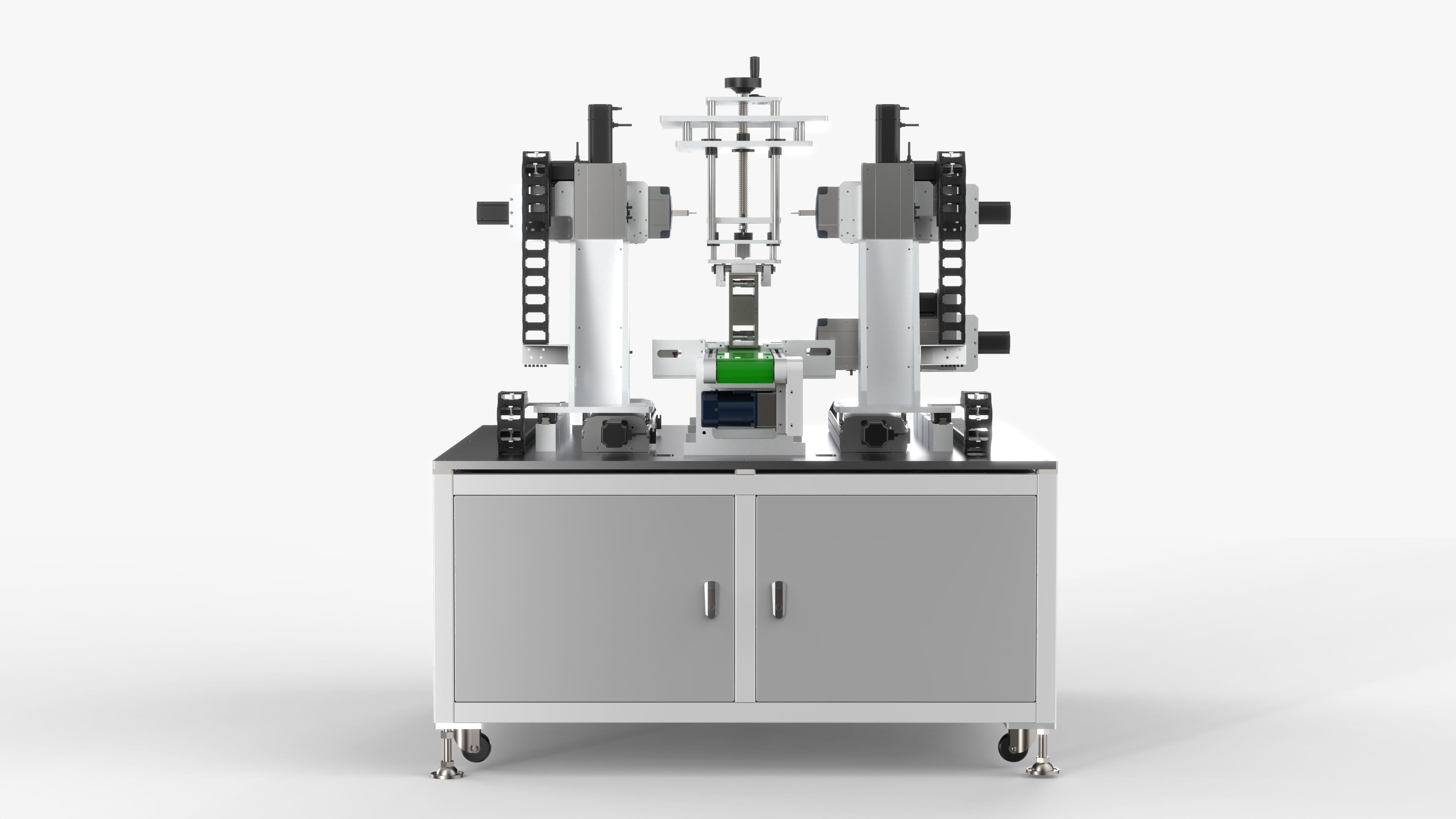

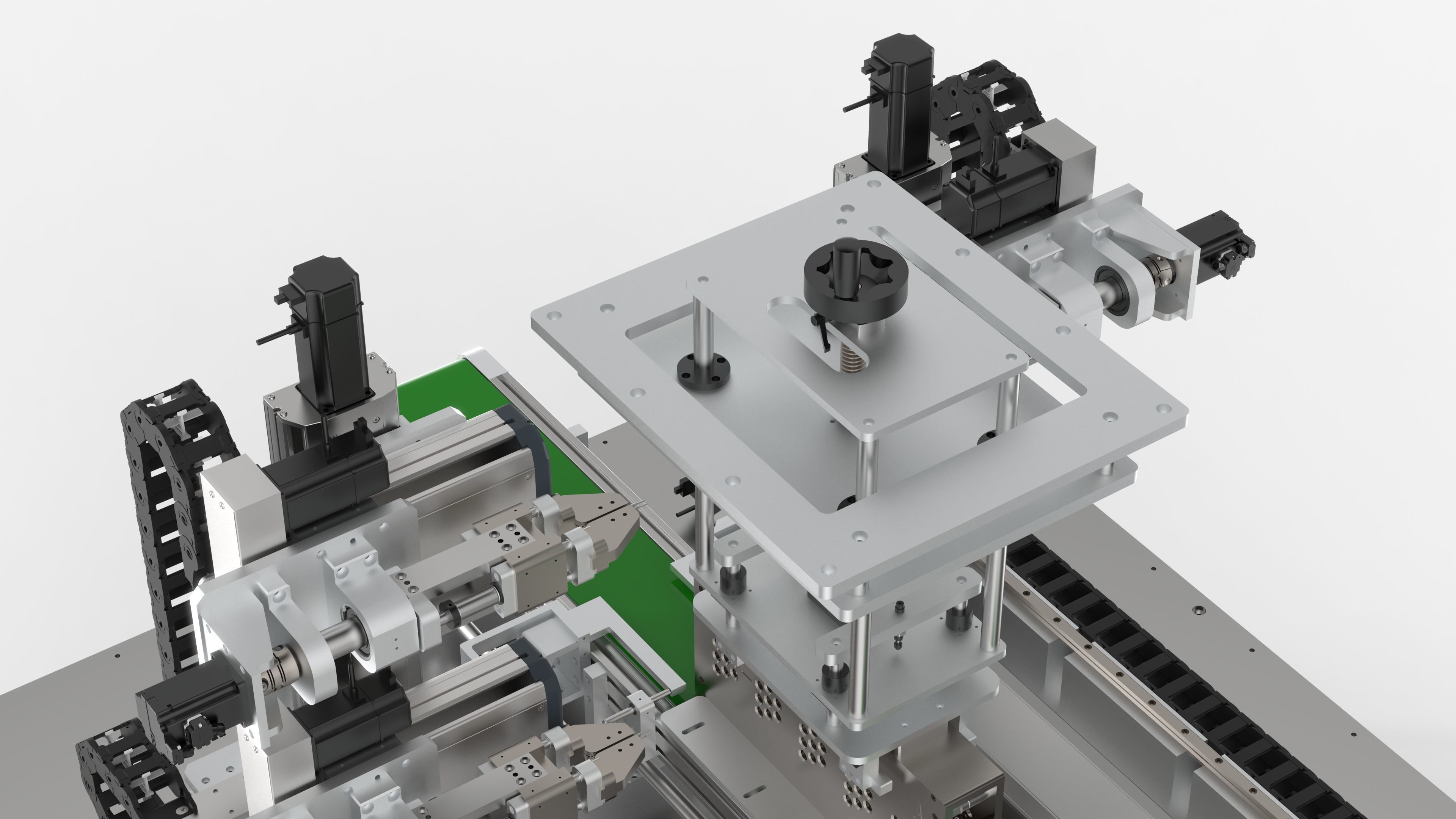

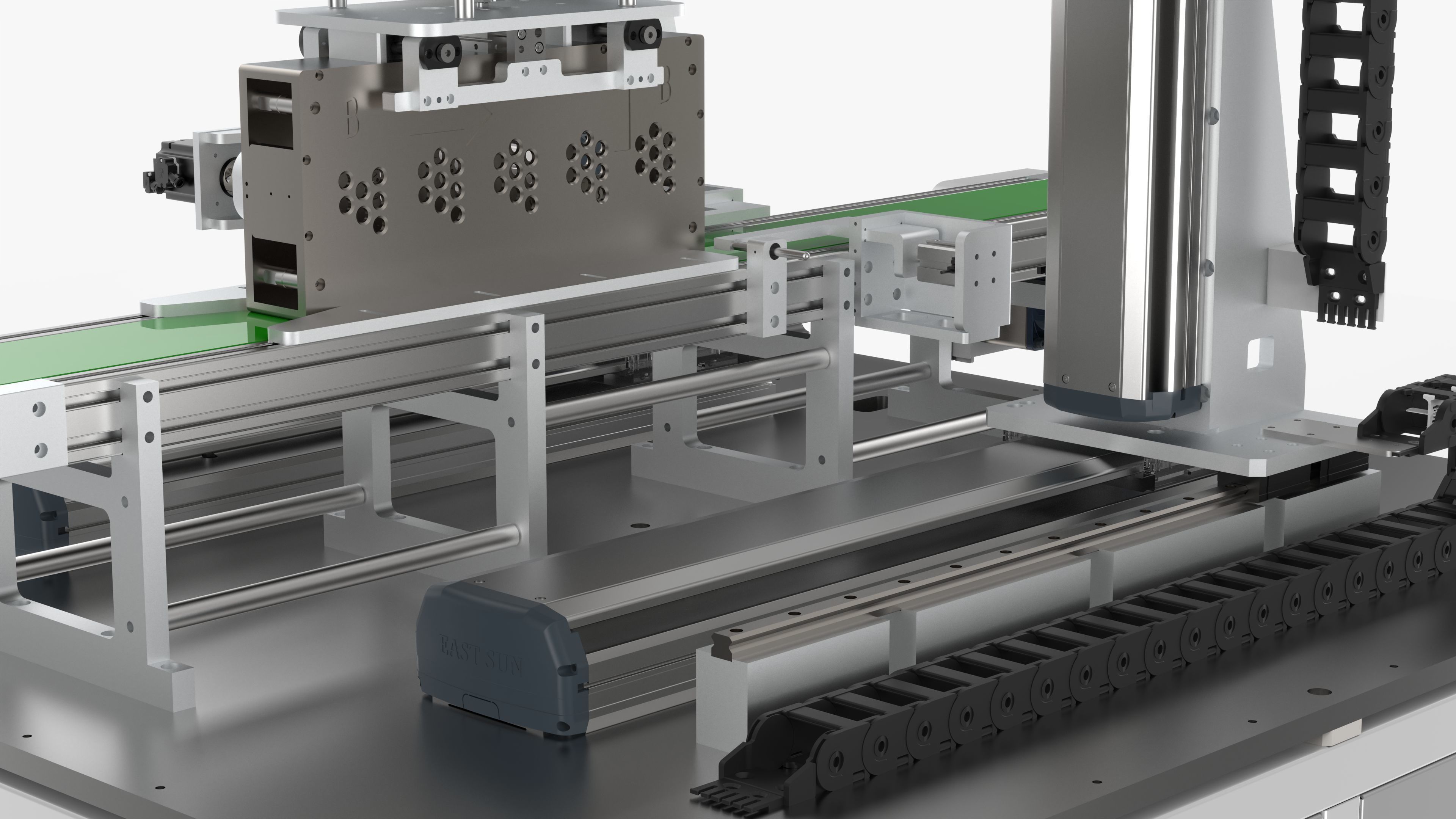

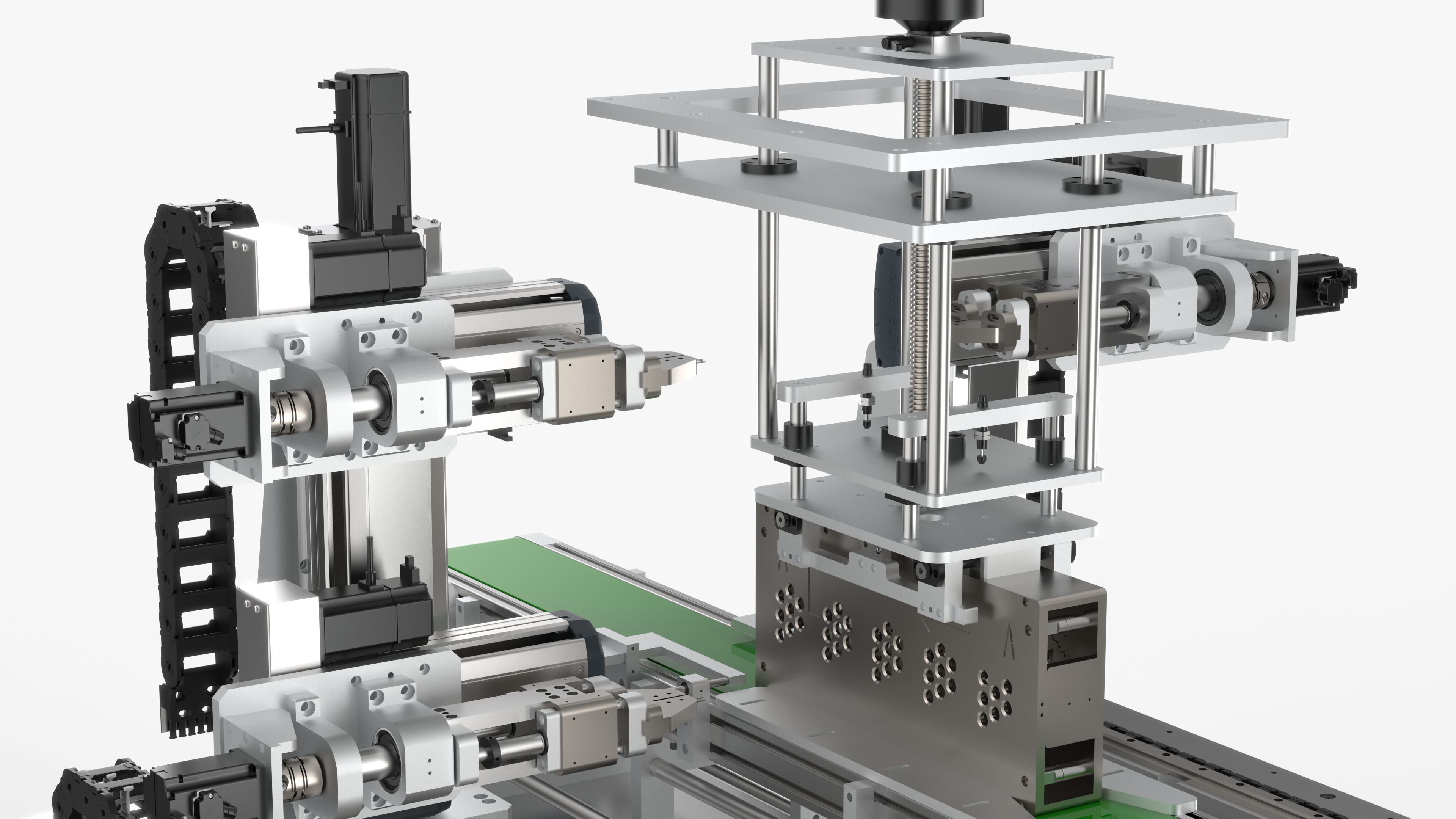

8 Axis Double Sided Spot Welding Machine
Introduction

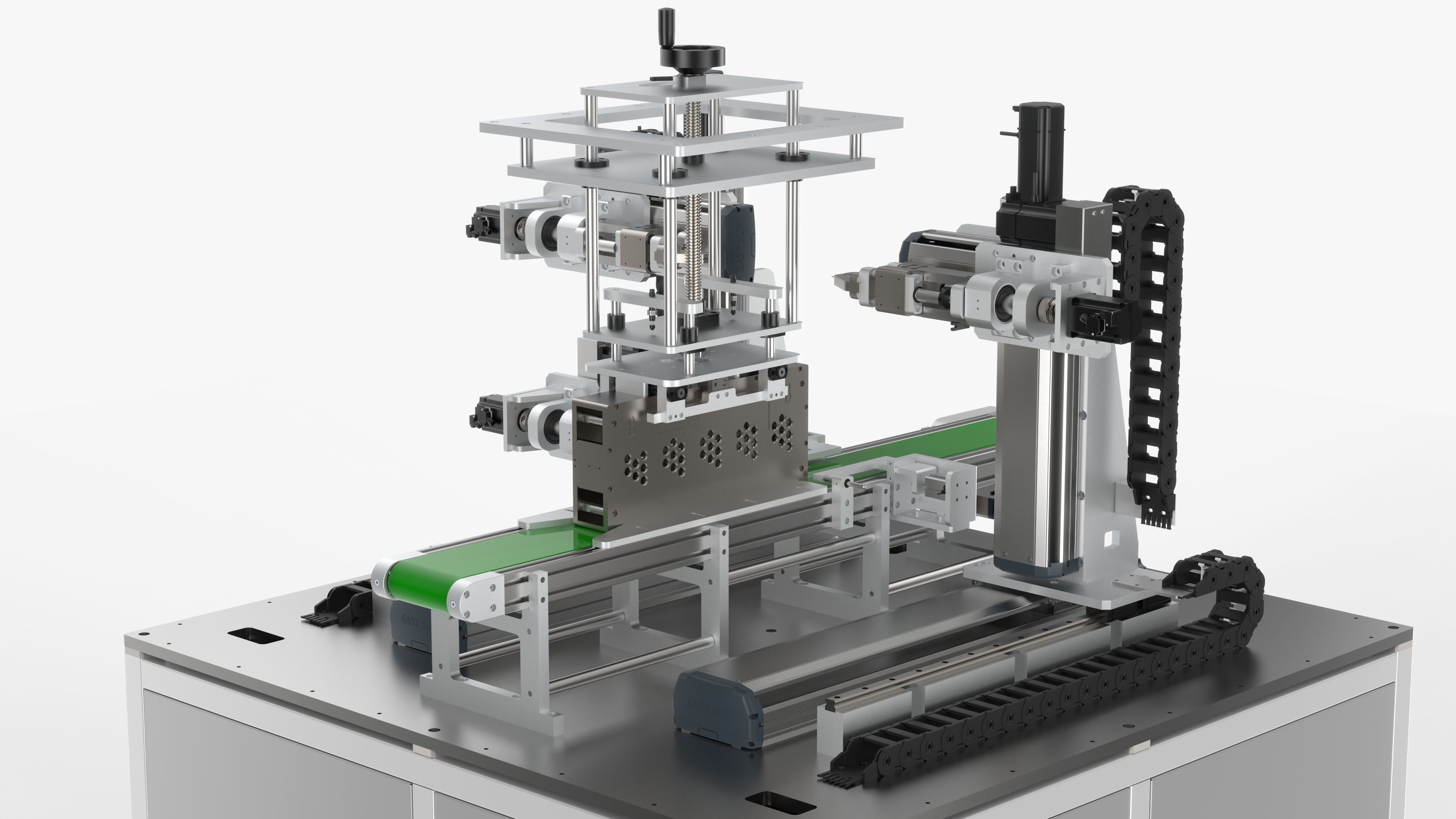

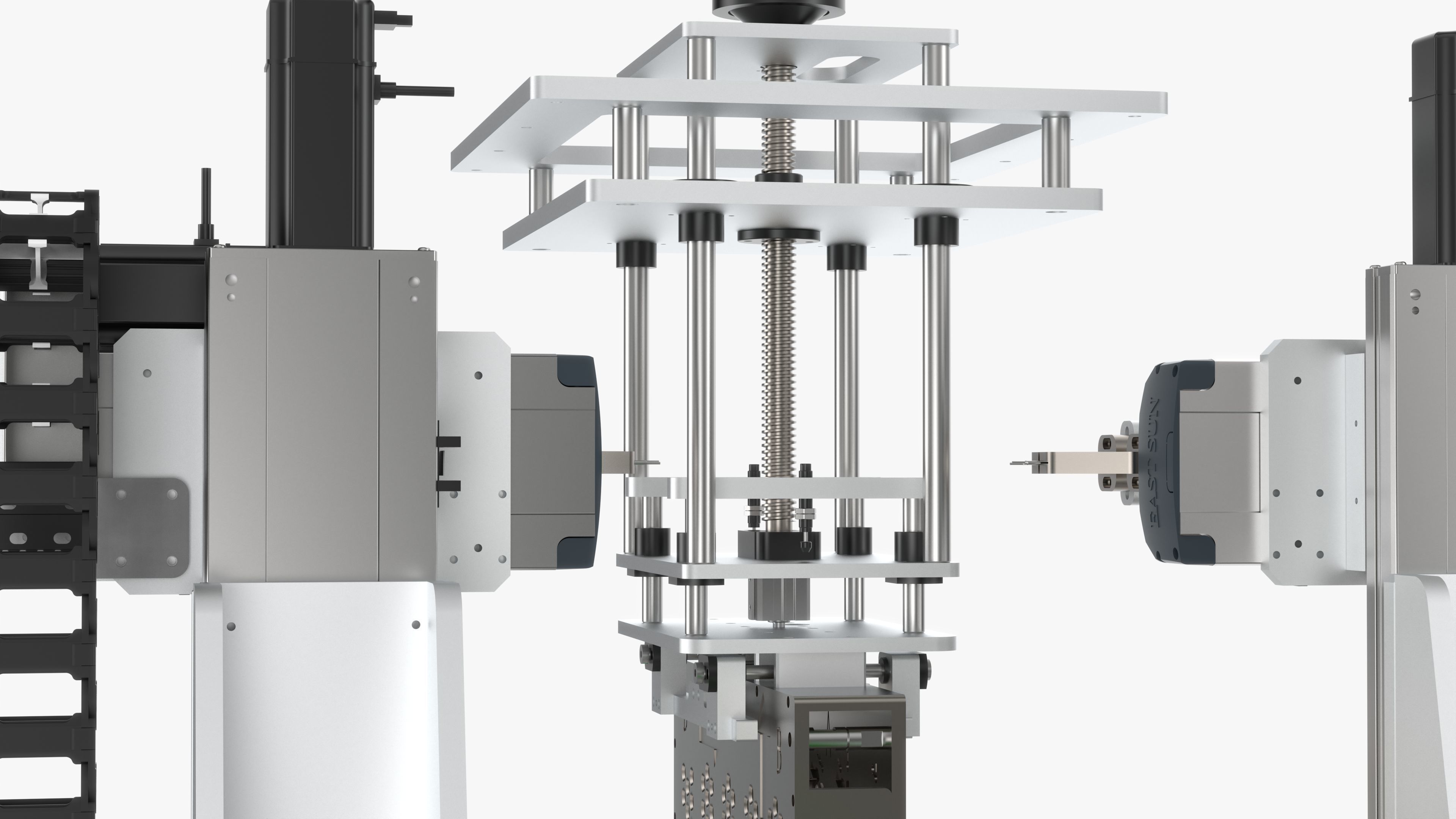

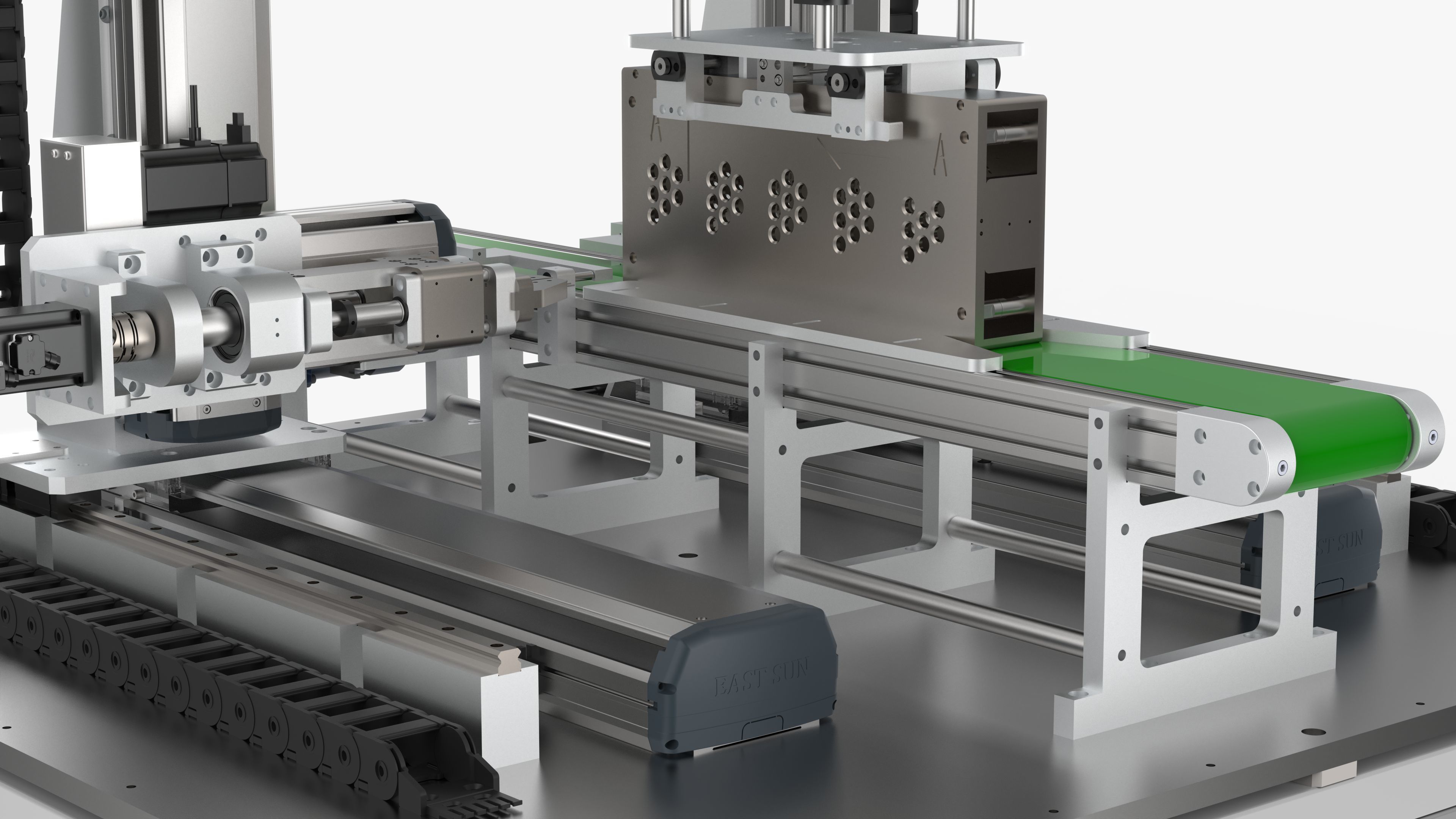

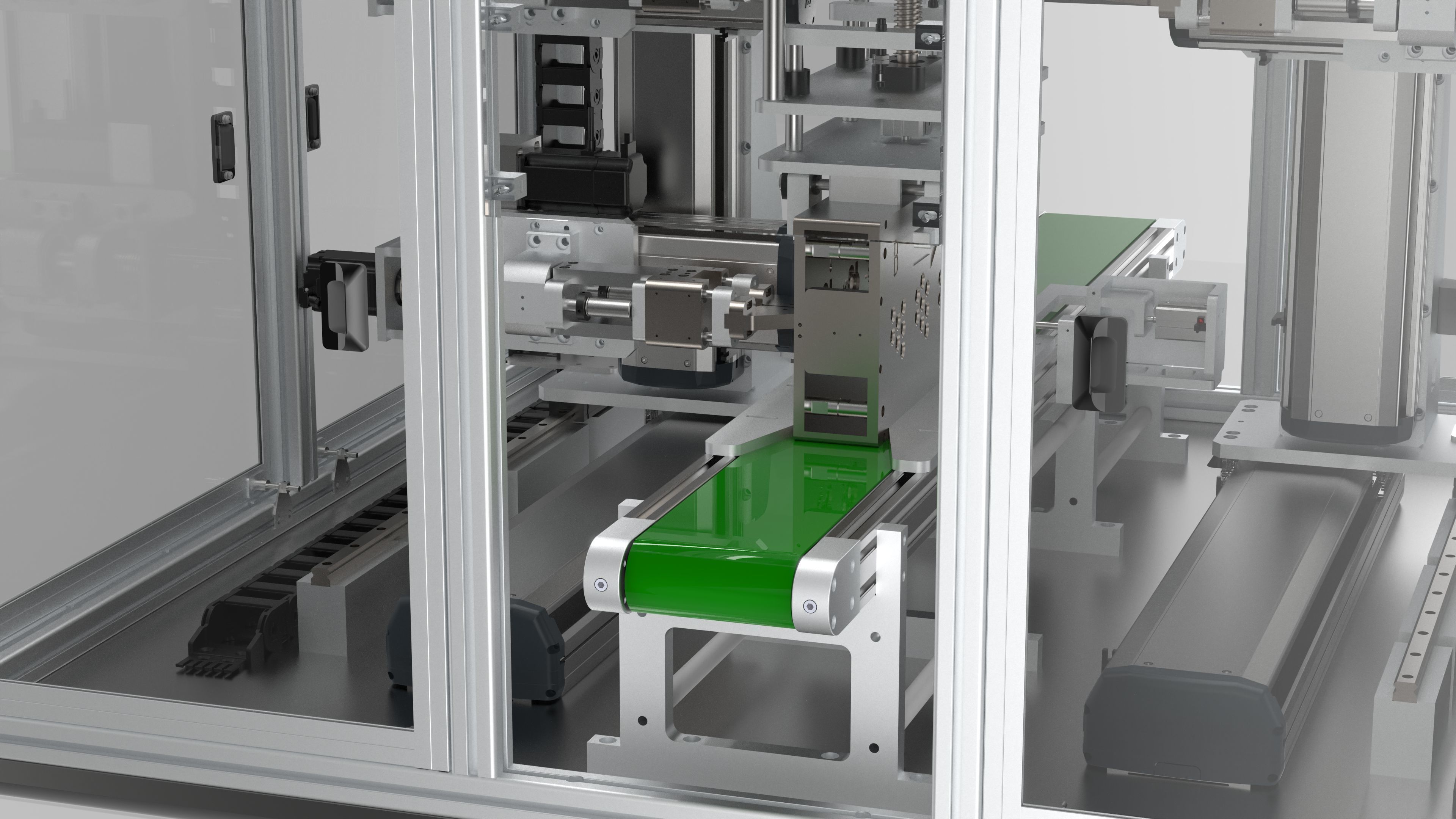

This equipment is an 8-axis double-sided spot welding machine. It is designed for the situation that the nickel sheets on both sides of the battery module are different. It can realize concentric welding or non-concentric welding. It also adds a rotating function to prevent sticking needles. Two Y-axis strokes 650mm, two Z-axis strokes of 350mm, this equipment can realize the automatic entry and exit of fixtures, and can be directly connected to the assembly line.
File Formats
- SolidWorks 2021 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 4,519,540
- Vertice: 13,558,620
8 Axis Double Sided Spot Welding Machine
Royalty Free License
8 Axis Double Sided Spot Welding Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2021 (.sldprt, .sldasm, .slddrw)148 MBVersion: 2021Renderer: Mental Ray 3.0
Exchange
- Stereolithography (.stl)216 MB
- OBJ (.obj, .mtl)342 MB
- Parasolid (.x_t, .x_b)93.2 MB
- STEP (.stp)62.1 MB
- IGES (.ige, .igs, .iges)225 MB
- KeyShot (.bip, .ksp)494 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 4,519,540
- Vertices 13,558,620
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2024-07-26
- Model ID#5426250
