ACF Anisotropic Conductive Film Slitting Machine 3D model

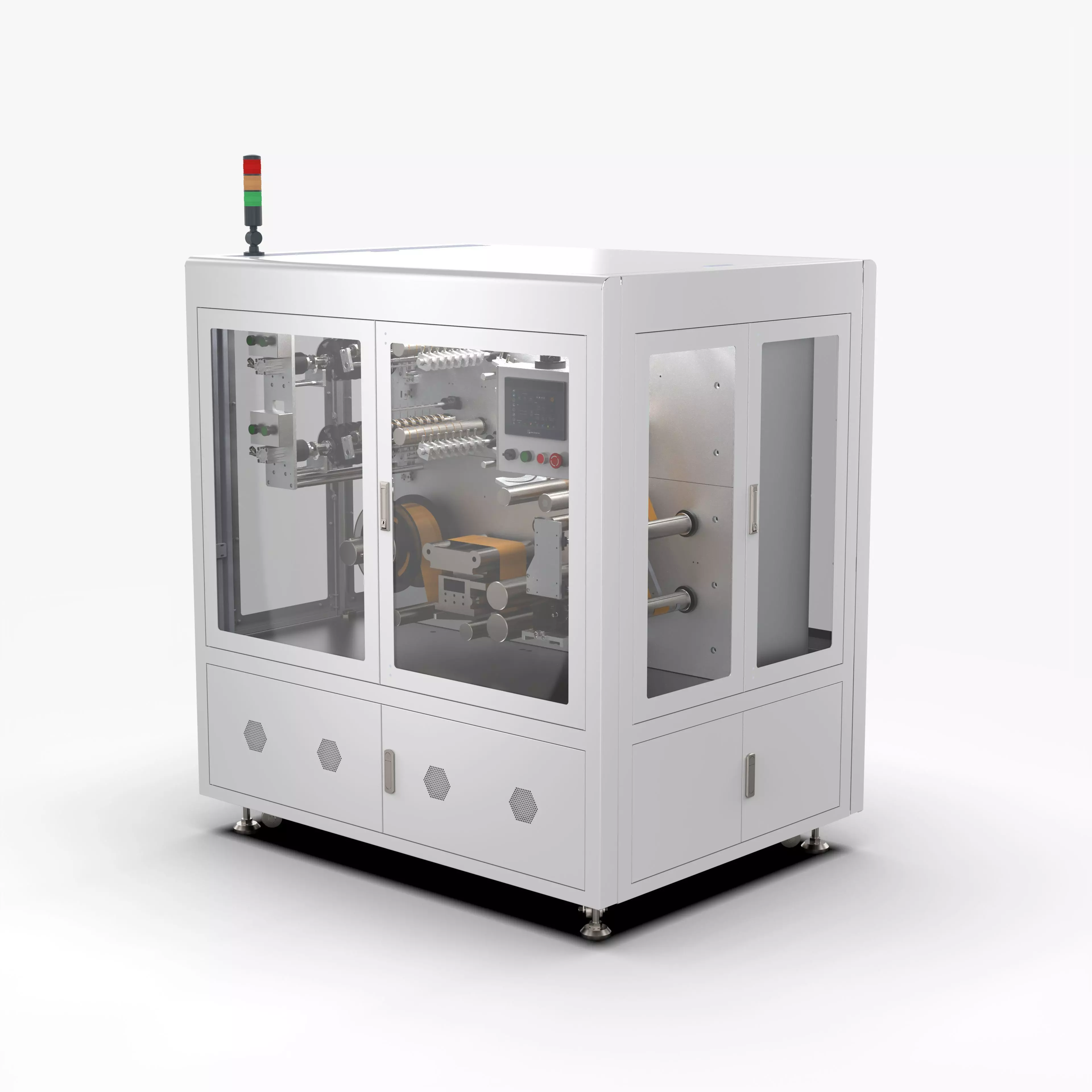

ACF Anisotropic Conductive Film Slitting Machine

Introduction

Description of ACF anisotropic conductive film slitting machine:

1. Voltage: AC 220V single-phase 50Hz;
2. Power: =1KW;
3. Air pressure: 0.5~0.7Mpa;
4. Noise: =75dB;
5. Weight: 600KG;
6. Machine size: L1400mmxW1000mmxH1950mm;

• Automatic feeding, the inner diameter of the barrel is f75MM, the thickness of the coil is 0.15MM, and the width of the material is 50MM, which can accommodate a space of 200 meters long.
• The cutter is required to cut the coil material into 16 strips of 2.0MM±0.05MM. There should be no obvious step differences visible to the naked eye, and the cutting must be thorough. The fluctuation or serpentine deviation within each meter is not more than 0.1MM.
• The service life of the cutter is not less than 3000 hours, easy and convenient to replace, and the operation by 2 people does not exceed 2H, including the time for knife setting. The tool setting can not be longer than 20 minutes, and each tool setting can run for at least 50H.
• Including drawings and standard parts list.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 7,460,941
• Vertice: 22,382,823
