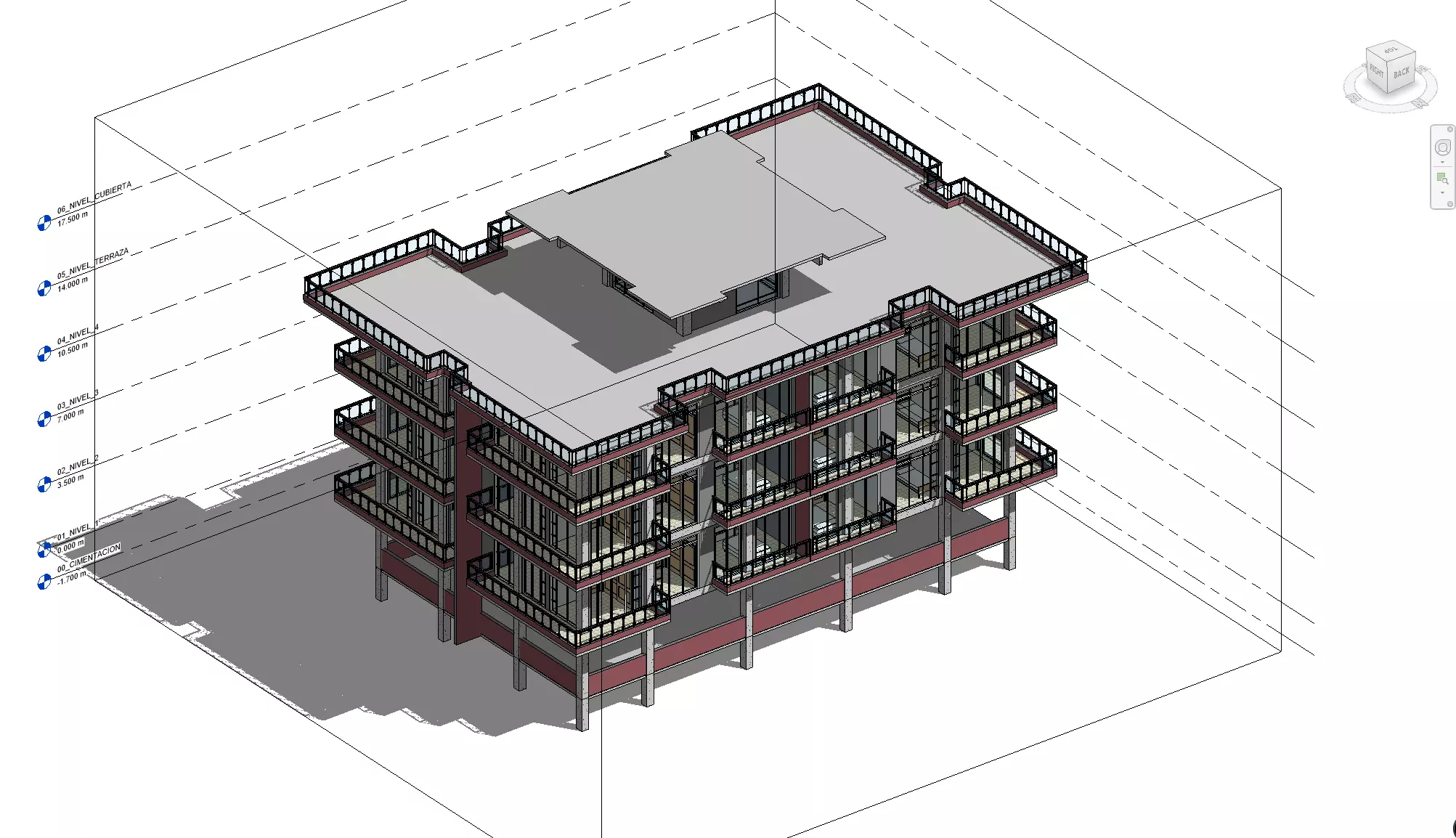

A comprehensive digital asset featuring highly detailed structural and MEP (hydrosanitary) Revit models of a modern mid-rise apartment complex. This multi-discipline BIM package is specifically structured for engineering students, BIM coordinators, and design professionals requiring a robust foundation for academic projects, system analysis, or interdisciplinary clash detection practice.
The structural discipline includes complete reinforced concrete systems, structural columns, foundation elements, and precise rebar detailing. The fully integrated MEP plumbing discipline features a complete 3D pipe network, encompassing the entire potable water supply, sanitary sewer drainage, and stormwater management systems. In addition to the 3D geometry, this model includes ready-to-use 2D documentation sheets specifically generated for the hydrosanitary layouts, allowing for immediate plan extraction and reference.
