Cable Drum - Revit Family

Cable Drum - Revit Family 3D model

Description

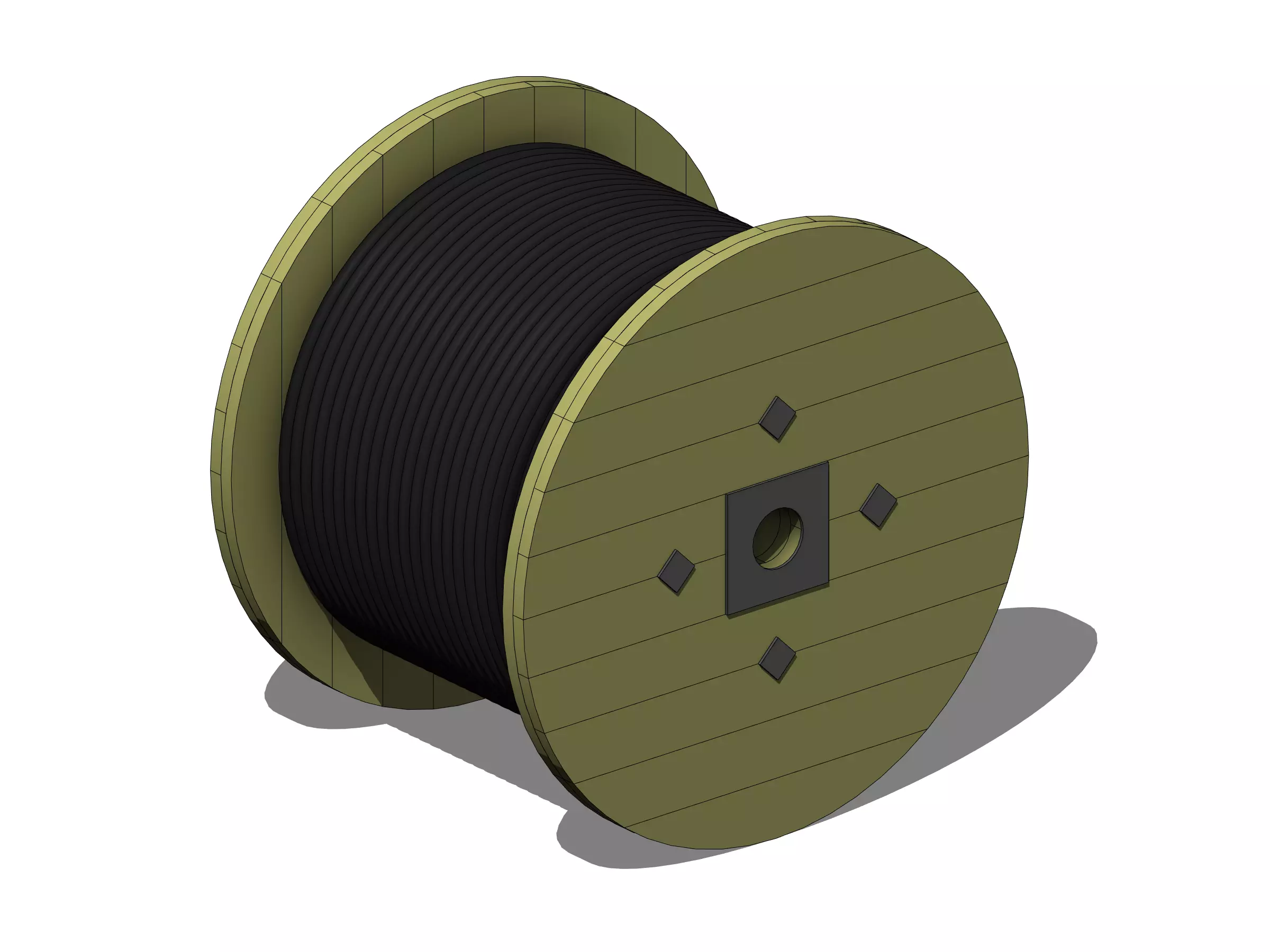

Parametric Cable Drum Revit family with flexible dimensions. Available file formats: RFA, MAX, DWG, FBX, 3DS, OBJ.

Family types:

  • 1.0m diameter
  • 1.5m diameter
  • 2.0m diameter
  • 2.5m diameter
  • 3.0m diameter

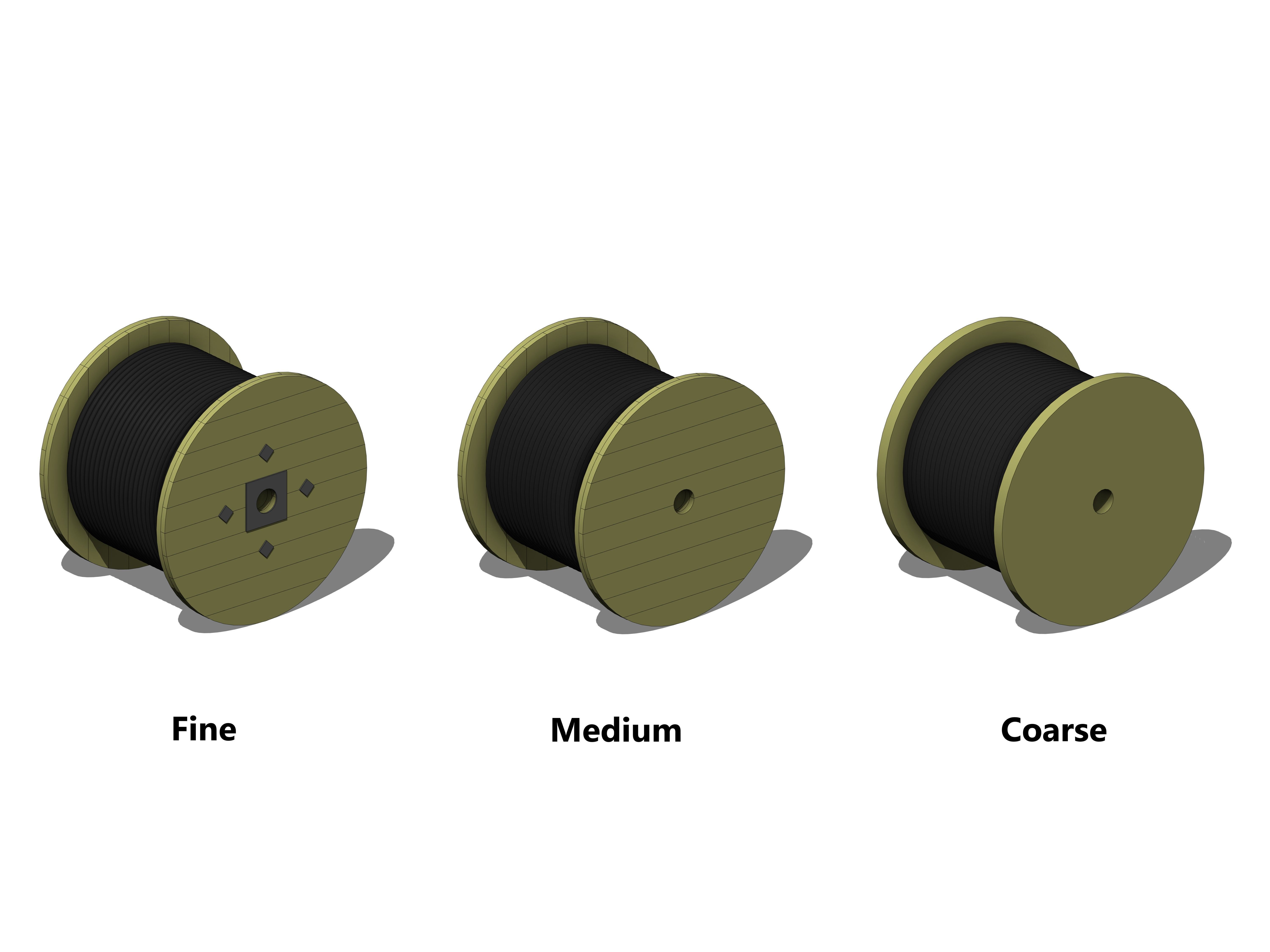

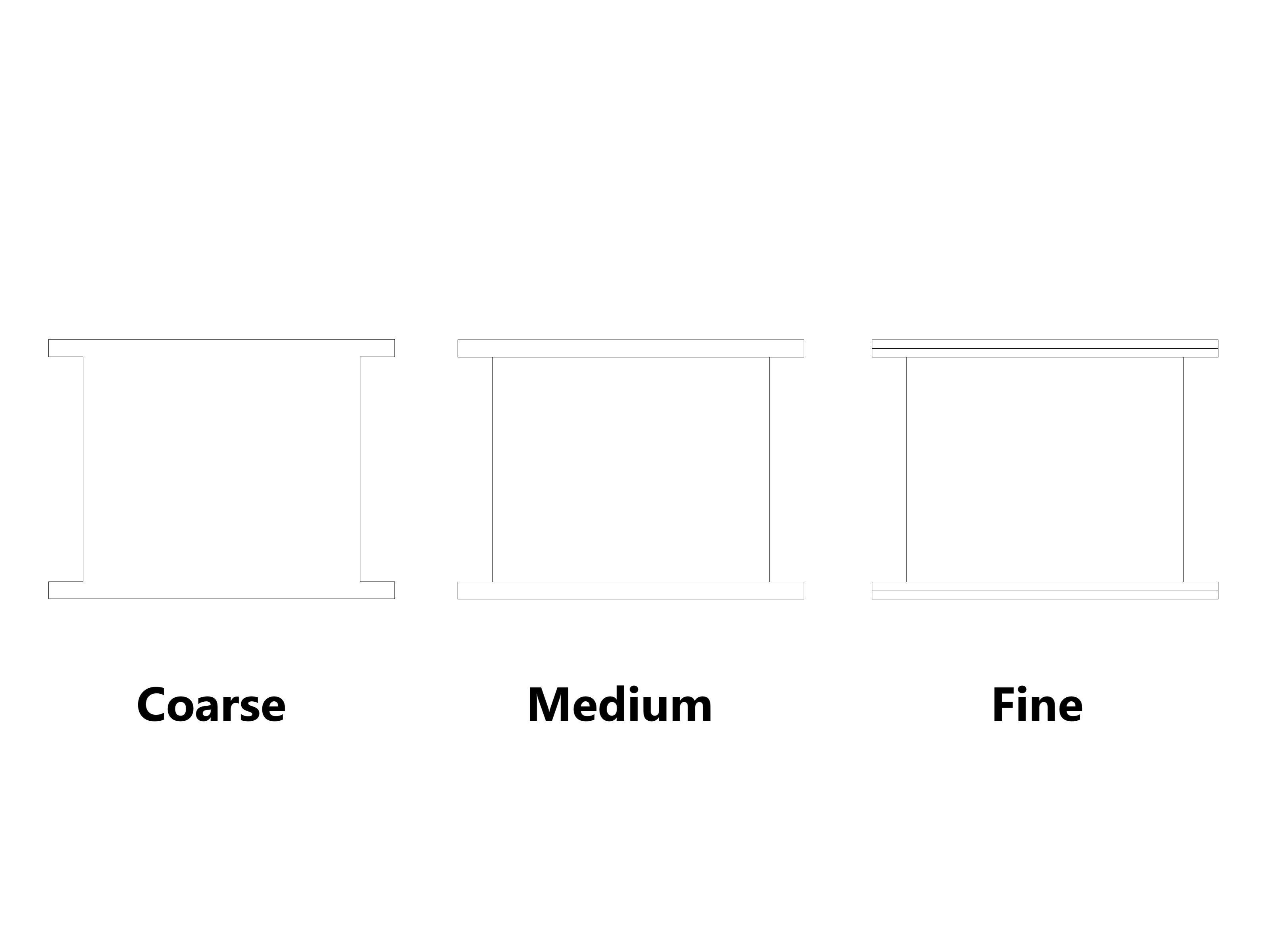

The object was modelled with different geometries for Fine, Medium and Coarse detail levels.

All materials are parametric.

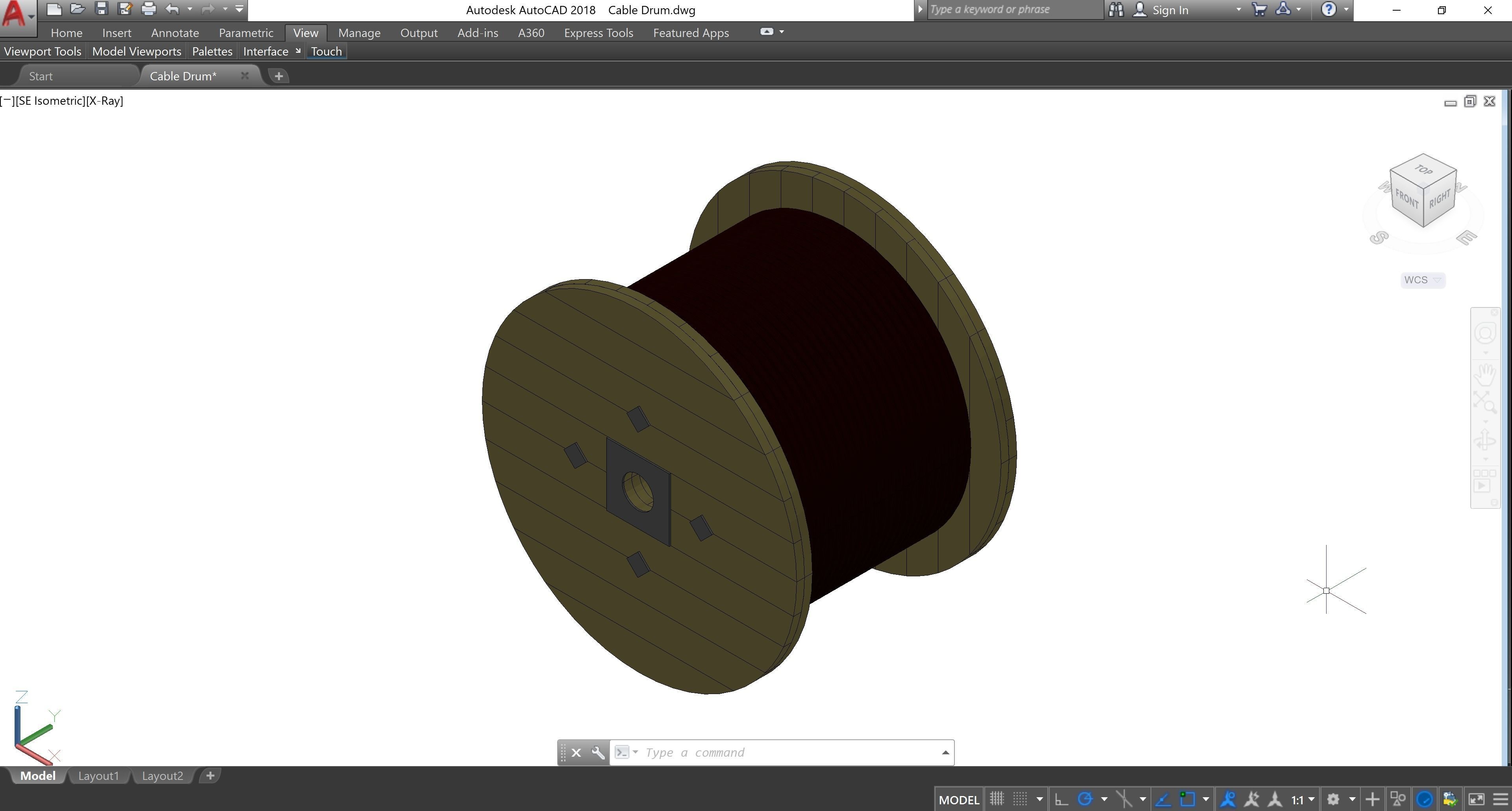

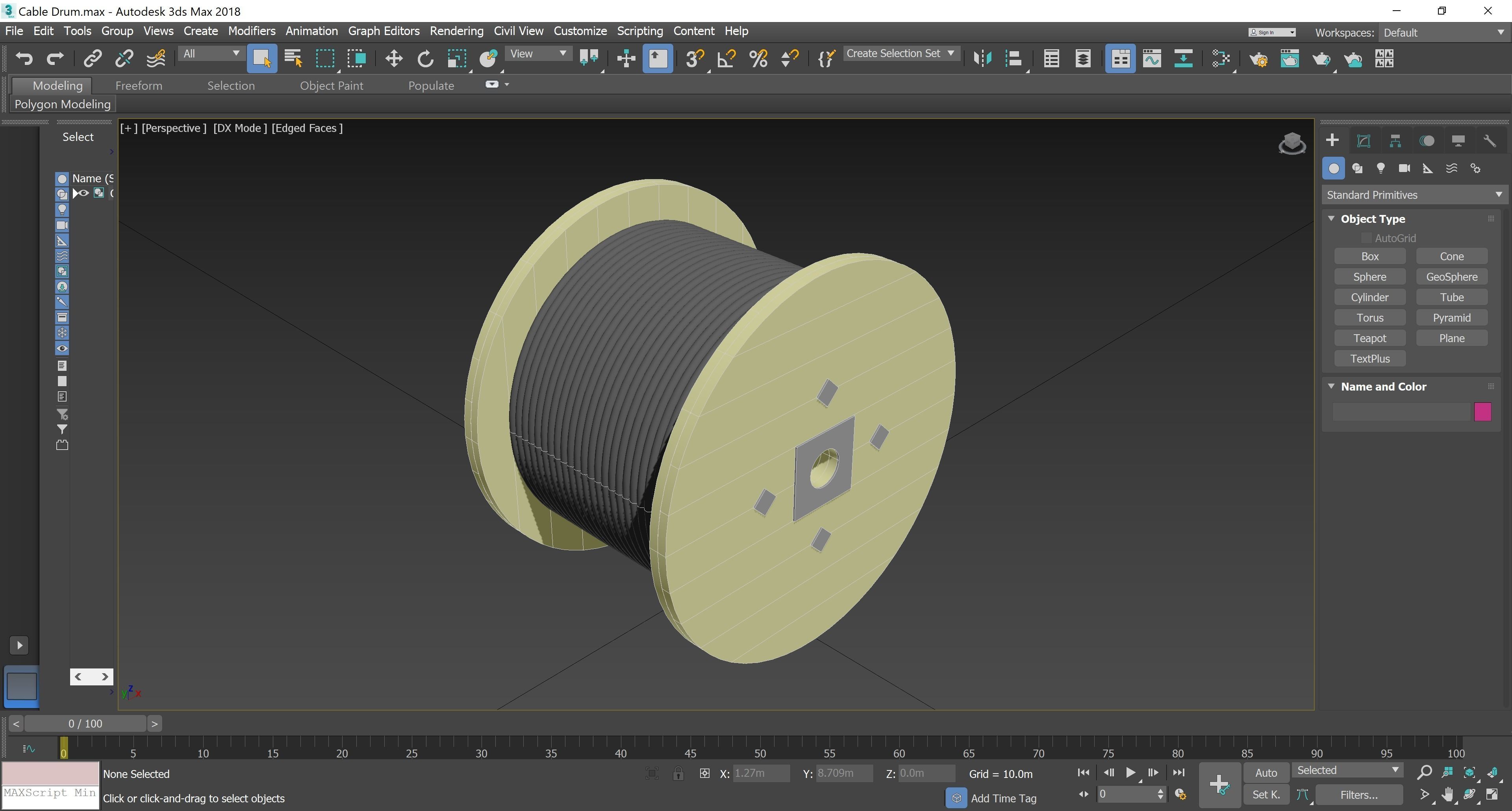

The MAX, DWG, FBX, 3DS, OBJ files include the Fine LOD 3D model of the default family type and are not parametric as these are non-native files exported from Revit.

Item rating
0 0
Cable Drum - Revit Family
$2.49

Royalty Free License
Cable Drum - Revit Family
$2.49

Royalty Free License
Response 50% in 28.1h
3D Modeling
Hire me

3D Model formats

Format limitations
Native
  • Autodesk Revit 2018 (.rfa, .rvt)804 KB
Exchange
  • Autodesk 3ds Max 2018 (.max)1.1 MB
  • AutoCAD 2018 (.dwg)1.75 MB
  • Autodesk FBX 2018 (.fbx)336 KB
  • 3D Studio (.3ds)982 KB
  • OBJ (.obj, .mtl)3.99 MB

3D Model details

  • Publish date2021-11-21
  • Model ID#3398575
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
