DESCRIPTION

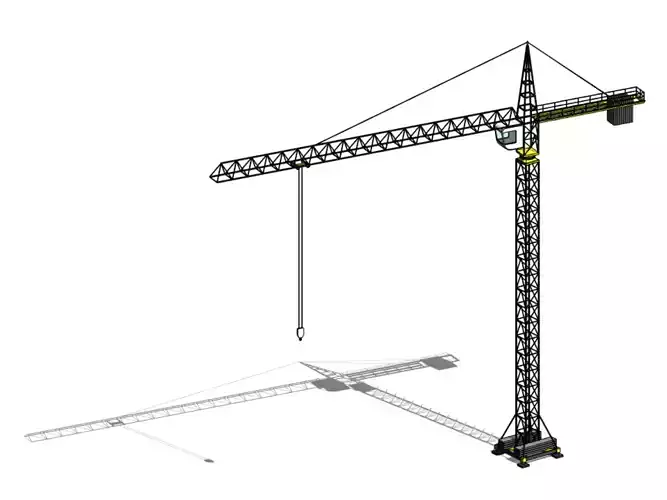

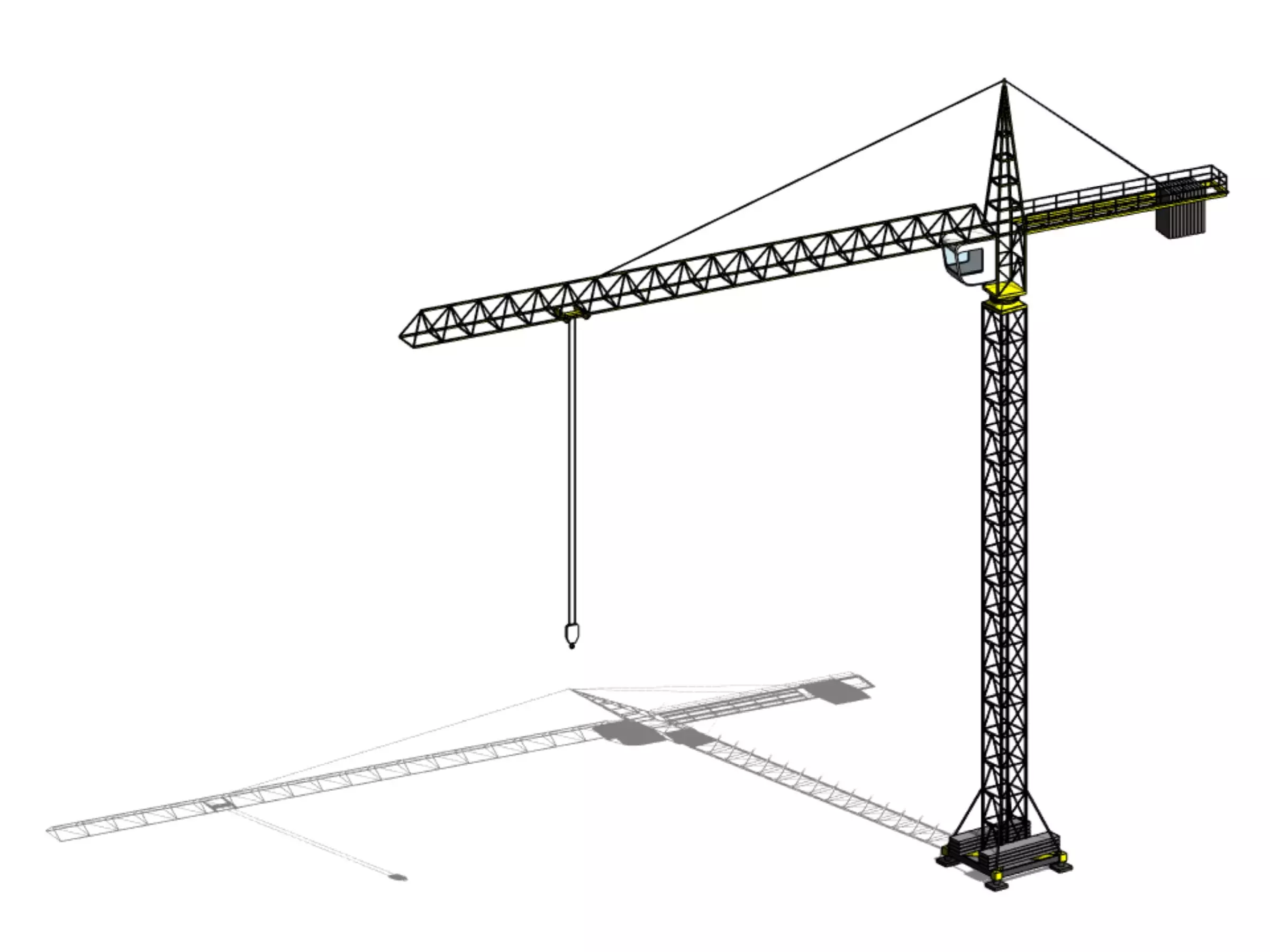

Tower crane parametric Revit family.For Revit 2021 and above.Available file formats: RFA, MAX, DWG, FBX, 3DS, OBJ.

Crane structure options:

  • high top
  • flat top

Foundation options:

  • ballasted pedestal
  • cast foundation

Cabin options:

  • side cabin
  • suspended cabin

Analytic visualization options:

  • clearance zone
  • maximum load 3D graph

Parametric dimensions:

  • jib length
  • counter arm length
  • jib elevation
  • mast height
  • tower width
  • jib rotation
  • hook position
  • pedestal/foundation width

The object was modelled with different geometries for Fine, Medium and Coarse detail levels.

All materials are parametric.

The MAX, DWG, FBX, 3DS, OBJ files include the Fine LOD 3D model of the default family type and are not parametric as these are non-native files exported from Revit.
