Mobile Crane - Revit Family

Mobile Crane - Revit Family 3D model


Truck-mounted mobile crane parametric Revit family. For Revit 2018 and above. Available file formats: RFA, MAX, DWG, FBX, 3DS, OBJ.

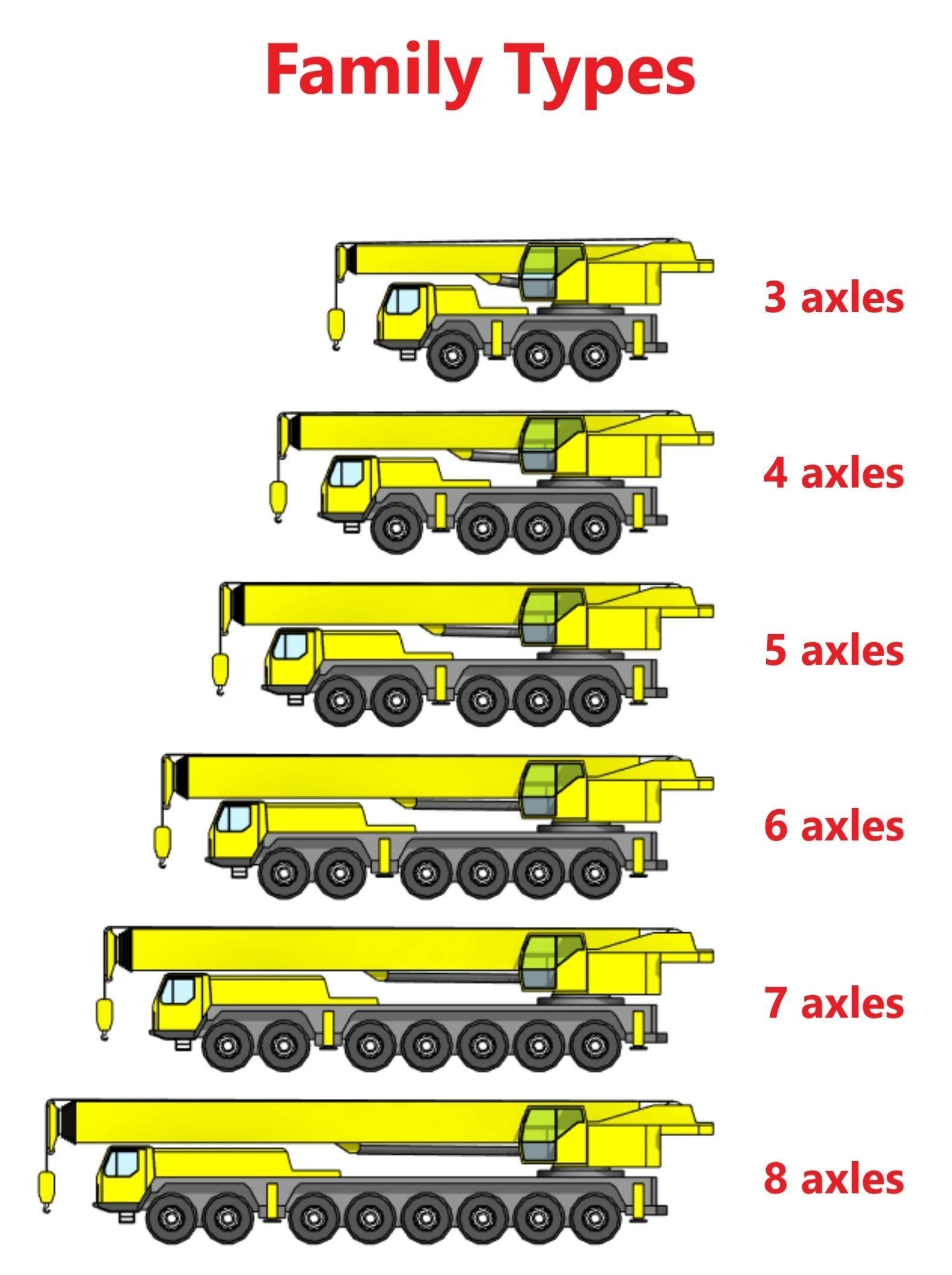

Chassis options:

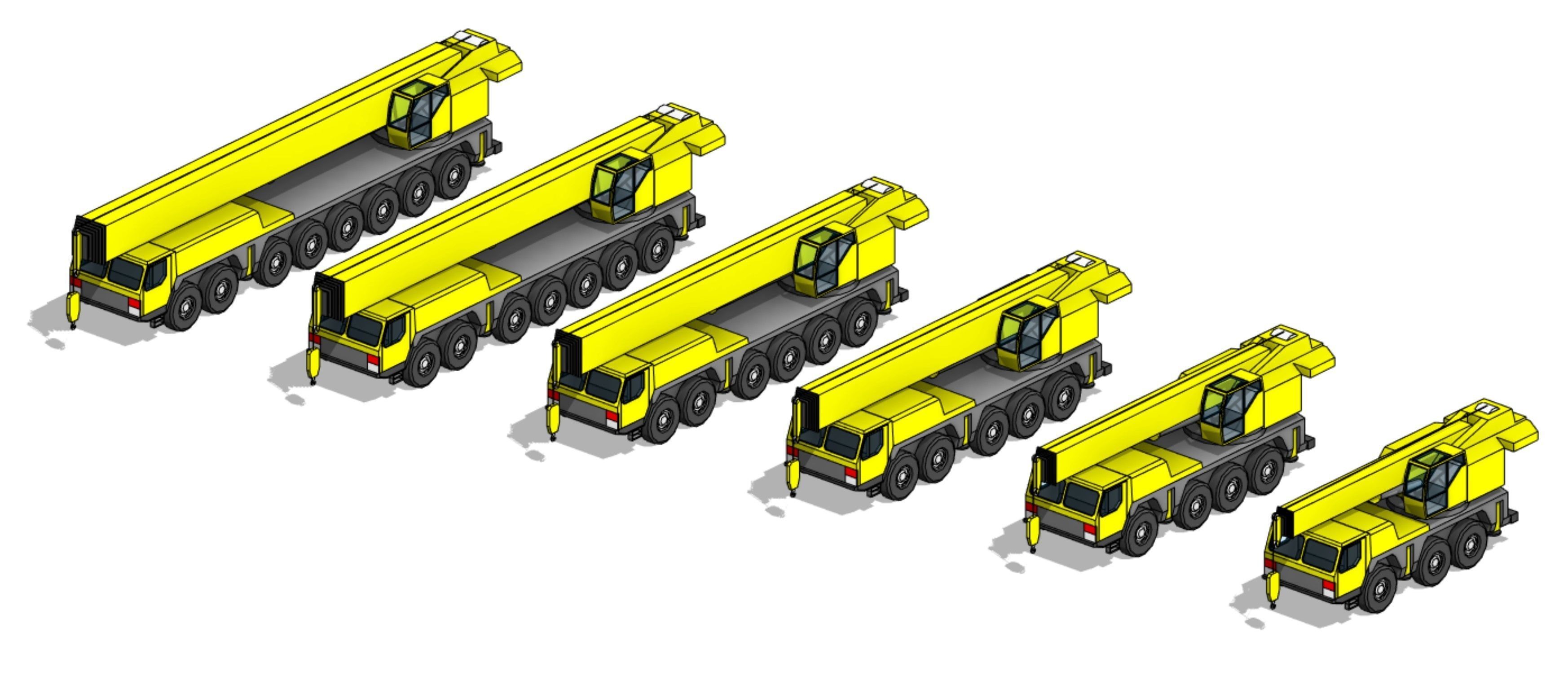

  • 3 axles
  • 4 axles
  • 5 axles
  • 6 axles
  • 7 axles
  • 8 axles

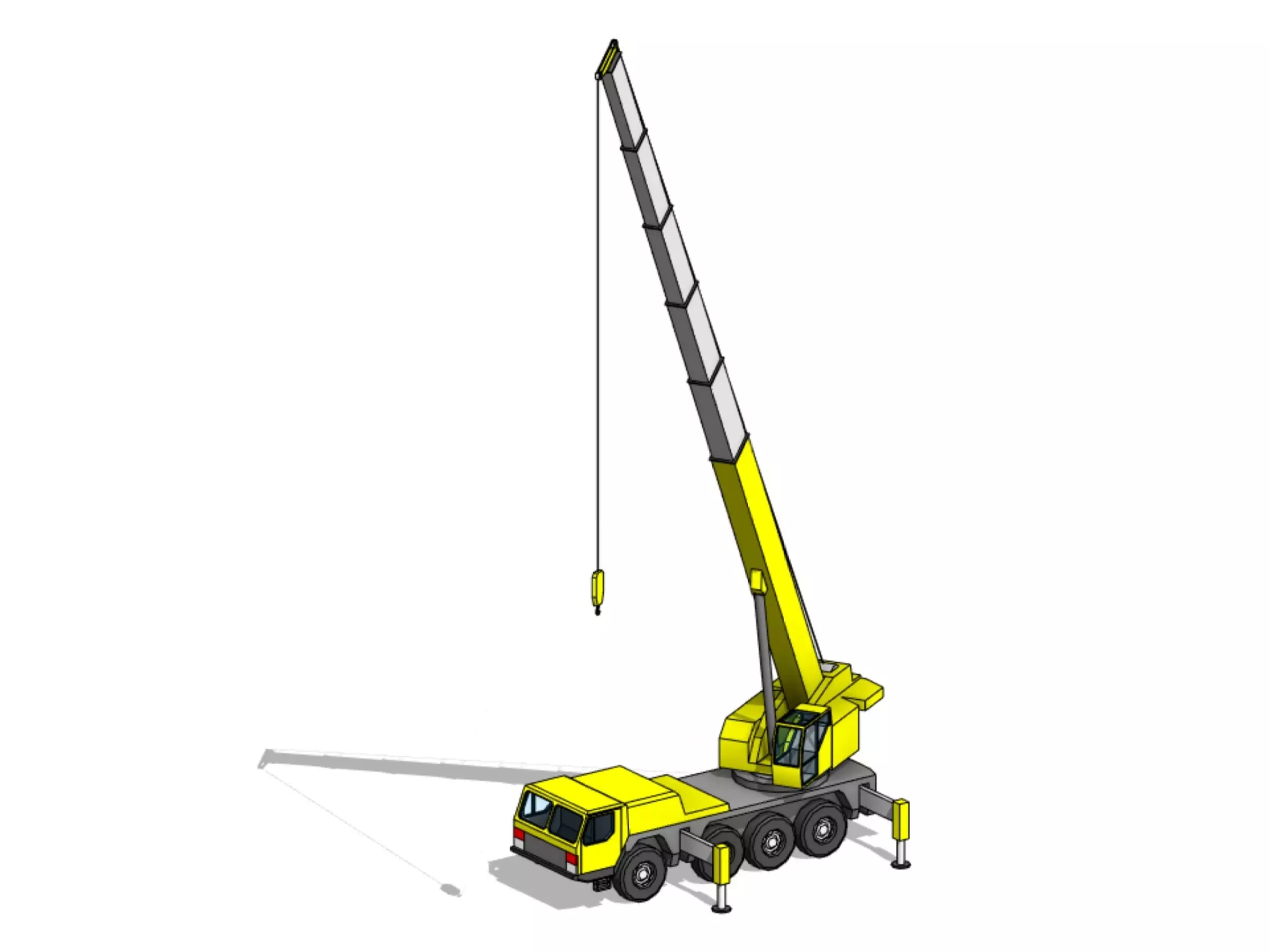

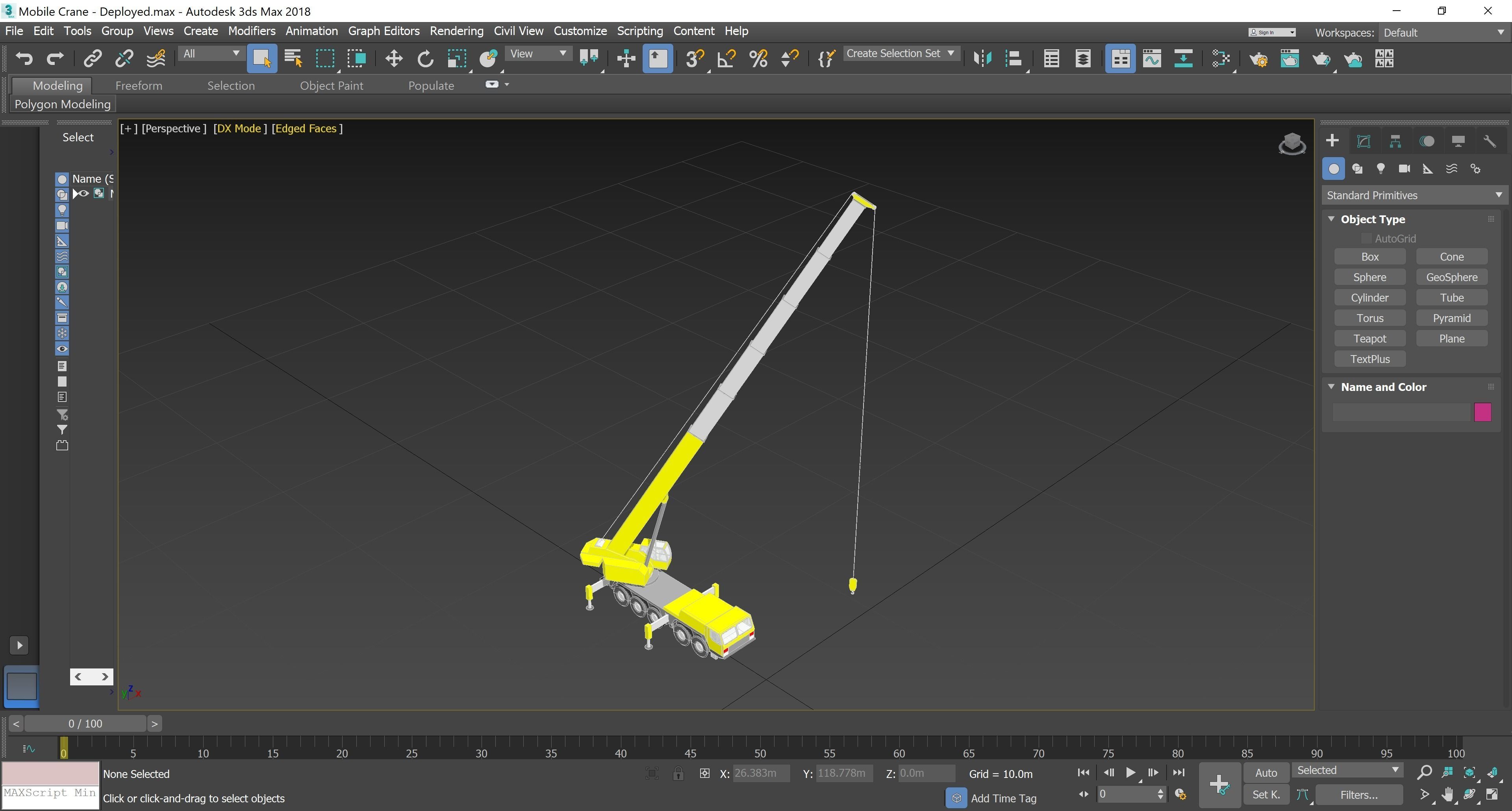

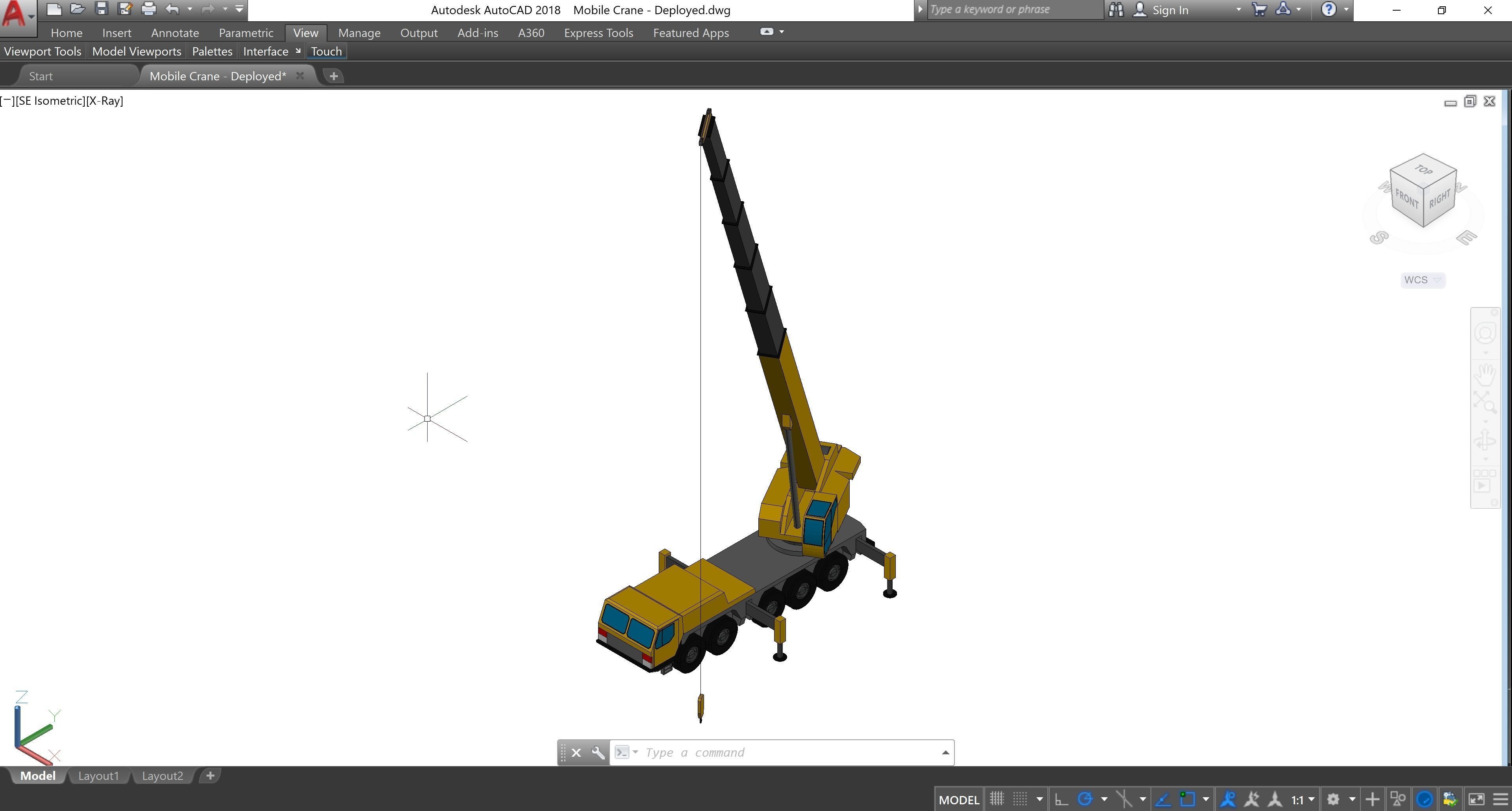

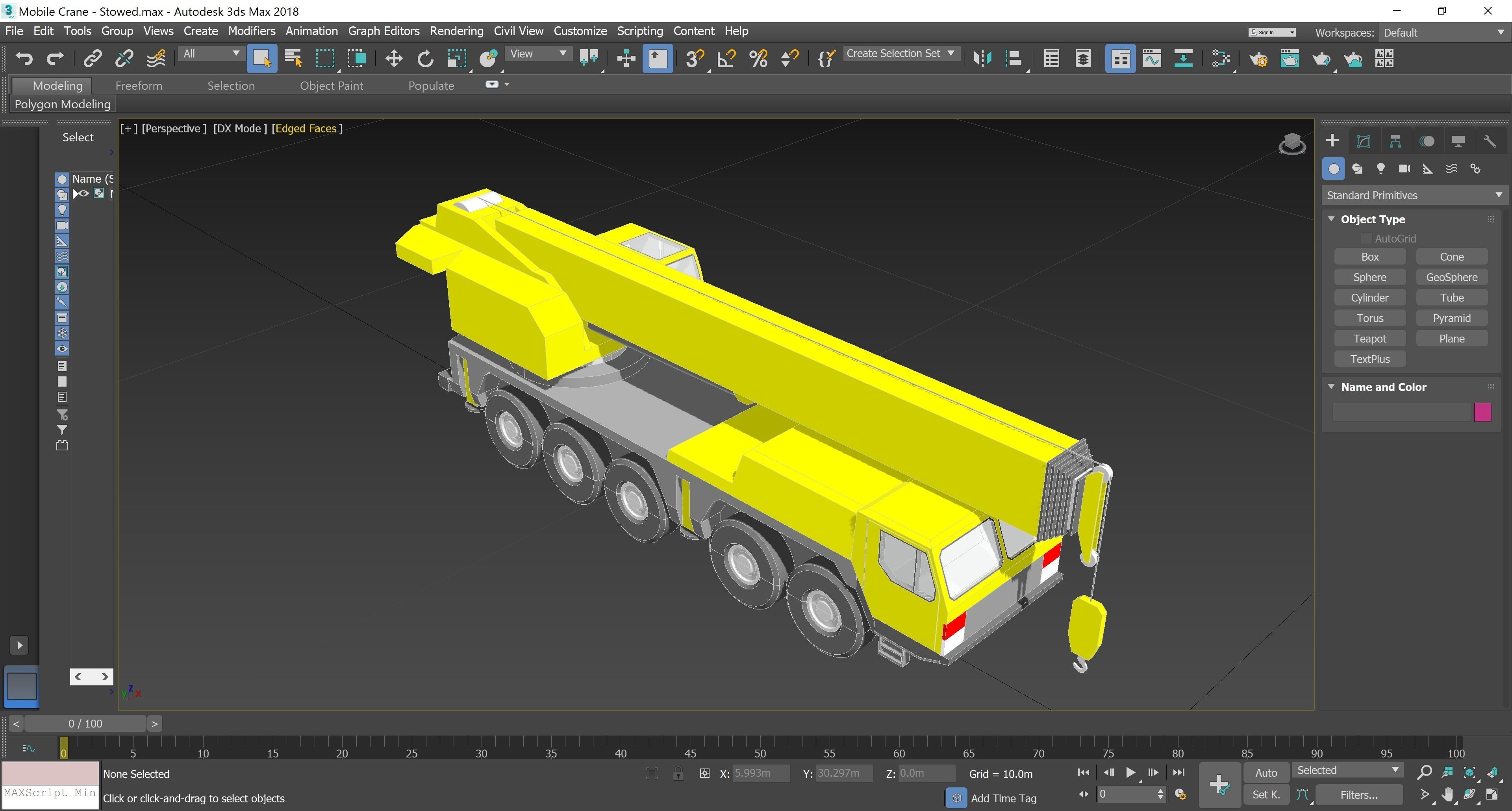

Stowed and deployed configuration

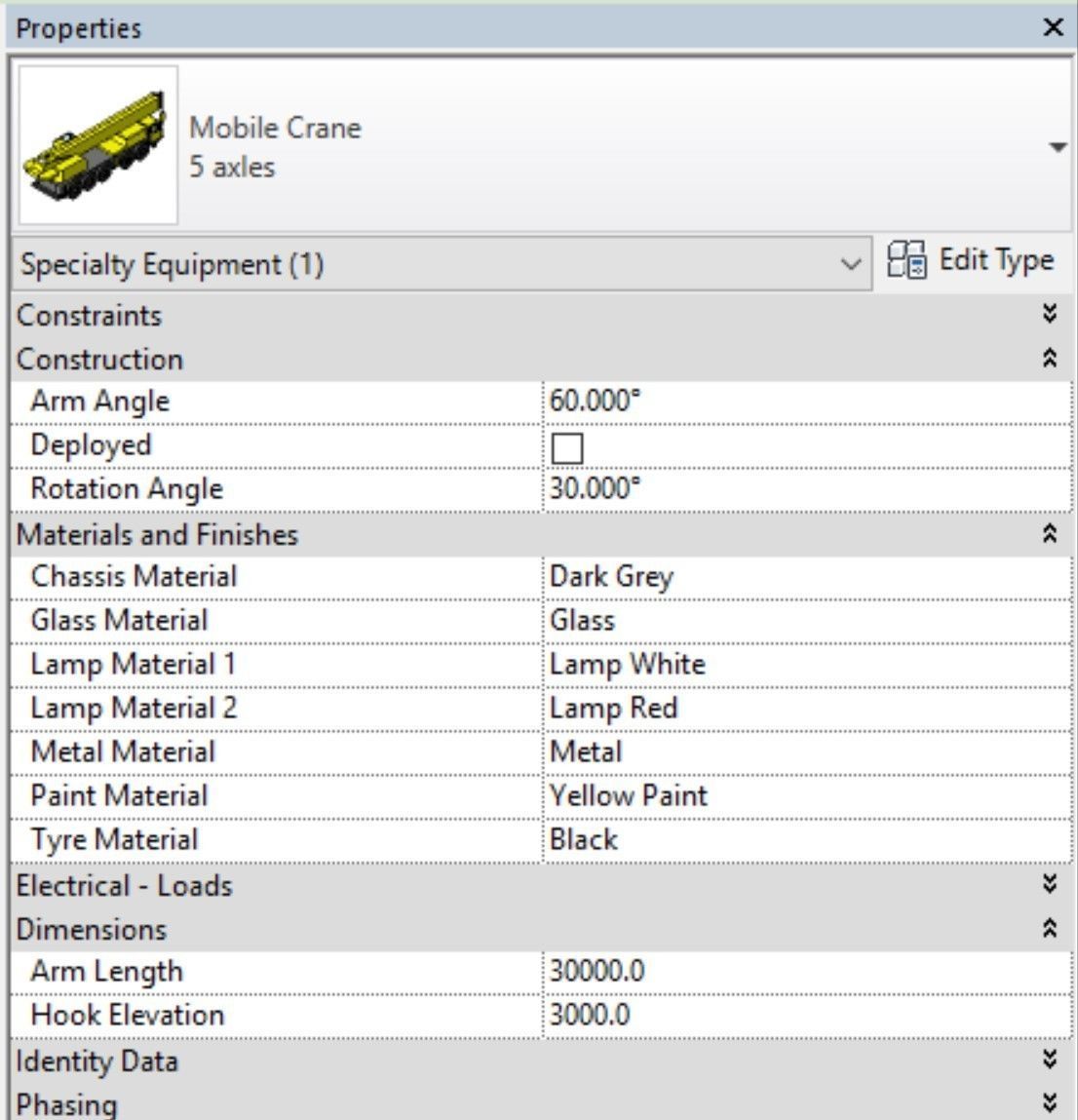

All angles are parametric.

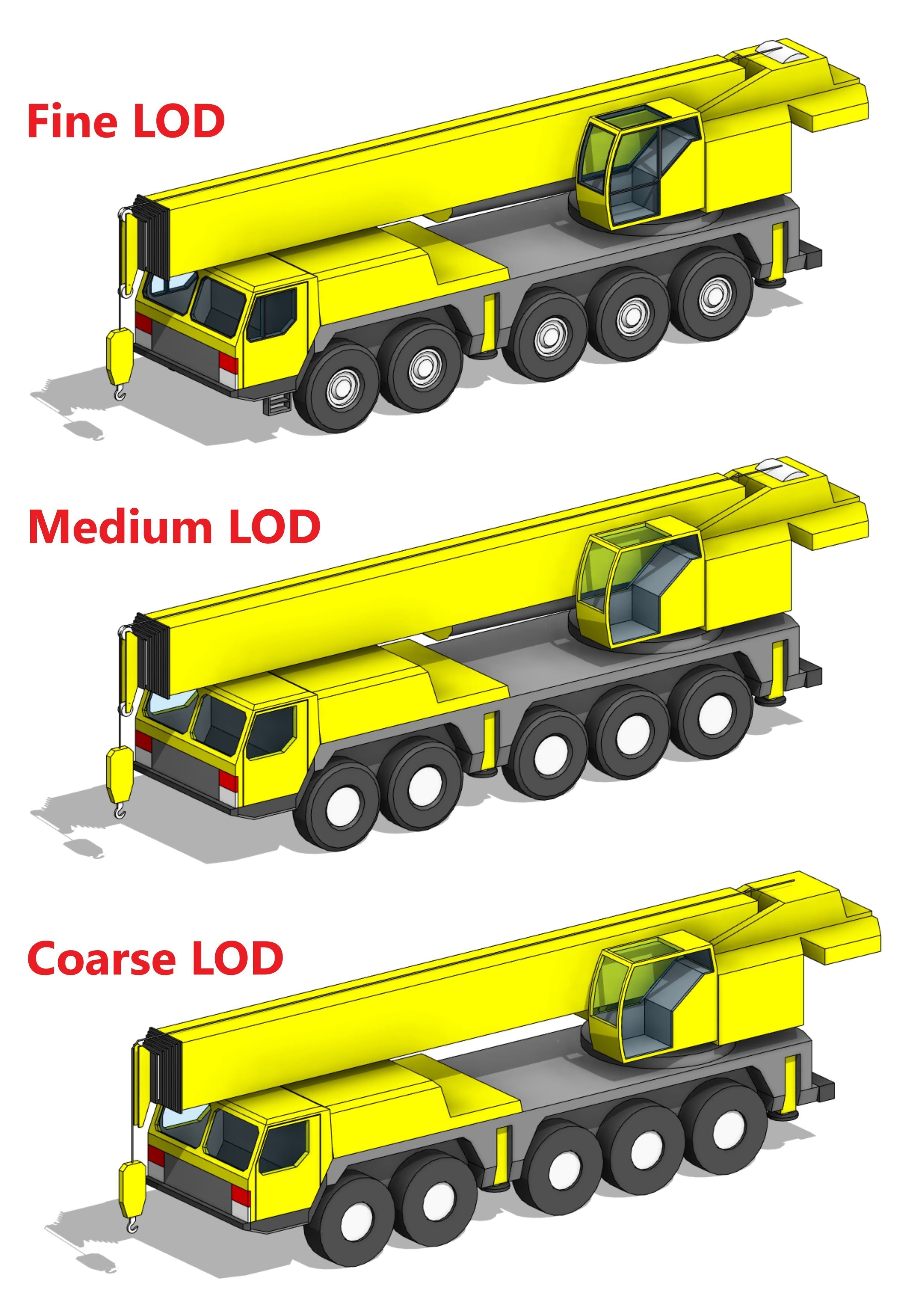

The object was modelled with different geometries for Fine, Medium and Coarse detail levels.

All materials are parametric.

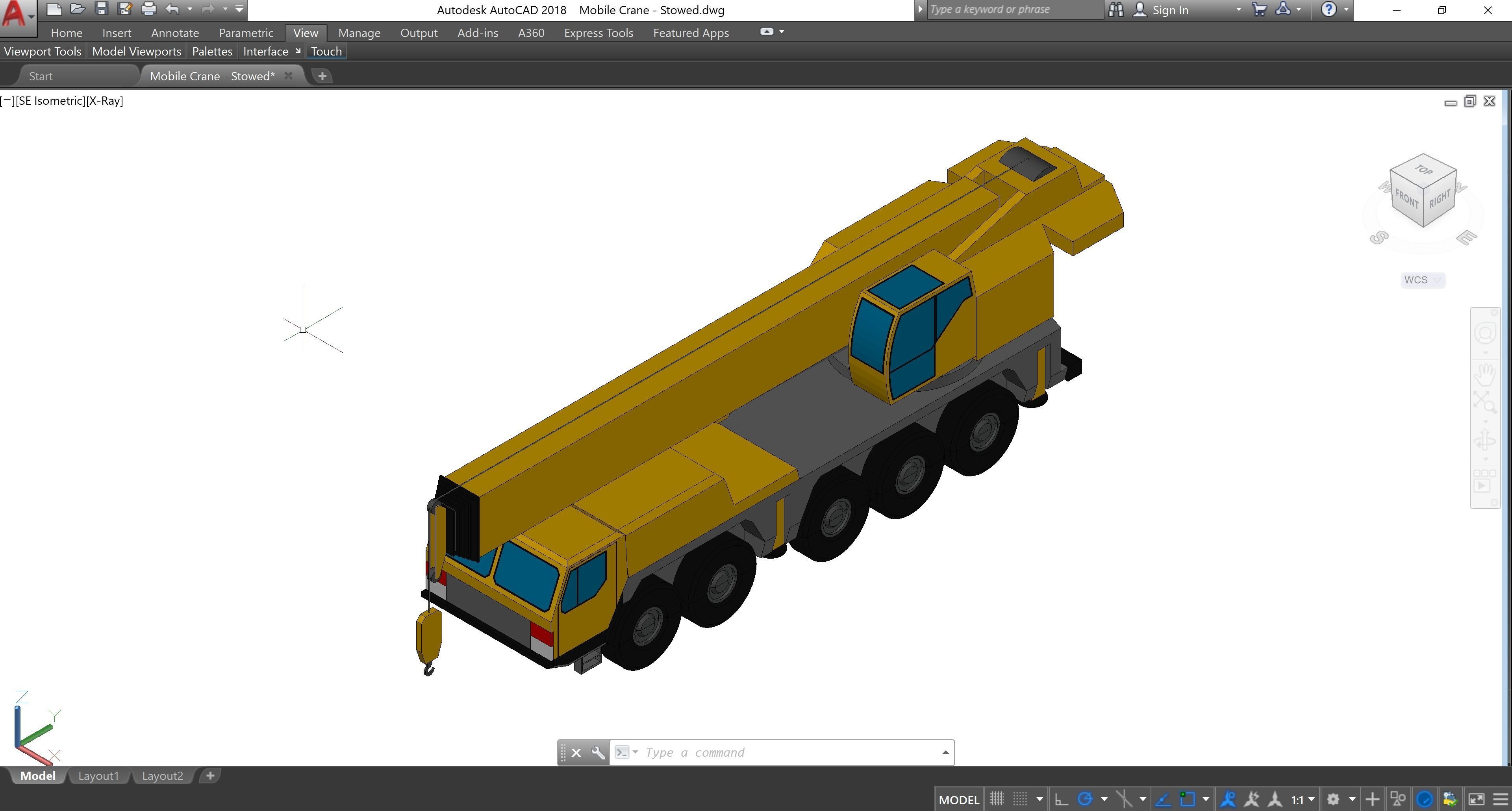

The MAX, DWG, FBX, 3DS, OBJ files include the Fine LOD 3D model of the default family type and are not parametric as these are non-native files exported from Revit.

estanilorente 2020-03-13 18:11:27 UTC
It's very impressive, but when you have the boom completely deployed at maximum there is something wrong with the hook. Could you repair it? Thank you.
