39 kWp Solar Project Type 12 3D model
Description
38,5 kWp Solar Project Type 12

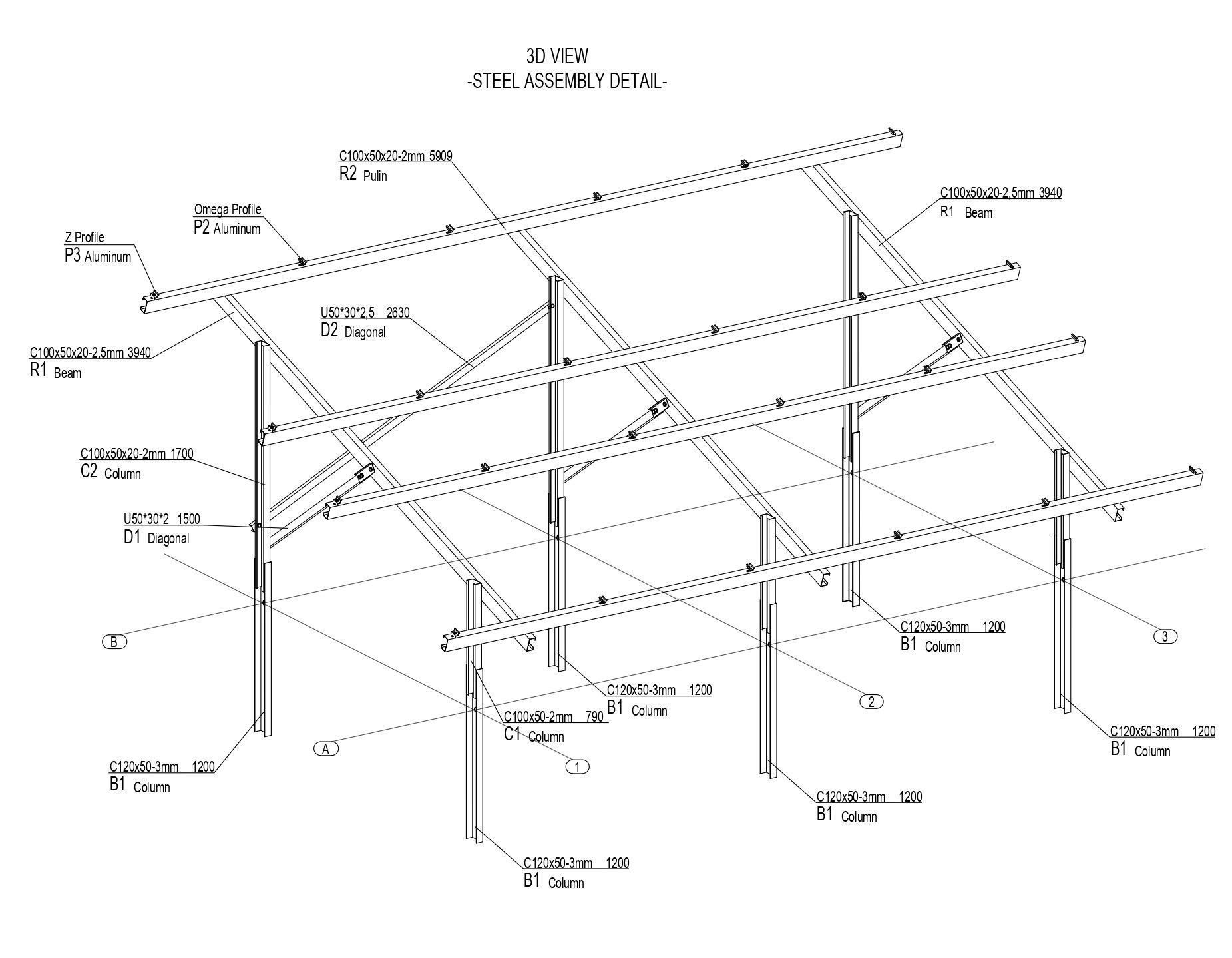

Static Steel Fabrication Project

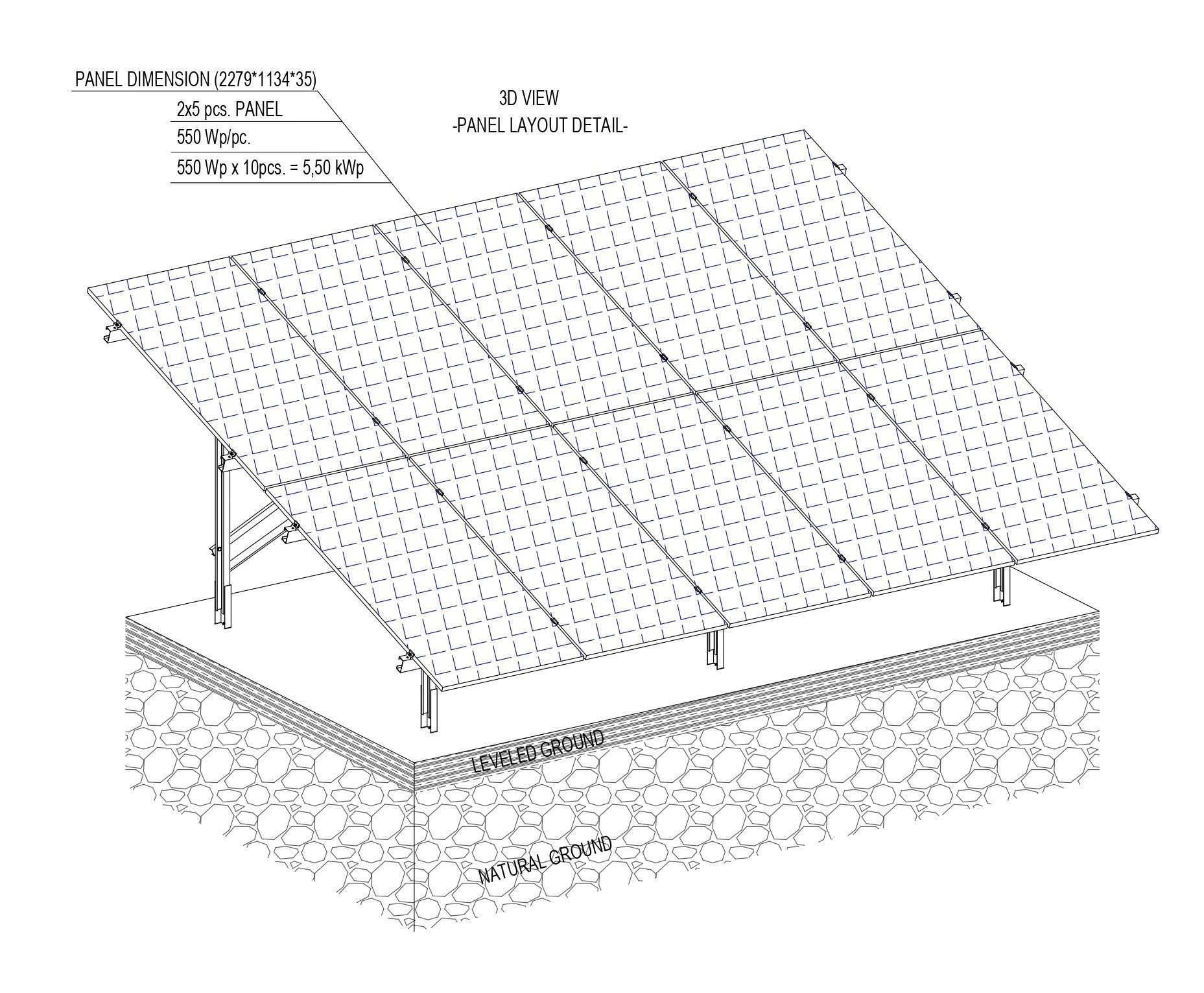

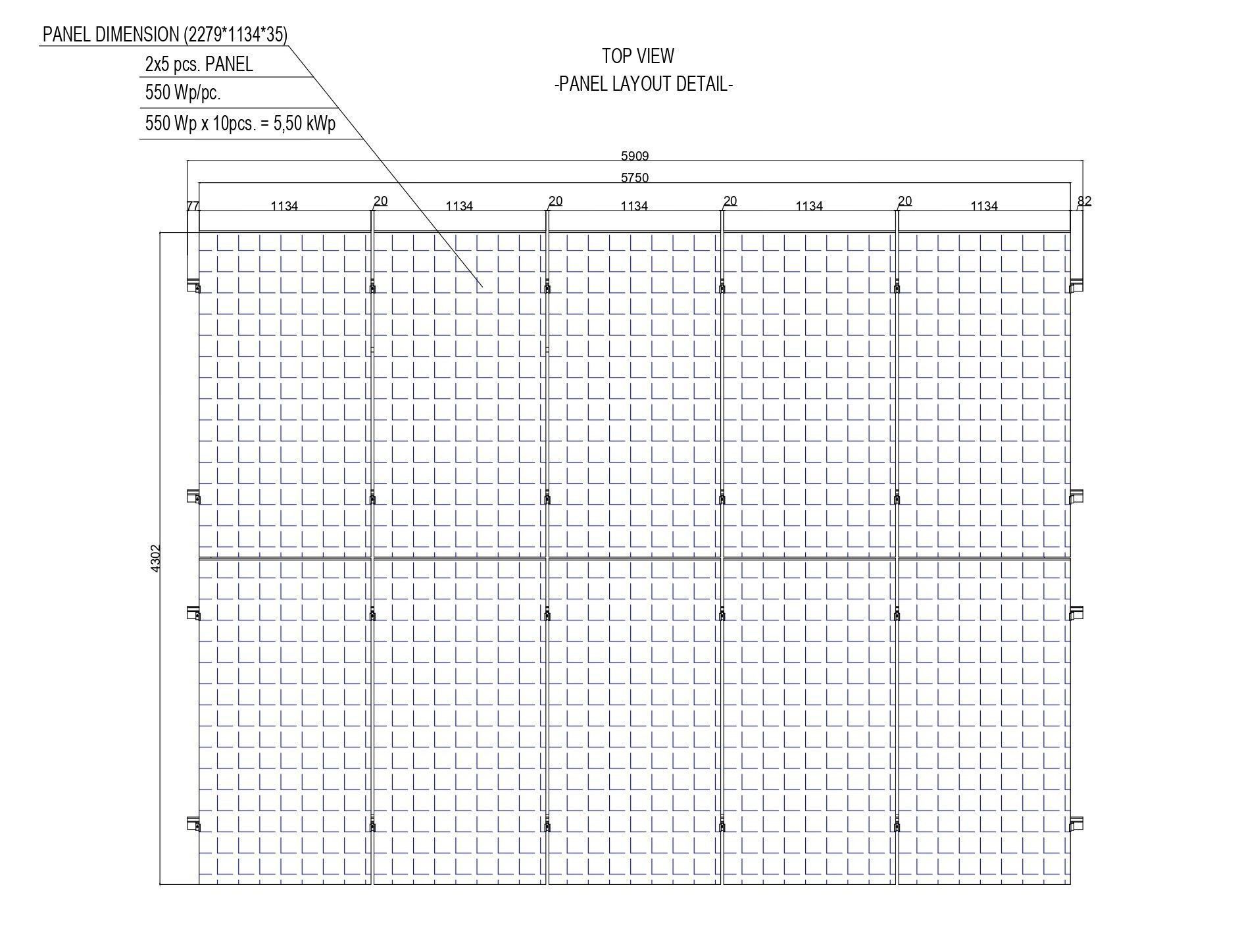

2x5 Vertical Panel Layout

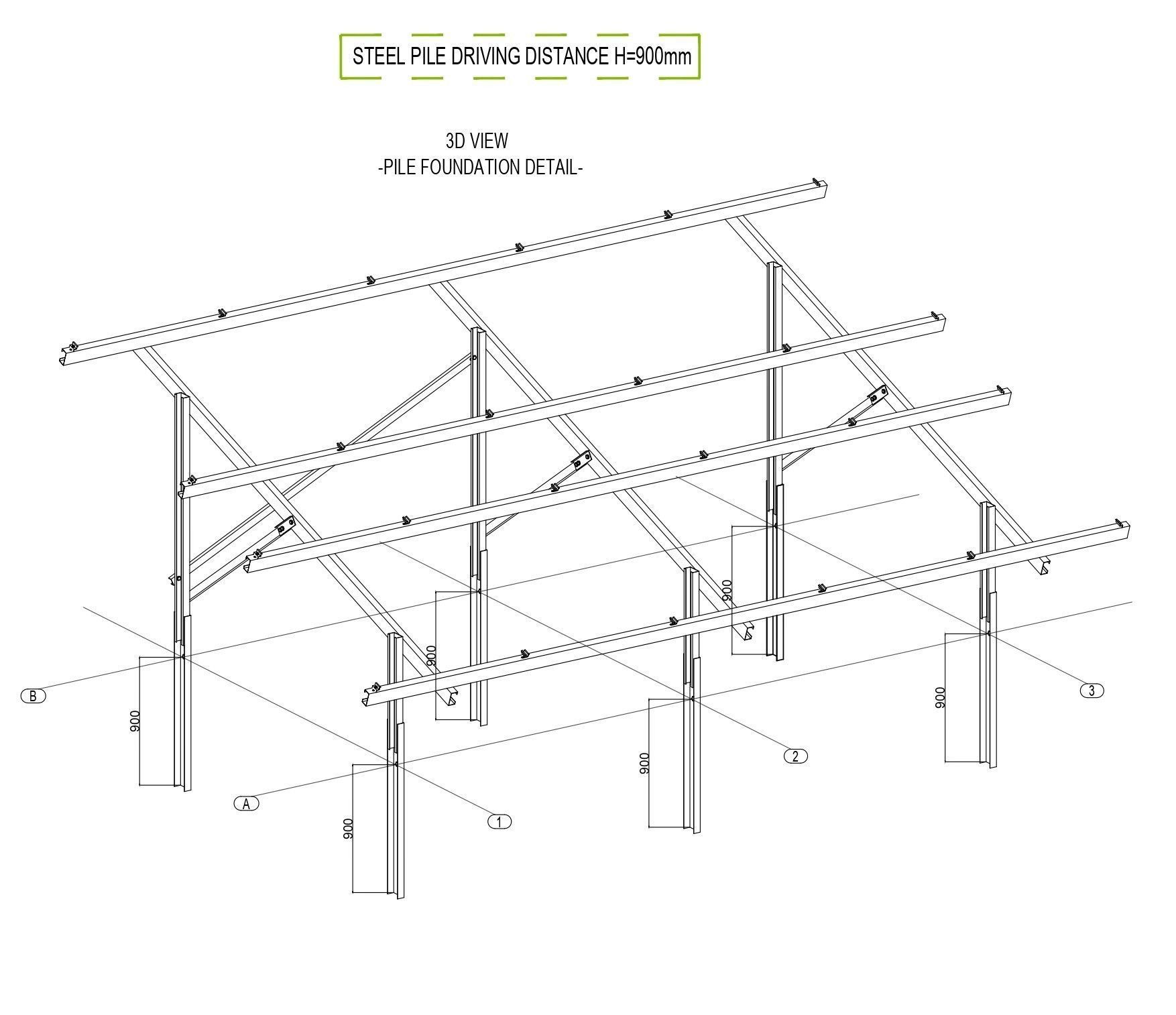

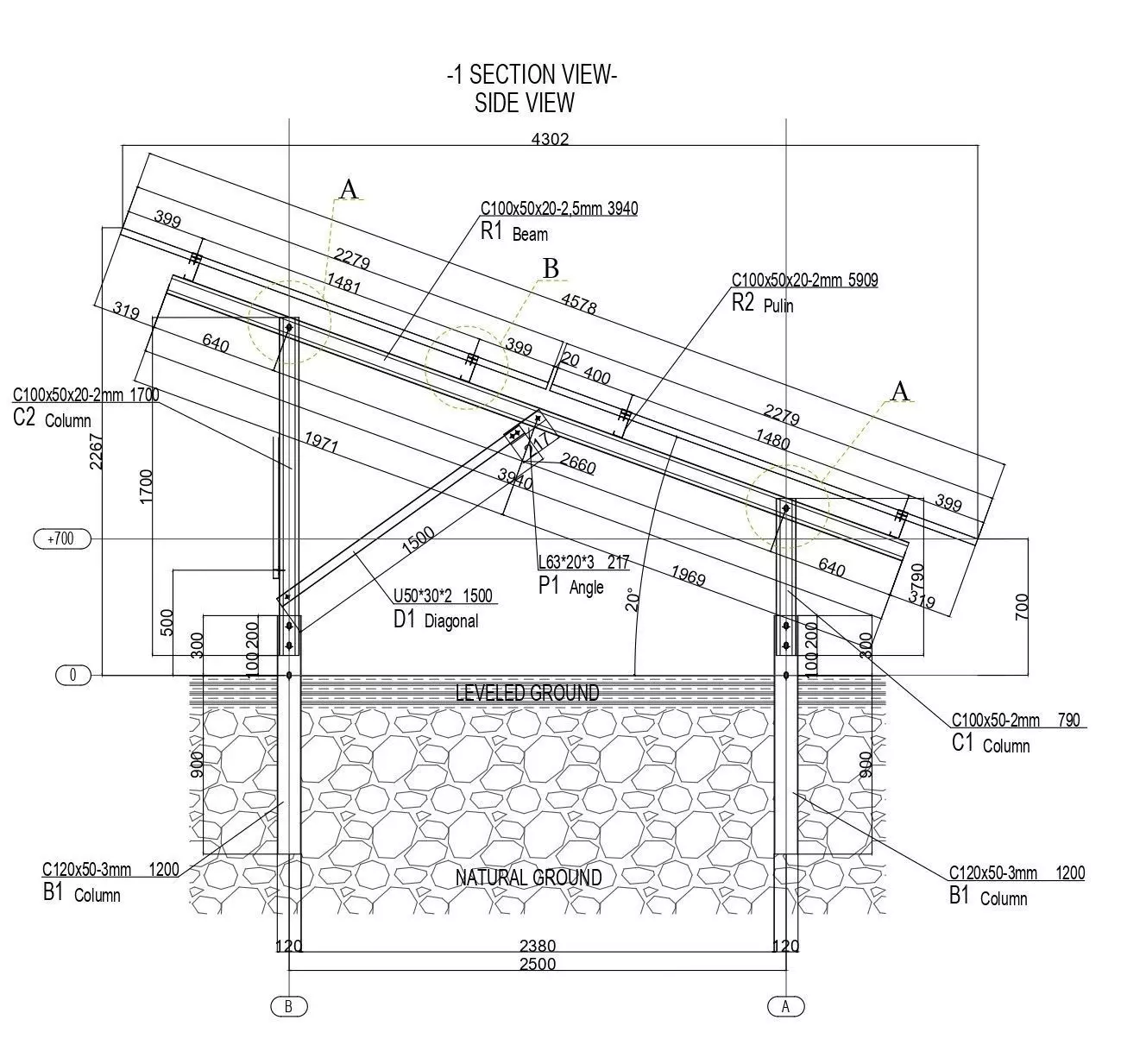

Ground Connection Type; Steel Driven Column

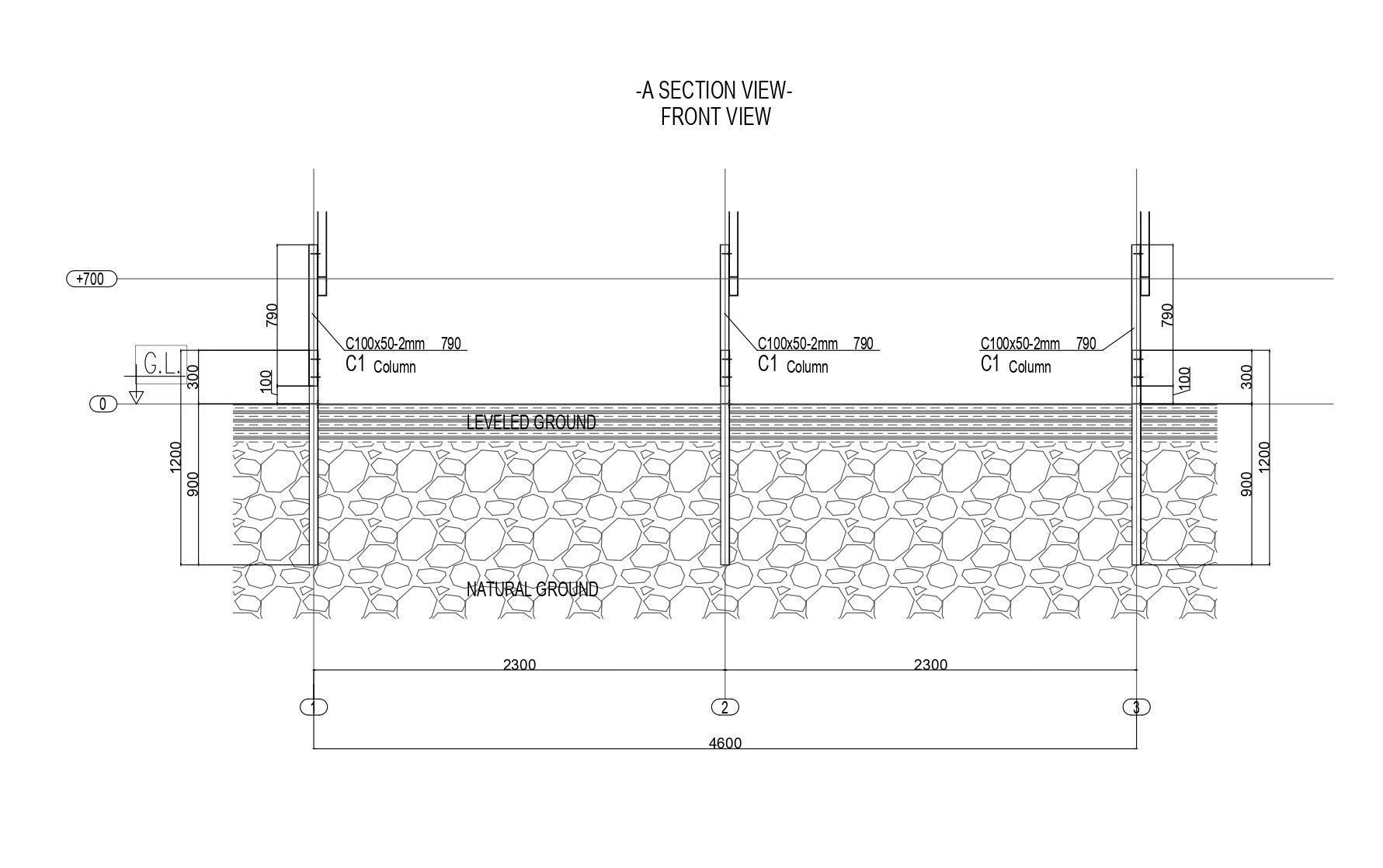

Distance of Columns Below Ground 900 mm.

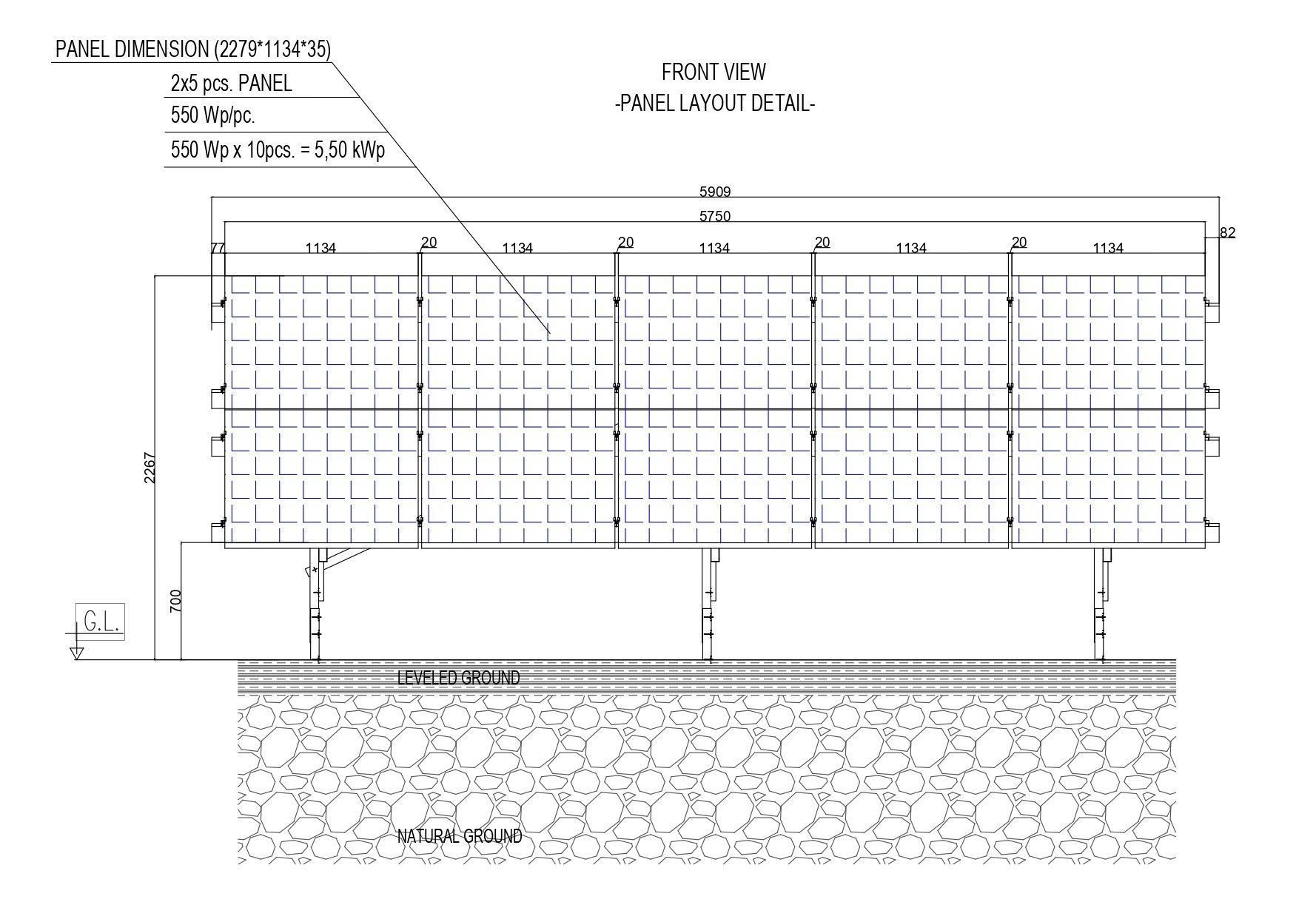

Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 5,5 kWp power in 1 hour

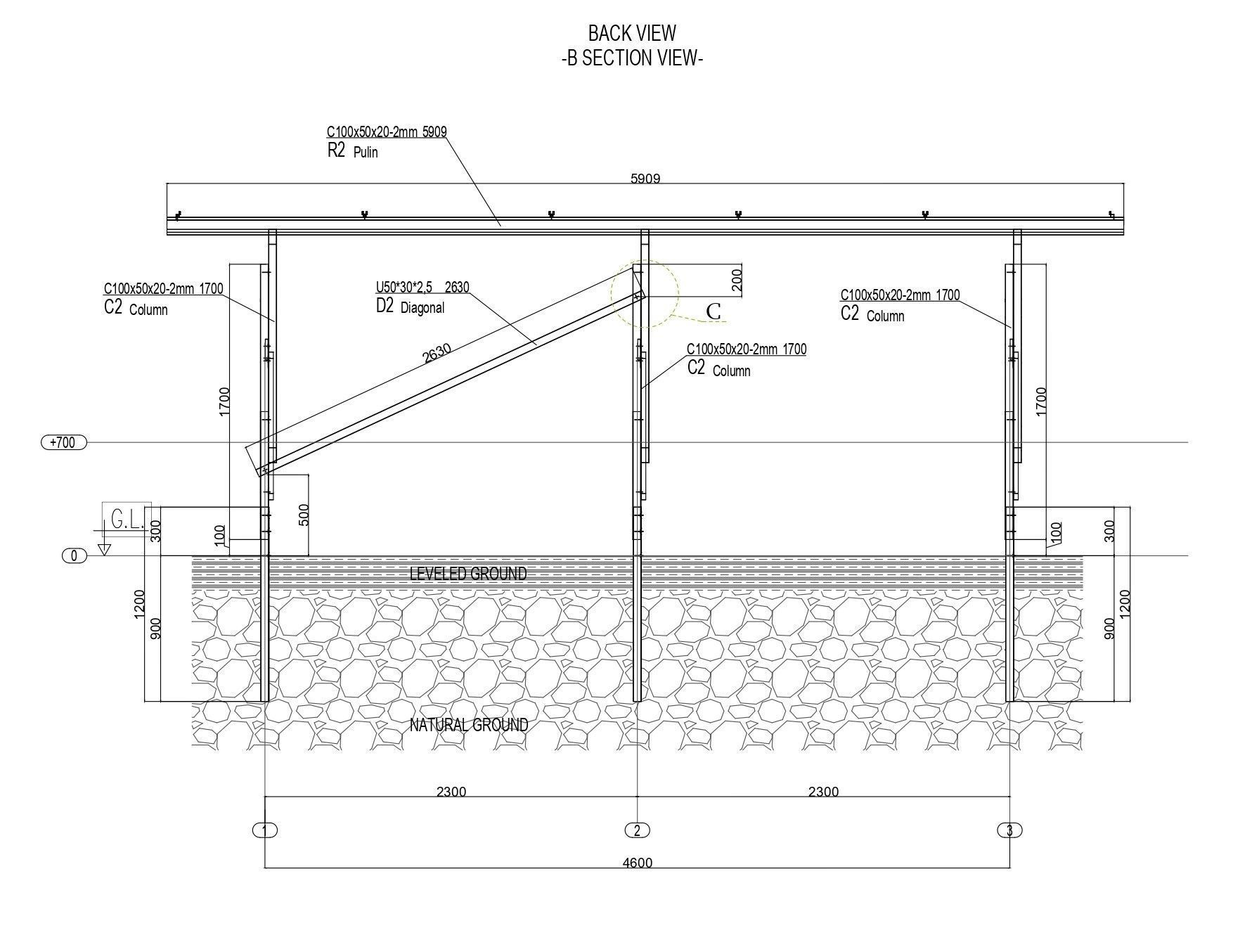

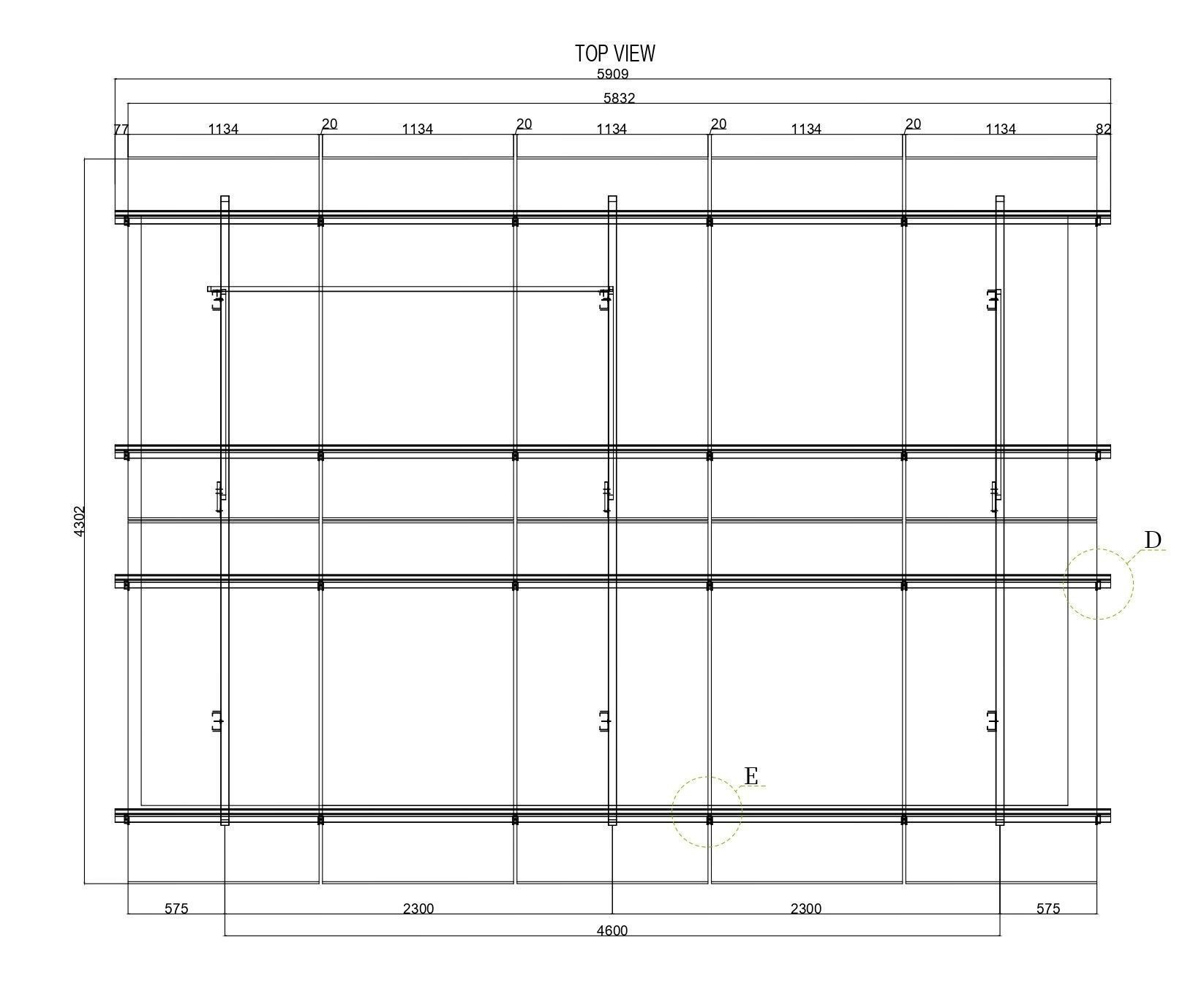

The system consists of 3 axles and the distance between each axle is 2300 mm.

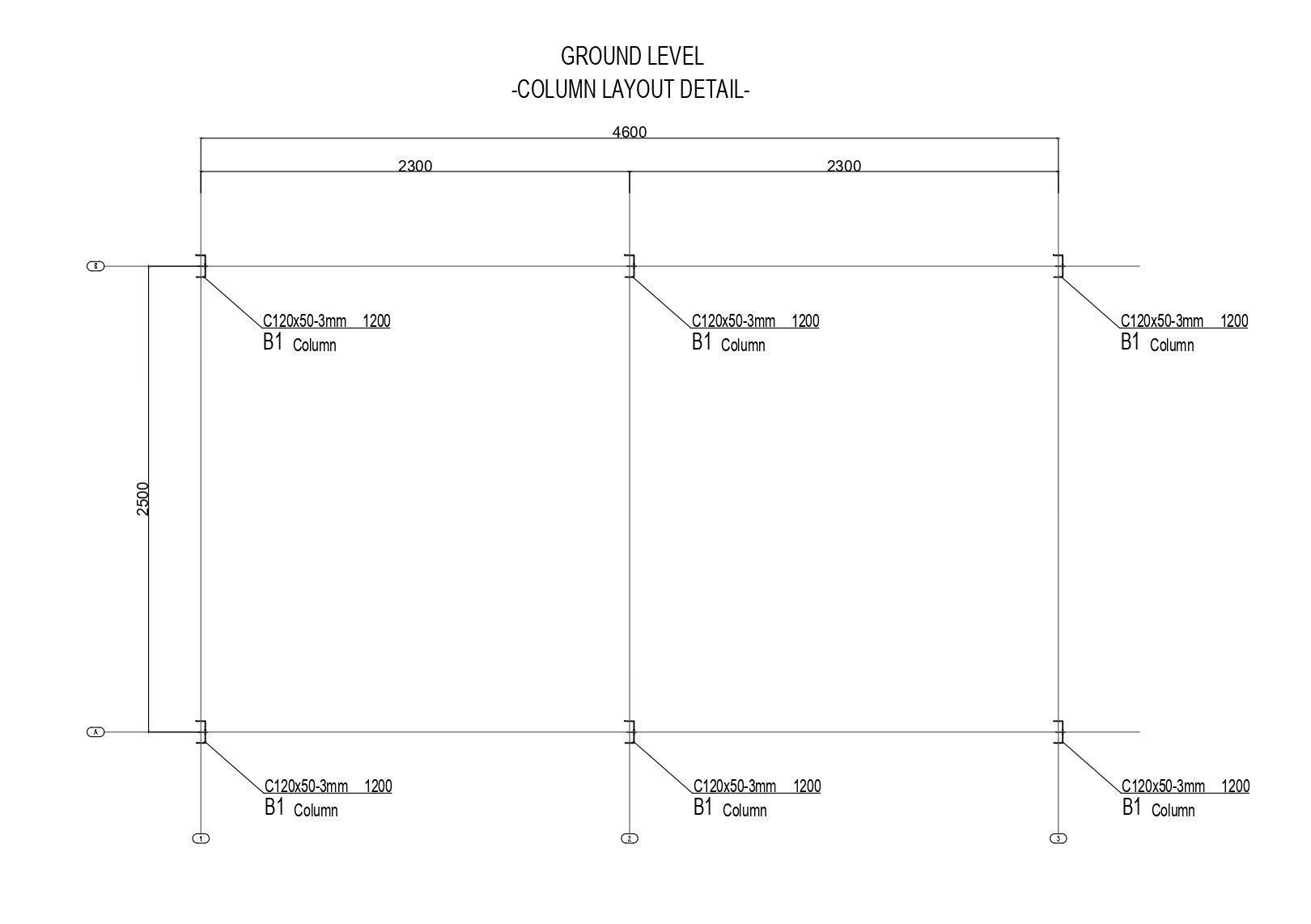

Distance between two columns 2500 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 700 mm.

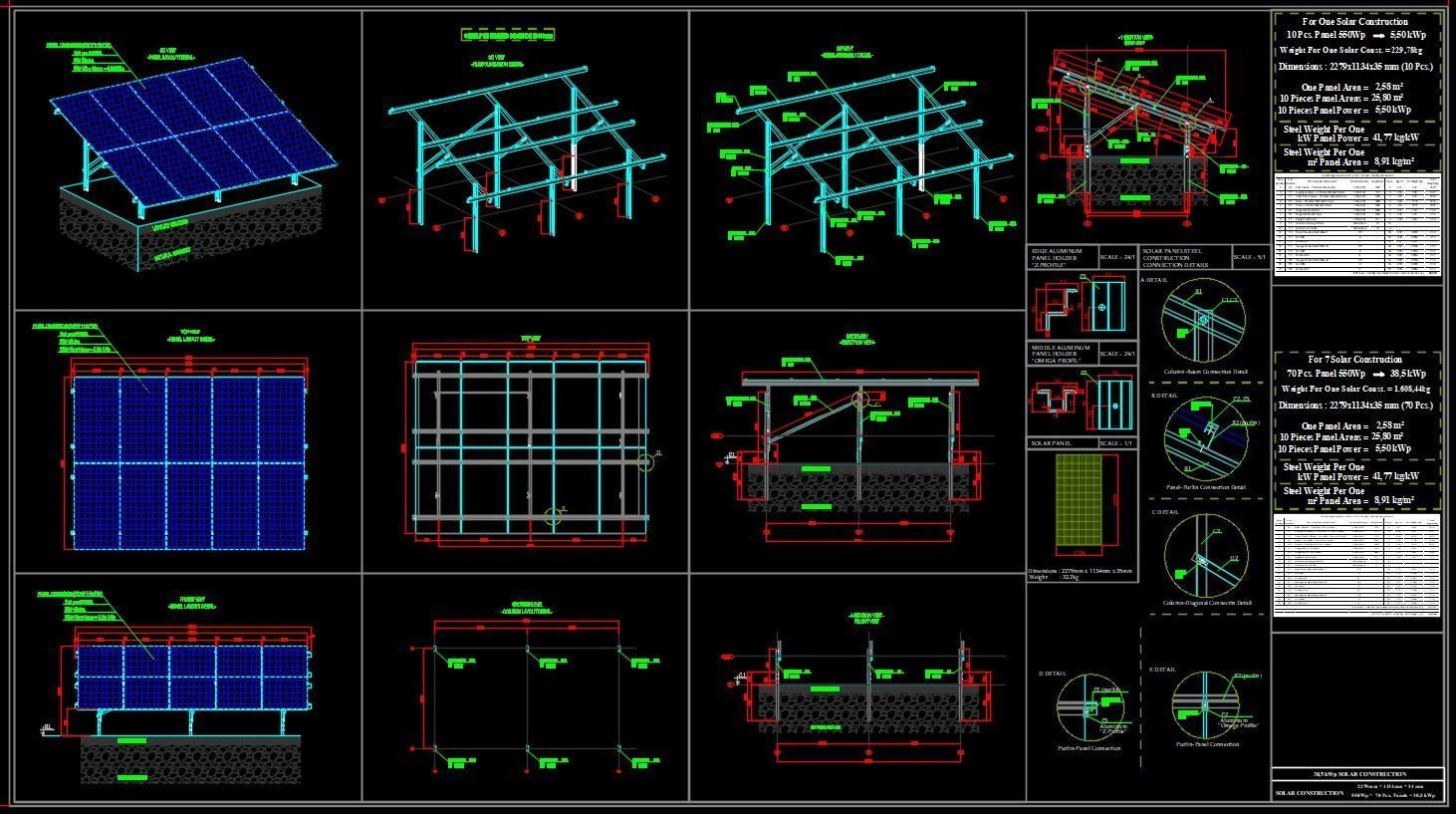

Prepared With AutoCAD Version 2021
39 kWp Solar Project Type 12
Royalty Free License
39 kWp Solar Project Type 12
Royalty Free License
3D Model formats
Format limitations
Native
- AutoCAD 2010 (.dwg)822 KB
Exchange
- DXF 2010 (.dxf)5.28 MB
- PDF (.pdf)591 KB
3D Model details
- Publish date2023-07-27
- Model ID#4666304
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
