647 kWp Solar Project Type 16 3D model
Description
647,46 kWp Solar Project Type 16
Static Steel Fabrication Project

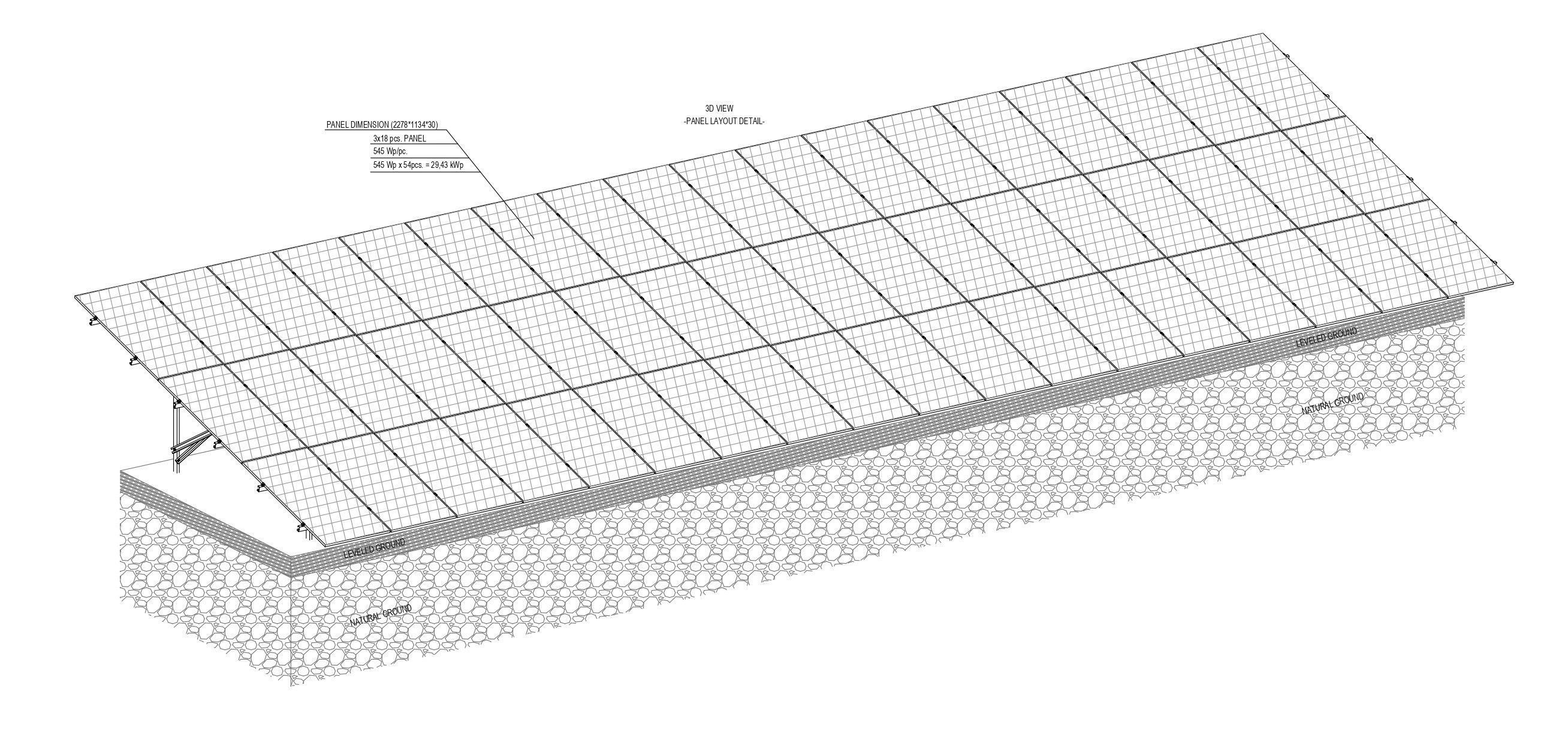

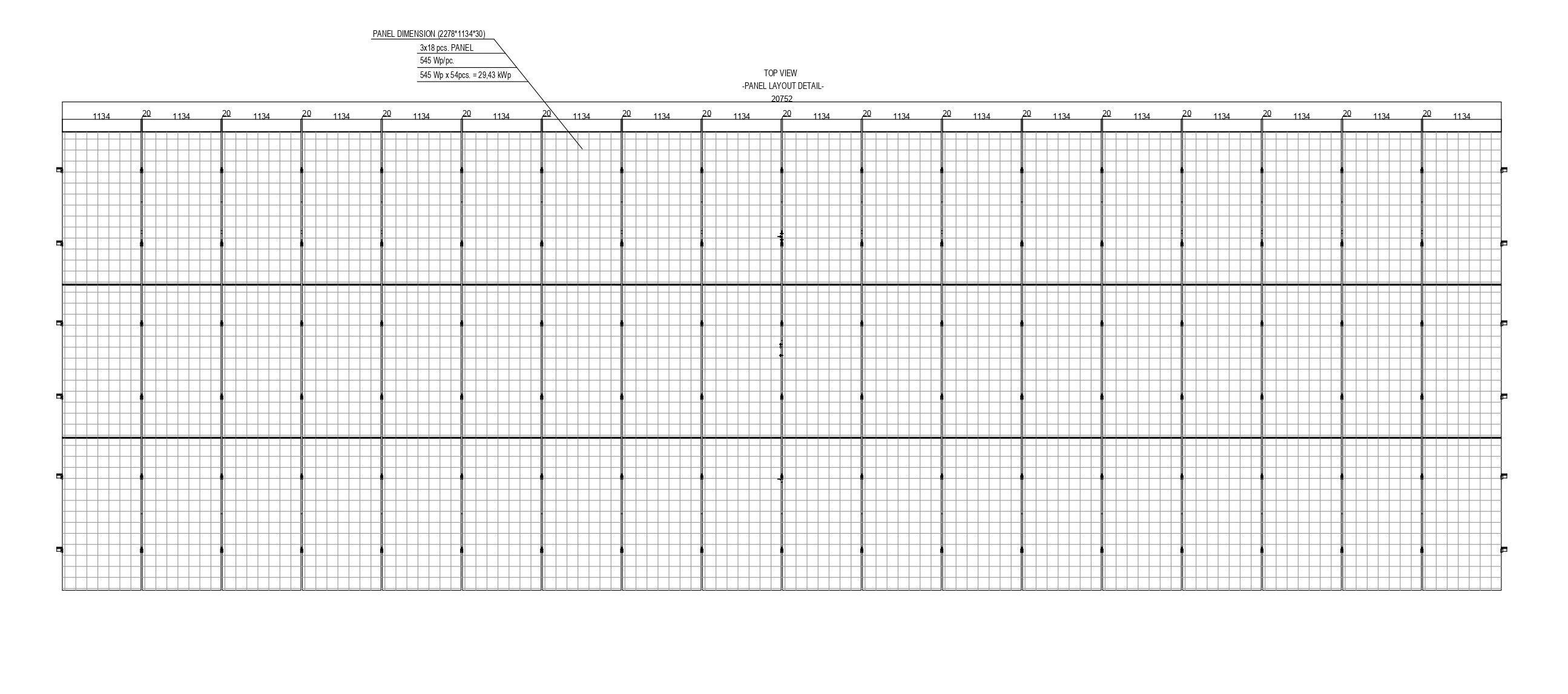

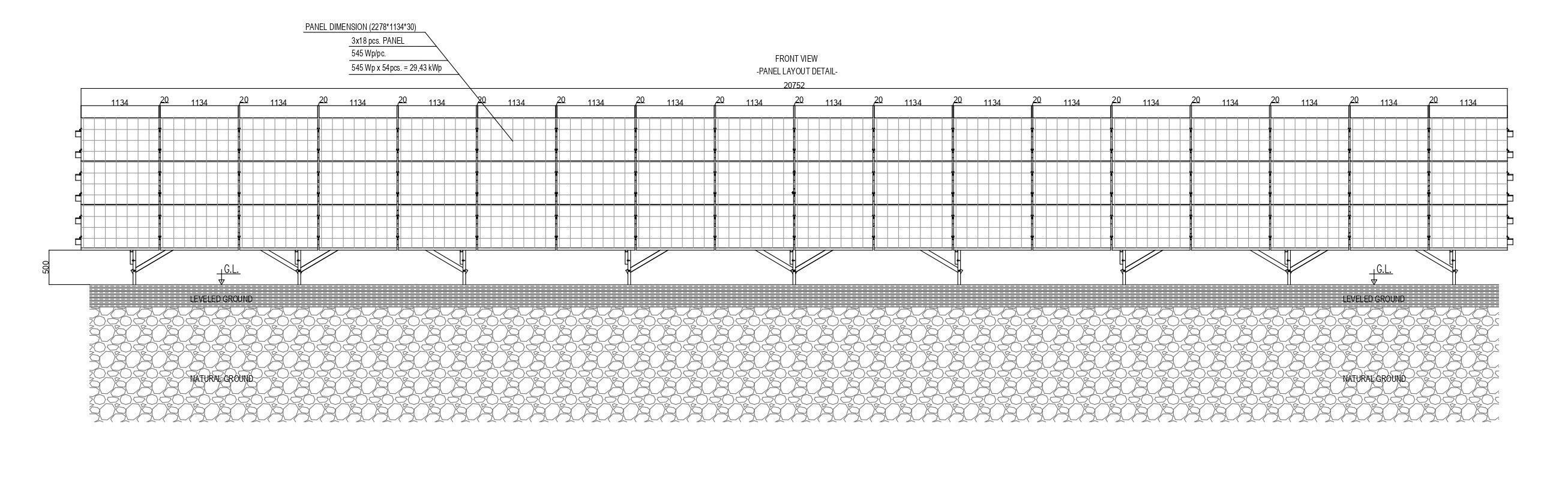

3x18 Vertical Panel Layout
Ground Connection Type; Steel Driven Column

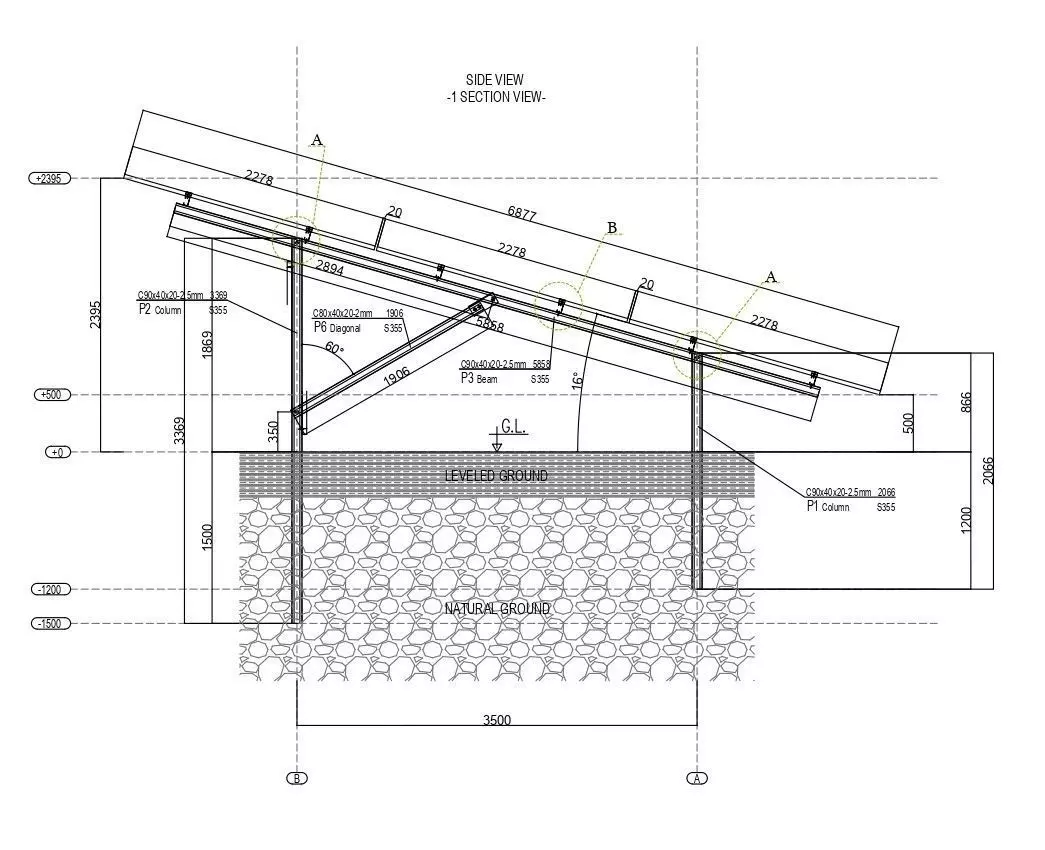

Distance of Columns Below Ground 1500 mm. and 1200 mm.
Panel Dimensions : 2278 x 1134 x 30 mm
Panel Power : 545Wp
1 solar panel steel construction produces 29,43 kWp power in 1 hour

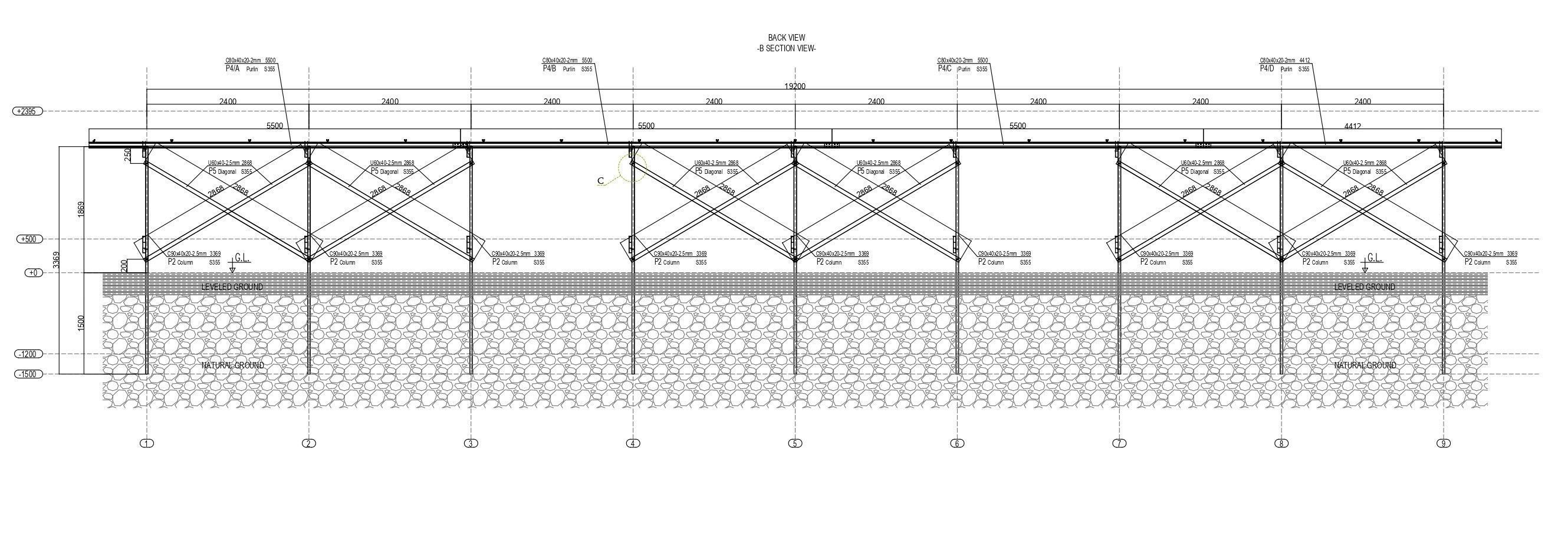

The system consists of 9 axles and the distance between each axle is 2400 mm.
Distance between two columns 3500 mm.
Horizantal angle of panel 16°
The closest distance of the panels to the floor 500 mm.
Prepared With AutoCAD Version 2021
