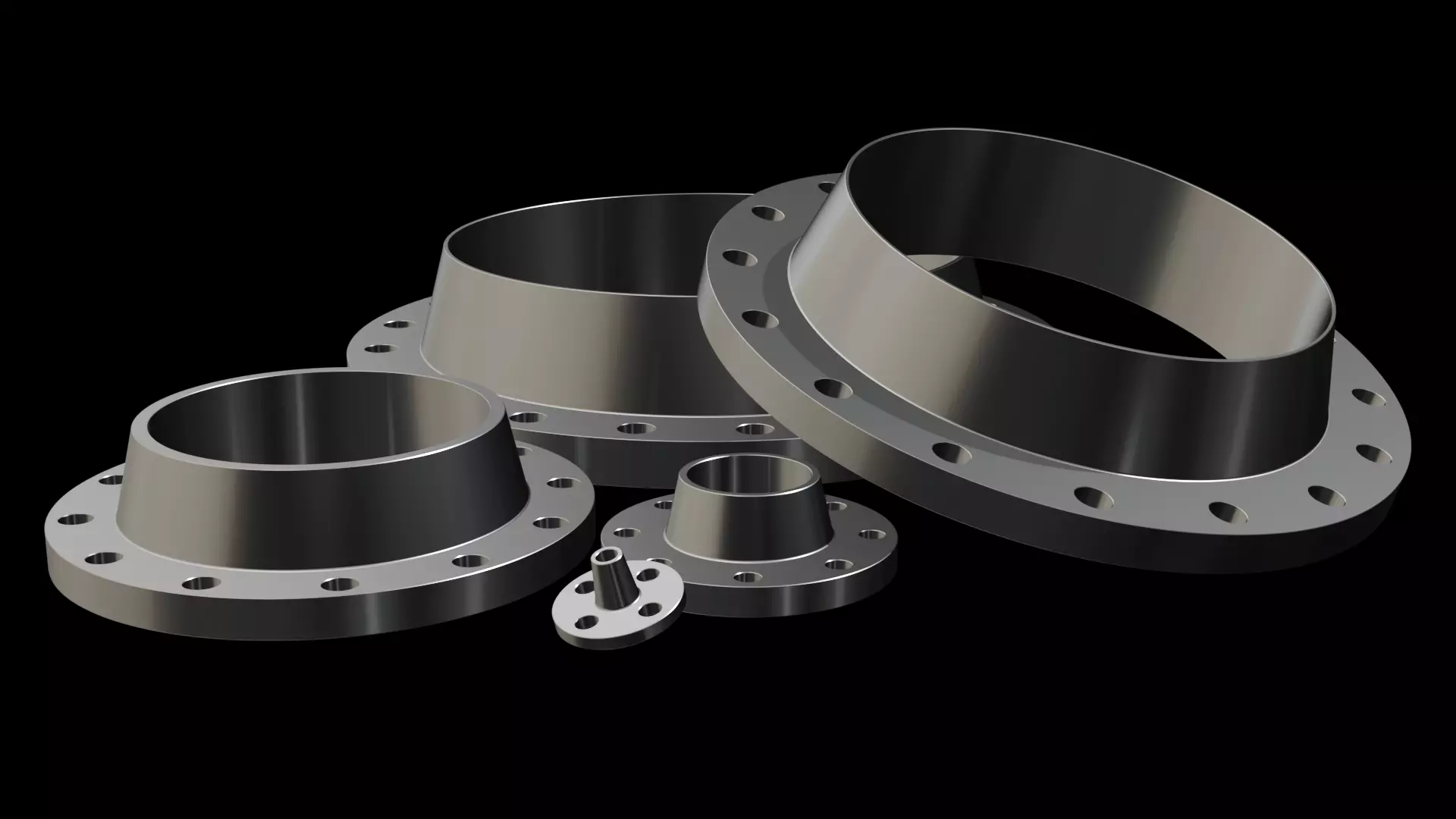

ANSI/ASME B16.5 Class 150 Welding Neck Flange Collection.

This CAD package includes 5 Welding Neck Flanges modeled according to ANSI/ASME B16.5 Class 150 dimensional specifications.

Included sizes:

DN15DN90DN250DN400DN500

Included files:

SolidWorks Part (.SLDPRT)STEP (.STEP)IGES (.IGS)STL (.STL)

Features:

Accurate dimensions based on ANSI/ASME B16.5 Class 150 specificationsReady for integration into CAD assembliesCompatible with most CAD software through STEP and IGES formatsSTL files included for visualization and 3D printing purposesClean and organized CAD modelsComplete flange size collection in a single package

Applications:

Piping systemsIndustrial equipmentMechanical assembliesEngineering documentationProduct developmentCAD libraries3D printing

This collection is ideal for engineers, designers, students, and industrial professionals requiring standardized flange models for mechanical and piping projects.

Note:This product includes digital CAD files only. No manufacturing drawings, physical products, or engineering certification are included.
