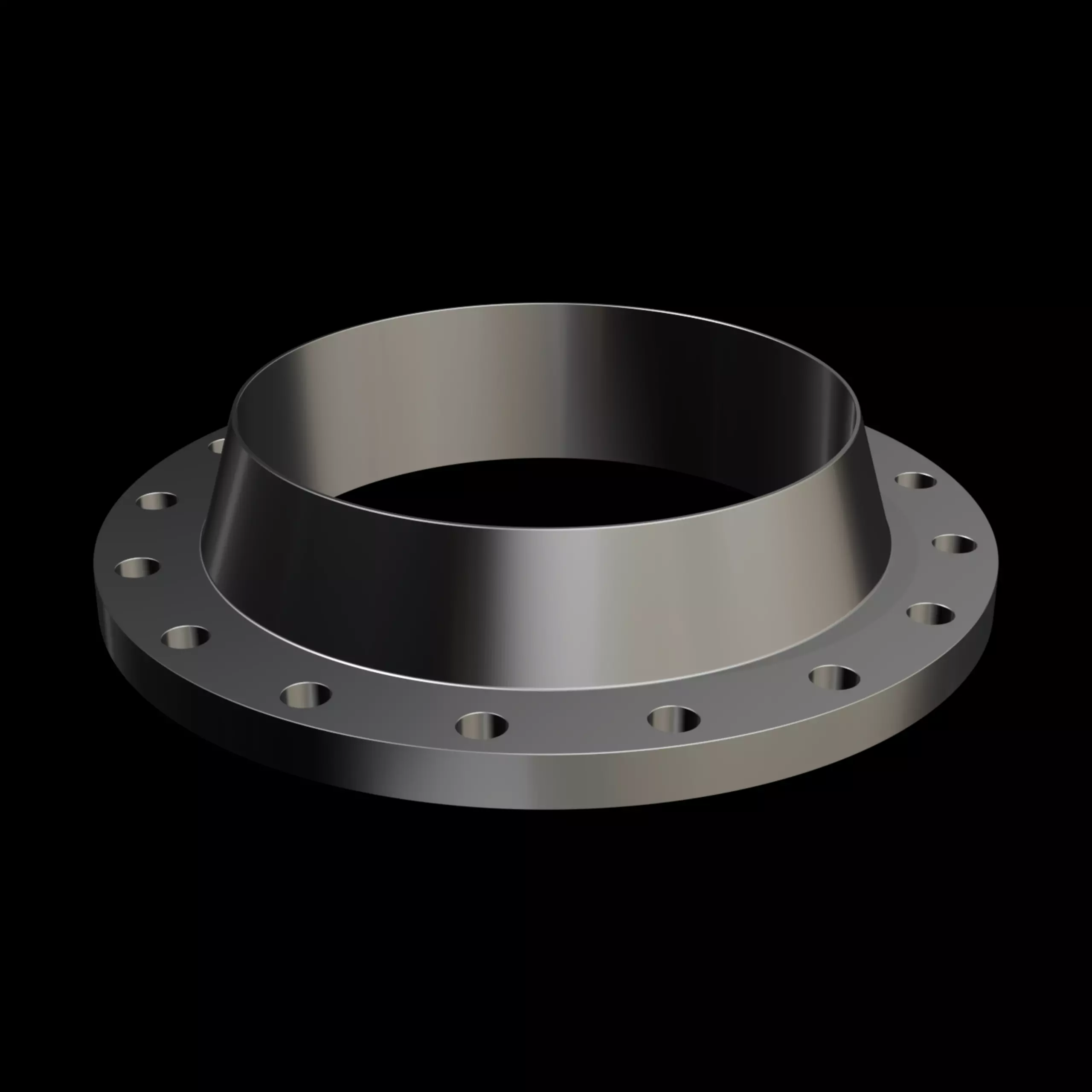

ANSI/ASME B16.5 Class 150 Welding Neck Flange DN400 CAD model.

This model has been created according to ANSI/ASME B16.5 dimensional specifications and is suitable for mechanical design, piping systems, industrial equipment, engineering projects, and 3D printing applications.

Included files:

SolidWorks Part (.SLDPRT)STEP (.STEP)IGES (.IGS)STL (.STL)

Features:

Accurate dimensions based on ANSI/ASME B16.5 Class 150 specificationsReady for integration into CAD assembliesCompatible with most CAD software through STEP and IGES formatsSTL file included for visualization and 3D printing purposesClean and organized 3D model

Applications:

Piping systemsIndustrial equipmentMechanical assembliesEngineering documentationProduct developmentCAD libraries3D printing

Note:This product includes digital CAD files only. No manufacturing drawings, physical products, or engineering certification are included.
