EN 1092-1 PN16 Type A Plain Flange Series (DN50–DN600)
This package contains a fully parametric SolidWorks master model of EN 1092-1 PN16 Type A plain flange series, covering nominal diameters from DN50 to DN600.
The geometry is built according to EN 1092-1 standard dimensions and validated as clean solid bodies suitable for industrial workflows.
Technical Specifications
• Standard: EN 1092-1• Pressure class: PN16• Type: Type A (Plain Face)• Nominal diameter range: DN50–DN600• Units: Millimeters• Solid geometry (no meshes)
Package Content
• SolidWorks master model (.SLDPRT)– Configuration-driven DN series– Fully parametric structure
• STEP files (AP214) – individual export per DN
• IGES files – individual export per DN

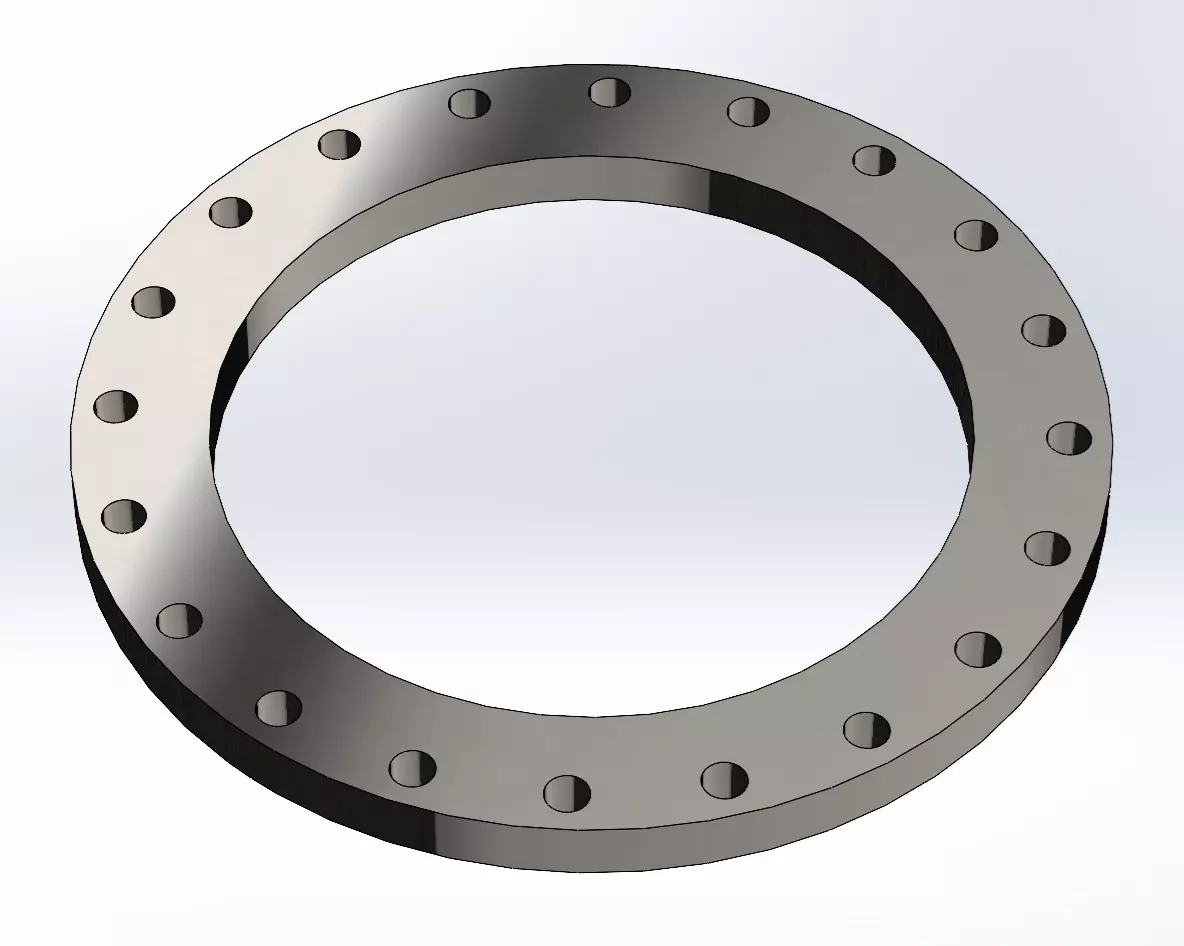

• High-resolution preview render
• README documentation
Key Features
• Configuration-based design• Clean and optimized CAD structure• Suitable for piping systems and mechanical assemblies• Ready for FEA, CFD, and CAM workflows• Industrial-grade geometry
Applications
• Mechanical engineering projects• Piping system design• EPC and plant engineering• Equipment layout and assemblies• Simulation and manufacturing reference
If you require additional pressure classes (PN10, PN25, PN40) or other flange types, feel free to contact for custom industrial CAD development.
