5 MW Solar Project Type 5

5 MW Solar Project Type 5 3D model

Description

4,95 MW Solar Project Type 5

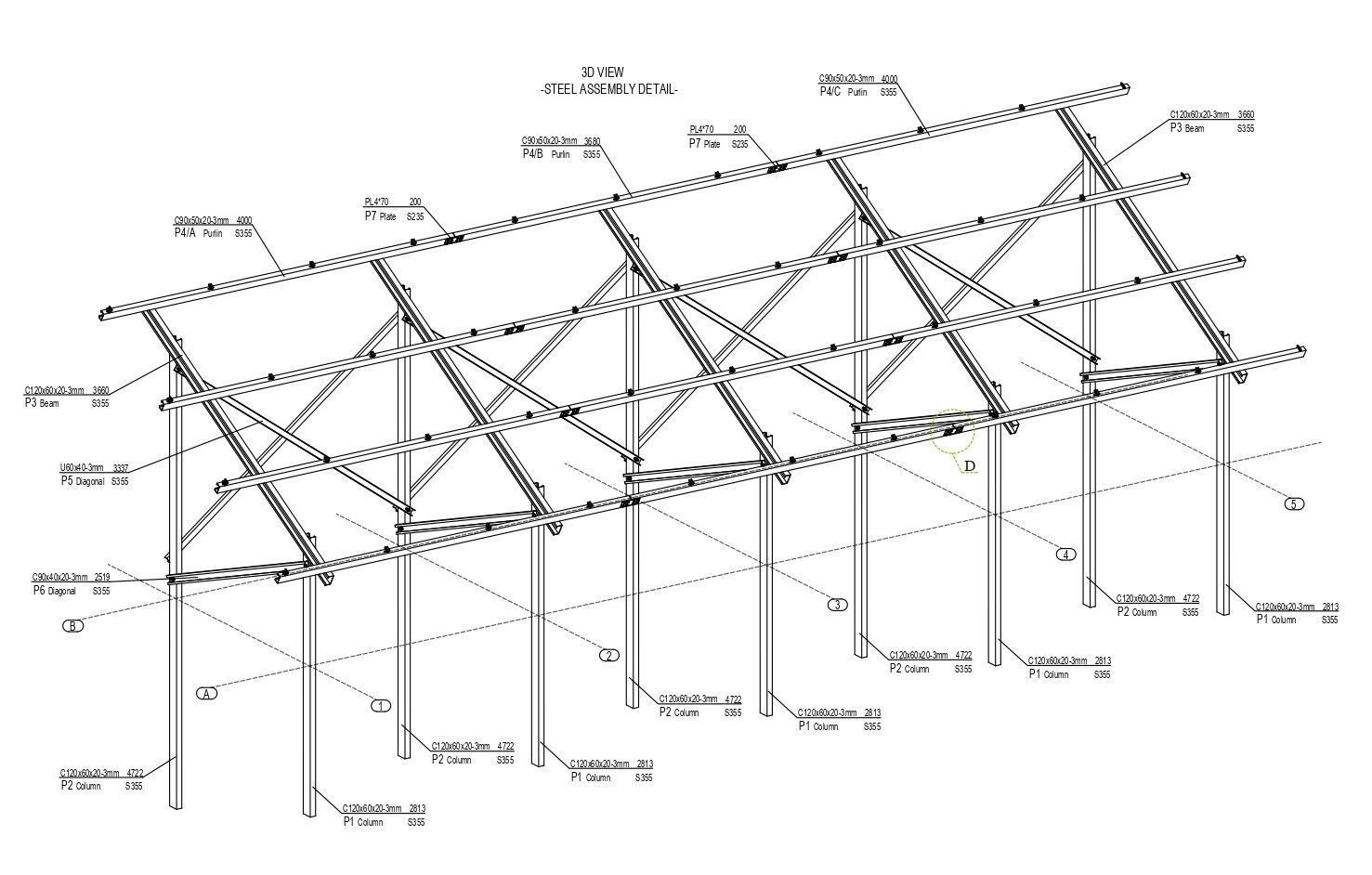

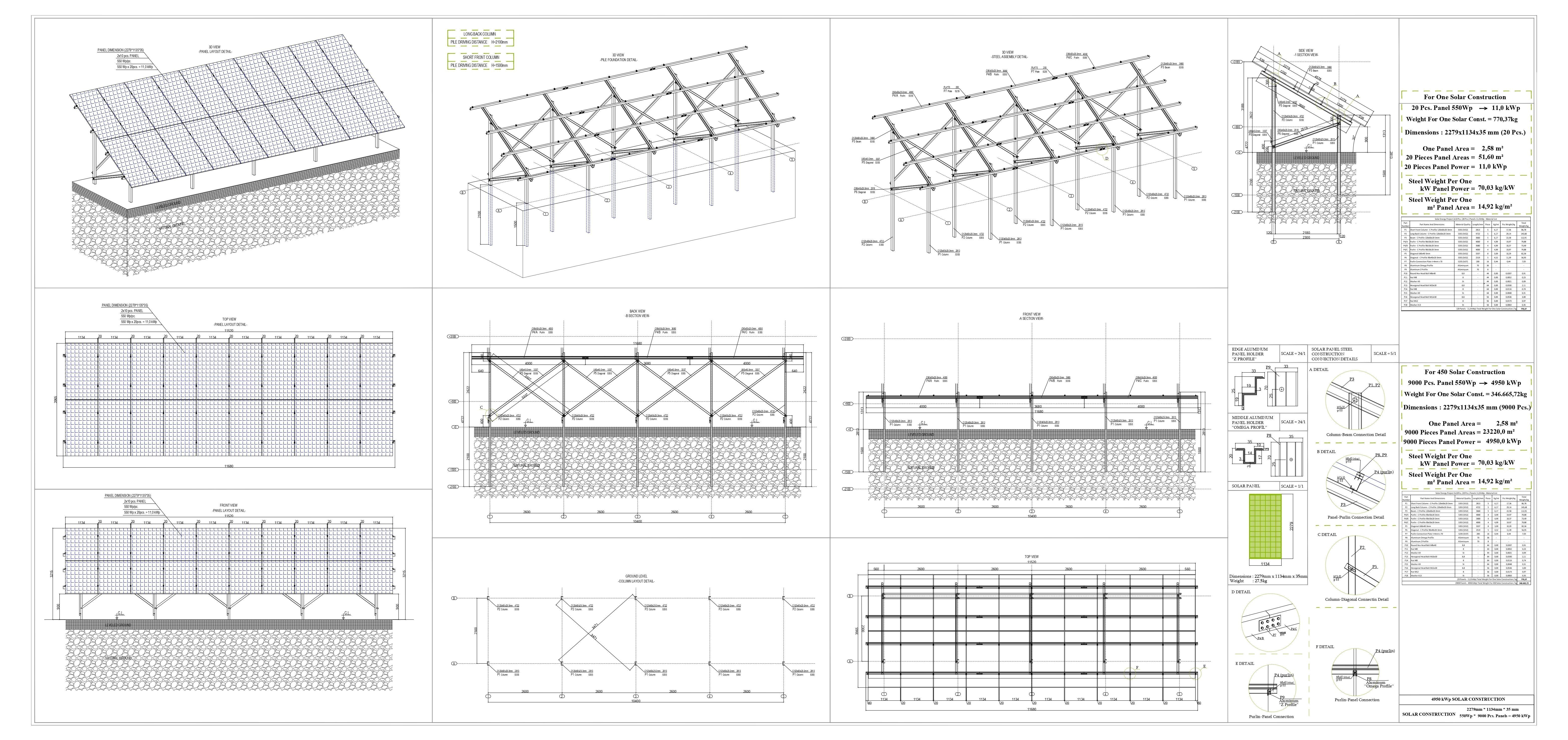

Static Steel Fabrication Project

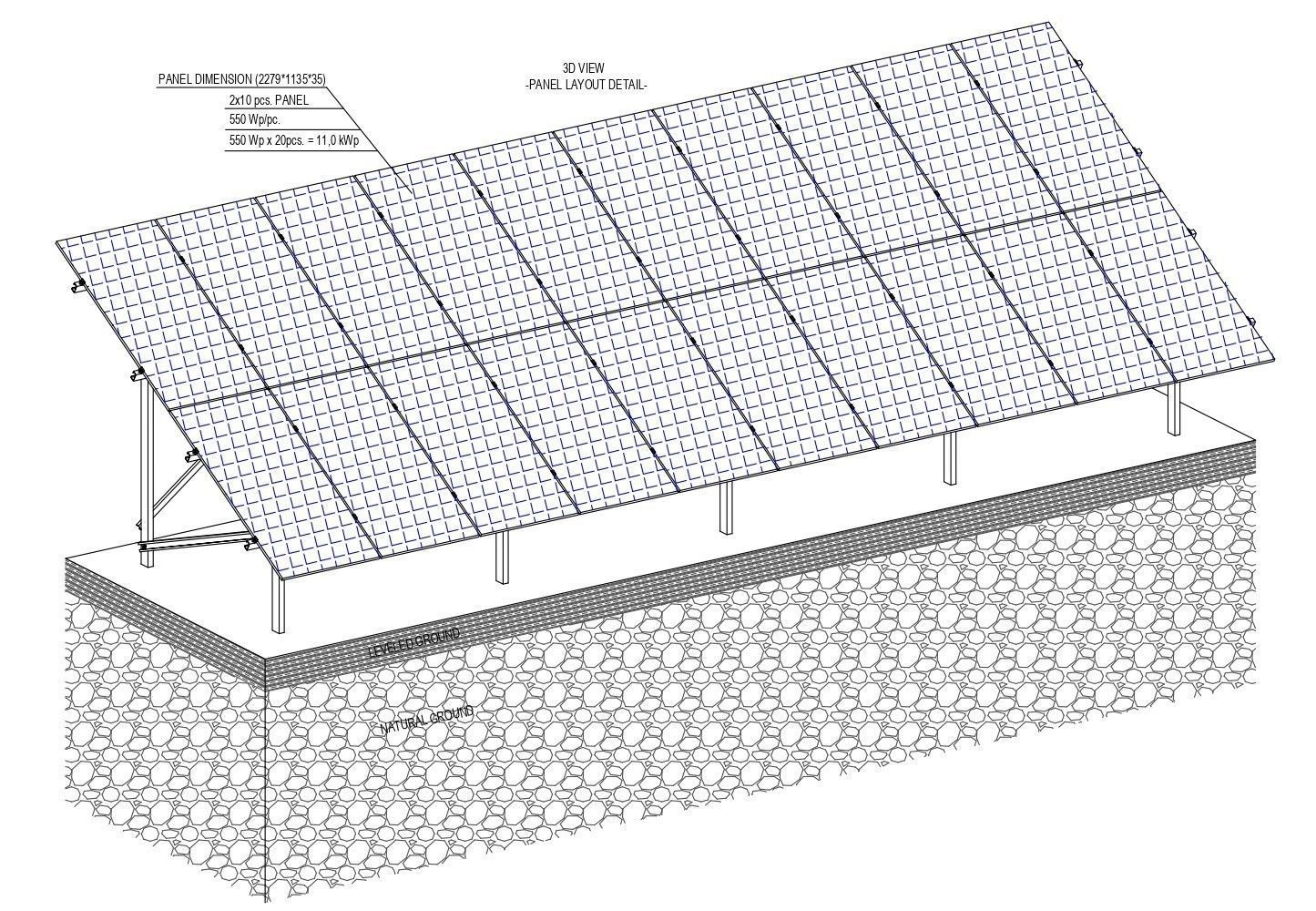

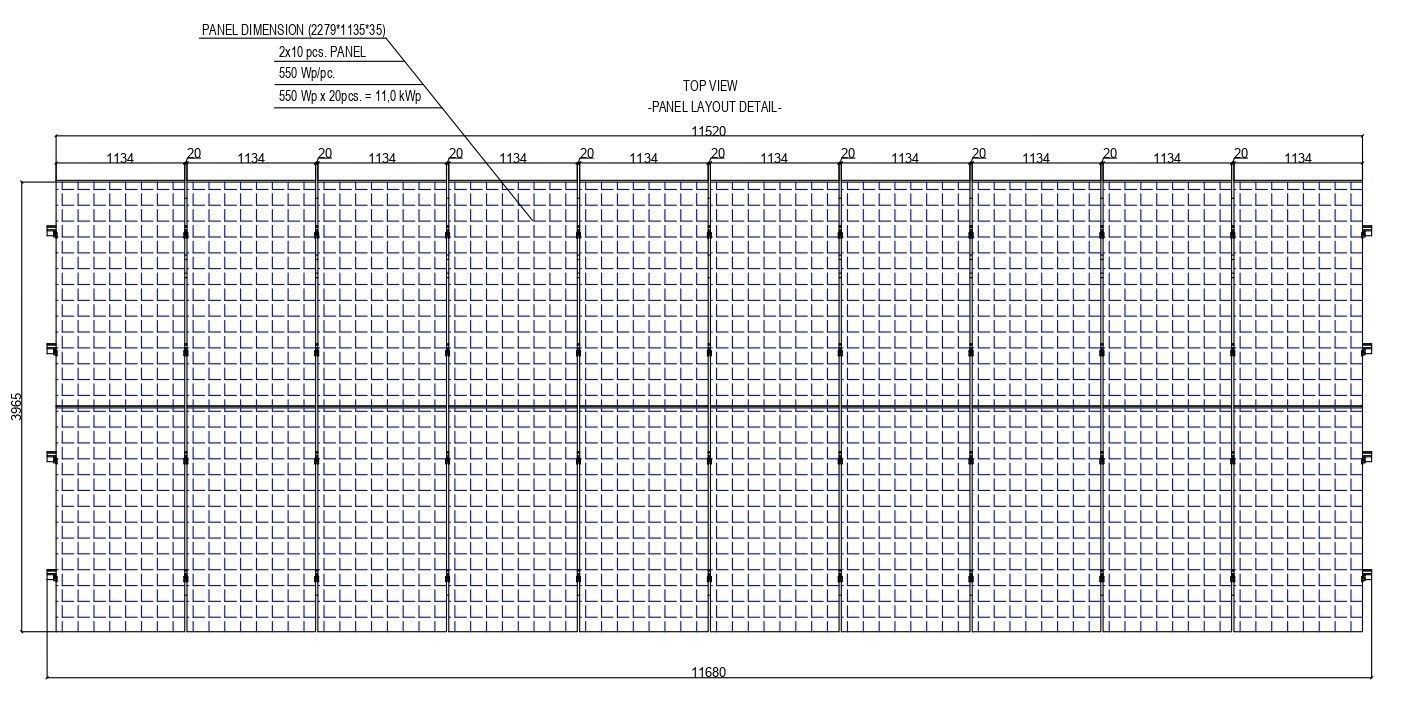

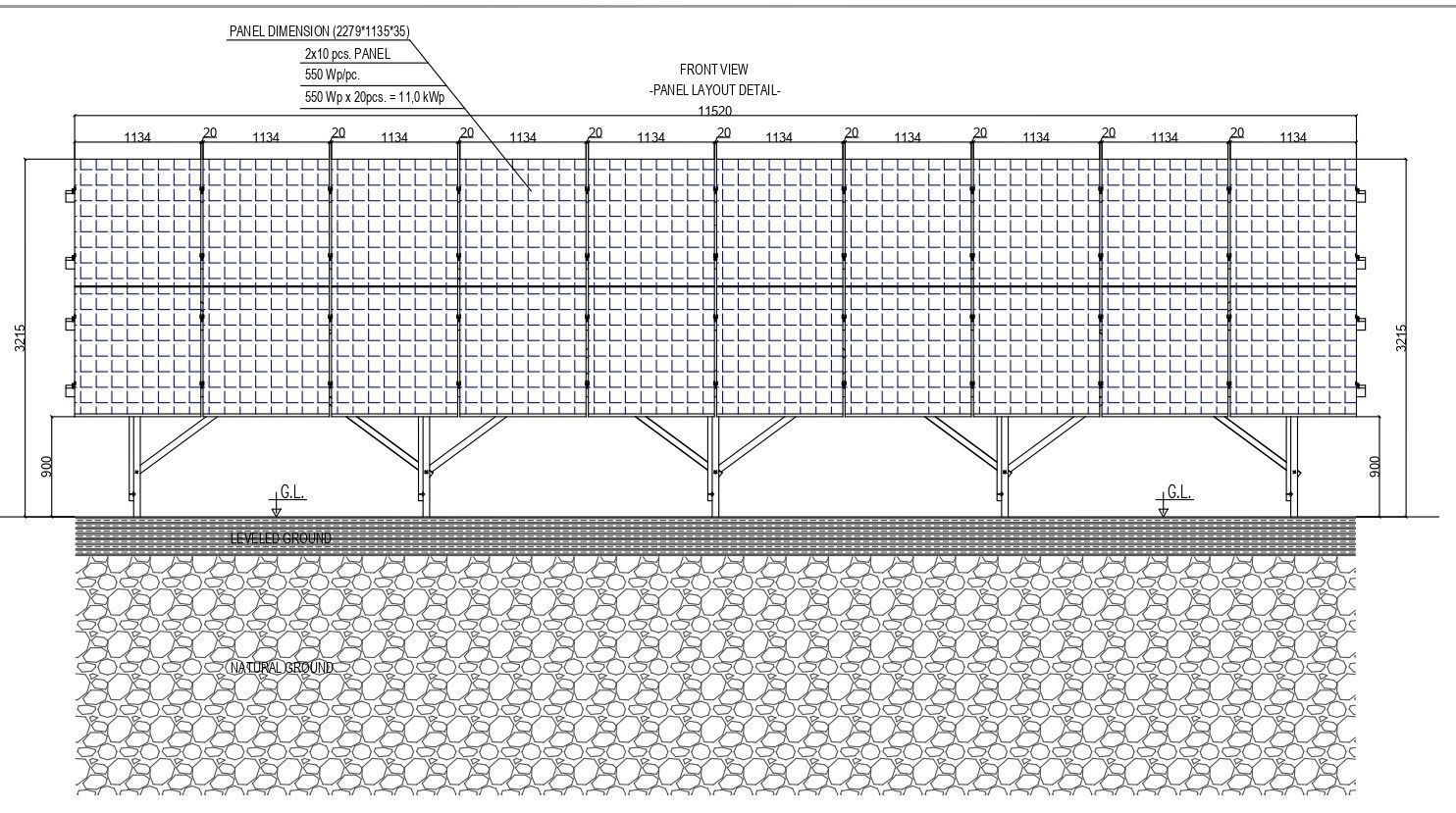

2x10 Vertical Panel Layout

Ground Connection Type; Steel Driven Column

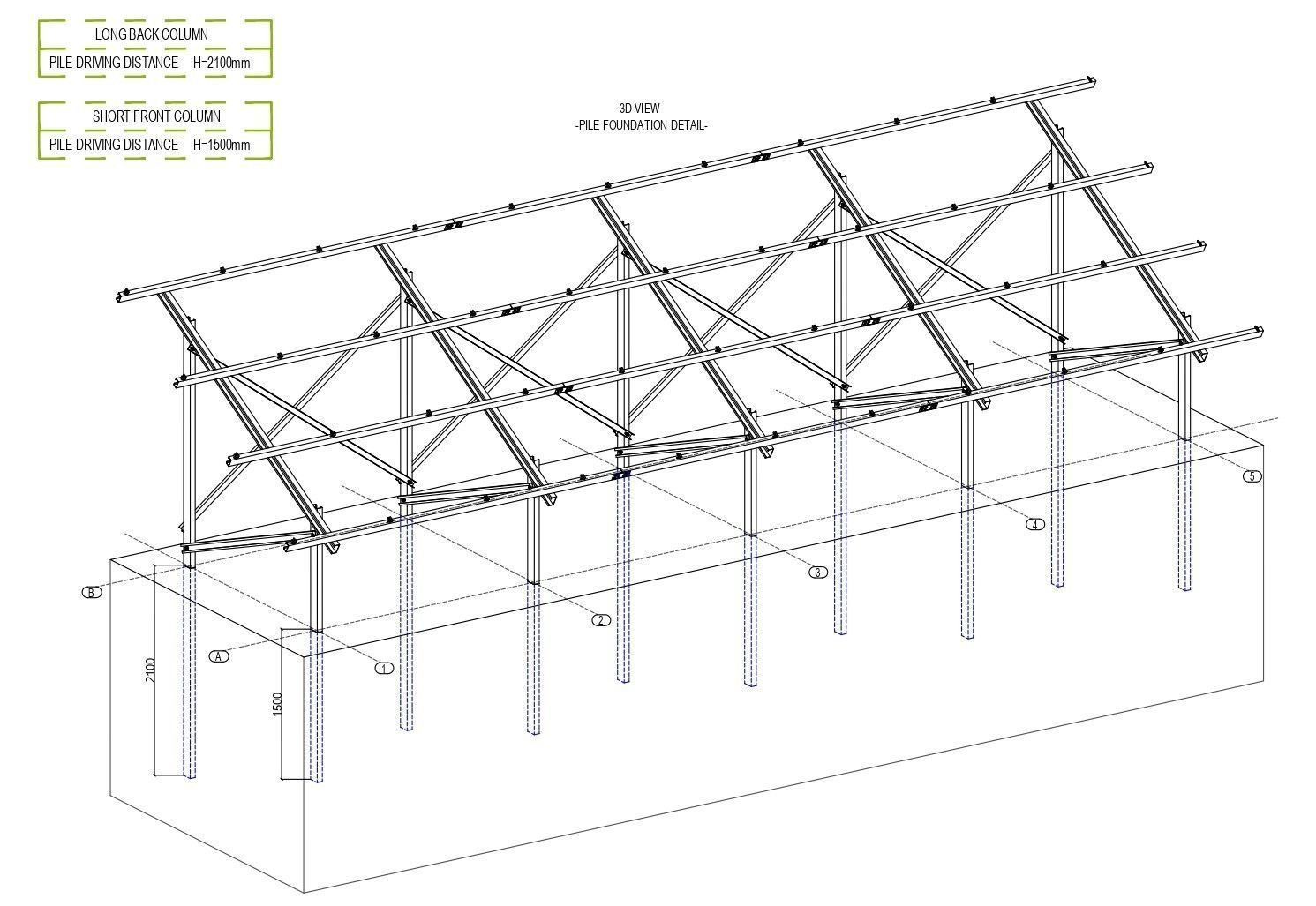

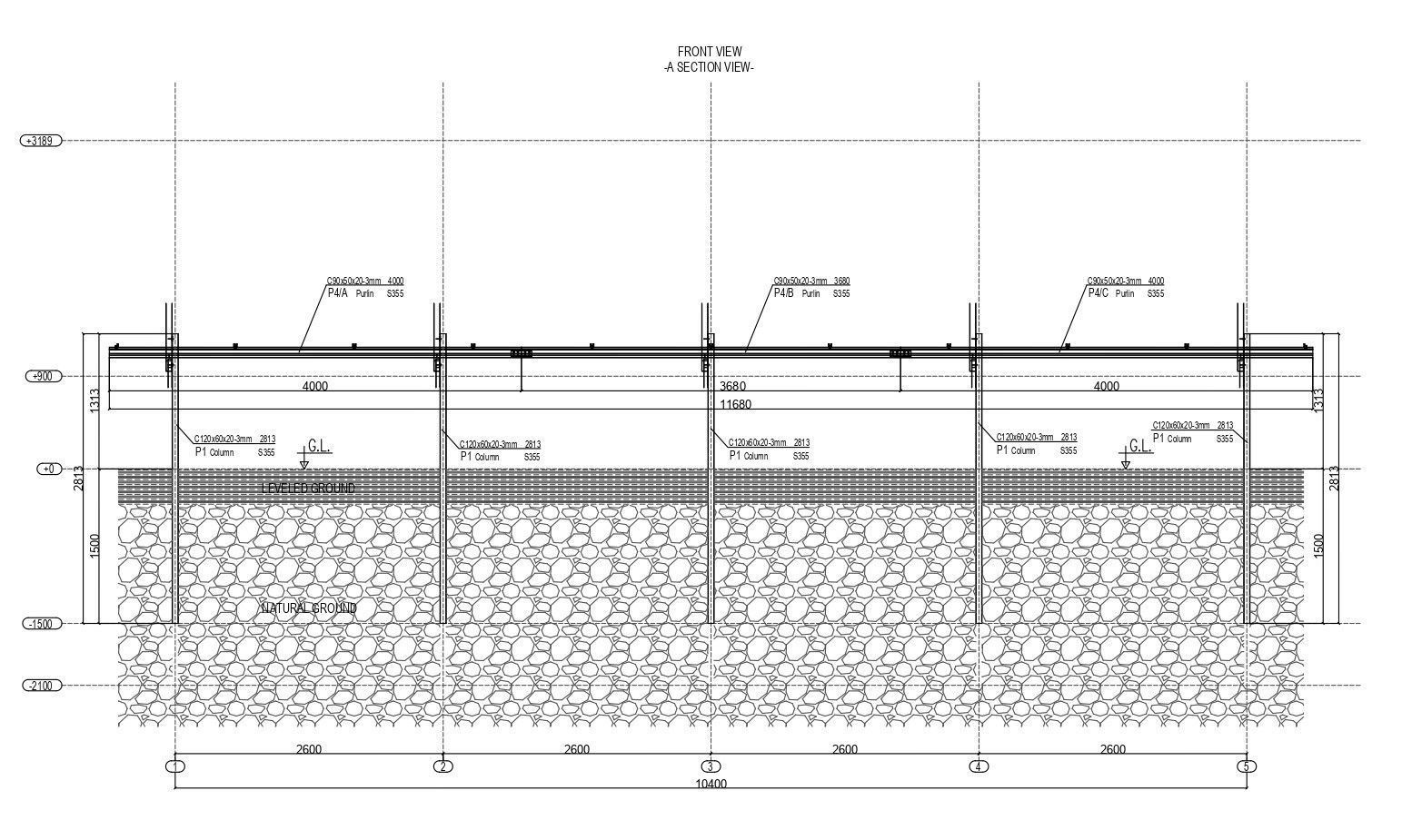

Distance of Columns Below Ground 2100 mm. and 1500 mm.

Panel Dimensions : 2279 x 1135 x 35 mm

Panel Power : 550Wp

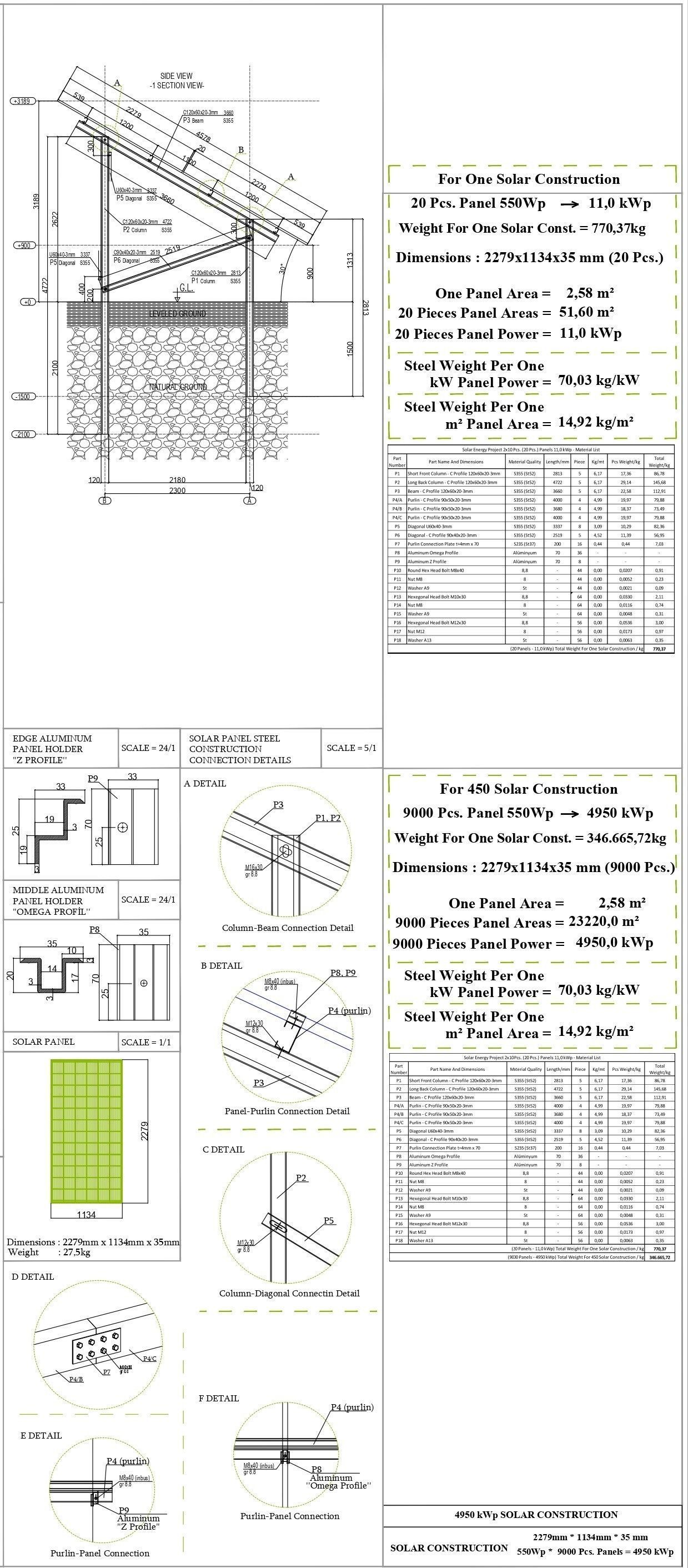

1 solar panel steel construction produces 11,0 kWp power in 1 hour

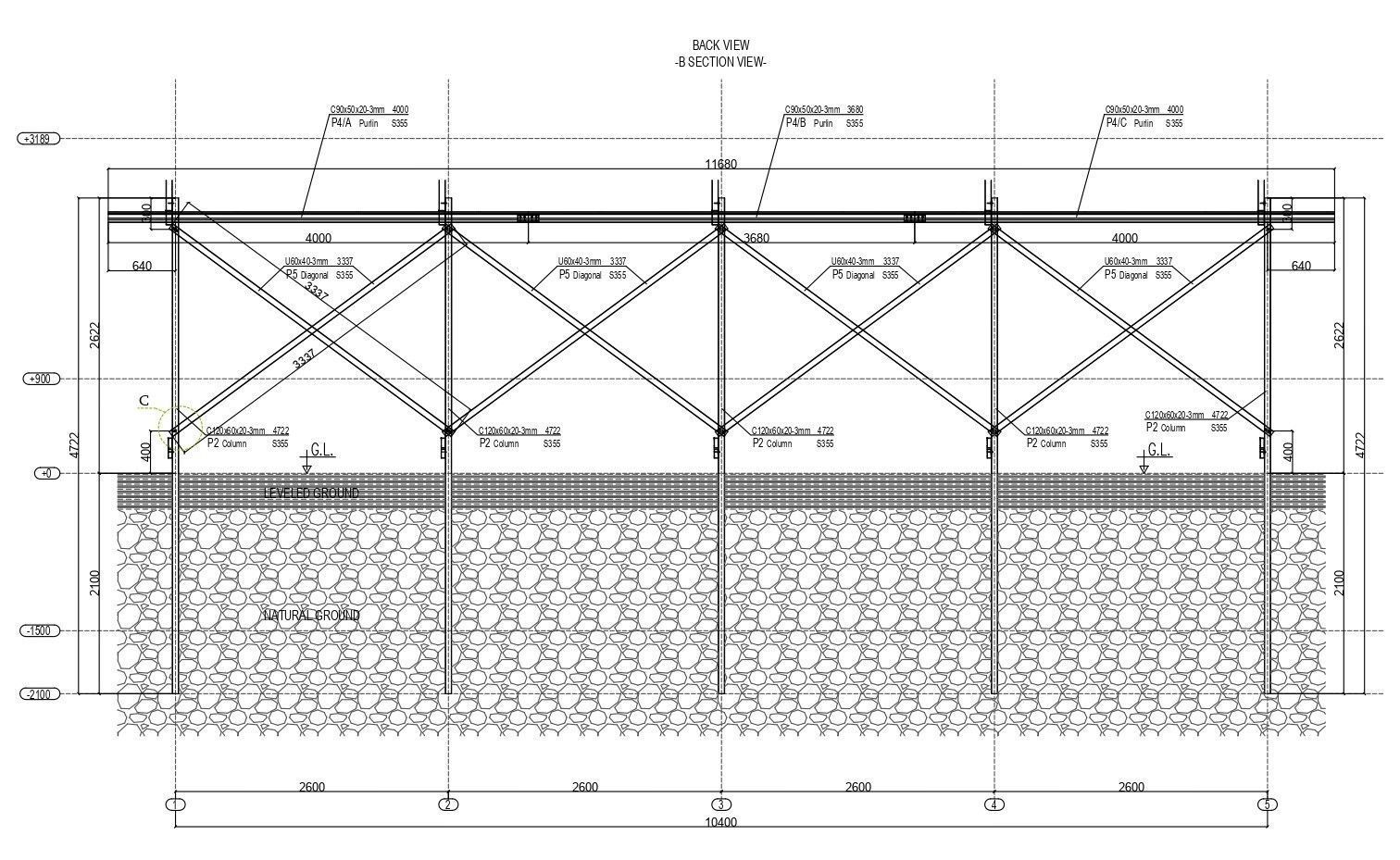

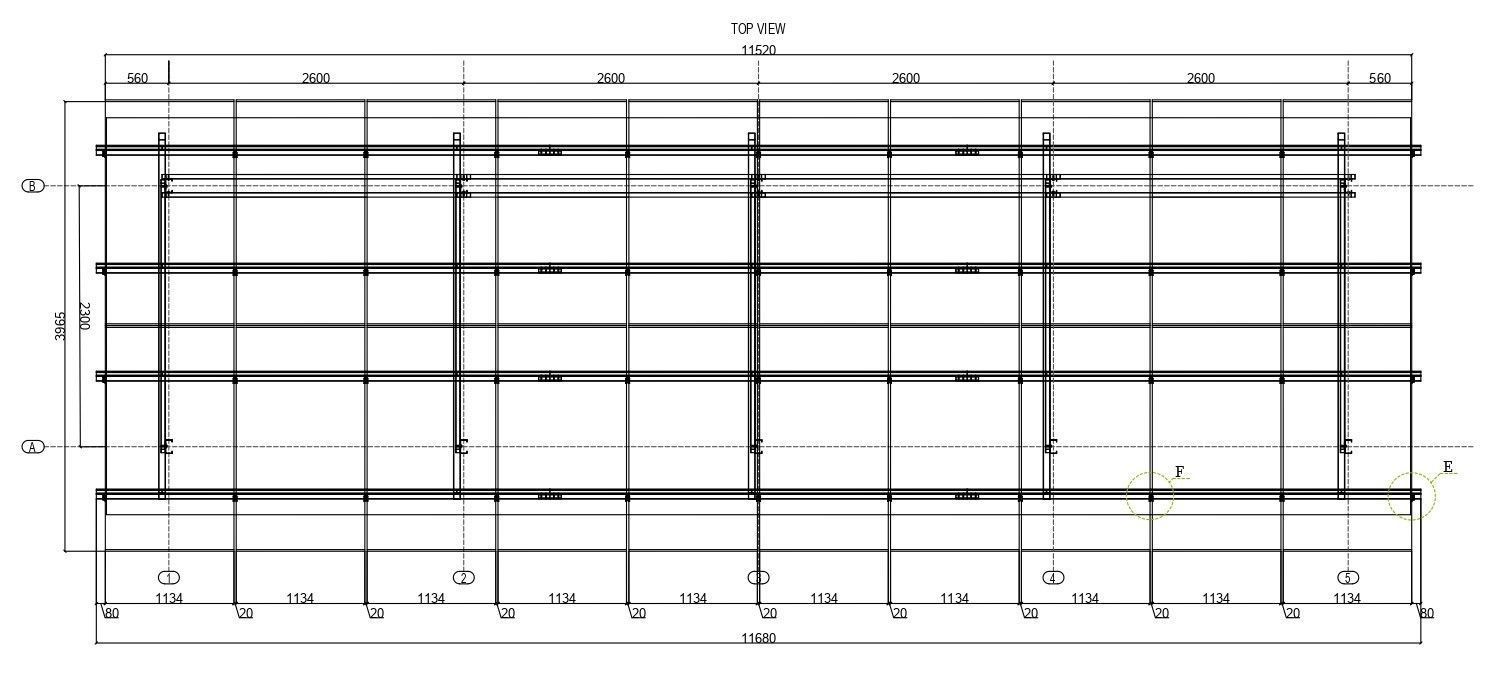

The system consists of 5 axles and the distance between each axle is 2600 mm.

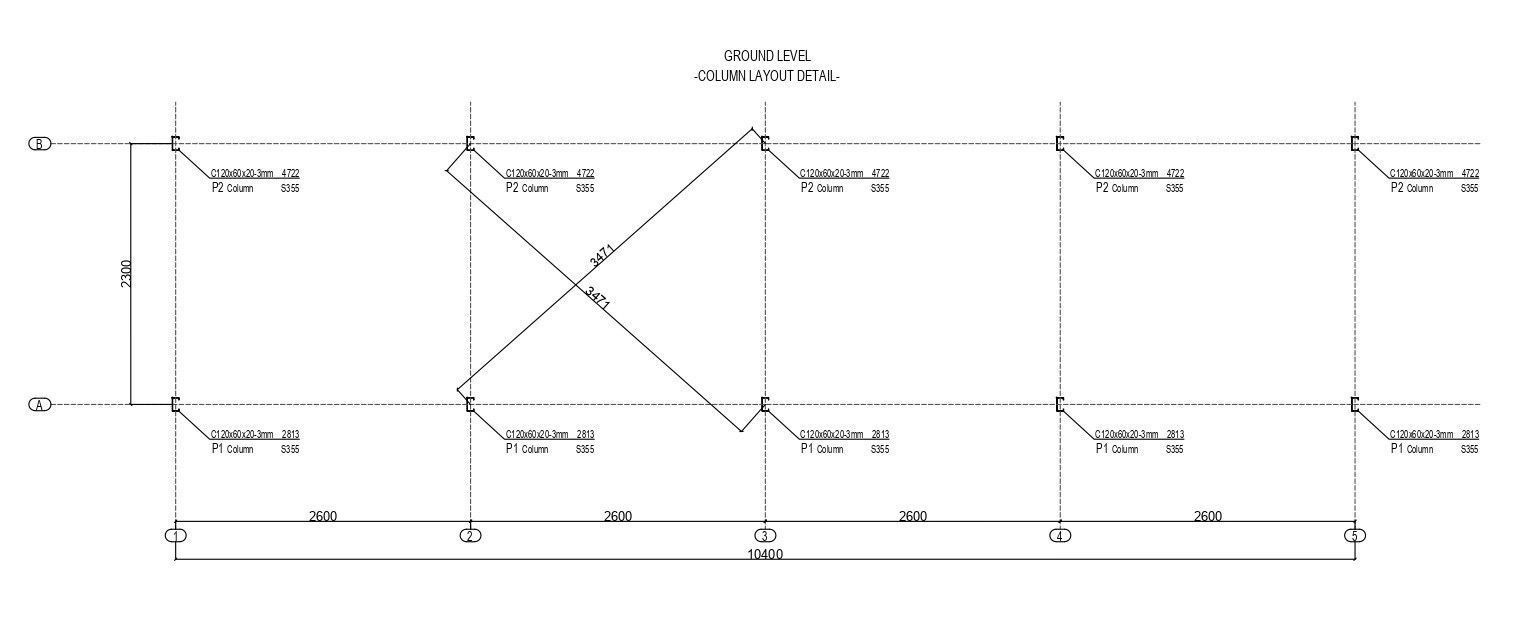

Distance between two columns 2300 mm.

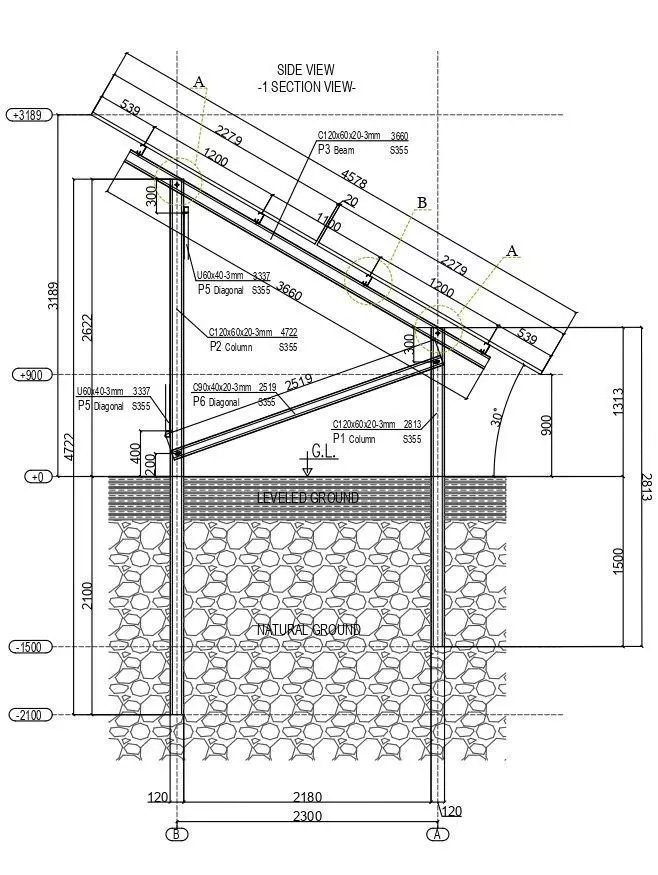

Horizantal angle of panel 30°

The closest distance of the panels to the floor 900 mm.

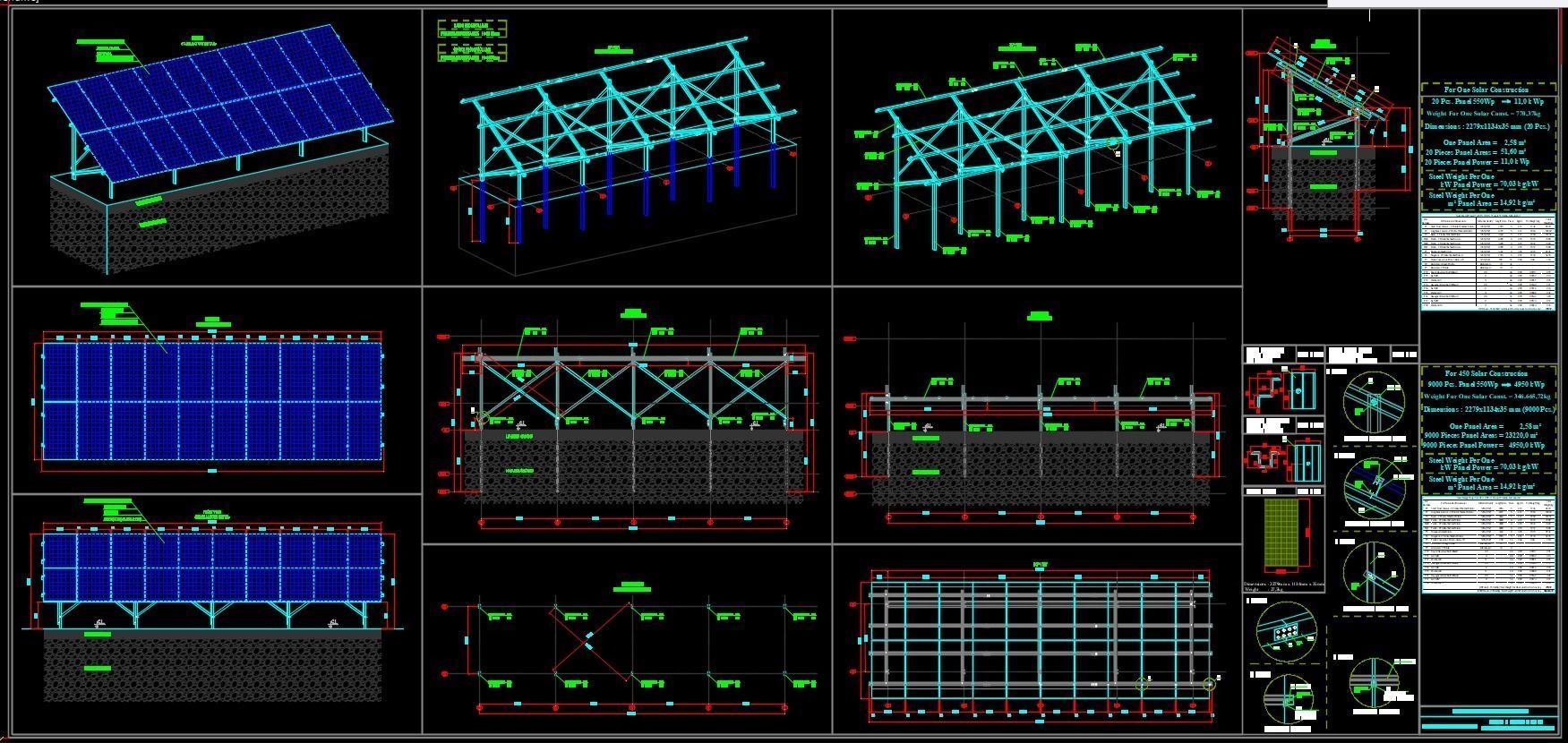

Prepared With AutoCAD Version 2021
