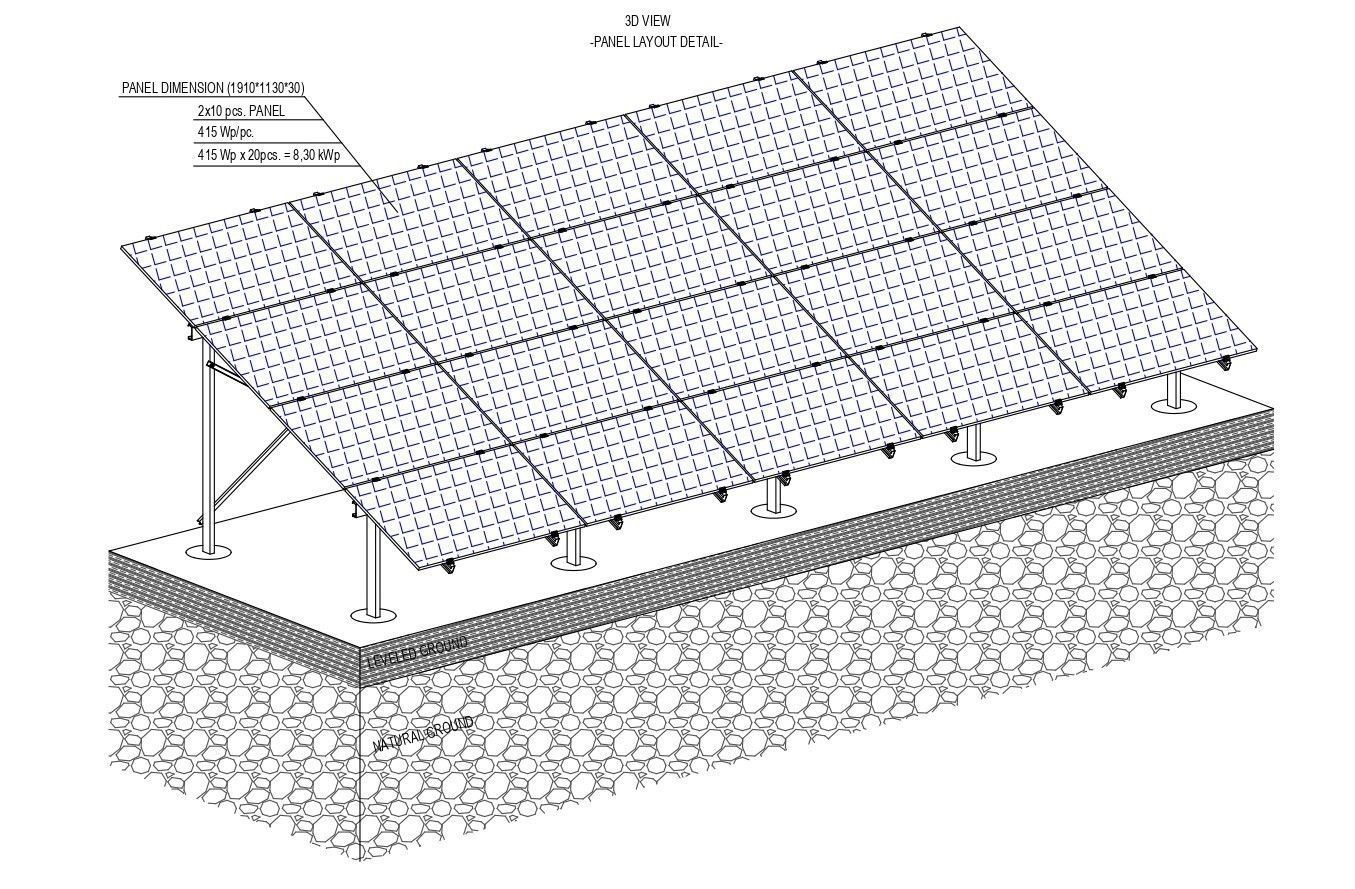

100 kWp Solar Project Type 2 3D model

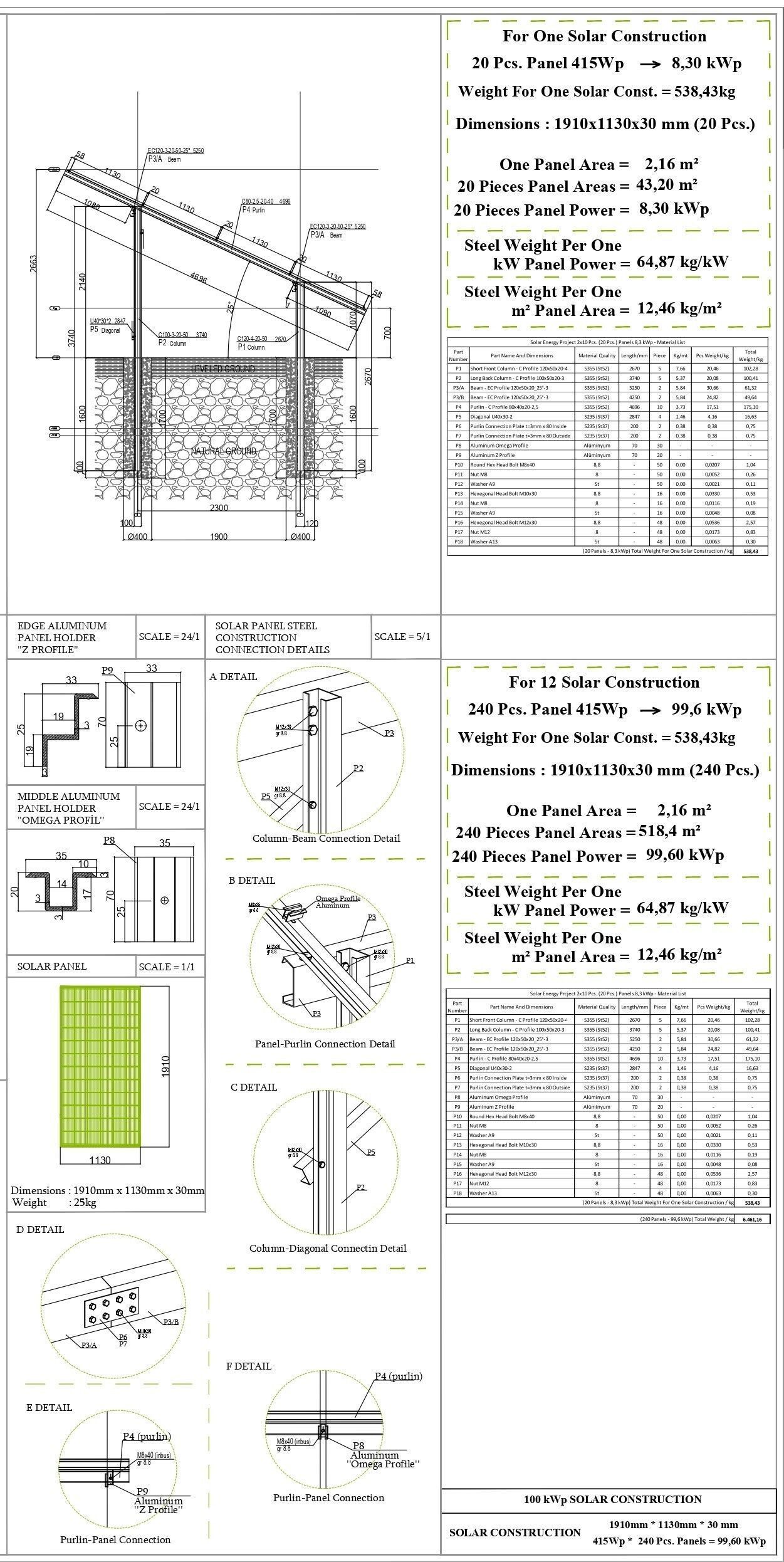

100 kWp Solar Project Type 2

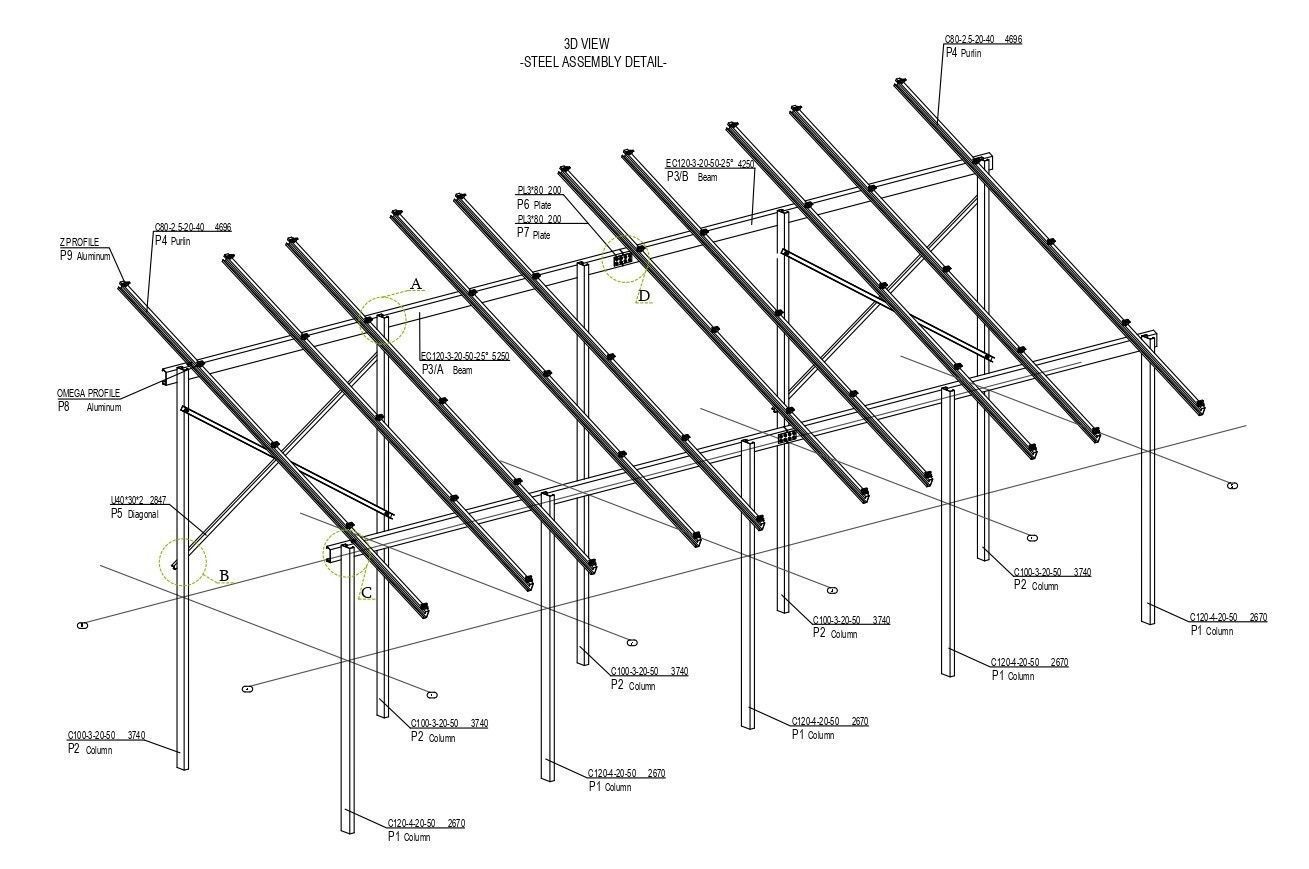

Static Steel Fabrication Project

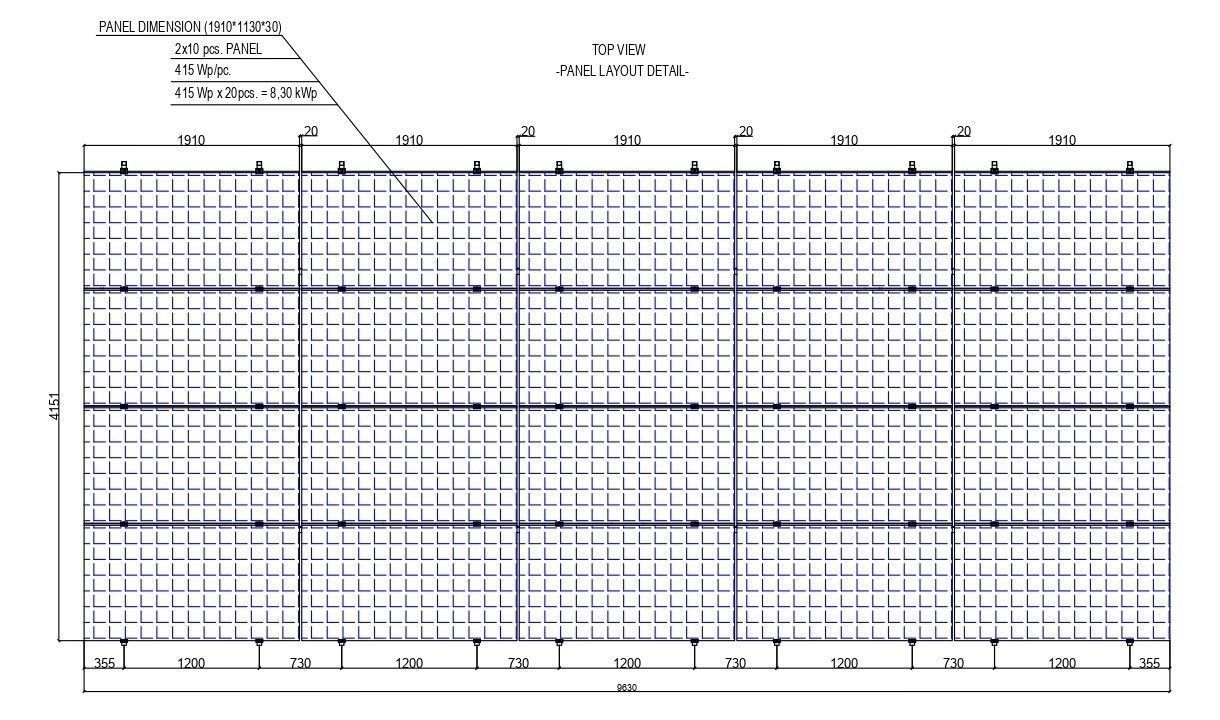

2x10 Horizontal Panel Layout

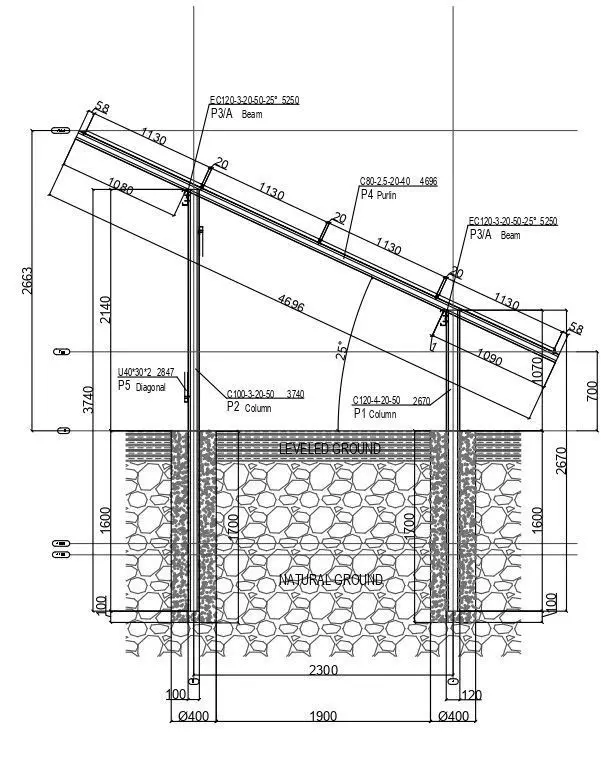

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1600 mm.

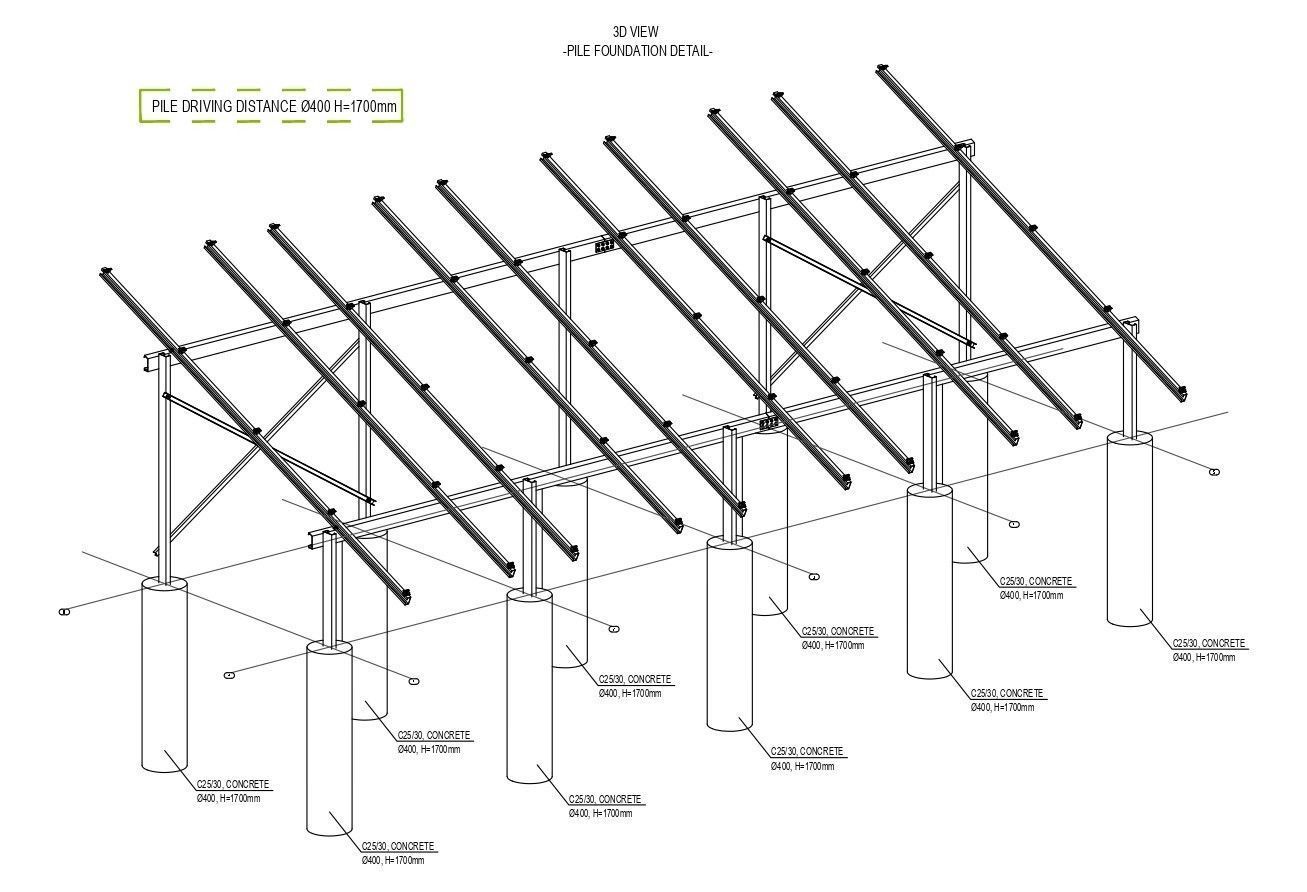

Concrete Friction Pile Dimensions : Ø400 mm H= 1700 mm

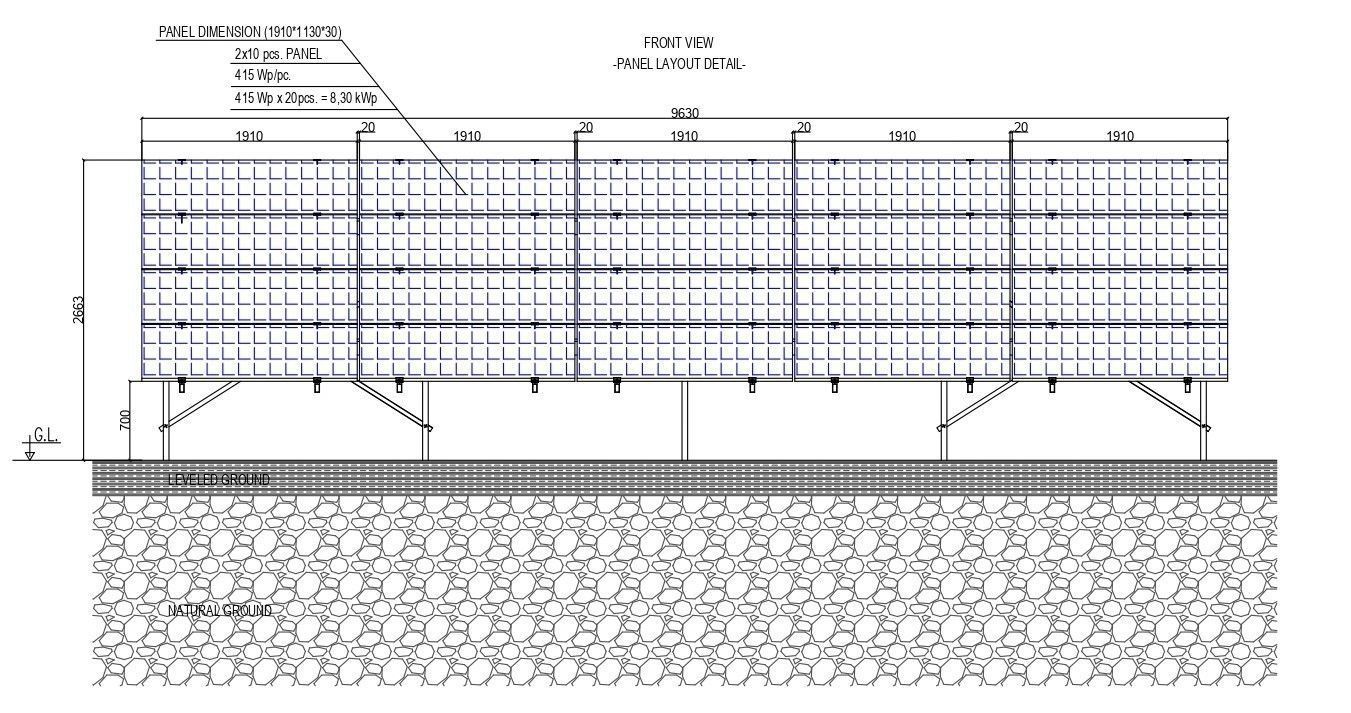

Panel Dimensions : 1910 x 1130 x 30 mm

Panel Power : 415Wp

1 solar panel steel construction produces 8,3 kWp power in 1 hour

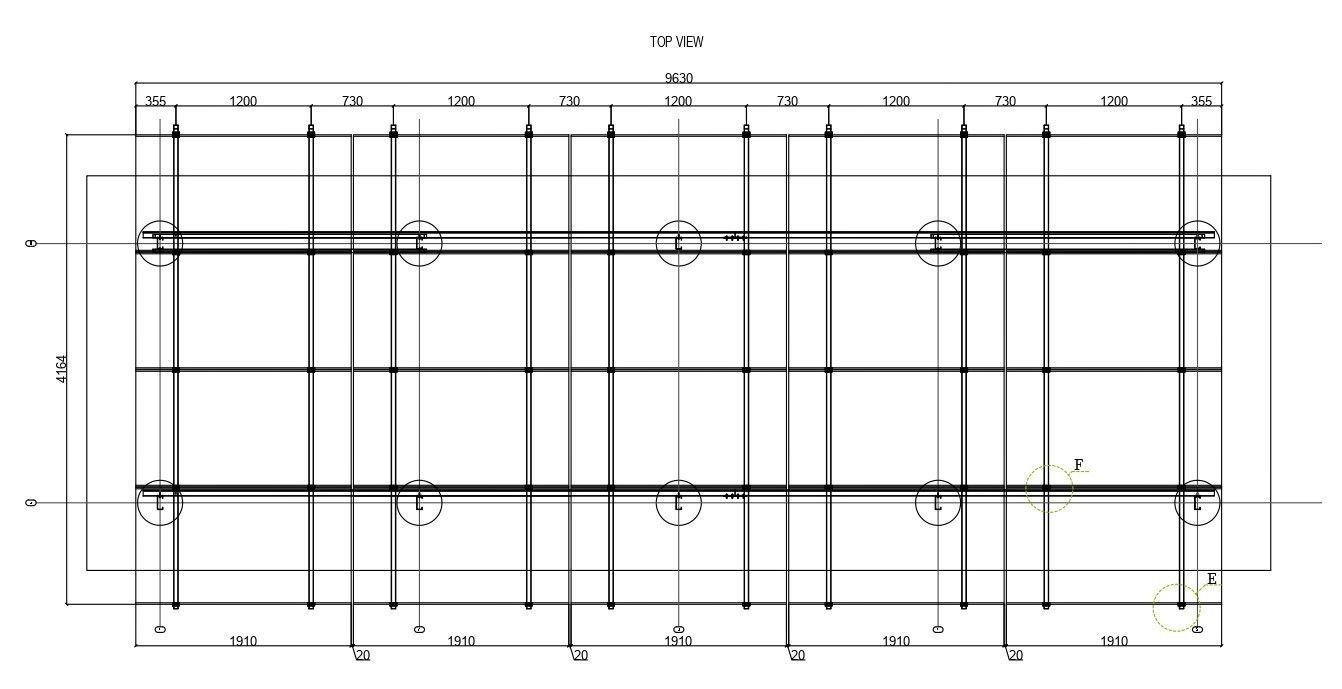

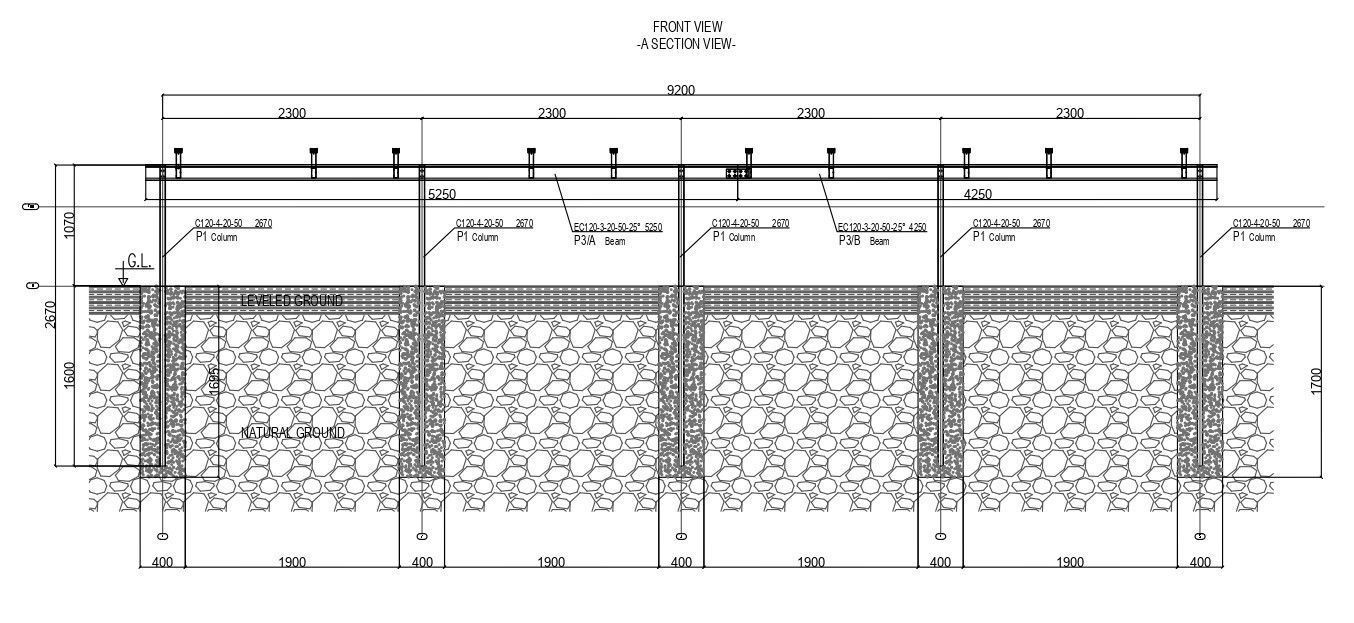

The system consists of 5 axles and the distance between each axle is 2300 mm.

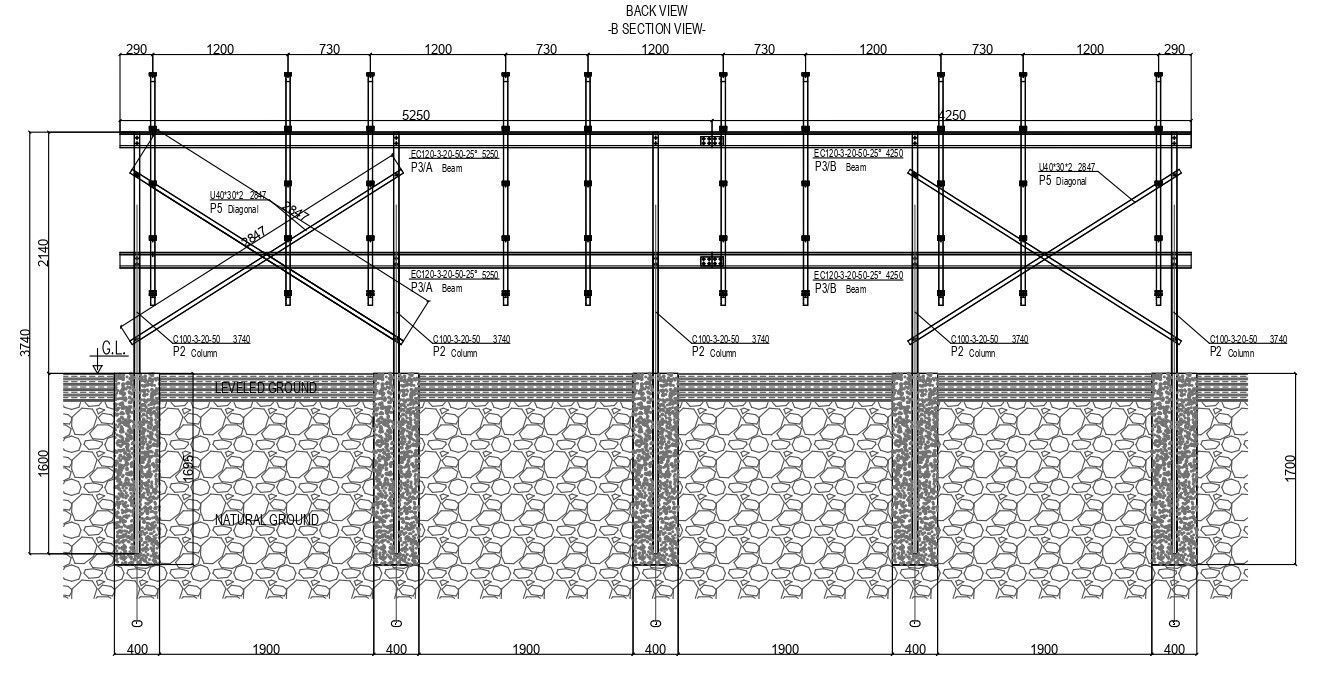

Distance between two columns 2300 mm.

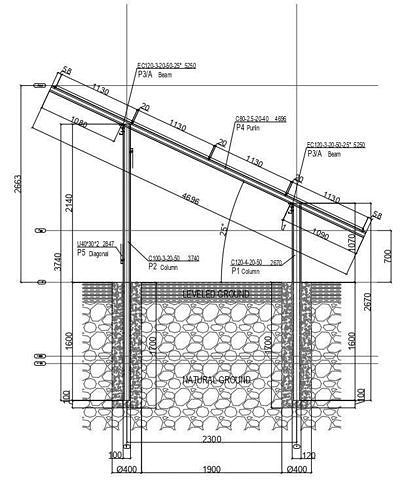

Horizantal angle of panel 25°

The closest distance of the panels to the floor 700 mm.

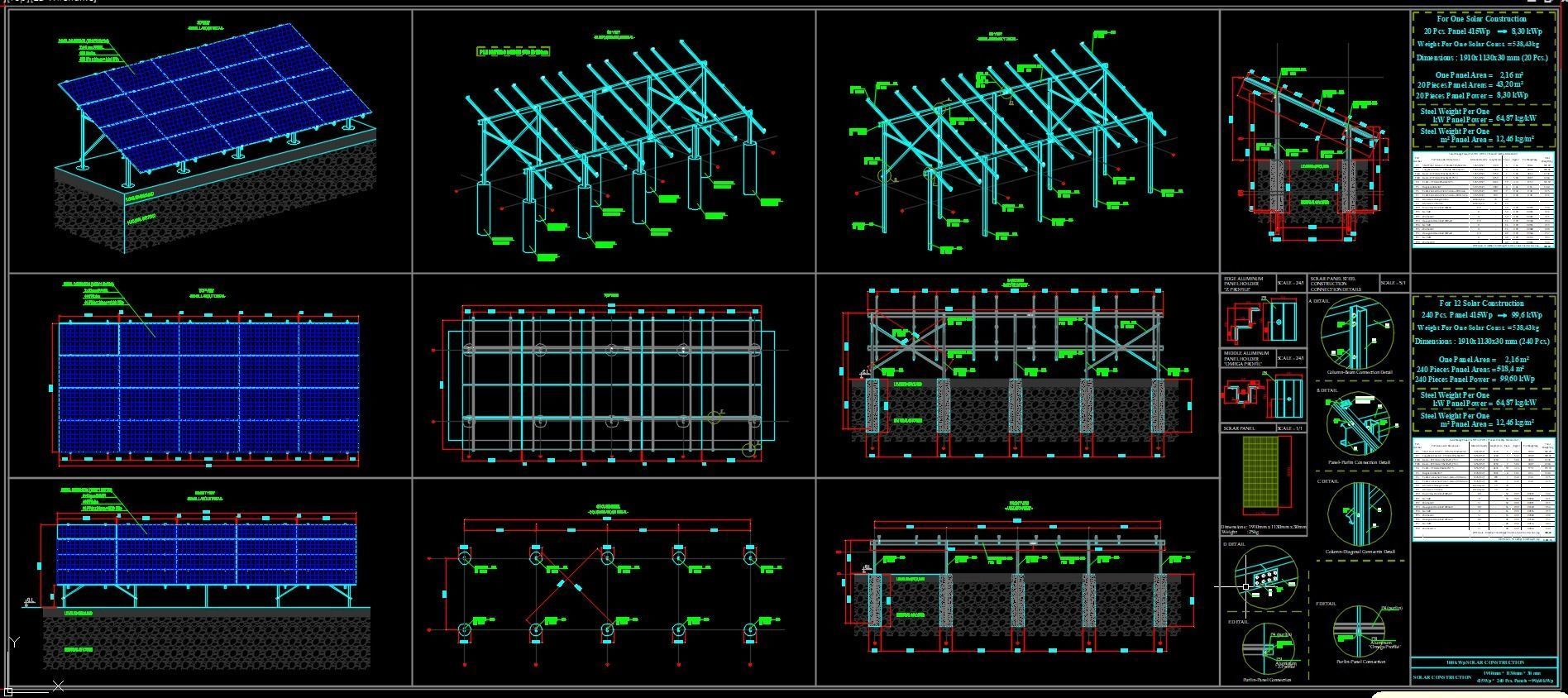

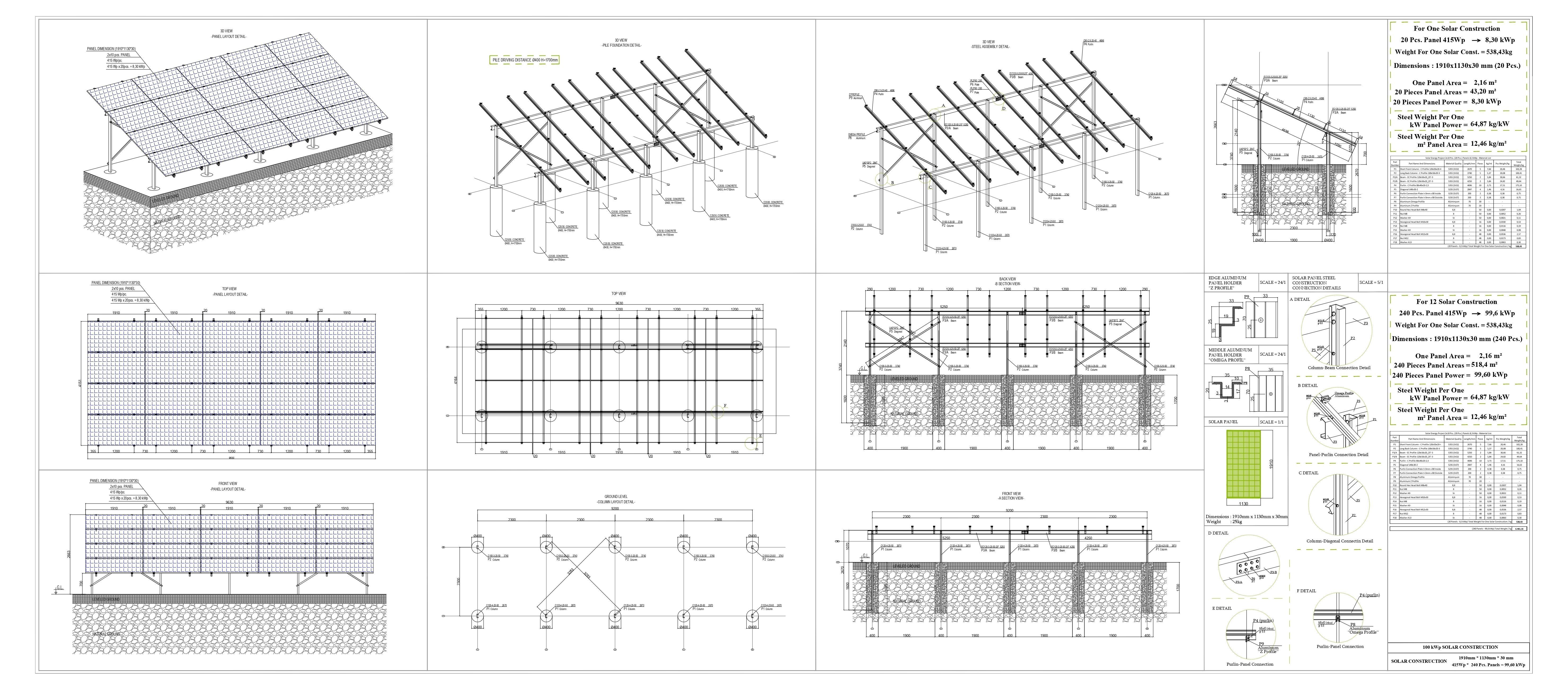

Prepared With AutoCAD Version 2021
