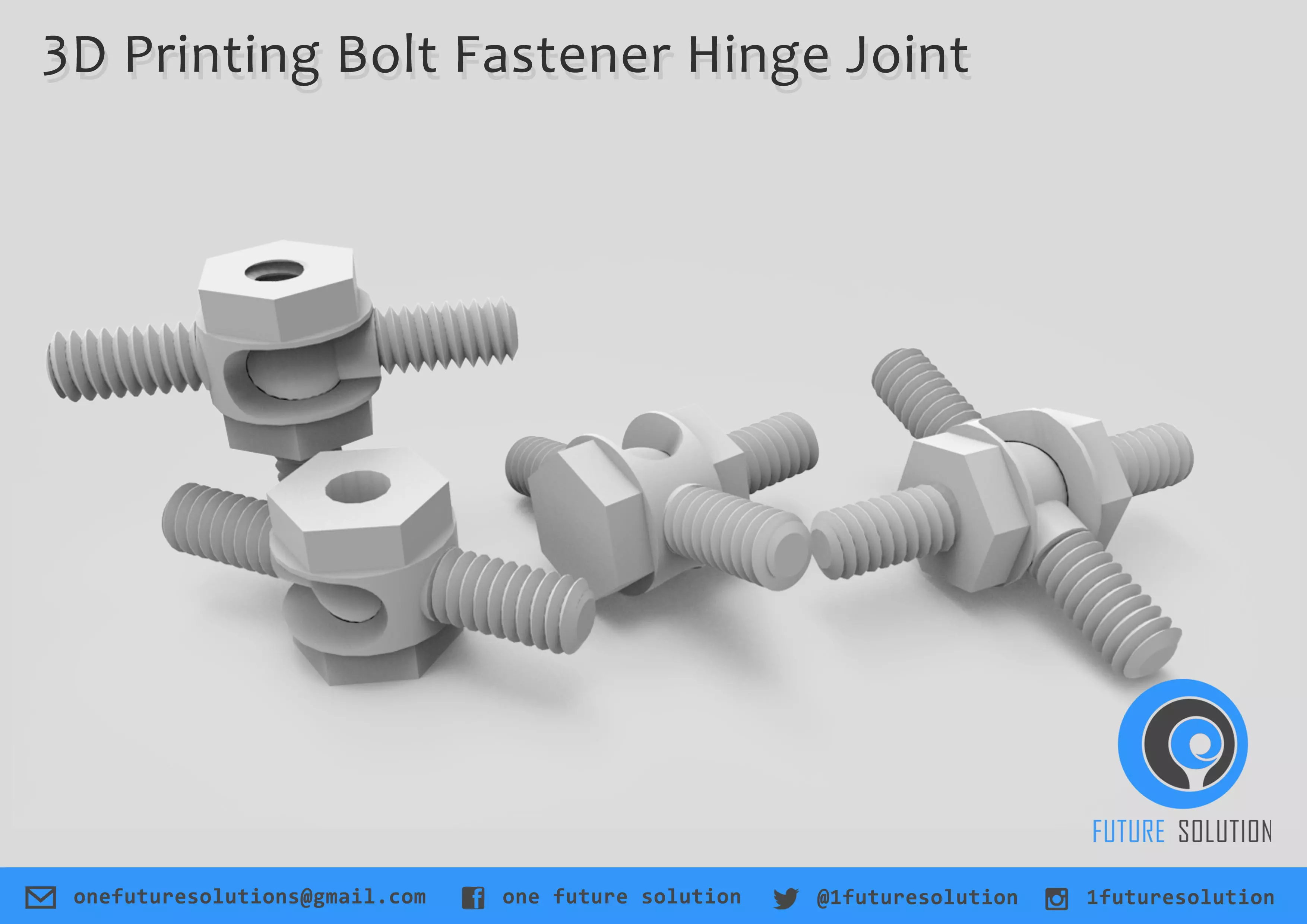

3D Printing Bolt Fastener Hinge Joint

Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )

Modeled with SolidWorks 2014

Rendered with KeyShot 5

File Types : .SLDPRT, .IGS, .OBJ, .STL.

Vertices :

V1 : 26123 ; V2 : 26923 ; V3 : 28541 ; V4 : 19536

Polygons :

V1 : 52238 ; V2 : 53922 ; V3 : 57078 ; V4 : 39076

In this model I just create some combine components like bolt (fastener), joint and hinge into one model. I think this is very usefull model for many application in futuristic manufacturing process.

This model are simple and functional and created with one assembly process 3D Printing. And use ABS material or any recommendation material from 3D Printing supplier are welcome.

I just create 4 variations for this model, there is still many variations from that's model if we want to explore it.

You can download this model for Free, but you should to hit ♥ button as the payment :).
