Universal Spool Holder Free 3D print model

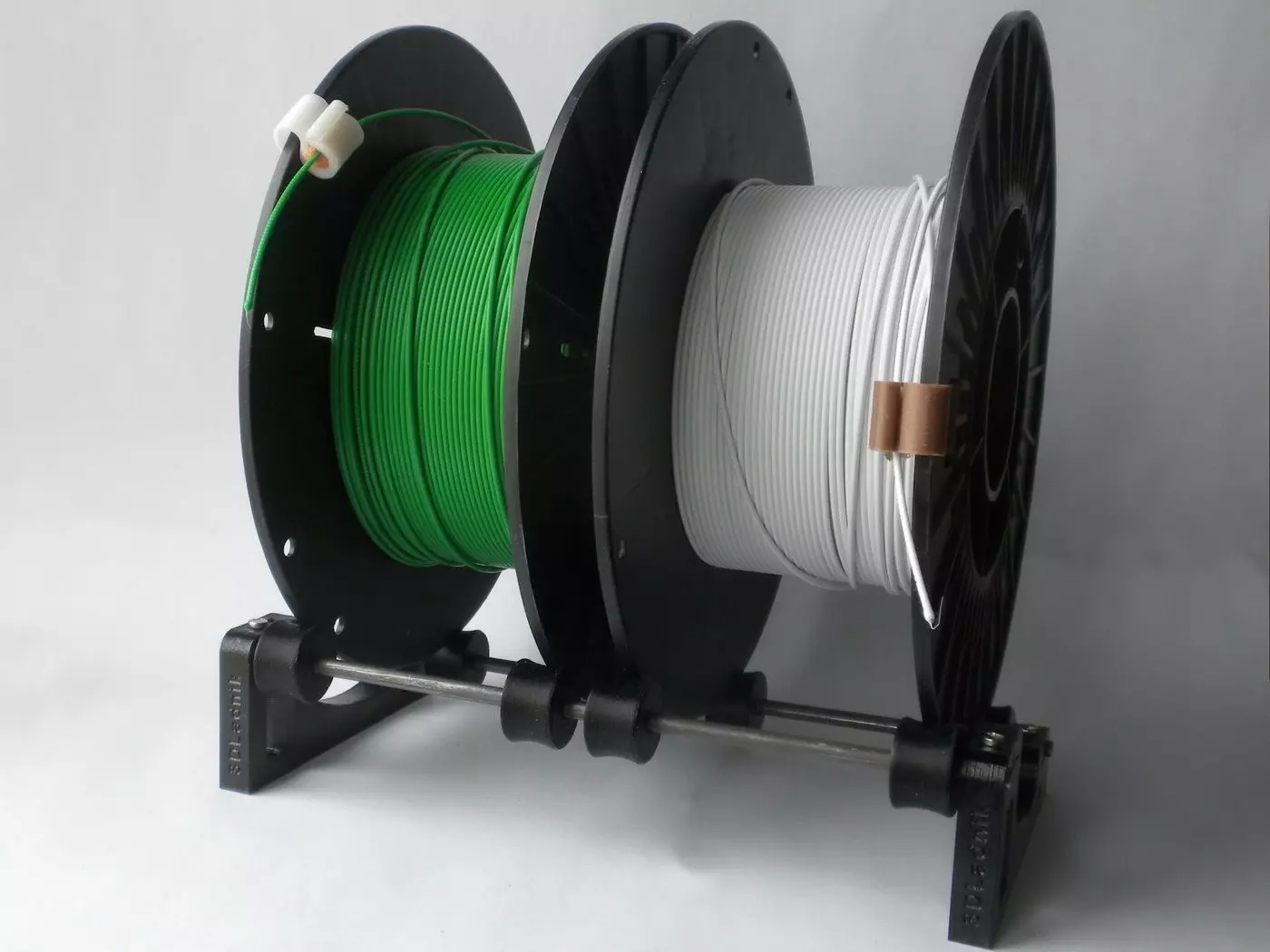

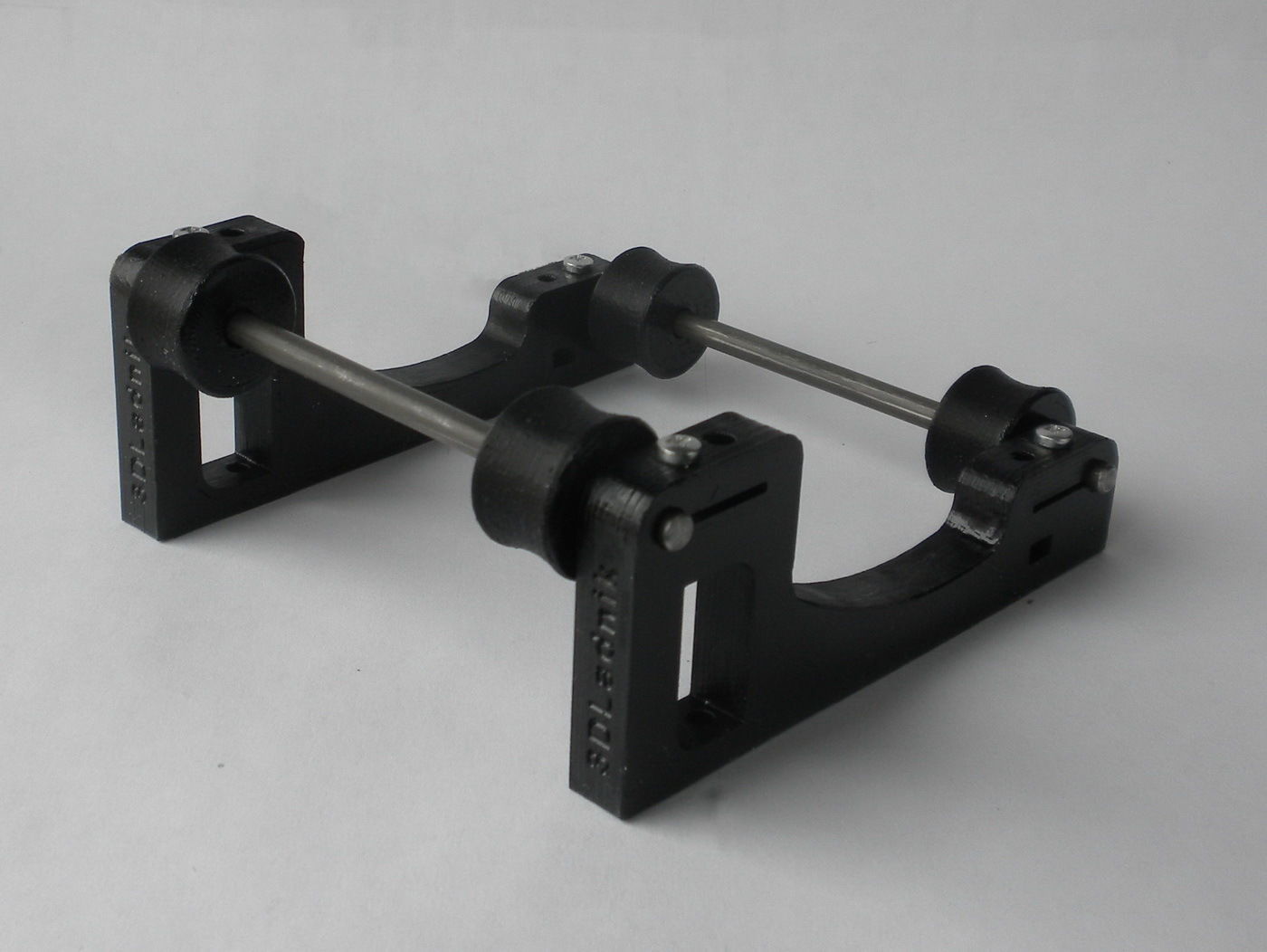

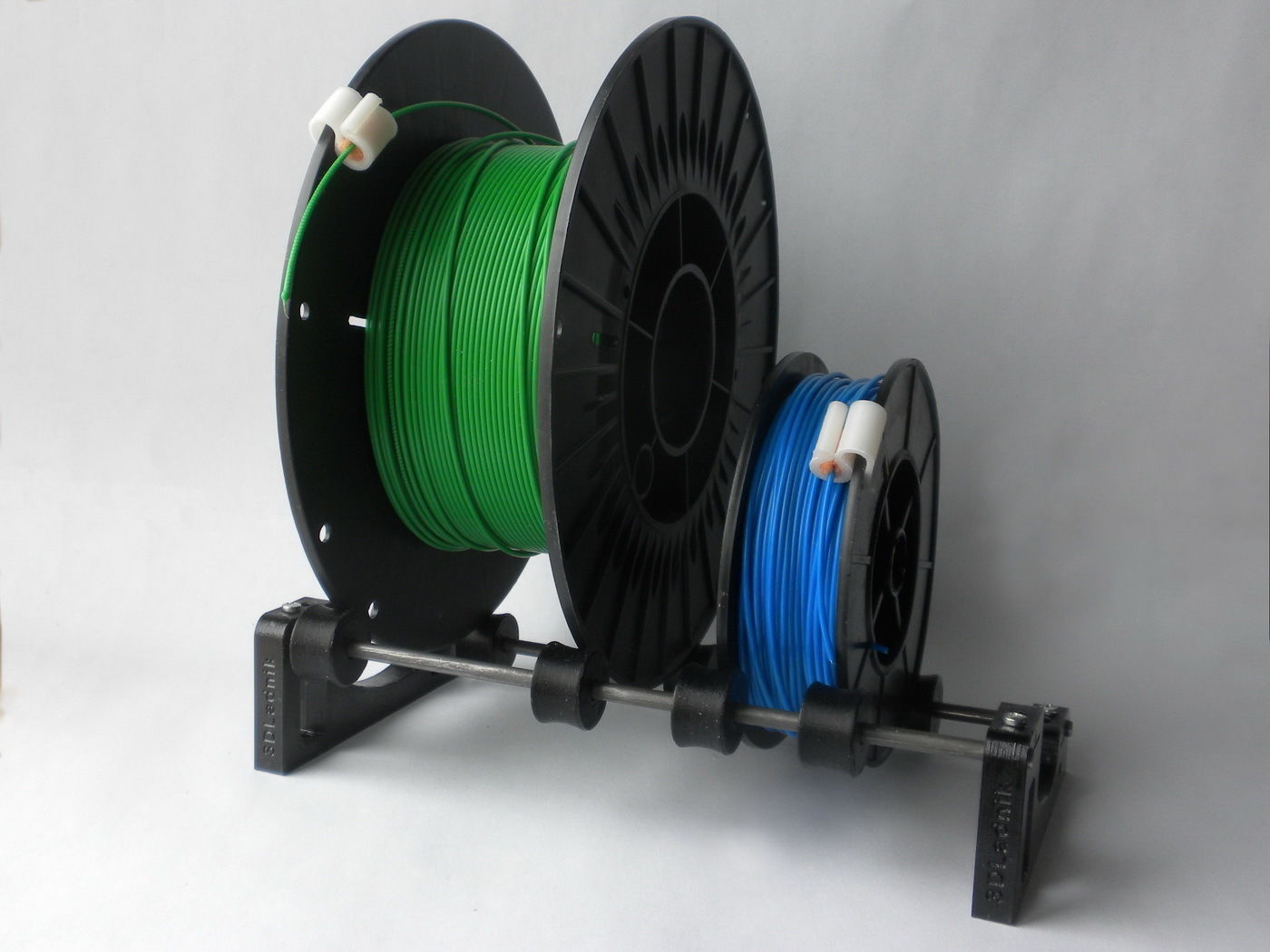

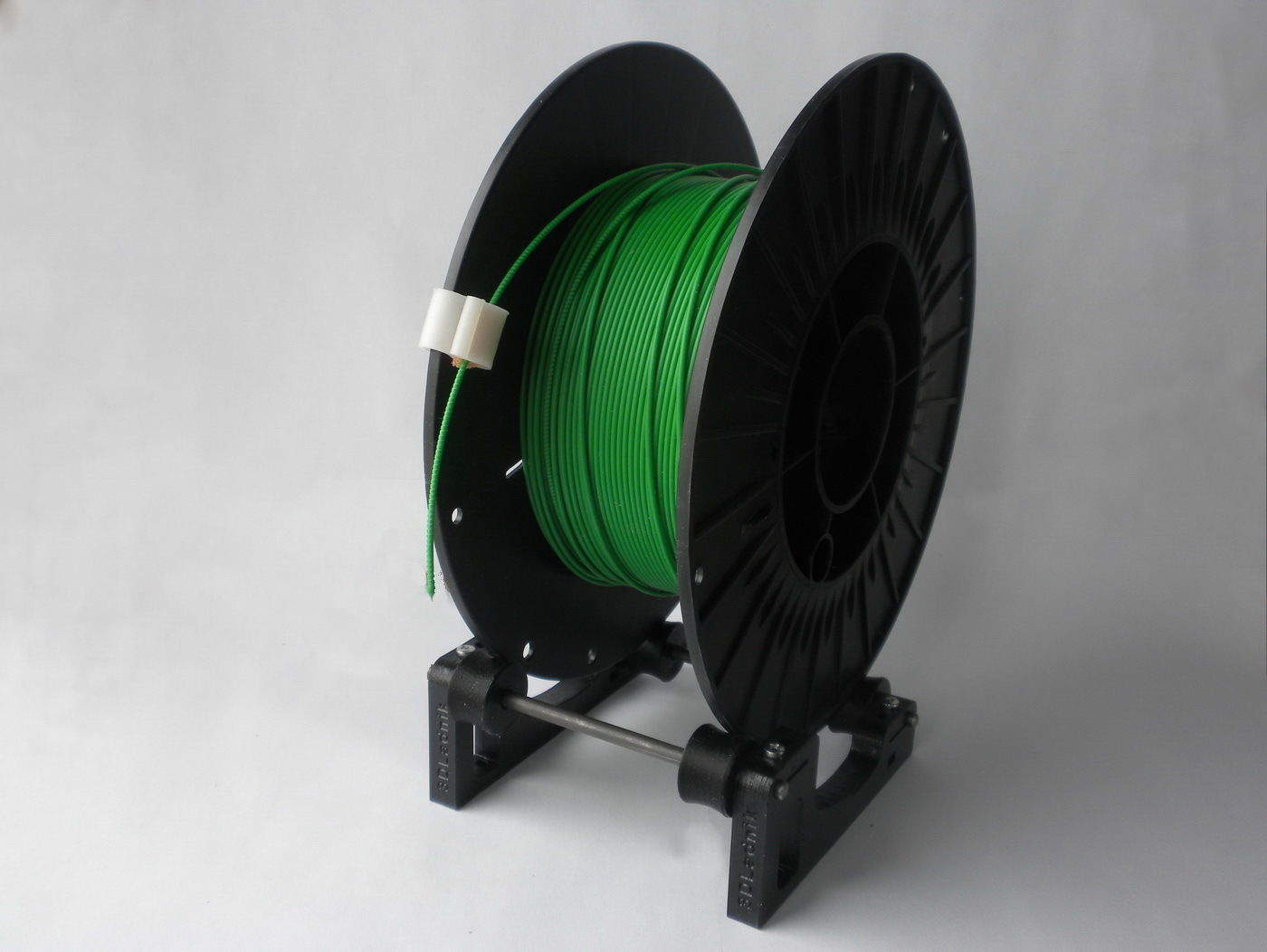

The universal Spool holder is designed for mounting 1 or 2 spool with diameters from 100 mm to 250 mm.

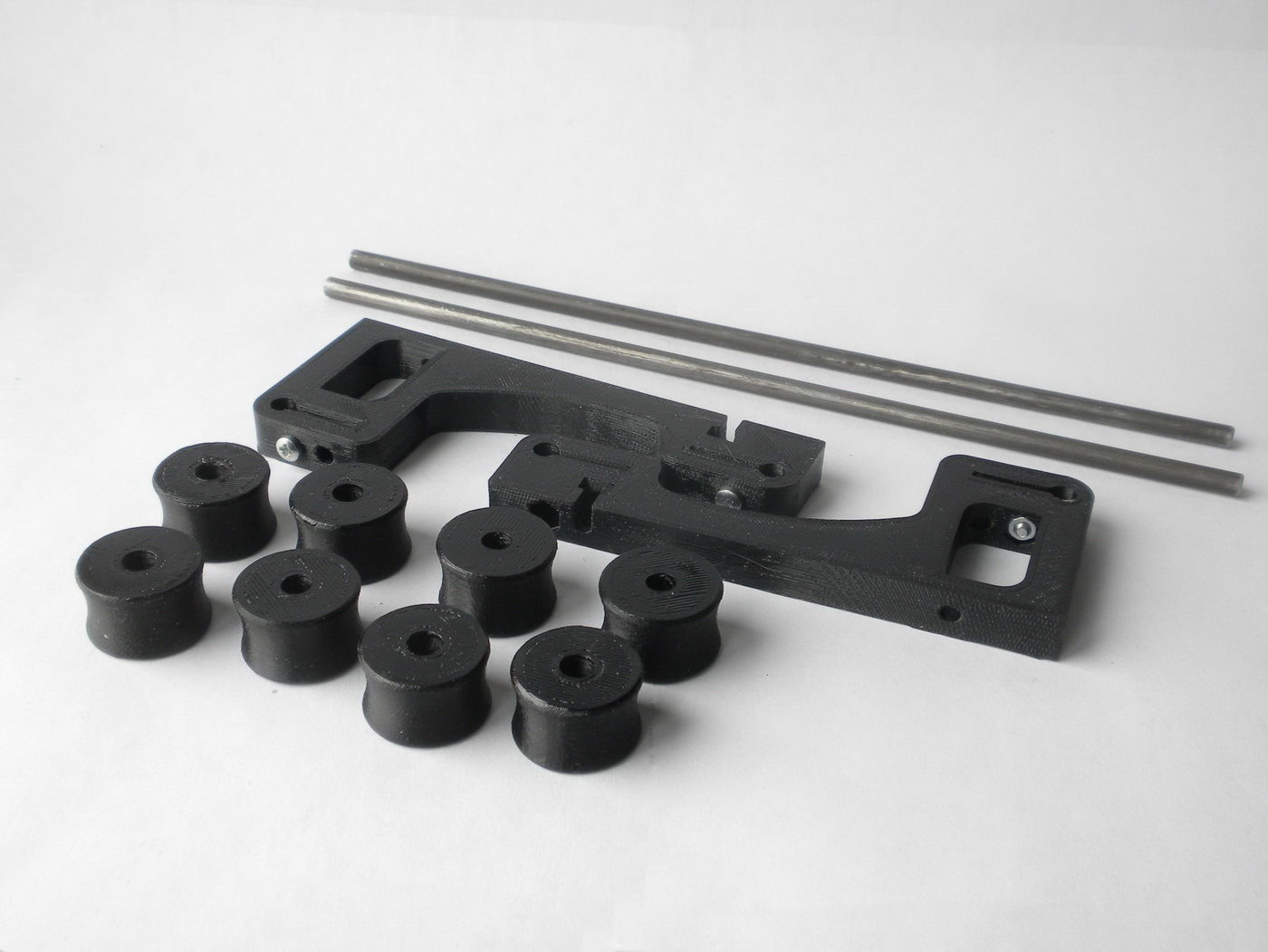

To assemble the Spool Holder, you need:

• Stand SpHl-01 - 2 pcs.

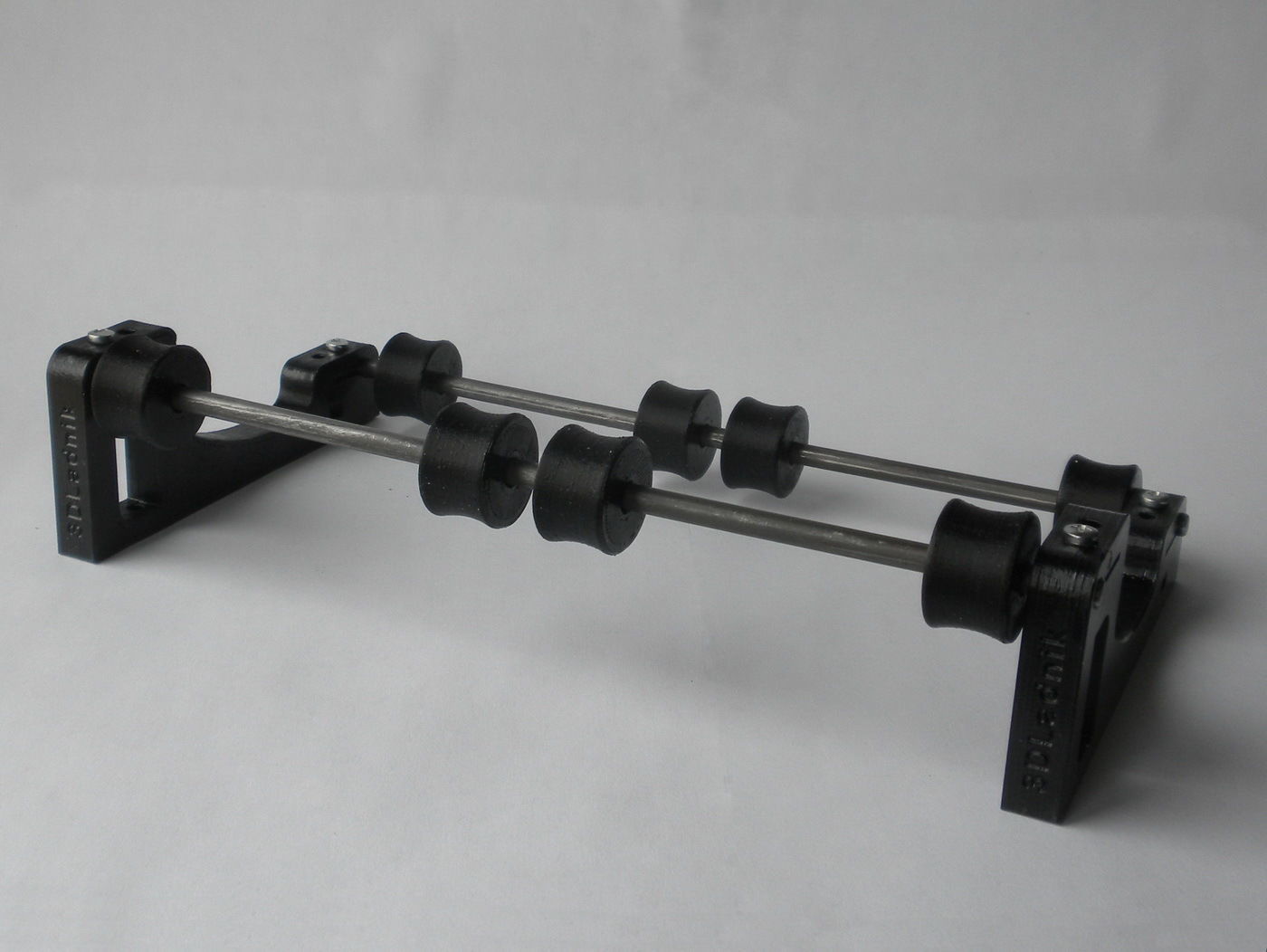

• Roller SpHl-02 - 4 pcs for a single holder and 8 pcs for a double holder.
• Carbon steel axis - 2 pcs. There are three versions of the holder: with a diameter of 4, 5 or 6 mm. The recommended length of the axis is 225 mm for a single holder and 125 mm for a double holder.
• Screw M3 x 16 - 4 pcs.
• Nut M3 - 4 pcs.

files: SpHl-01-4 and SpHl-02-4 for axes with a diameter of 4 mm SpHl-01-5 and SpHl-02-5 for axes with a diameter of 5 mm SpHl-01-6 and SpHl-02-6 for axes with a diameter of 6 mm

References: https://3dladnik.wixsite.com/workshop/spoolholder

Printed on 3D Printer Lad-1.0: https://3dladnik.wixsite.com/workshop/lad-1-0
