canon eos m50 handle Free 3D print model

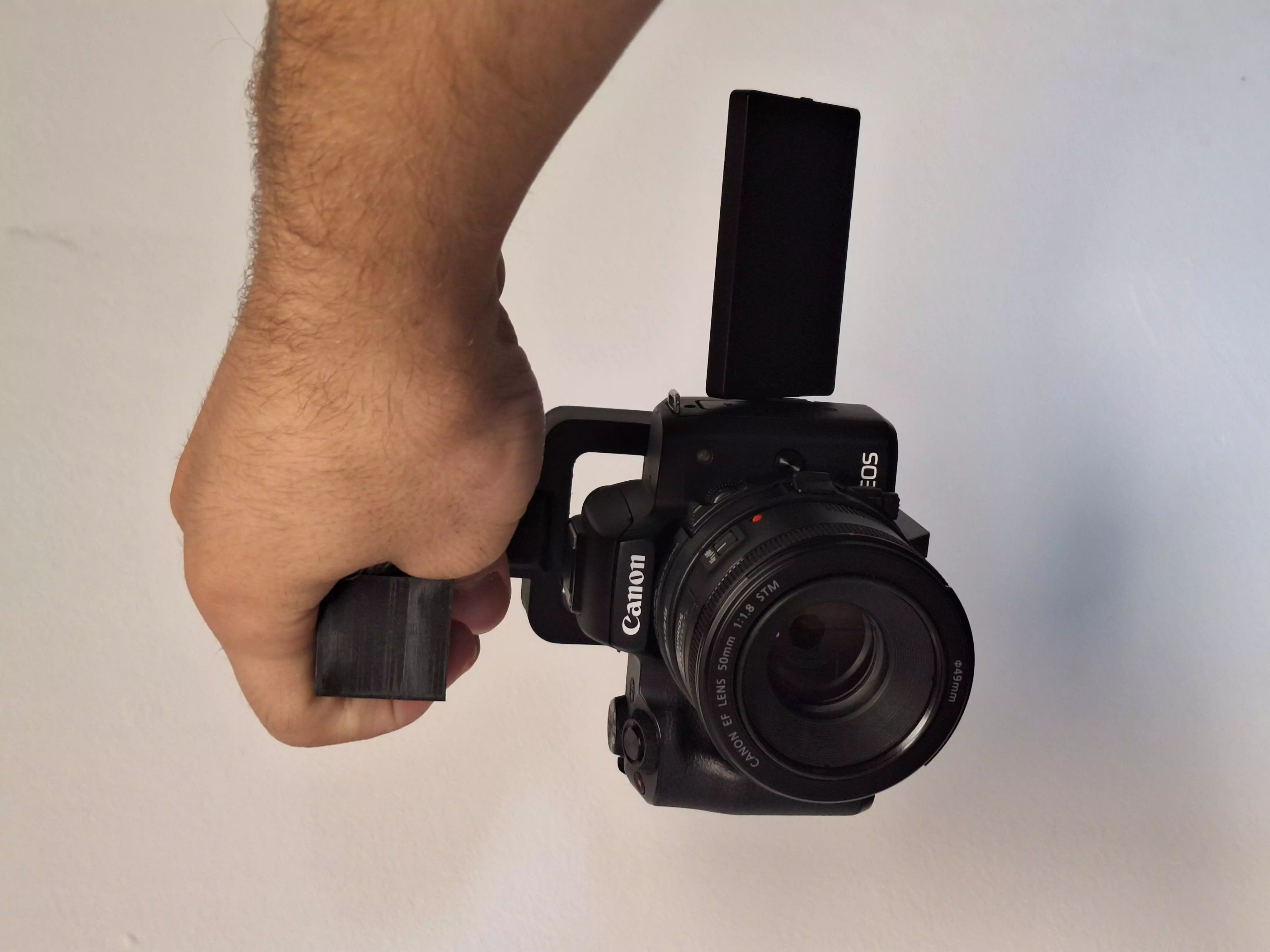

This is a Handle for the canon m50. It may work also with other cameras. All of the parts are 3d printed except the screws and the rubber on the mounting plate. The assembly is self explanatory.

Additional parts you need:-6 -> 4.5mm by 40mm wood screws-1 -> 1/4 inch tread screw (any cheap tripod has this)-1 -> glue-1 -> 20mm by 4mm by 1.5mm rubber strips to glue into the slots on the bottom plate

Print Settings:-pla -> 210 °C-0,1 mm layers-15% infill-supports for the overhang of the Handle-!print the bottom Blockand top Block vertically so the lines are 90 deg to the holes!

I cannot guarantee that the construction will last forever. No warranty or guarantee.Use this 3d model at your own risk! I am not responsible for any damage caused by this 3d model if it breaks.
