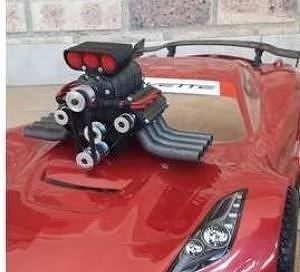

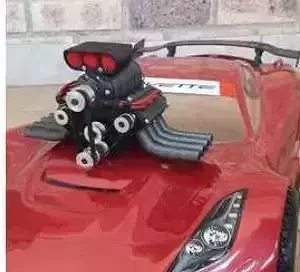

This is my first major design-build, so be kind would love some comments.I took the inspiration from many different designs I have seen all over the web.

The pullies are all GT2 toothed pullies with 5mm bore.the belts are standard belts (size to be added once I measure)

All screws are 0.8mm diameter thread (more details to follow)

The drive space is a 3v gearbox motor dc motor that mounts into the supercharger, this can be linked to your RC control to make the pullies move.there is also mounts and space in teh intake for a micro server to be mounted to opperate the flaps

All bearings are 10mm diameter with a 5mm bore,4 plain bearings that go into the back of the block1 plain bearing in the supercharger face4 flanged bearings that go into the front face

Print SettingsFilament - PLAExtruder @ 195 deg cBuild plate @ 50 deg cLayer height @ 0.095 mmInfill @ 20%Exturder was a 0.2mm diameter

THis was a old commission and I have been paid hansomly for so i share it now for free.... ENJOY
