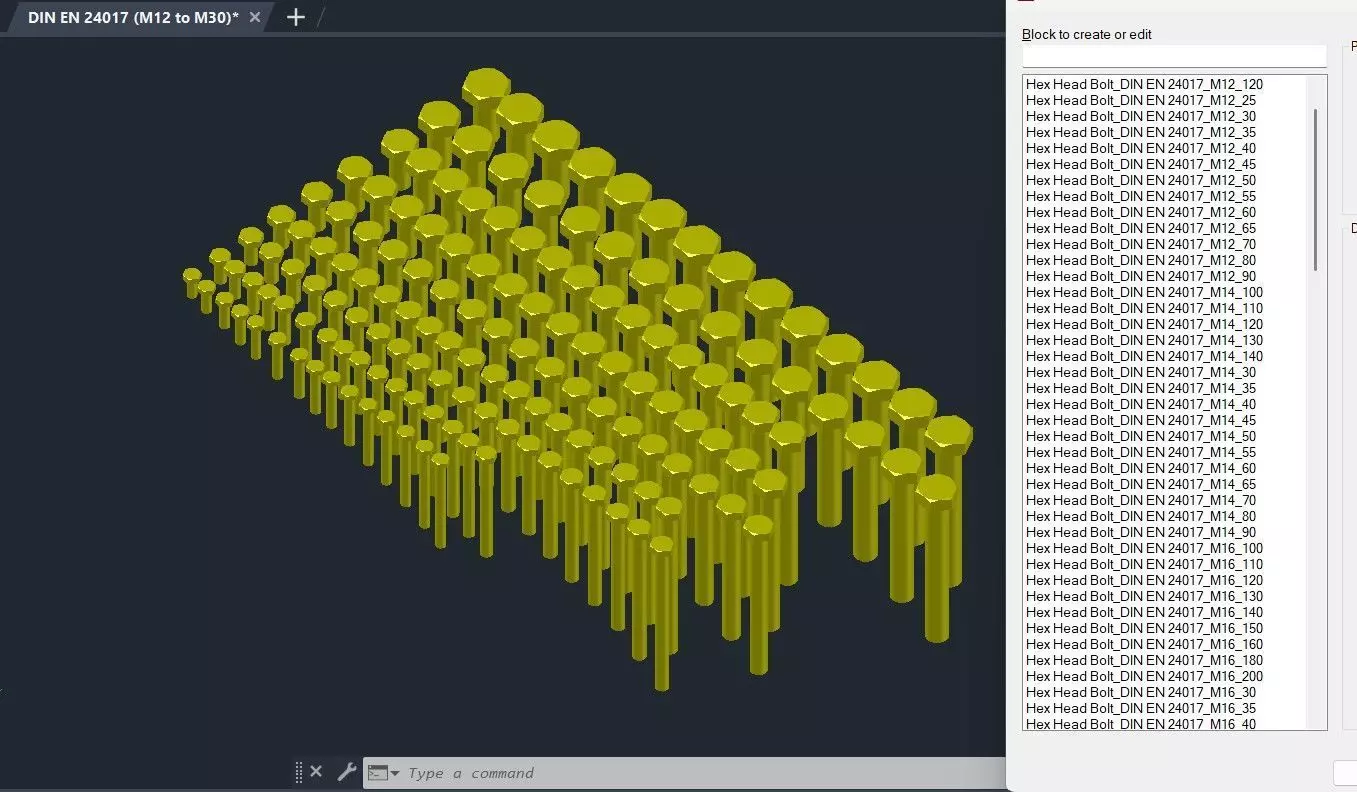

DIN EN 24017 Hex Head Bolt Size Chart – DWG Pack (M12 to M30)Elevate your CAD workflow with this high-precision DWG pack featuring DIN EN 24017-compliant hex head bolts in metric sizes from M12 to M30. Designed for engineers, manufacturers, and technical illustrators, this pack delivers clean geometry, standardized dimensions, and assembly-ready layouts for mechanical design and documentation.Included Sizes:

• M12, M14, M16, M18, M20, M22, M24, M27, M30Key Features:
• Accurate Geometry – Modeled to DIN EN 24017 standards for head dimensions, thread pitch, and shank length
• DWG Format Only – Compatible with AutoCAD and other DWG-based platforms
• Ready for Integration – Use in BOMs, technical drawings, or parametric assembliesIdeal For:
• Mechanical engineers and CAD professionals
• Technical documentation teams
• DWGnix Depot customers seeking high-quality bolt libraries
