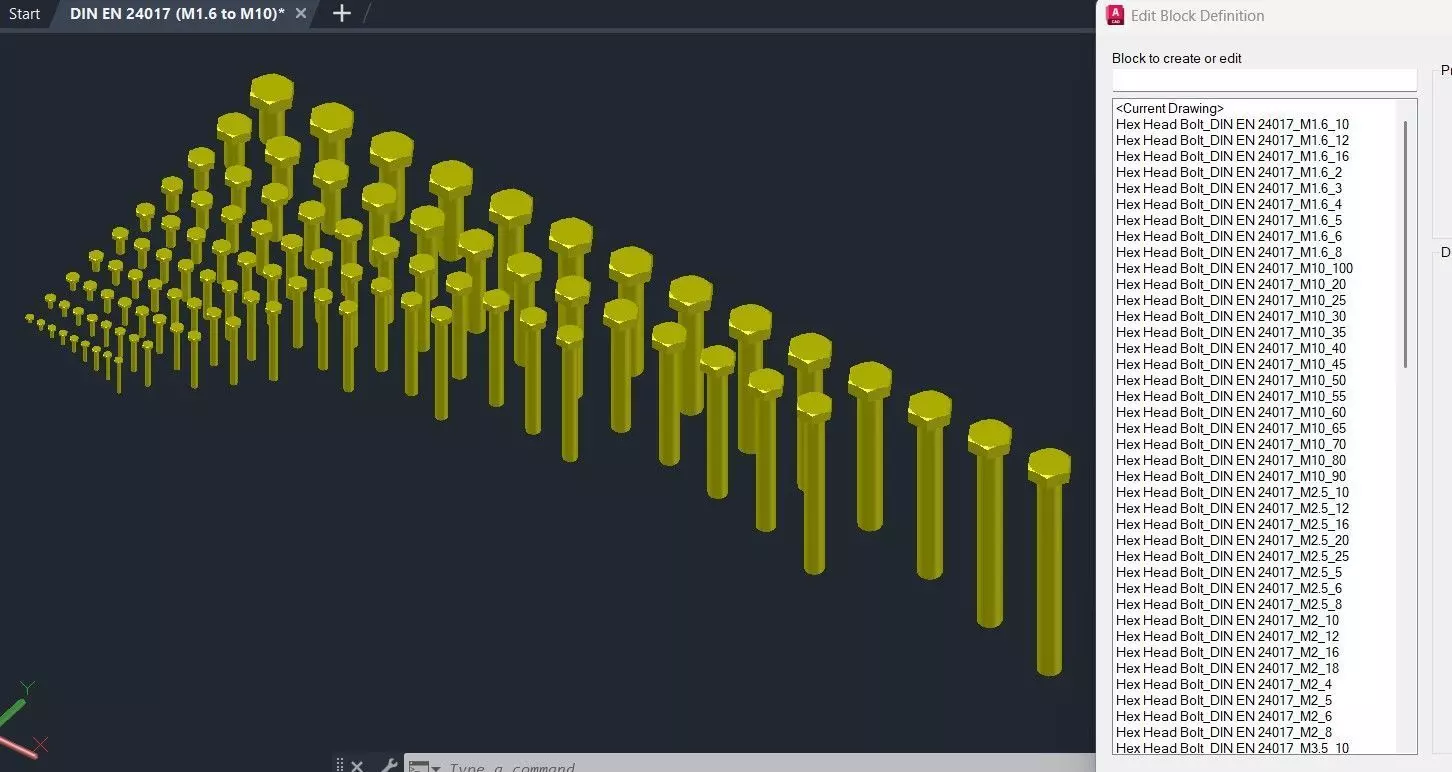

DIN EN 24017 Hex Head Bolt Size Chart – DWG Pack (M1.6 to M10)This DWG-only pack features precision-drafted 3D models of DIN EN 24017-compliant hex head bolts in metric sizes from M1.6 to M10. Ideal for engineers, CAD professionals, and technical illustrators, each bolt is laid out in a clean grid for easy reference and export.Included Sizes:

• M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10Key Features:
• Accurate Geometry – Modeled to DIN EN 24017 standards for head dimensions, thread pitch, and shank length
• DWG Format Only – Compatible with AutoCAD and other DWG-based platforms-Ready for Integration – Use in technical drawings, BOMs, or mechanical assembliesPerfect For:
• CAD users building fastener libraries
• Technical documentation teams
• DWGnix Depot customers seeking clean, standardized bolt models
