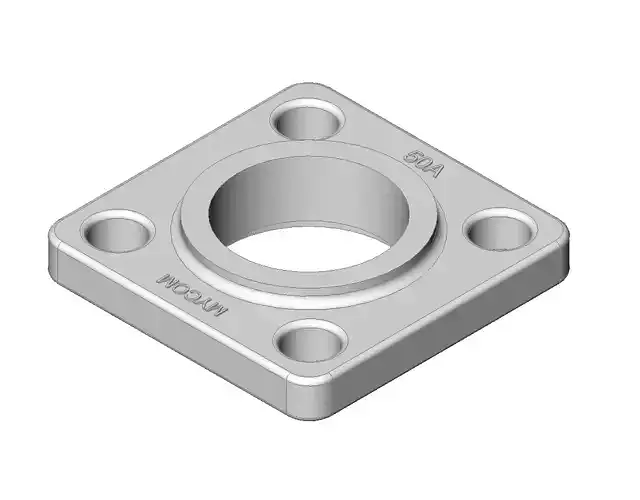

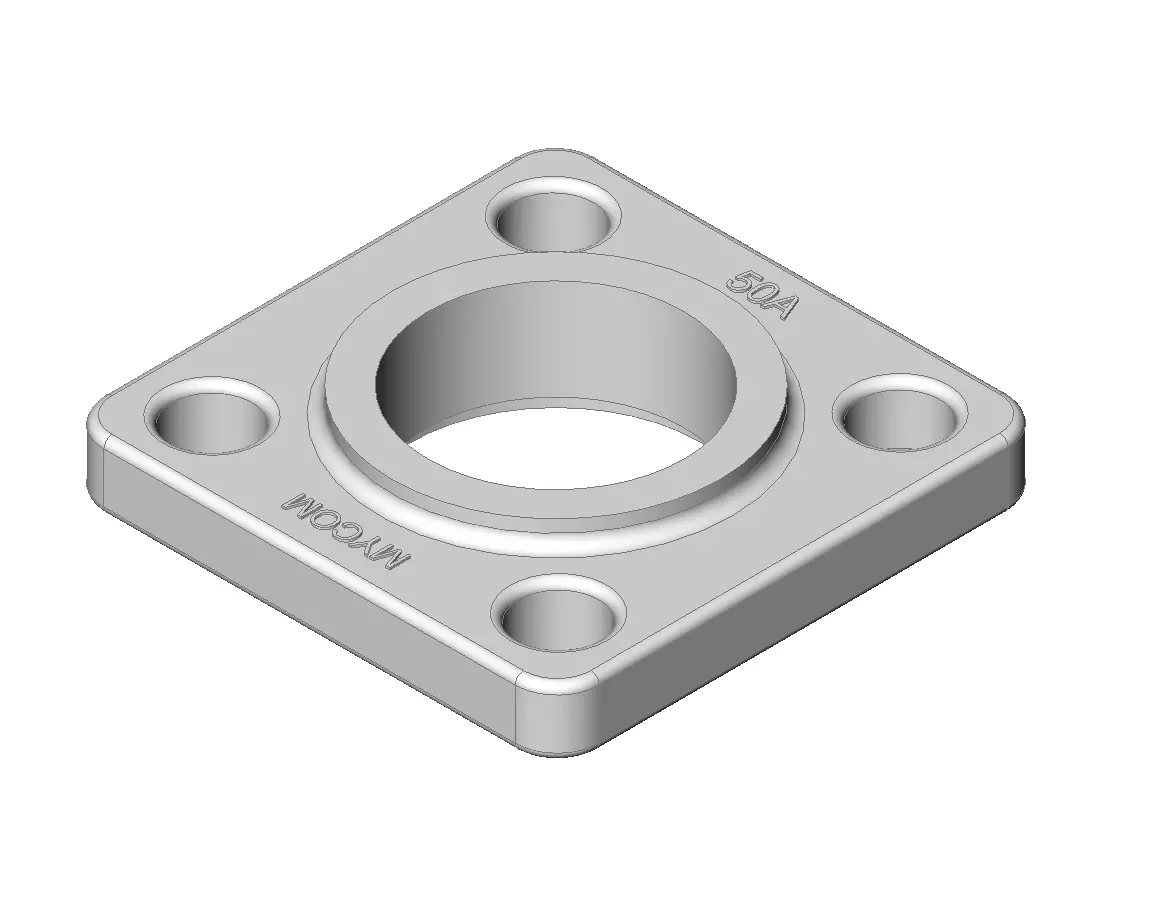

4-Bolt Mounting Flange for 50A Ammonia Compressor Valve 3D print model

4-Bolt Mounting Flange for 50A Ammonia Compressor Valve Mycom N42WA CompatibleHigh-precision mounting flange designed for secure installation of a 50A ammonia compressor valve on Mycom N42WA series compressors.

This custom 3D model features a robust 4-bolt configuration optimized for industrial refrigeration systems. It is ideal for maintenance engineers, CAD professionals, and designers working with NH₃ (ammonia) applications.

Specifications:Compatible with Mycom N42WA compressorDesigned for 50A solenoid or safety valve4 mounting holes for easy and secure installationUnits: millimetersModeling accuracy suitable for fabrication or 3D visualization

Includes central valve passage and alignment geometry

Included Files:Native format: DWG (AutoCAD 3D)Optional: StlPreview PDF with technical viewsRendered image (realistic view)Ideal for use in:Industrial refrigeration system modeling3D layout of ammonia compressor pipingEngineering documentation and fabrication prep
