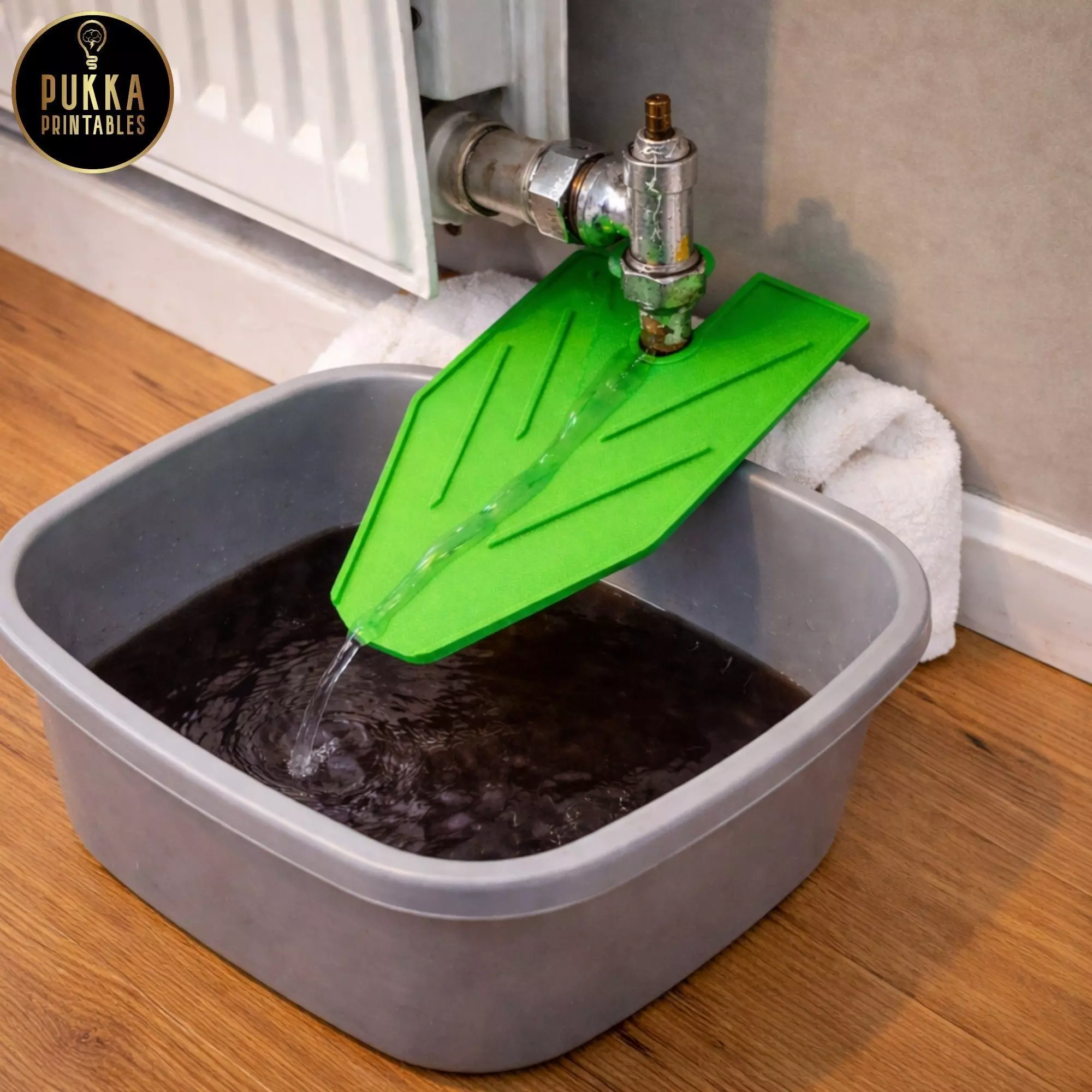

This 3D model provides a functional draining aid specifically designed for vertical radiator pipes that rise through the floor, where placing a container directly beneath the valve is challenging. The part fits around a nominal 15 mm pipe and uses raised edges and angled channels to guide draining water into a shallow tray or bucket. The geometry is simple, with no moving parts, and is optimized for reliable printing.

Features

Designed for use with vertical radiator pipes.Guides draining water into shallow containers.Raised edges reduce spill-off.Single-piece, flat print.No supports required.

Technical Details

Material: generic FDM filament (PLA, PETG recommended).Print orientation: flat on build plate.Supports: none.Nozzle options: 0.4 mm or 0.6 mm compatible.No assembly required.Not suited to horizontal wall-fed pipe configurations.

Files Included

• STL × 1

Usage Notes

Print the model flat on the build plate.No support structures are necessary.Suitable for standard FDM printers.Ensure correct sizing for pipe diameter prior to printing.
