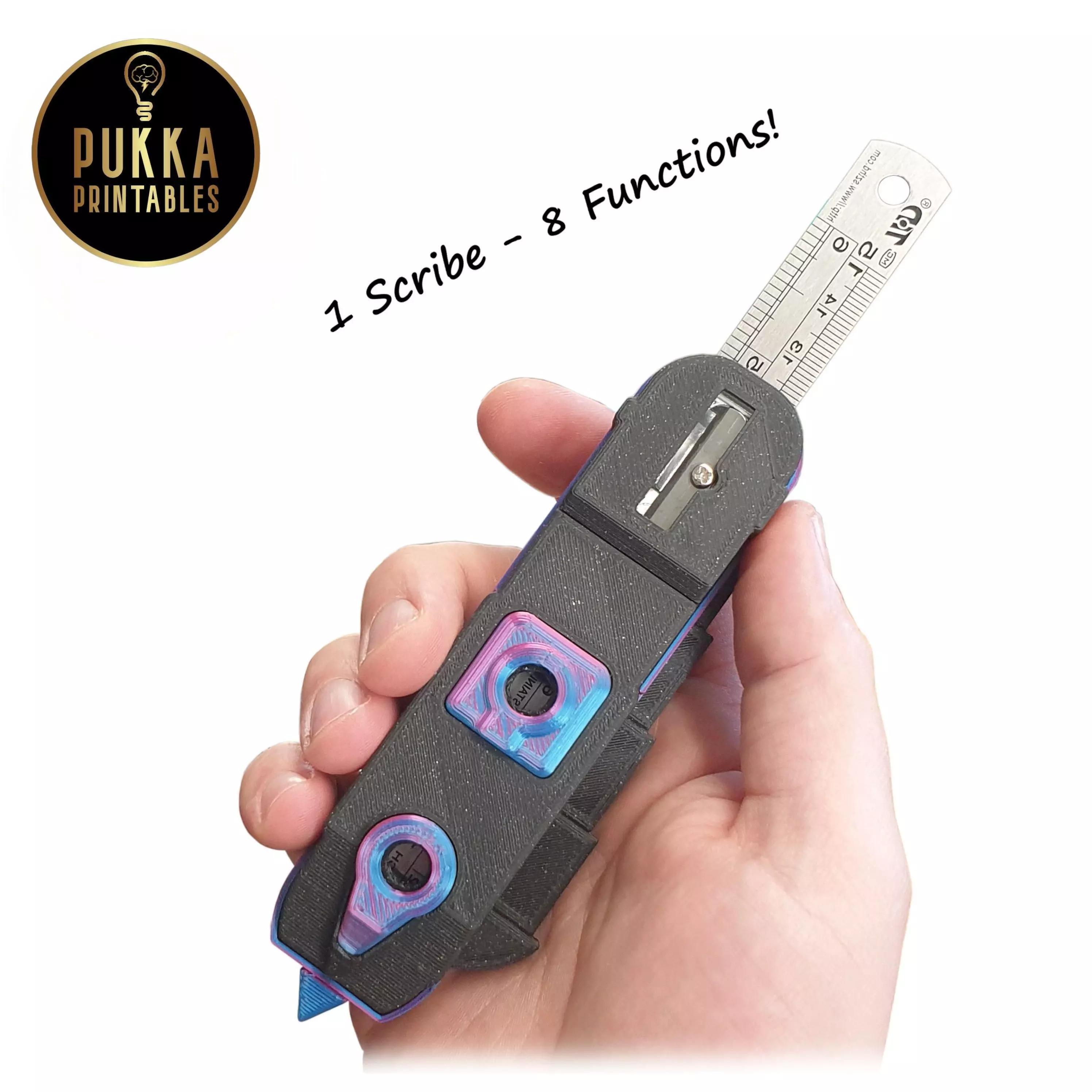

This 3D printable 8-in-1 Multi Scribe Tool is designed for accurate marking, measuring, and layout tasks in woodworking, carpentry, and general DIY work. The compact design integrates multiple functions into a single tool, allowing users to perform a range of scribing and marking operations without switching tools.

The tool was developed through multiple design iterations to provide versatile scribing capabilities for different marking situations. A steel rule and pencil store inside the body for convenient transport and storage.

Features

• Eight integrated functions in one compact tool• Centre line scribing capability• Contour scribing for irregular surfaces• Edge scribing for consistent offsets• Adjustable countertop-to-wall scribing• Square line marking guide• 45° angle marking guide• Built-in depth gauge• Integrated pencil sharpener holder• Internal storage for pencil and ruler

Technical Details

The design consists of multiple printed components assembled with standard hardware.

Required additional parts:

• Steel rule (maximum thickness 0.9 mm, width 16.5 mm; length not critical)• Short hexagonal pencil (approximately 85 mm length, 8 mm point-to-point diameter)• Small metal pencil sharpener• 13 × self-tapping screws (3 mm thread diameter × 12 mm length, head diameter ≤ 6 mm)• 1 × round magnet (10 mm diameter × 5 mm thickness)

Recommended print settings:

• Main body components: 0.2 mm layer height, 0.4 mm nozzle• Structural components: 0.3 mm layer height, 0.6 mm nozzle• TPU parts provide friction to secure the pencil

Supports required for:

• Pencil hole tops (pointed and square sections)• Upper body and sharpener top

Before assembly, the magnet should be pressed into the designated recess.

Files Included

• 14 × STL files• 1 × Comprehensive PDF guide explaining all tool functions and parts list• 1 × Assembly demonstration video

Usage Notes

This tool is intended for workshop layout tasks such as marking lines, transferring measurements, and contour scribing. Ensure the selected steel rule does not exceed the specified thickness and width for proper fit.

Assembly instructions and demonstration video are included in the download package.
