2–5 Inch Pipe Marking Multi Blocks – 3D Print Template – 1-5D CLR

This 3D printable pipe marking tool is designed for precise layout marking of curved pipes ranging from 2 to 5 inches in diameter (1-5D CLR).It’s a perfect pipe marking template for welders, plumbers, and fabricators who need accurate and repeatable results during cutting or fitting operations.

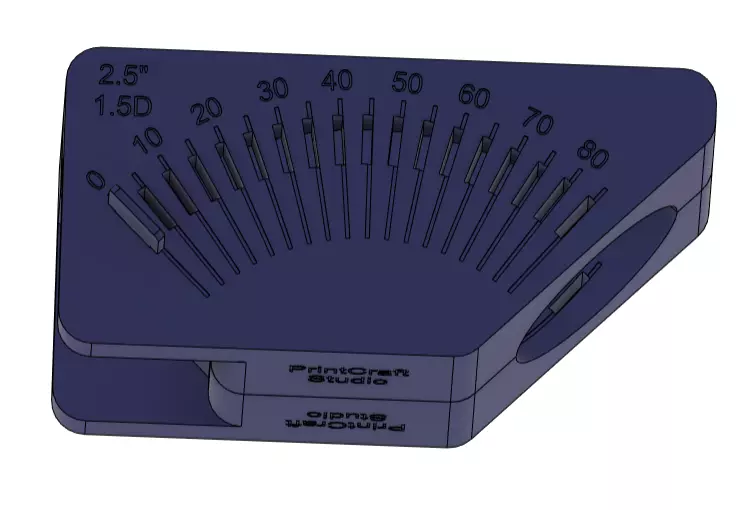

The model includes multiple marking slots and alignment guides, allowing easy marking for pipe joints, elbows, and custom fabrication layouts.Each multi-block segment fits together seamlessly, making this tool flexible and efficient for workshop use.

Features:Optimized multi-block design for different pipe sizesPrecision marking slots for accurate alignment and cuttingDesigned for easy 3D printing – no supports requiredCan be printed in PETG, or ABSDurable and reusable workshop toolRecommended print settings:Layer height: 0.2 mmInfill: 50–100%Orientation: Flat side downNo support material neededApplications:Pipe fitting and fabricationWelding preparation and layout markingPlumbing and mechanical workshopsDIY pipe projectsTemplate for consistent and repeatable marking
