Modular Cigarette Case

A compact 3D printable cigarette carry case designed to keep your cigarettes/joints protected and organized in your pocket. The case features a modular internal layout with multiple configurations depending on what you want to carry.

The system supports different setups for cigarettes, lighters, rolling papers, and filter tips, allowing you to choose the version that best fits your daily carry. It can fit a BIC Maxi (normal size) or a regular Clipper.

Additionally, the top half of the case is rounded on the inside, and can be used as a small tray to mix tobacco or herbs and help with rolling.

Designed for standard size cigarettes (84mm) — not compatible with 100s or king size rolled cigarettes.

─── //\ ─────────────────────────────

Available Configurations

This model pack includes several configurations depending on your needs. Each version is optimized for either Clipper or BIC lighters where applicable.

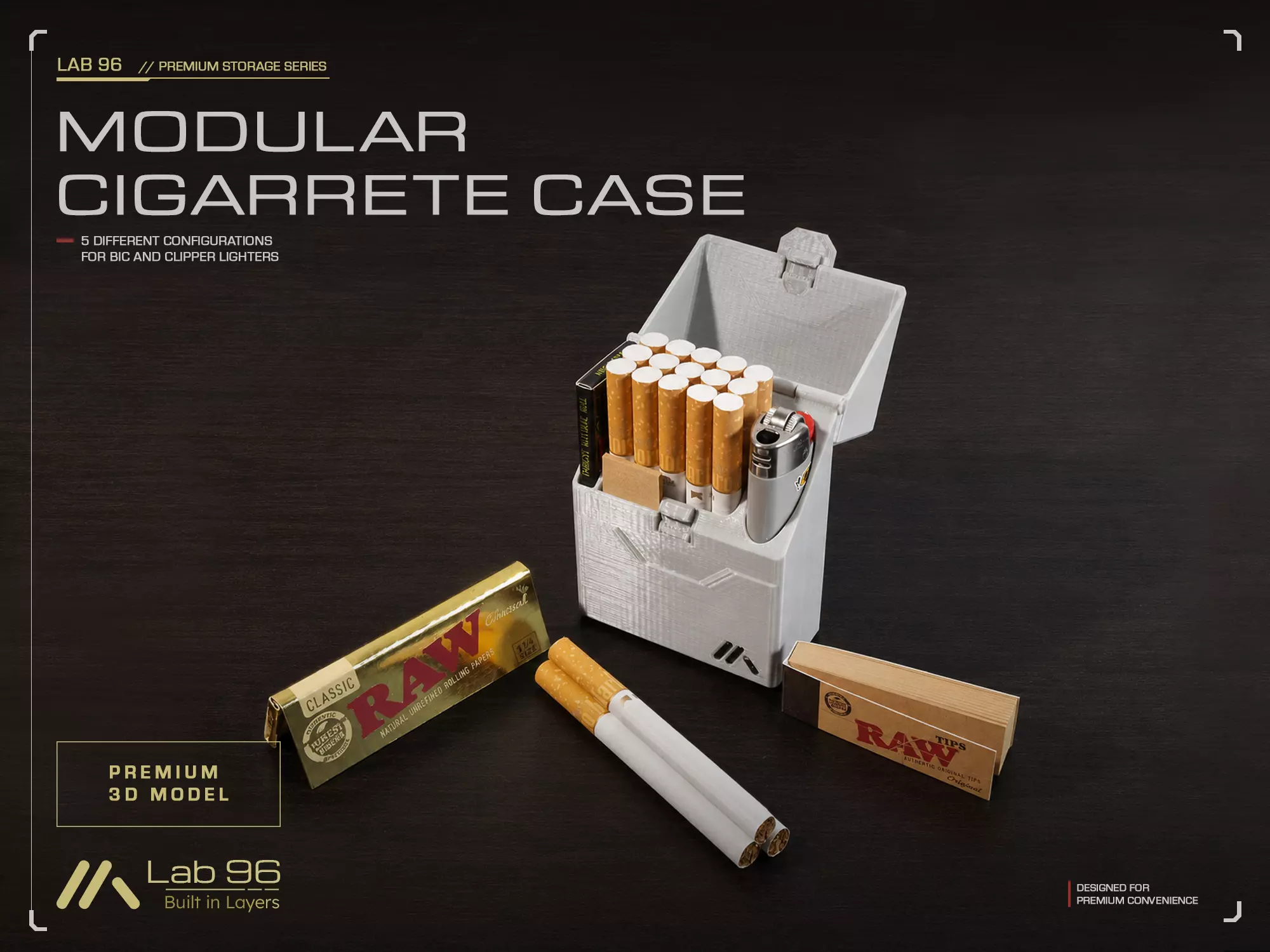

Complete (BIC / Clipper)The Complete configuration includes all available modules in a single compact case.It provides storage for:

• Cigarettes
• Lighter (BIC or Clipper depending on version)
• One pack of 1¼ size rolling papers
• Filter tips

Capacity depends on the lighter type:

BIC version: holds up to 15 cigarettesClipper version: holds up to 13 cigarettes

The filter tip compartment supports tips of any length, but the width must not exceed 18mm. The RAW tips shown in the picture will fit perfectly.

────────────────────────────────Duo (BIC / Clipper)The Duo configuration is a simplified version designed for users who only need to carry cigarettes and a lighter.This version removes the paper and filter compartments, allowing for increased cigarette capacity.

Capacity:

BIC version: holds up to 18 cigarettesClipper version: holds up to 16 cigarettes

────────────────────────────────**Full 20**The Full 20 configuration is designed purely as a compact replacement for a standard cigarette pack.It holds a full pack of 20 cigarettes without additional compartments.

This version is the most straightforward and provides the maximum cigarette capacity, while also being the most compact.

─── //\ ─────────────────────────────

Printing & AssemblyThe models are designed to be simple to print and assemble. The following recommendations are suggested settings that worked well during testing, but feel free to adjust them based on your printer and preferences.

MaterialsBoth PLA and PETG work well for this model.

PLA prints easily and performs perfectly fine for normal use. Matte PLA will look the best.PETG offers better durability and resistance to heat and sunlight, making it a good option if the case will be exposed to outdoor conditions.

Note that 3D printed parts are not fully waterproof. Avoid prolonged contact with water, as moisture may seep through the print and potentially damage the contents stored inside.**Print Settings**Recommended baseline settings:

• Supports: Not required
• Minimum infill: 17.5%
• Wall loops / perimeters: 3

To improve durability of the hinge and latch mechanism:

• Minimum sparse infill threshold: 12 mm² (Small sparse infill regions below this threshold are replaced with solid infill. This helps ensure the hinge and locking areas print solid and reduces the risk of breakage.)

AssemblyThe case uses a simple filament hinge pin and requires no additional hardware.Before assembly, remove the pre-built supports on the snap joints by carefully cutting them off using pliers or flush cutters.

Step 1 — Prepare the hinge pinCut a piece of standard 1.75 mm filament and insert it through the hinge holes, aligning both halves of the case. This piece of filament acts as the hinge pin.

Step 2 — Position the pinCenter the filament so that about 3-4 mm extends from each side of the case.

Step 3 — Lock the hingeCarefully heat one exposed end of the filament using a lighter or small flame until the tip begins to soften.Once softened, gently press the filament against the hinge using a flat metal surface. This will flatten the filament end and create a small cap that prevents the pin from sliding out.

Step 4 — Repeat on the other sideRepeat the same process on the opposite end to secure the hinge pin in place. Once both ends are flattened, the hinge will be permanently secured.

An optional logo inlay file is included for the engraved Layer Lab logo on the case body. You can print this small insert in a different color filament and glue it into the recess for added visual contrast. A small amount of super glue or contact adhesive works well to secure the pieces. For an extra touch, you can match the inlay colour with the filament hinge pin for a coordinated accent :)

─── //\ ─────────────────────────────

DisclaimerThis product is a storage accessory designed for adult users. Smoking carries known health risks, and the creator does not encourage or promote tobacco use.

Brand names and products shown in example images (such as Marlboro cigarettes, BIC and Clipper lighters, and RAW rolling papers or filters) are used only to demonstrate compatibility and scale. This project is not affiliated with, endorsed by, or sponsored by any of these companies.

As this is a paid model, I will provide support, within reason, if you encounter issues with the files, printing, or assembly. If you have any questions or run into problems, feel free to reach out and I will do my best to help!
