Educational 3D model of a VS1-type vertical turbine pump with ~50 named, logically-grouped components — built for teaching, training content, and technical visualization.

INCLUDED VARIANTS

• Assembled model

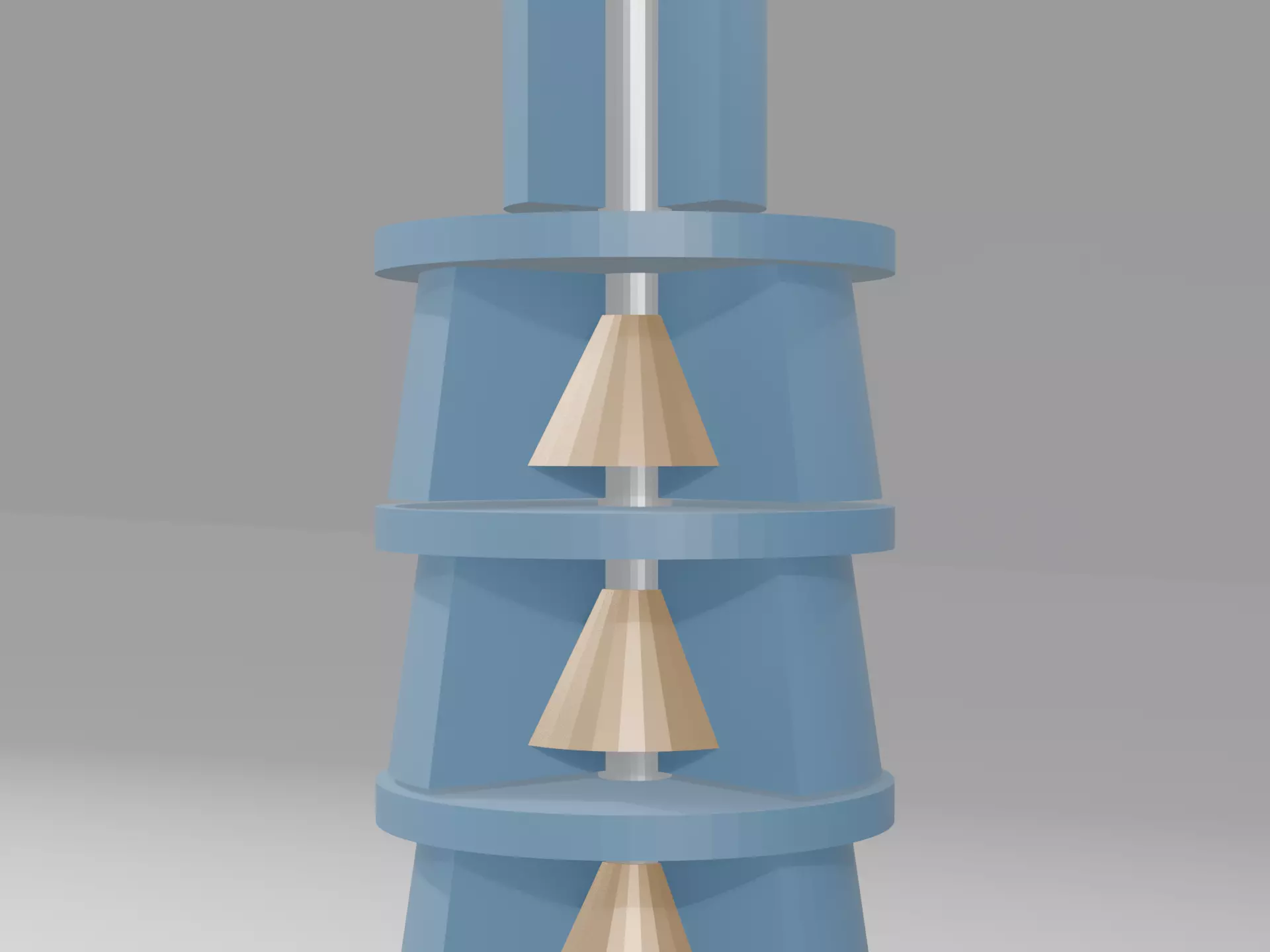

• CUTAWAY variant (separate GLB): bowls and column sectioned open, showing the 3-stage impeller stack, lineshaft, and bearings
• Exploded-view render for reference

COMPONENT STRUCTURE (every part named)Motor (body, cooling fins, fan cover, junction box, stand), discharge head with bolted flange, stuffing box gland, baseplate, 2 column sections with flanges, lineshaft with coupling and line bearings, 3-stage bowl assembly with impellers, suction bell, suction strainer cage.

FORMATSGLB (main + cutaway), FBX, OBJ+MTL, Blender (.blend, native)

USE CASESEngineering education and e-learning, oil and gas / water utility training material, AR/VR training apps, technical illustration, animation.

Proportions follow public API-610 VS-type references and manufacturer catalog ranges — a generic teaching representation, not a replica of any specific installation.

Polygons: 9,288 | Vertices: 15,408 | Objects: 56 | Materials: yes | Textures: no | Rigged: no | Animated: no
