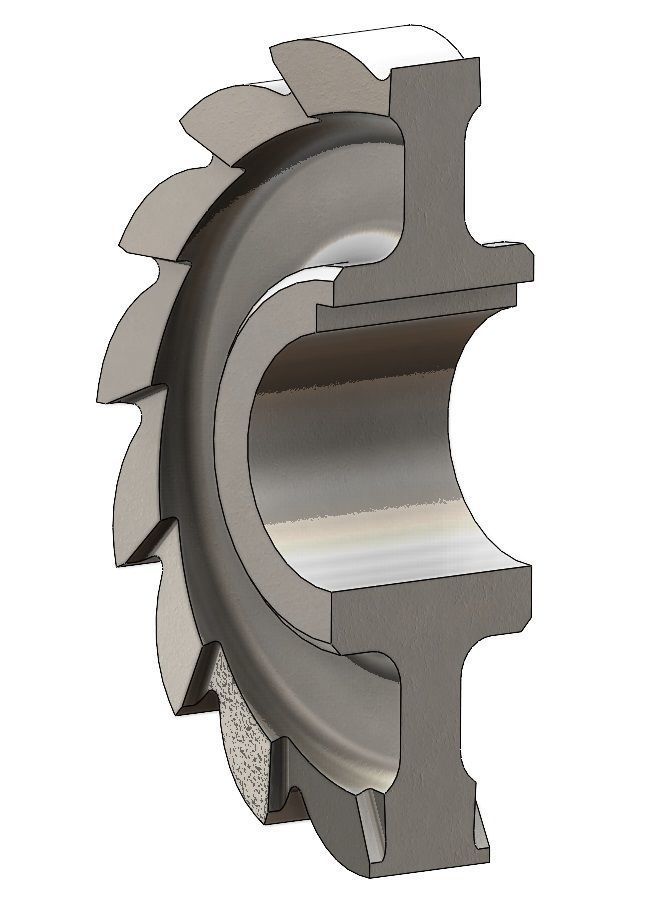

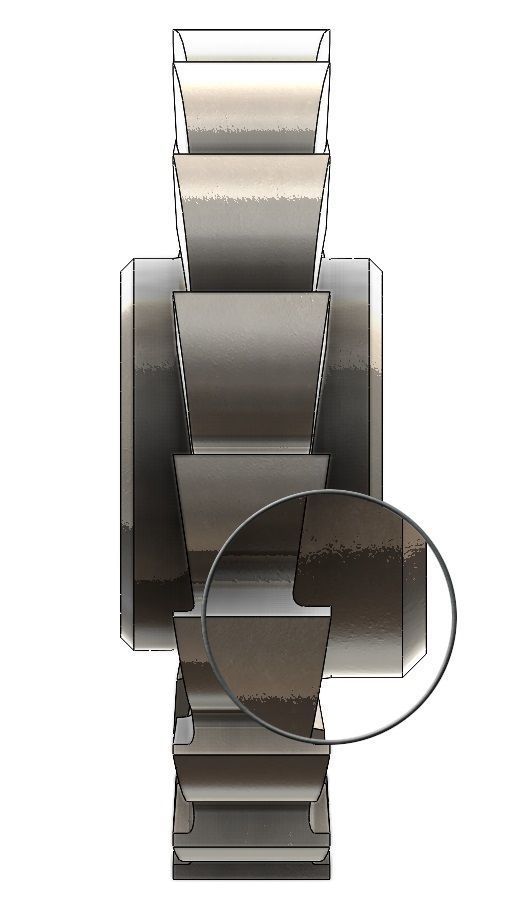

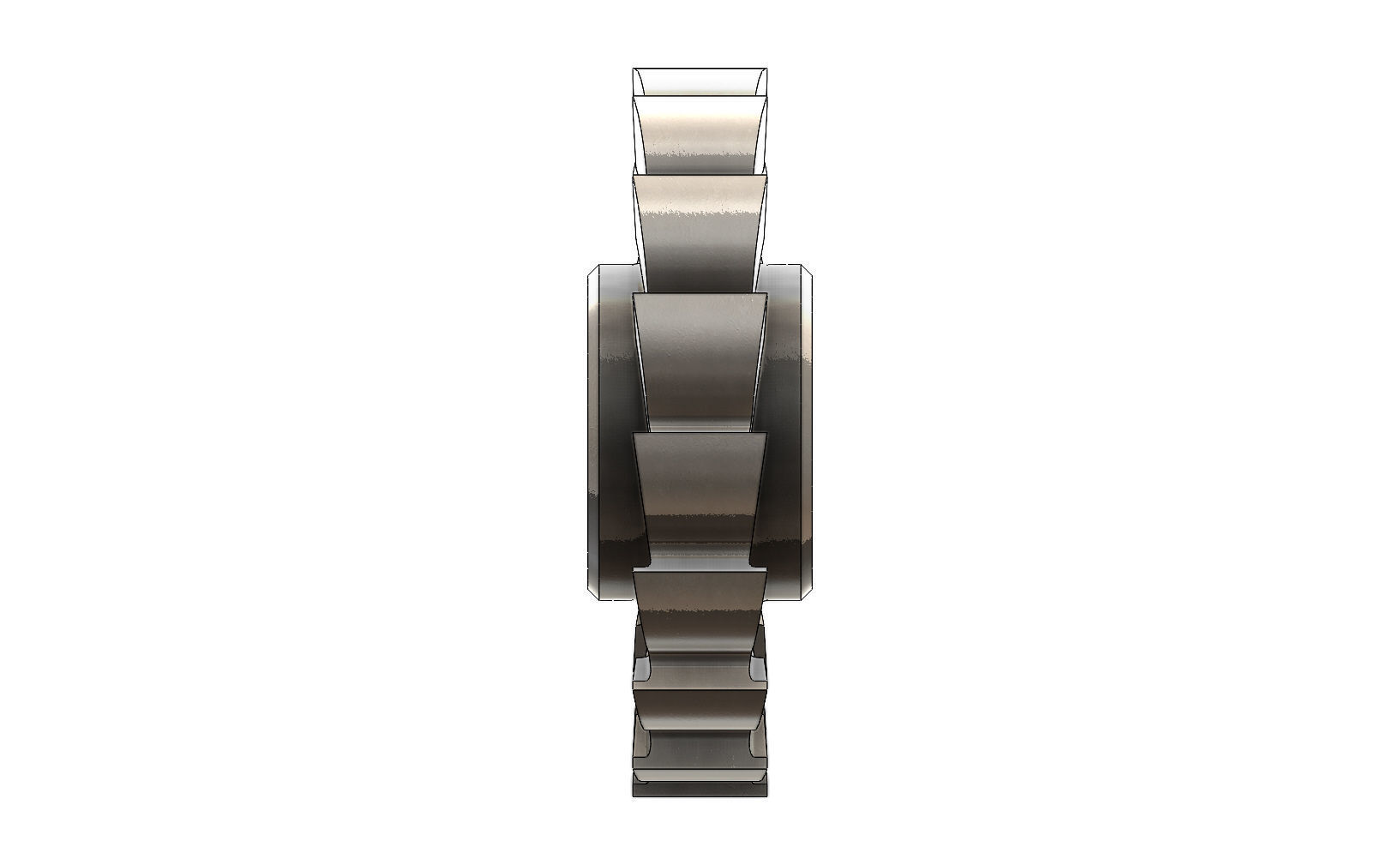

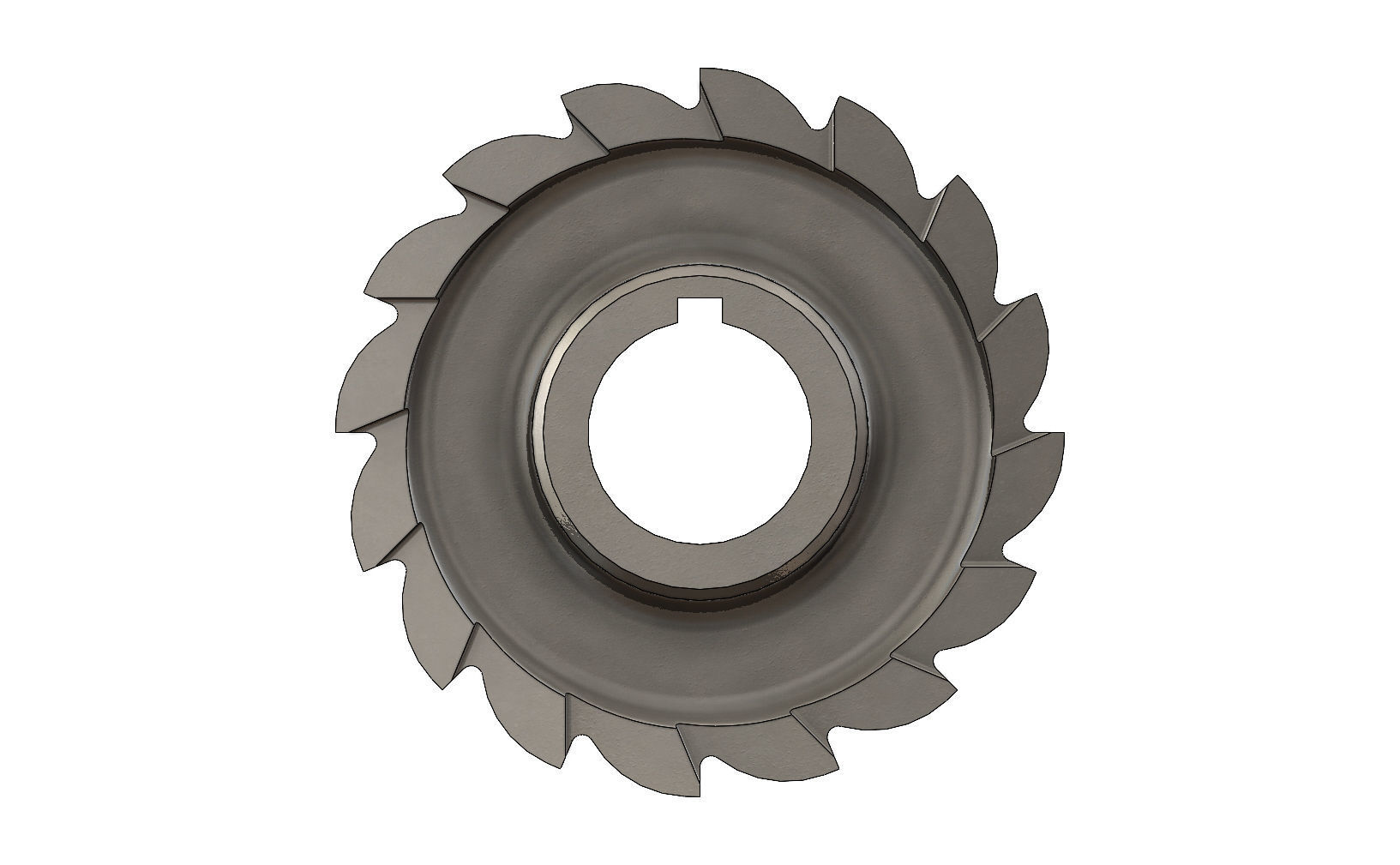

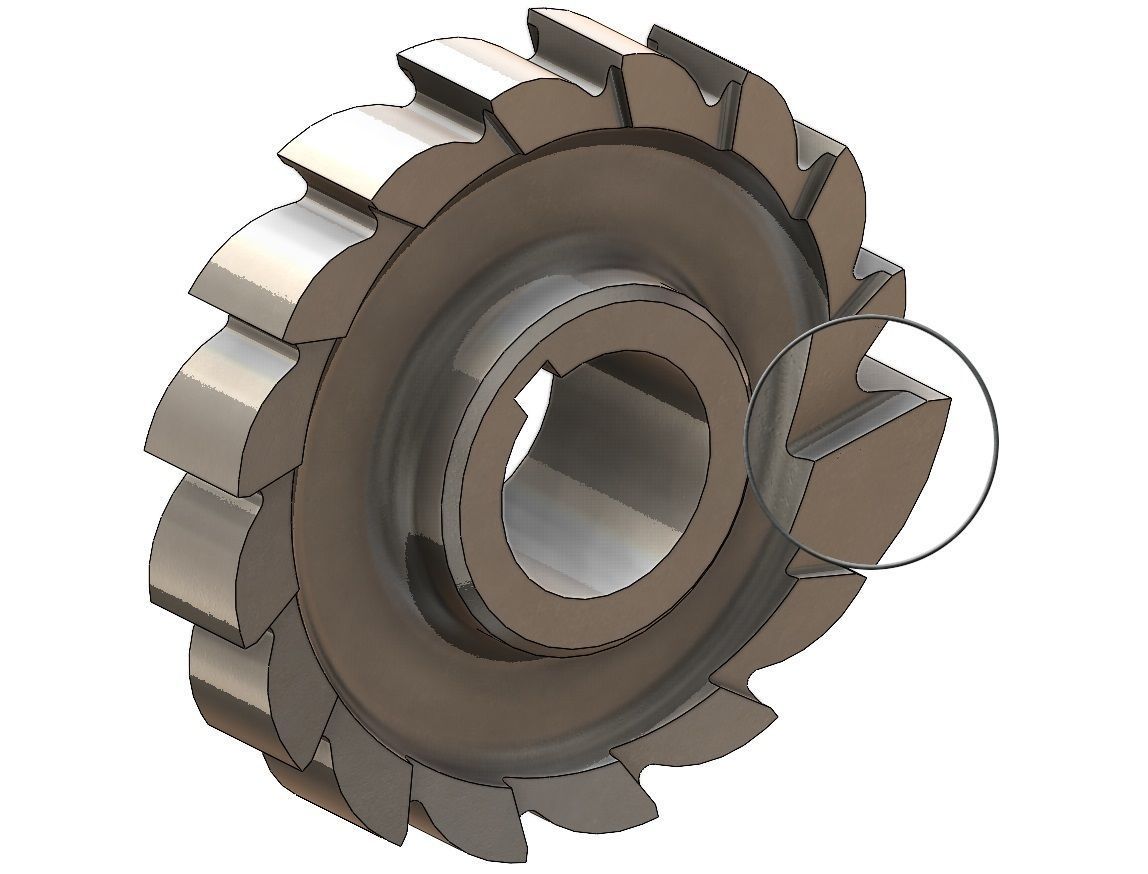

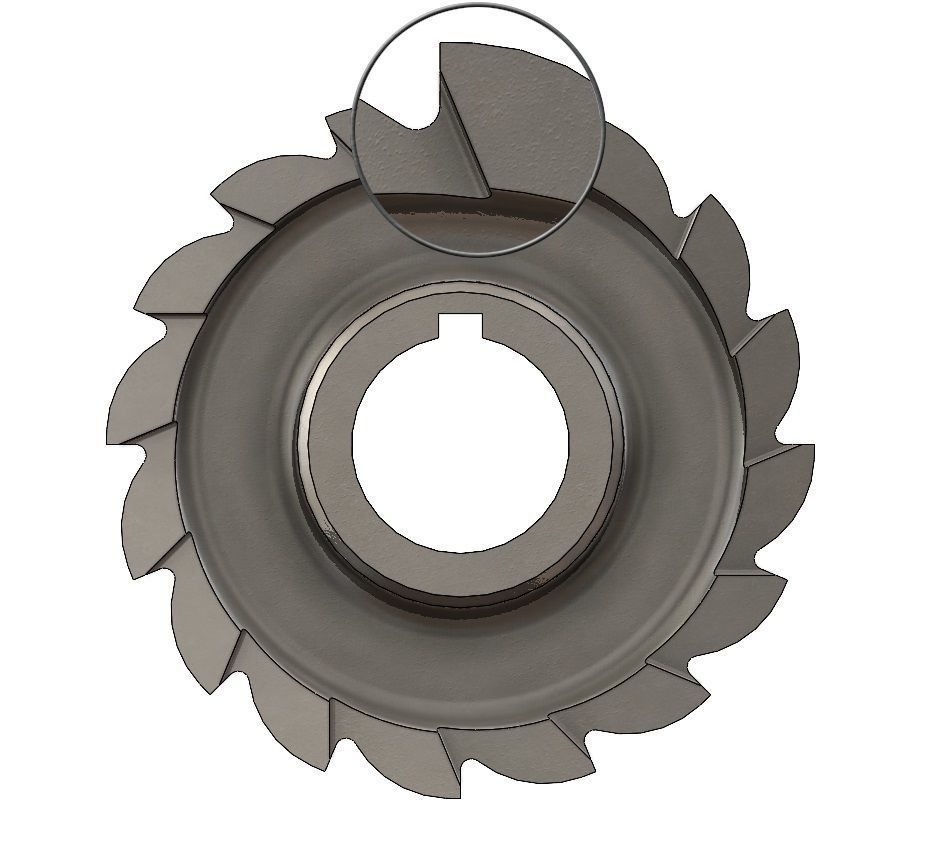

Straight Tooth Side Milling Cutter 3D print model

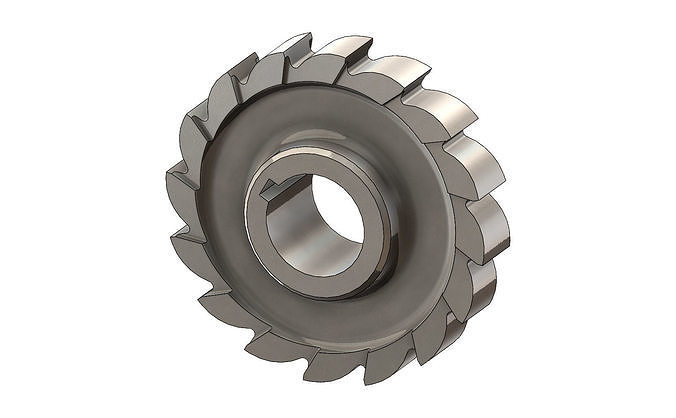

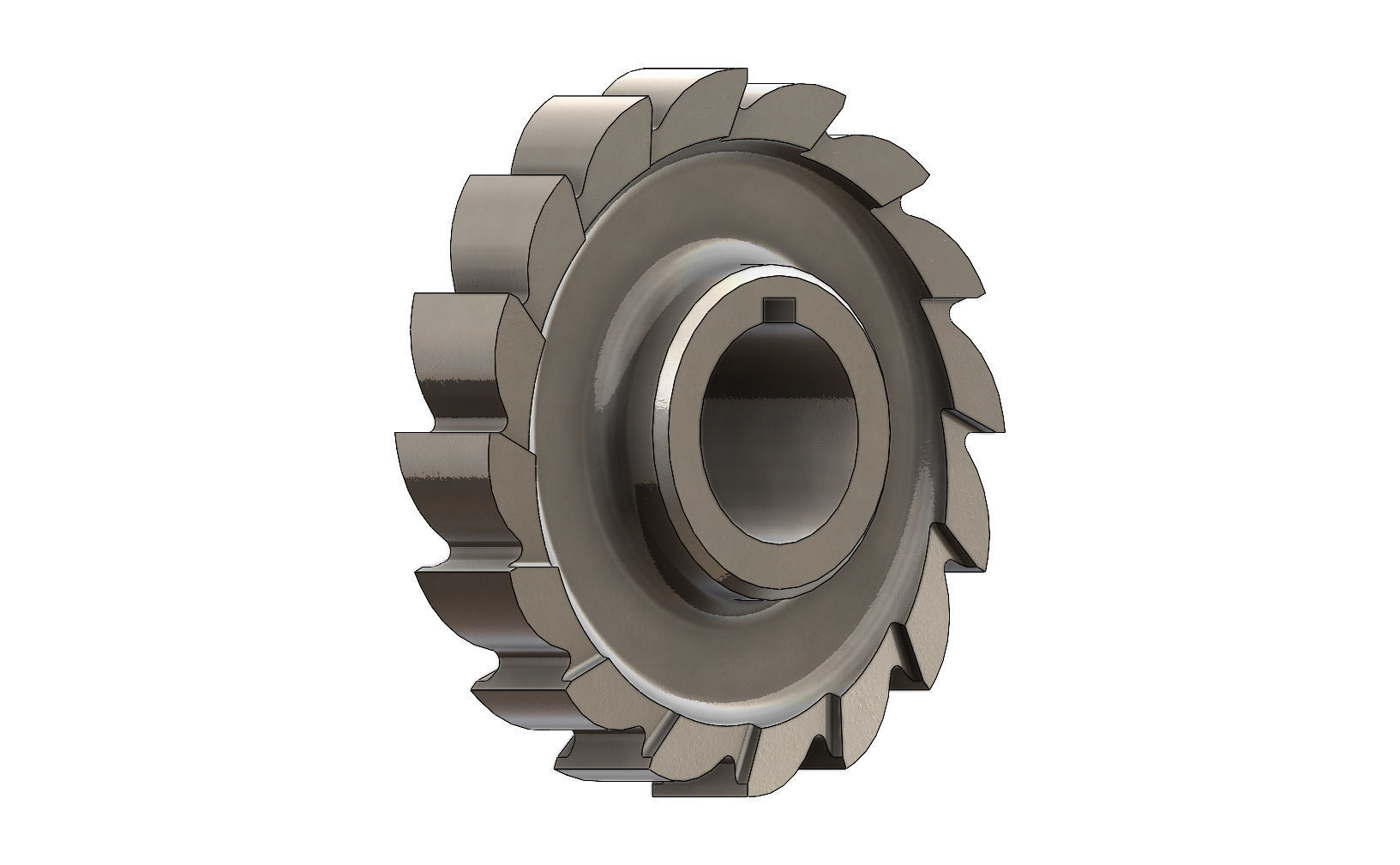

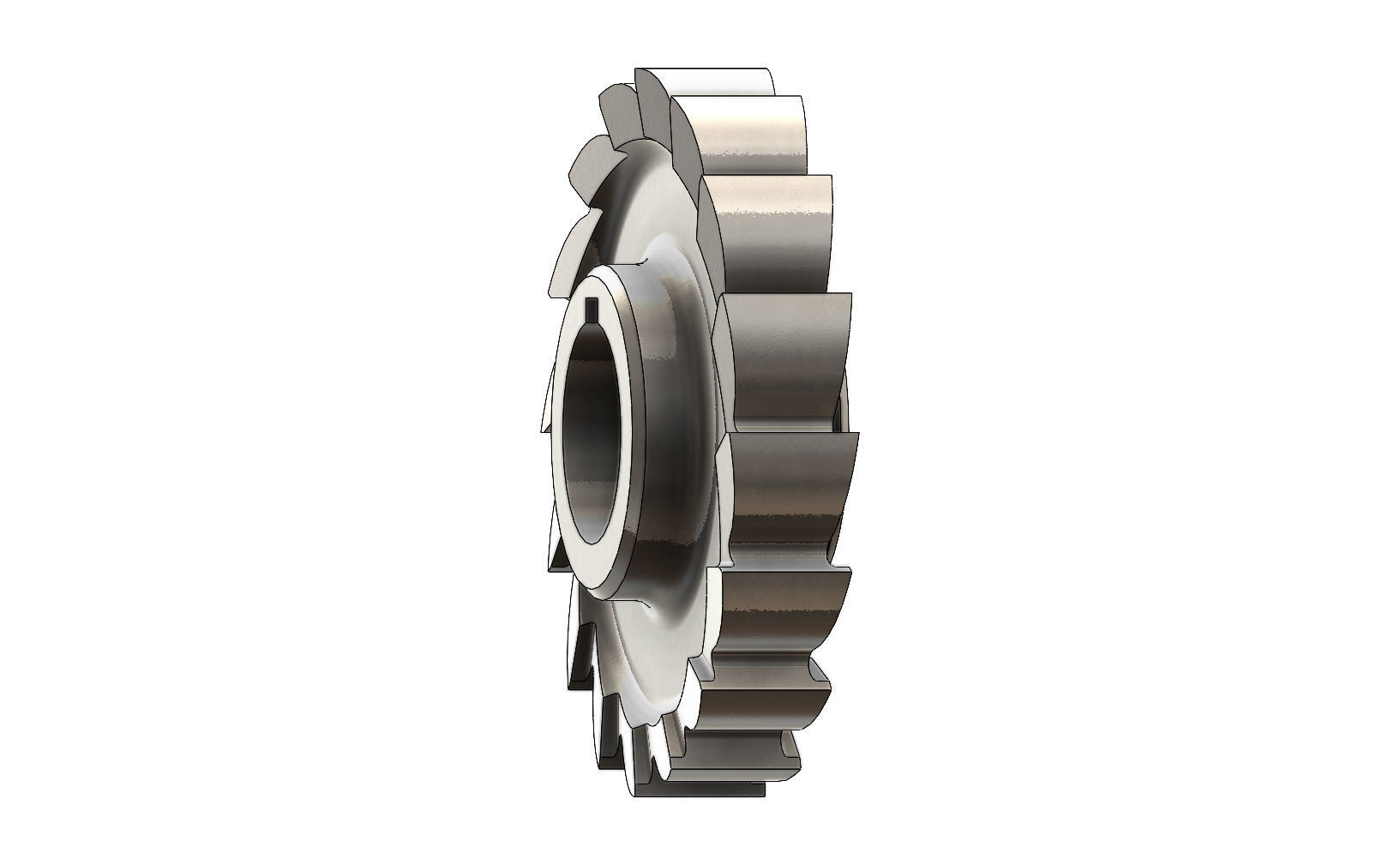

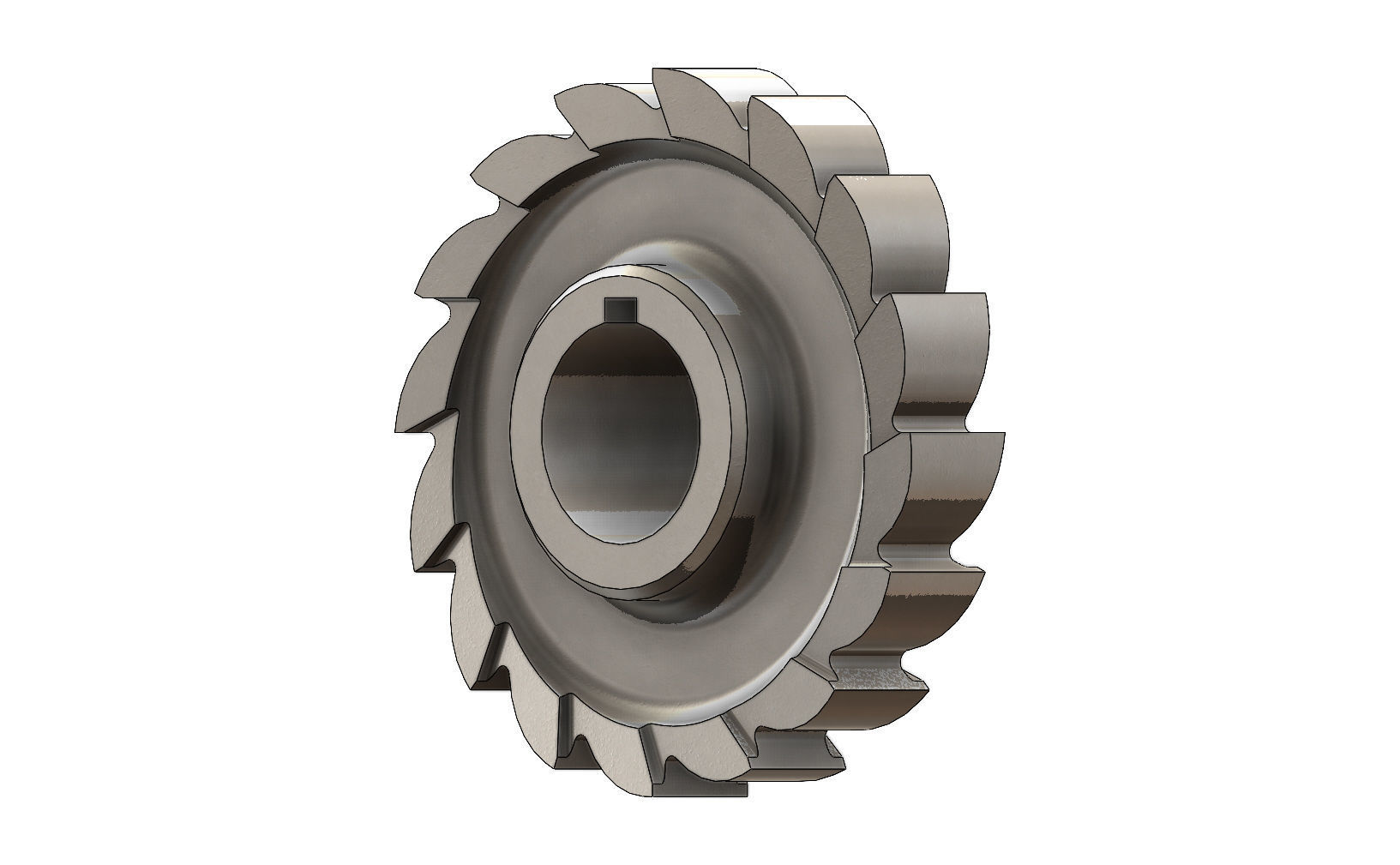

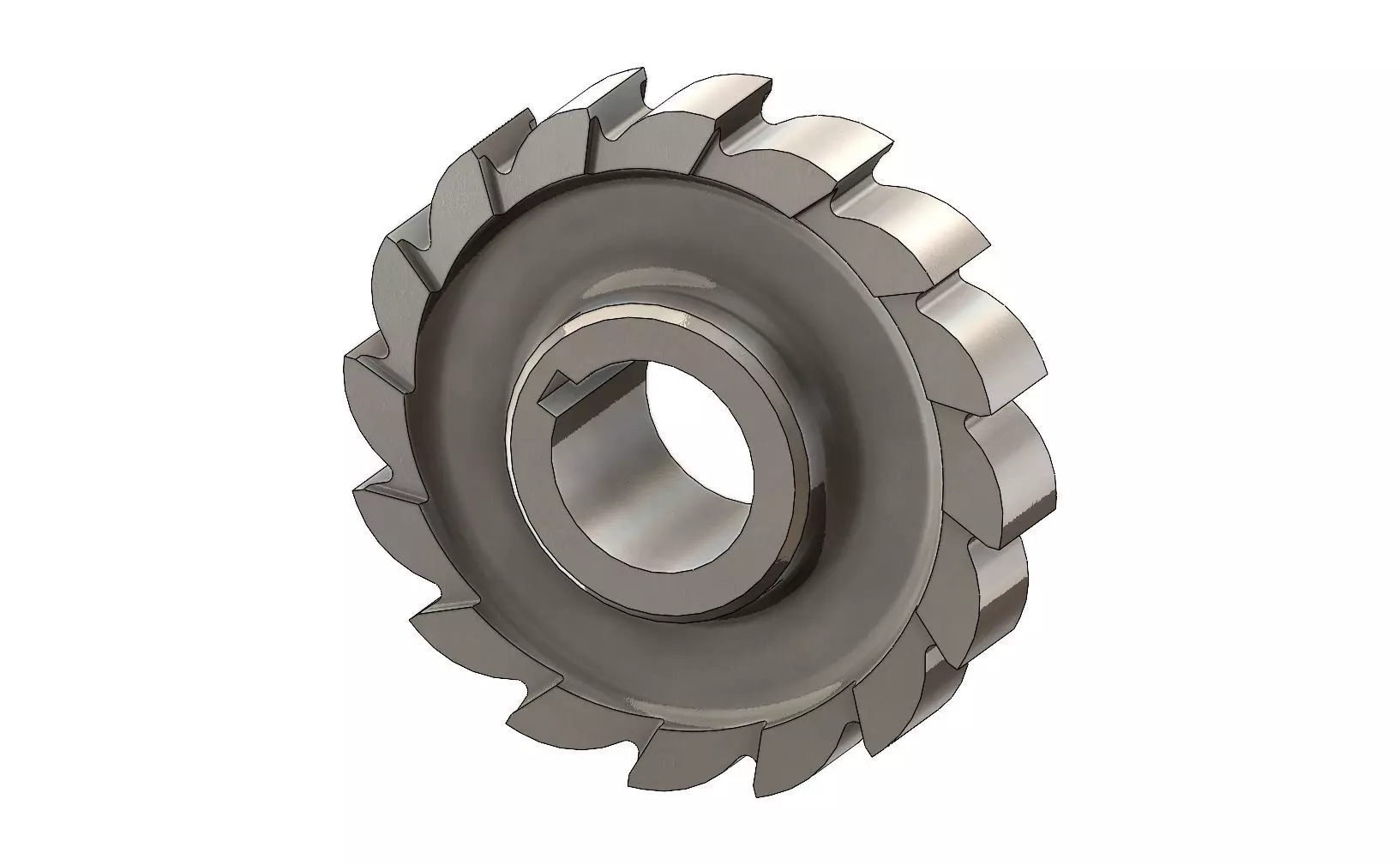

Straight Tooth Side Milling Cutter model including all the relief angels.

Applications:

  • For milling slots, grooves and other operations where either or both the peripheral or side cutting edges are used for machining.
  • Designed as arbor mounted cutters for machine tools.
    • For side cutting and straddle milling operations where deep cutting is not required.

Features: - Made as multi-tooth cutters with both peripheral and side cutting teeth. - Straight tooth design.

Technical Data: - Manufactured from high speed steel. - Ground from solid. - Size in pictures.

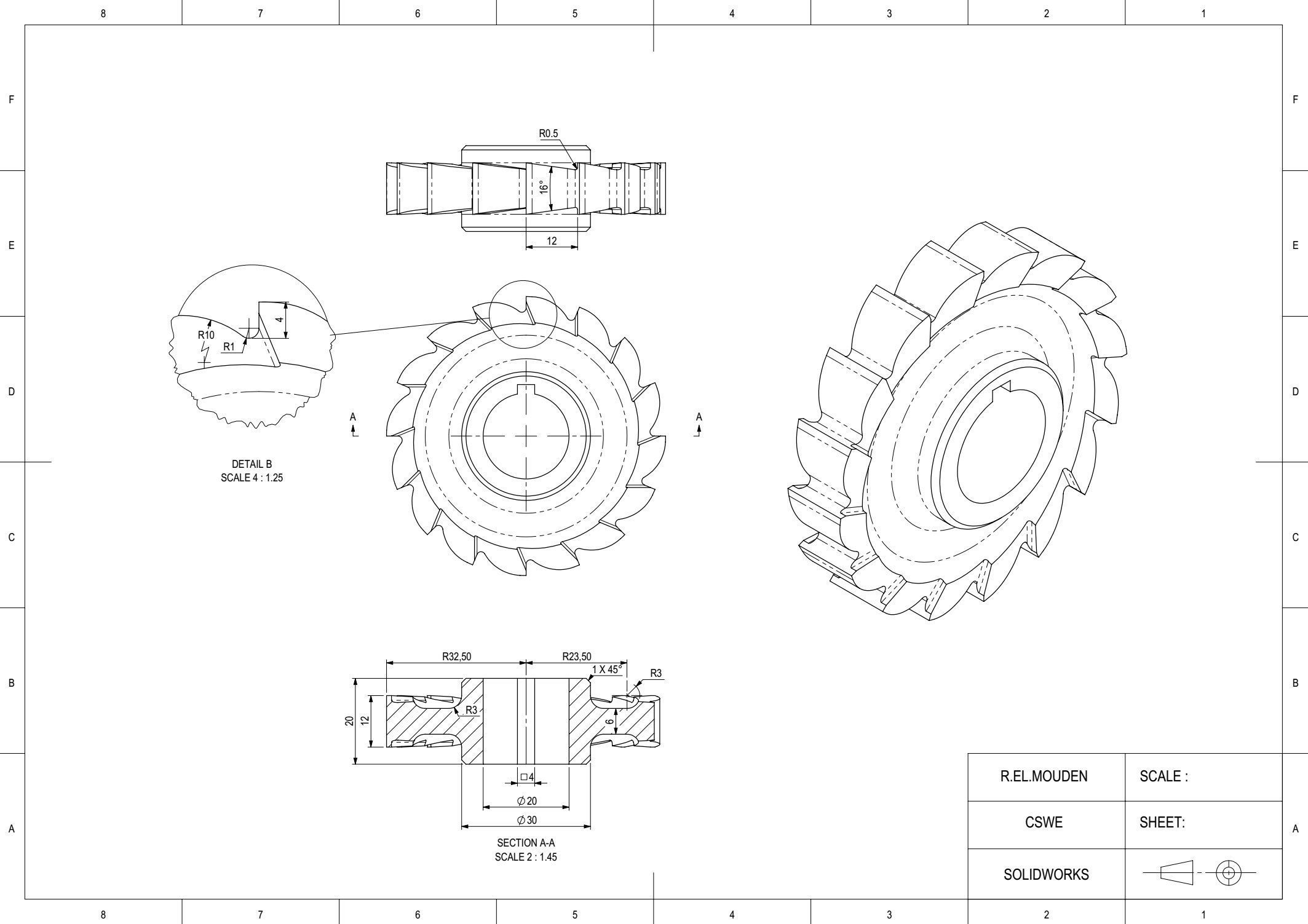

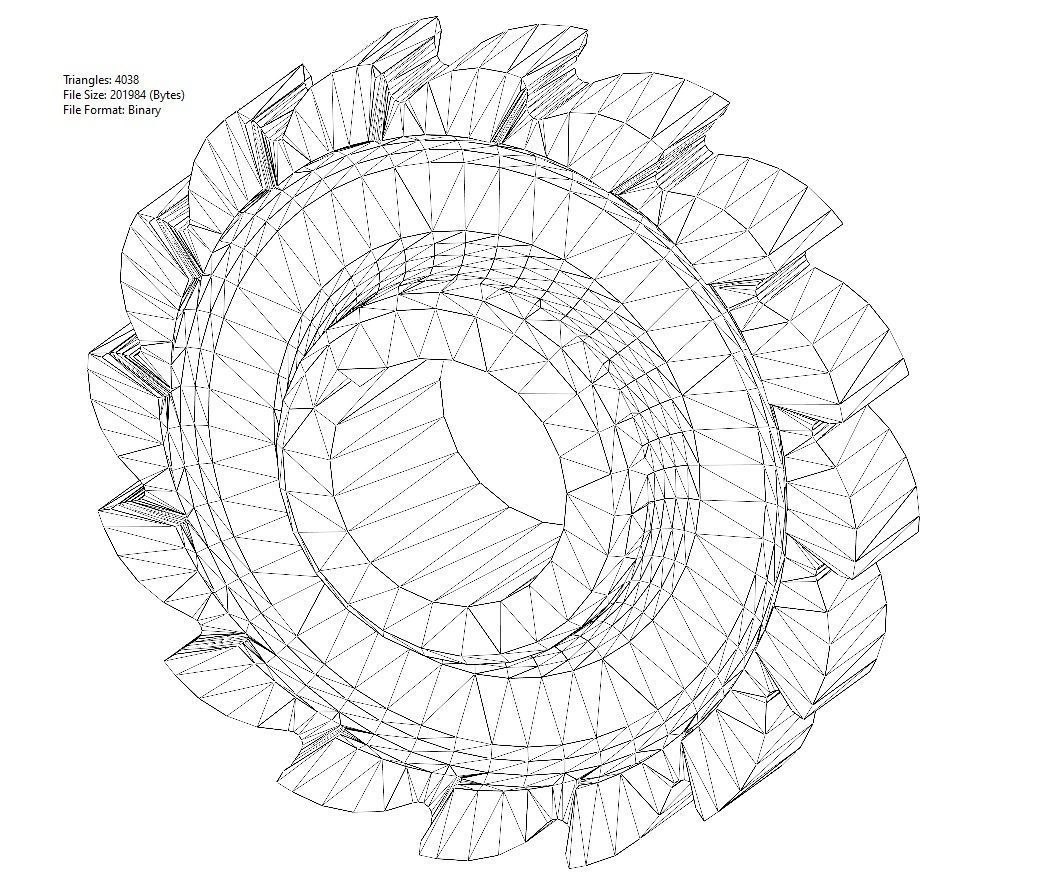

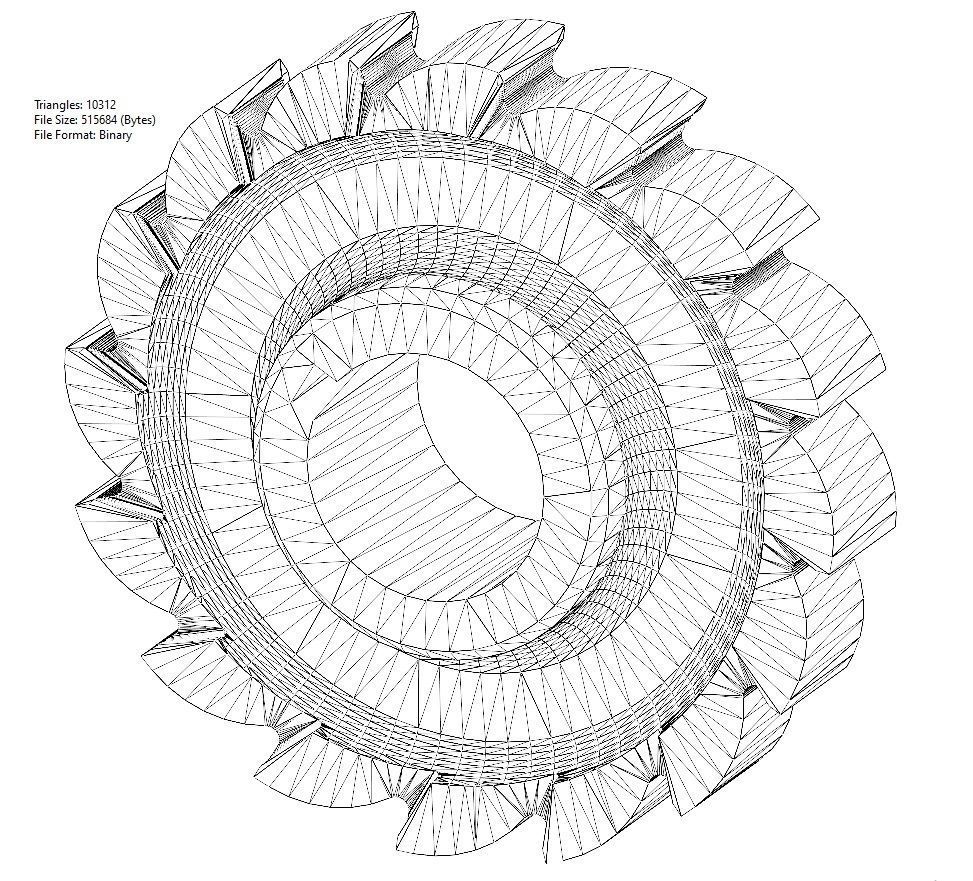

Perfect for FEA simulations. Made in solidworks 2020. The model is provided in the formats : STL, STEP, IGES, and a OBJ plus a PDF drawing with all the dimensions. A fine and coarse mesh files are offered (look for the poly count in the pictures). To be used for educational purposes and 3d printing applications.

Please contact us for any inquiries and modifications. Check my previous models for similar designs.
