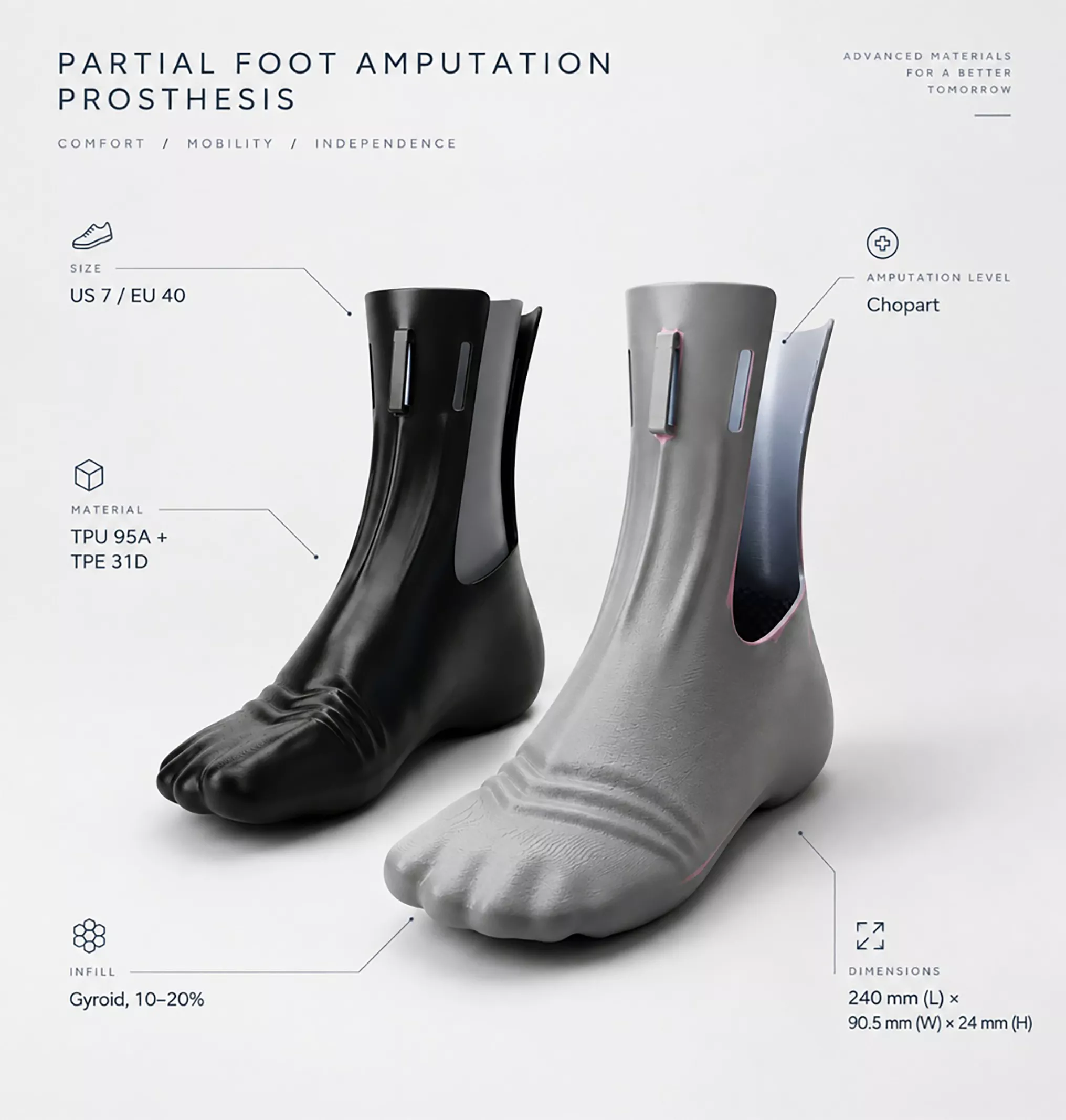

Prosthetic partial foot device designed for amputation at the Chopart joint level, developed through 3D scanning and reverse engineering of the anthropometry of the user's sound foot. Its organic geometry combines a total-contact socket, a rocker profile to improve gait pattern, and integrated anchor points for adjustable retention straps.
Technical specifications:
- Size: US 7 / EU 40
- Amputation level: Chopart (midtarsal)
- Dimensions: 240 mm length × 90.5 mm width × 240 mm height
- Recommended material: TPU 95A (flexible body) + TPE 31D (higher-rigidity zones)
- Optional reinforcement: 3–4 layers of carbon fiber in the plantar area, for greater mechanical resistance to impact and cyclic loading
