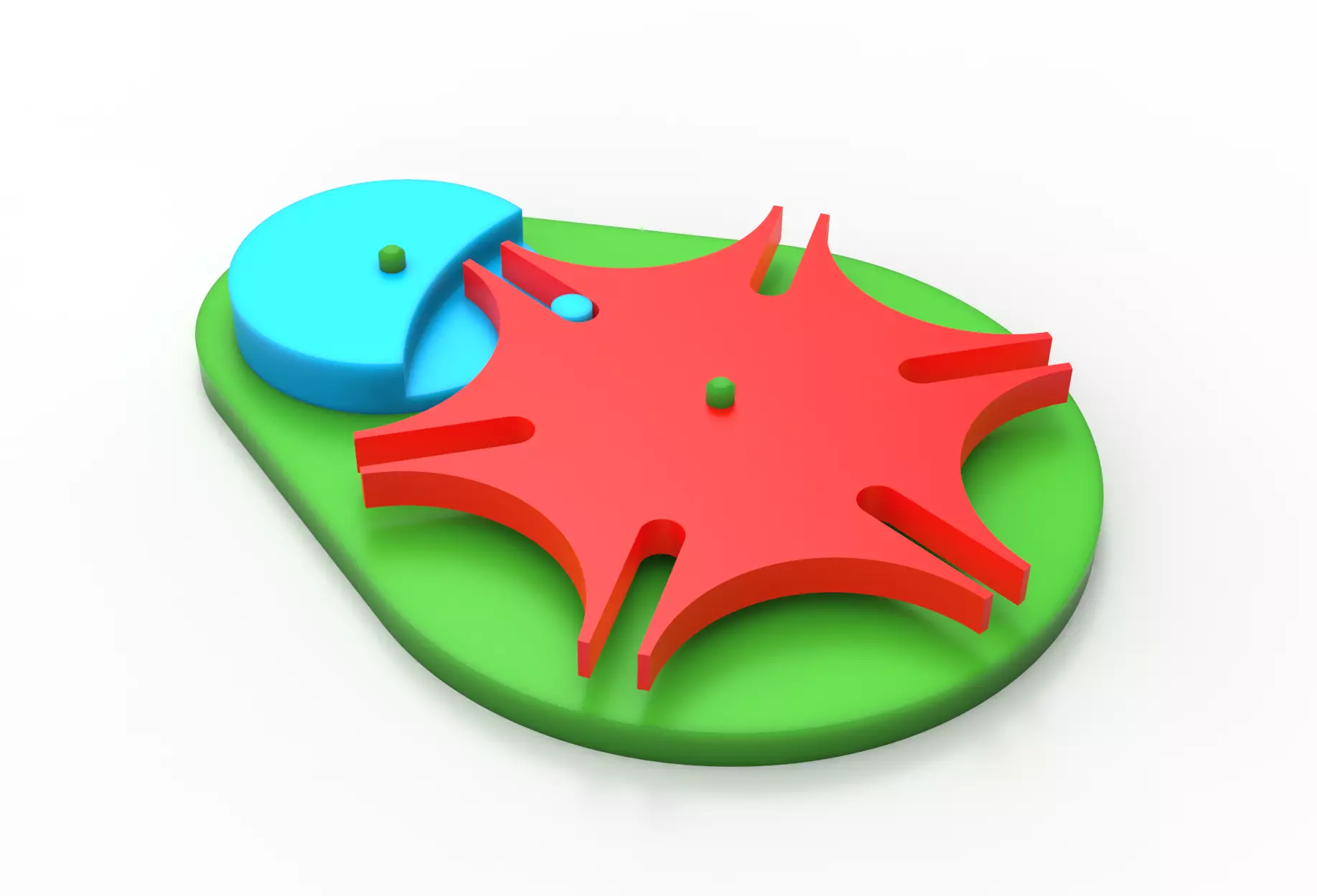

The Geneva drive mechanism is used to convert continuous rotary motion into intermittent rotary motion. It is commonly used in watches, film projectors, and machine tools. In this case, an optimized 3D-printable design is presented, consisting of three main parts: the base, the driving wheel, and the Geneva wheel.

The mechanism is fully functional and easy to assemble. The parts are optimized for 3D printing, ensuring proper fit and correct operation of the mechanism.

DIMENSIONS

Height: 18 mmWidth: 141 mmDepth: 106 mm

PRINTING PARAMETERS

Material: PLALayer height: 0.22 mmInfill: 20%Printing temperature: 210°CBed temperature: 100°CFlow rate: 100%Print speed: 70 mm/sCooling: YESSupport density: 10%Print time: 5h 34mWeight: 69 g
