Machinist V-Blocks

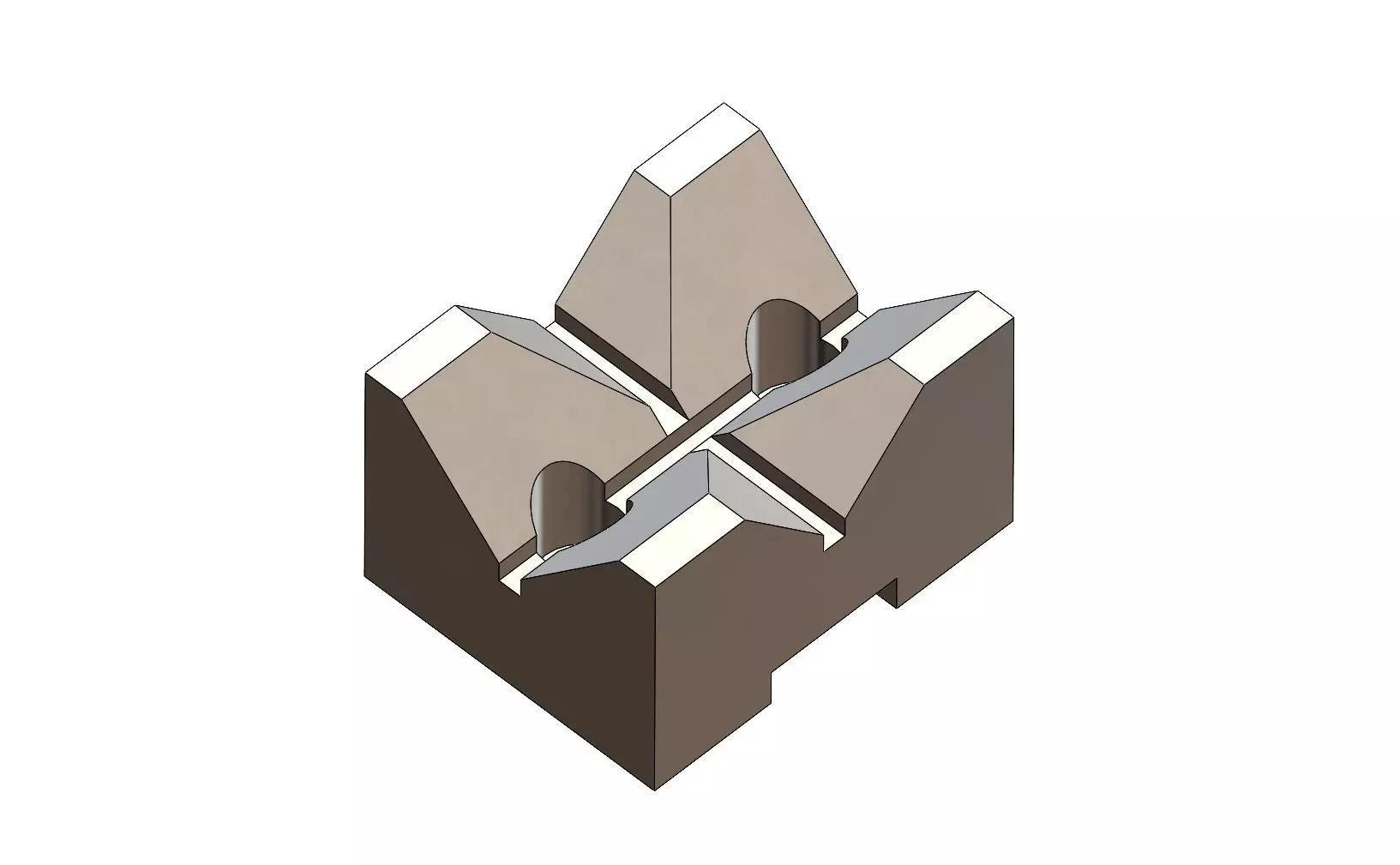

Machinist V-Blocks 3D print model


V-Blocks are precision metalworking jigs typically used to hold round metal rods or pipes for performing drilling or milling operations. They consist of a rectangular steel or cast iron block with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. A small groove is cut in the bottom of the V. They often come with screw clamps to hold the work.

Perfect for FEA simulations and to be added to your CAM library for machining simulations

Perfect for 3d applications.

Made in solidworks 2020. The model is provided in the formats : STL, STEP, IGES, and a OBJ plus a PDF drawing with all the dimensions.

Please contact us for any inquiries and modifications. Check my previous models for similar designs.

Item rating
0 0
Machinist V-Blocks
Royalty Free No Ai License
Machinist V-Blocks
Royalty Free No Ai License
Response 98% in 0.1h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • SolidWorks 2019 (.sldprt, .sldasm, .slddrw)132 KB
  • OBJ (.obj, .mtl)112 KB
  • PDF (.pdf)31.3 KB
  • IGES (.ige, .igs, .iges)262 KB
  • 3D Manufacturing File (.3mf)22.3 KB
  • Stereolithography (.stl)38.2 KB
  • STEP (.stp)109 KB

3D Model details

  • Publish date2020-06-24
  • Model ID#2482636
  • Ready for 3D Printing
