Generic Wheel Roller CAD Model Industrial CATIA STEP IGES 3D print model

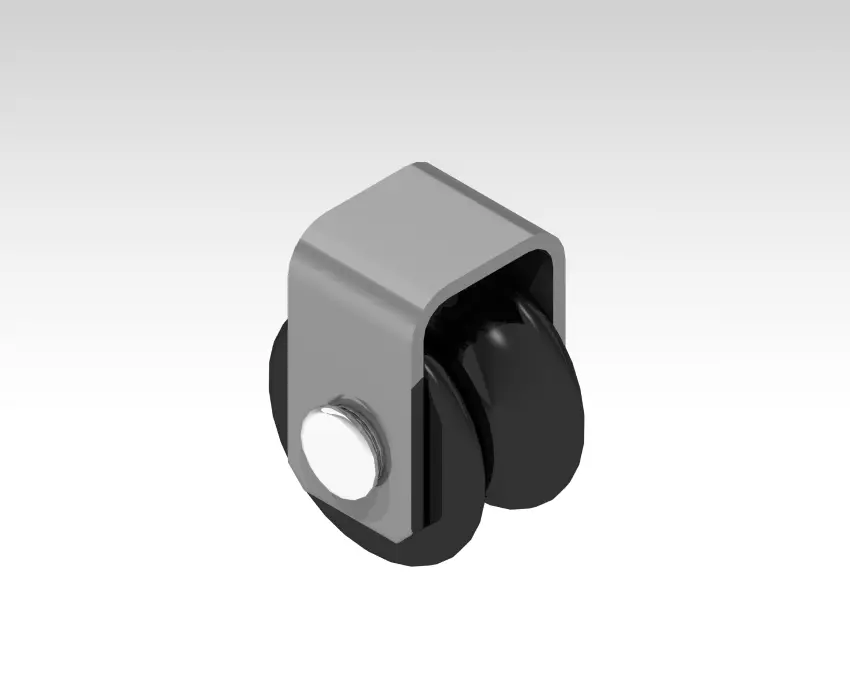

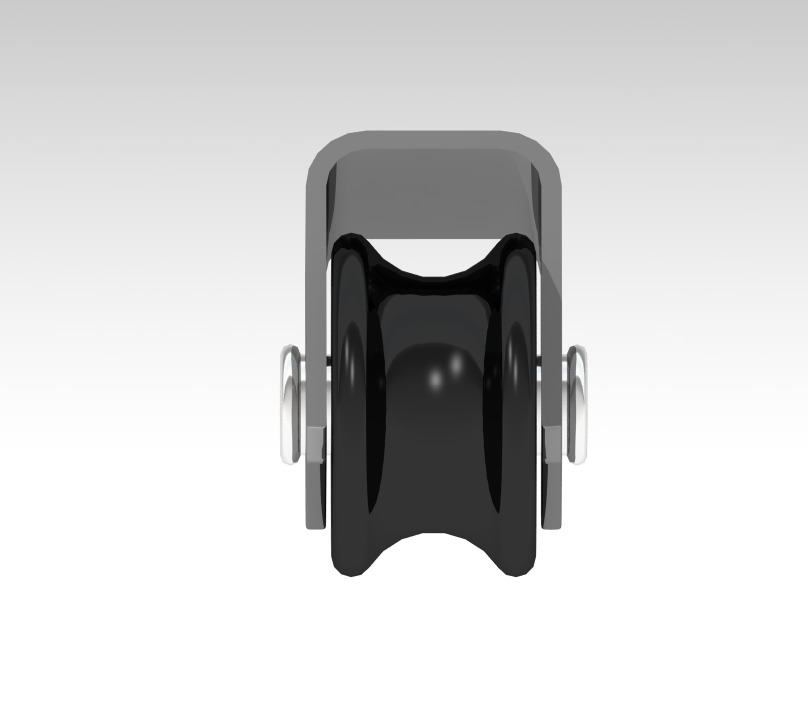

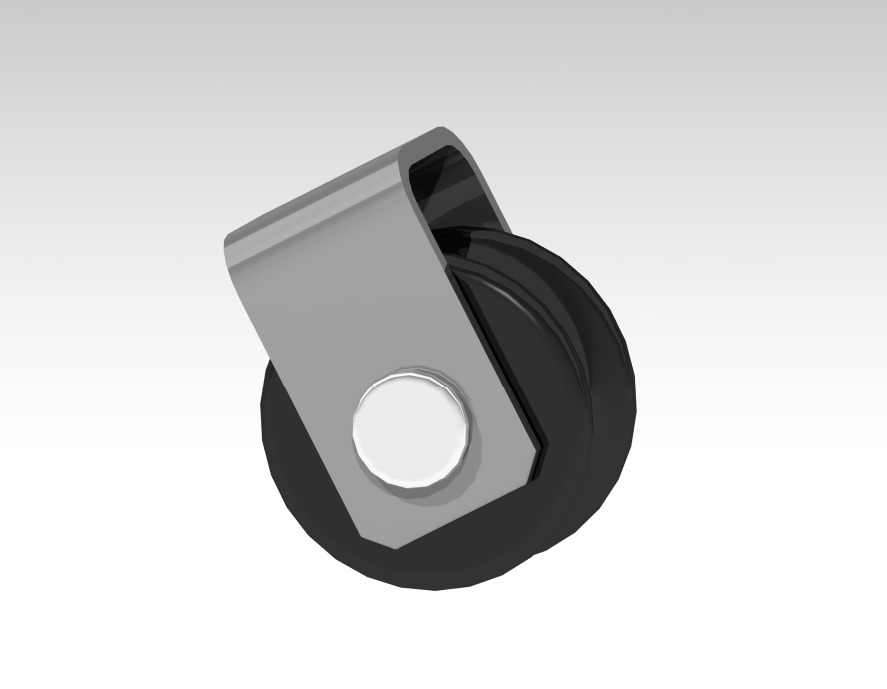

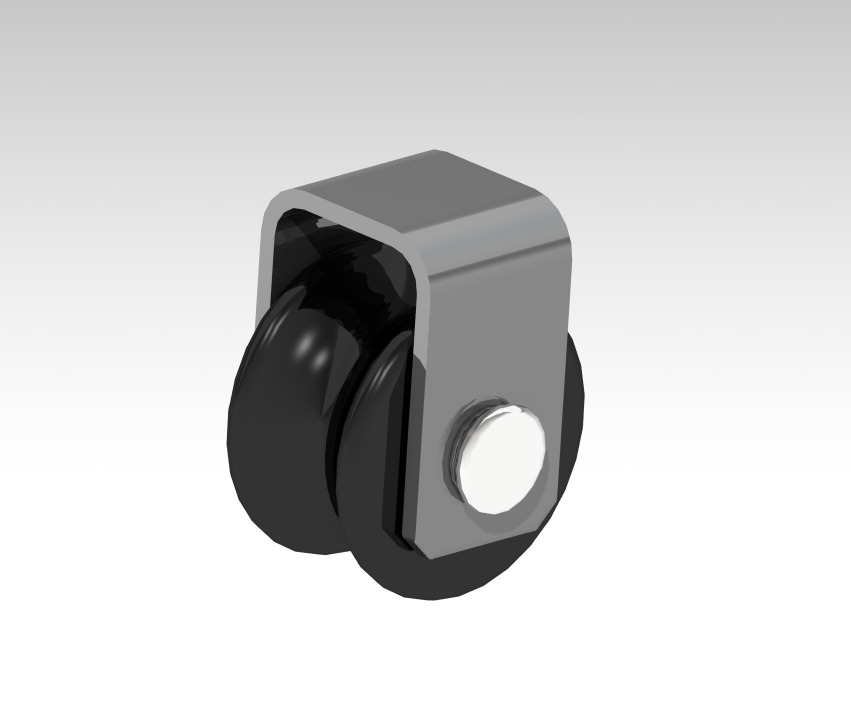

This is a 3D CAD model of a generic wheel roller, commonly used in industrial systems such as conveyors, support frames, and mechanical assemblies. The model is simplified yet dimensionally consistent, making it ideal for CAD integration, design layout, or simulation.

Designed in CATIA, the roller includes a clean cylindrical surface and central hub section, suitable for basic mechanical operation, rotation studies, or integration into transport systems.

Features:

• Generic cylindrical roller wheel
• Designed in CATIA
• Suitable for mechanical assemblies, conveyor systems, or rotating supports
• Clean geometry ideal for CAD and FEA/kinematic studies
• Can be used in both horizontal and vertical load setups

Applications:

• Industrial conveyor design
• Mechanical transport or guide systems
• Structural load simulations (FEA)
• Automation equipment
• CAD assemblies and layout design

File formats:

• CATIA .CATPart
• STEP (.stp)
• IGES (.igs)
• STL (optional for preview or visualization)
