Generic Sheet Metal Enclosure CAD Model for PCB Protection 3D print model

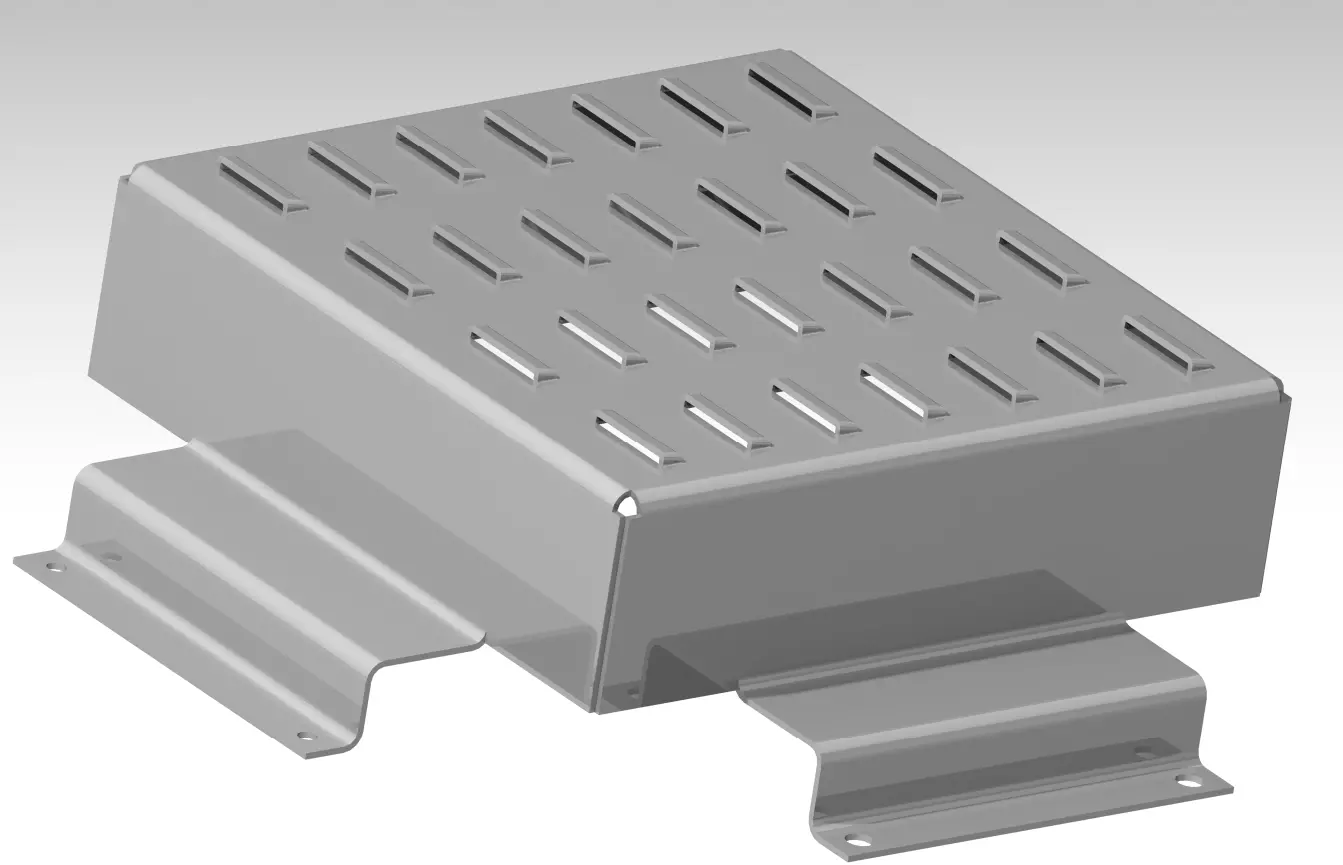

This is a 3D CAD model of a generic sheet metal enclosure, designed to house and protect internal components such as printed circuit boards (PCBs). The enclosure also facilitates passive heat dissipation due to its metal construction and open surface design.

The model is created using CATIA and features clean geometry suitable for mechanical integration, electronic packaging, or thermal management design. It includes ventilation cutouts and mounting areas typical for electrical or industrial control systems.

Features:

• Generic sheet metal box for electronics
• Ideal for PCB protection and passive heat dissipation
• Designed in CATIA with optimized sheet metal features
• Includes basic mounting features and ventilation slots
• Ready for simulation (thermal, airflow, structural)
• Clean geometry for integration into larger assemblies

Applications:

• Electrical enclosures for PCBs or control systems
• Industrial automation design
• Electronics thermal testing or airflow simulation
• Product prototyping and concept development
• Technical documentation or educational purposes

File formats:

• CATIA .CATPart
• STEP (.stp)
• IGES (.igs)
• STL (optional for preview or meshing)
