Flanged 90 Degree Elbow CAD Model CATIA STEP IGES STL 3D print model

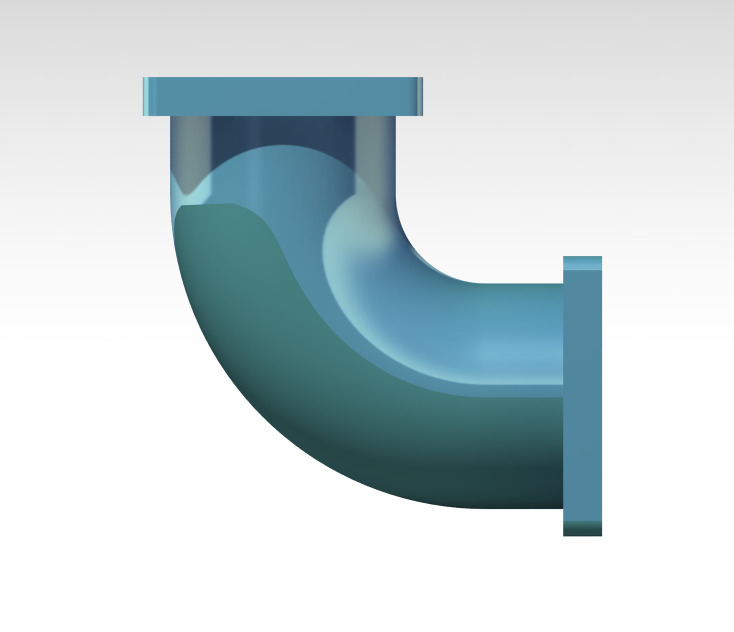

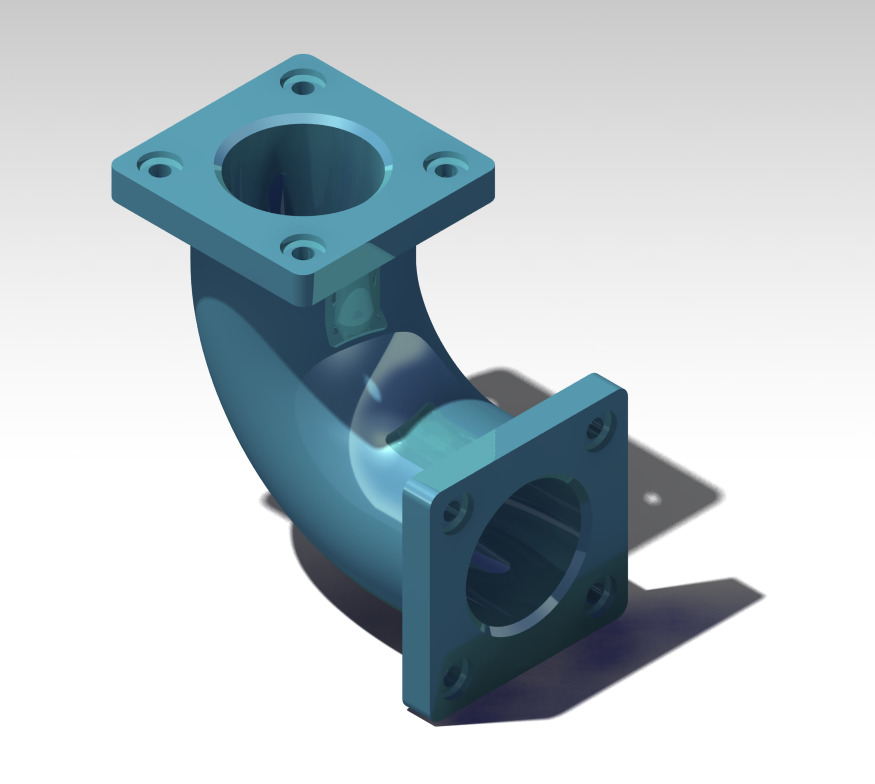

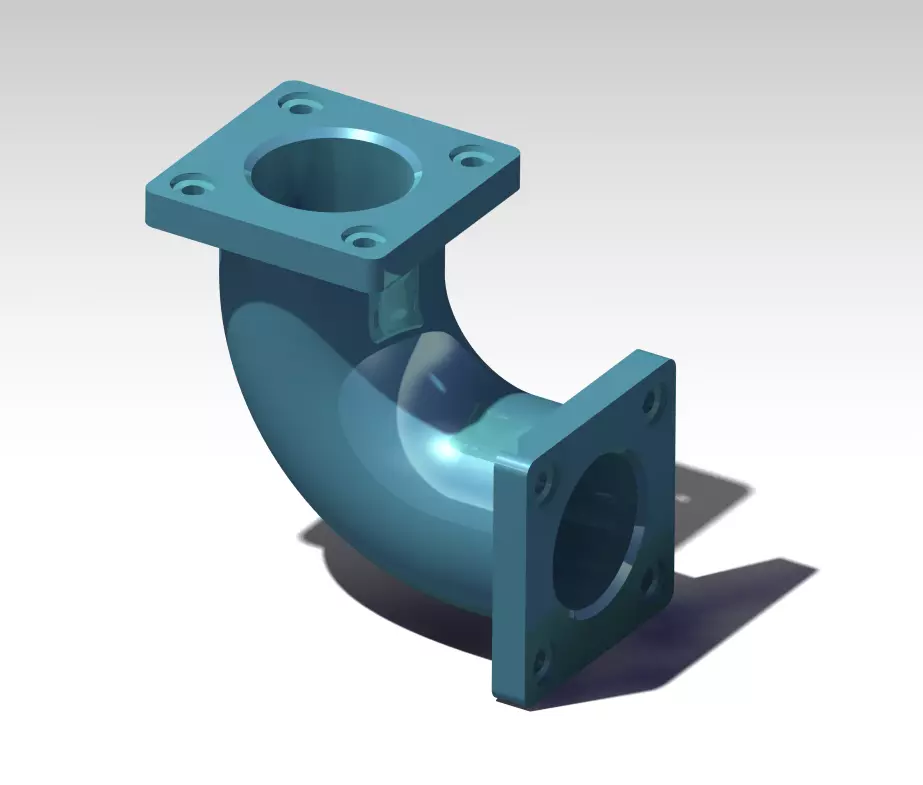

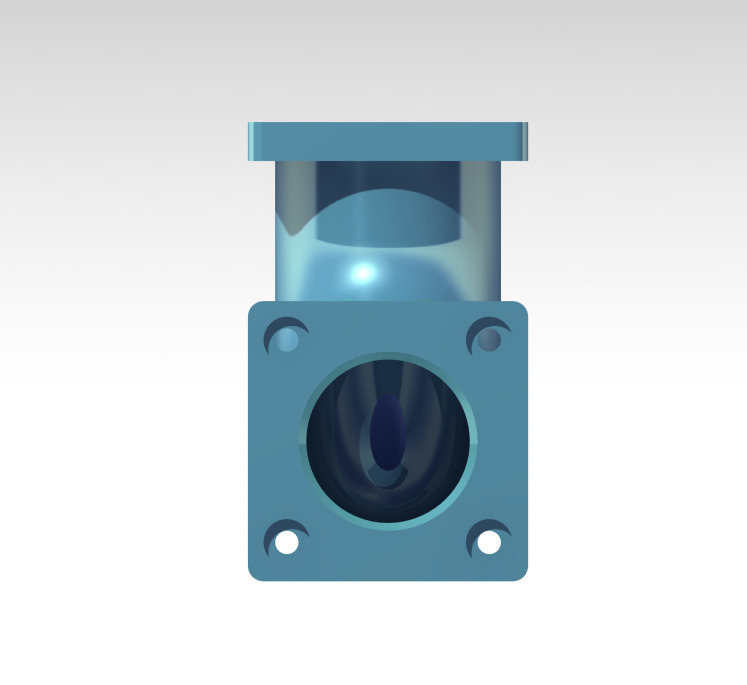

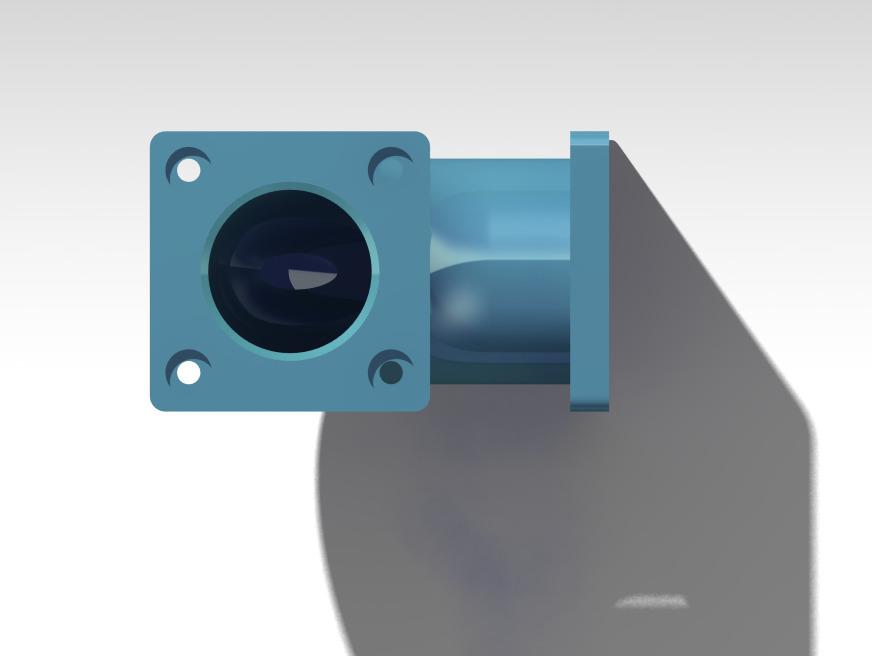

This is a 3D CAD model of a flanged 90-degree elbow, commonly used in piping systems for fluid or gas transport. The model replicates a standard industrial elbow with flanged ends for easy bolted connection to other pipes or valves.

Designed in CATIA V5 with precise geometry suitable for engineering assemblies, fluid dynamics simulation, and manufacturing layouts. Ideal for HVAC, oil & gas, chemical plant design, or piping layout visualization.

Features:

• Standard 90° elbow with dual flanges
• Modeled in CATIA V5
• Accurate flange dimensions (generic/ANSI style)
• Smooth internal radius for CFD or flow analysis
• Compatible with mechanical assembly projects
• Can be scaled or modified to match real pipe sizes

Applications:

• Piping and process plant design
• Fluid/gas flow simulation (CFD)
• Mechanical design and layout
• Engineering education and demos
• HVAC and plumbing systems

File formats included:

• CATPart (CATIA V5)
• STEP (.stp)
• IGES (.igs)
• STL (optional, for 3D printing or meshing)
