Electric Ducted Fan 120mm CAD Model for Simulation and Design 3D print model

This is a 3D CAD model of a generic 120mm Electric Ducted Fan (EDF), designed for use in RC jet propulsion studies, aerospace design, or simulation environments such as CFD. The model includes rotor blades, stator vanes, and a simplified motor hub for conceptual and aerodynamic analysis.

This geometry is optimized for CAD integration and simulation setup, not for 3D printing or physical prototyping. The design follows standard EDF dimensions commonly used in model aviation and drone propulsion.

Features:

• 120mm diameter Electric Ducted Fan
• Modeled in CATIA

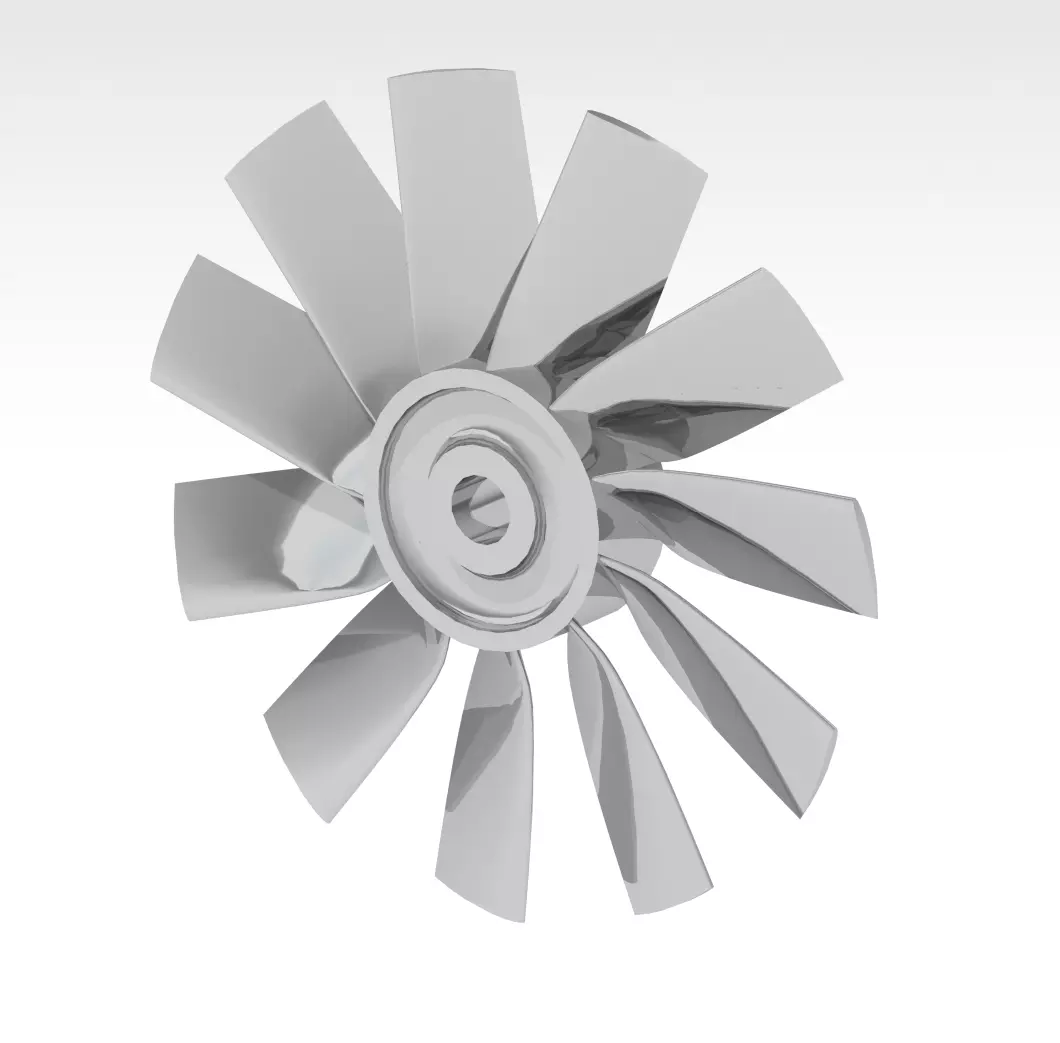

• Includes rotor, stator, duct and simplified motor section
• Clean geometry ideal for CFD or CAD layouts
• Suitable for integration in aerospace and UAV designs

Applications:

• Aerodynamic simulation (CFD)
• Conceptual design of RC jets, UAVs or drones
• Aerospace engineering studies
• Engineering education and student projects
• Propulsion layout design

File formats:

• CATIA .CATPart
• STEP (.stp)
• IGES (.igs)
• STL (optional for visualization or meshing)
