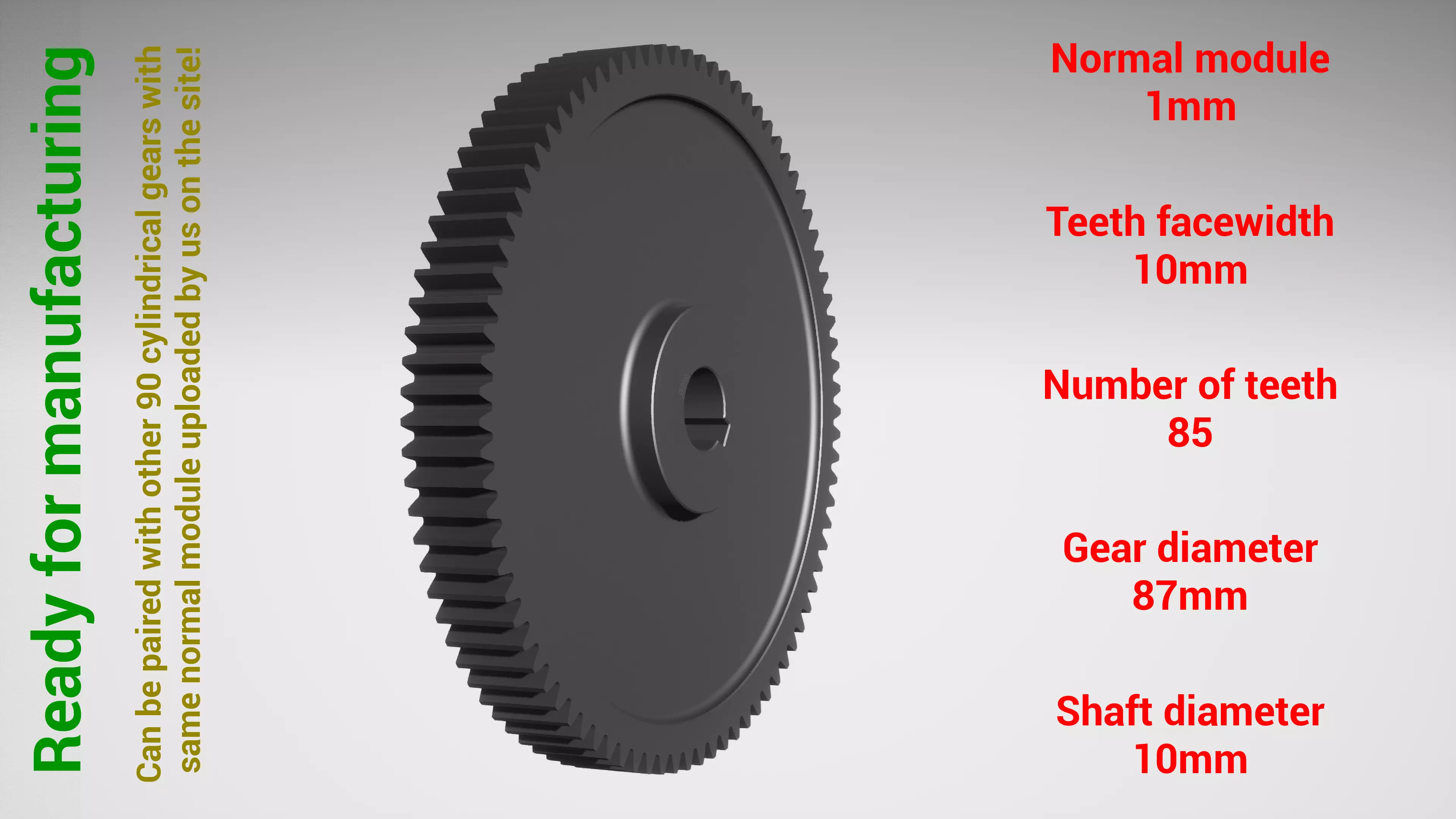

Cylindrical gear - paired - z85 m1 D87 d10

Cylindrical gear - paired - z85 m1 D87 d10 3D print model

High precision gear - ready for manufacturing/printable. This gear can be paired with any of the 90 other gears that we upload on the site with the same normal module (m). We uploaded gears from 10 teeth to 100 teeth, so you can create the necessary combination.

  • Number of teeth (z) = 85

  • Normal module (m) = 1mm

  • External diameter (D) = 87mm

  • Internal diameter (d) = 10mm (the same gear with other variations of the shaft uploaded: 15mm and 20mm)

All the gears that will be uploaded on the site can be found on the link below:

https://docs.google.com/document/d/14TF4ElVvJZOPYGqzJ7M7w4xhbq6pLIw6/edit?usp=sharing&ouid=102940960935982922564&rtpof=true&sd=true

Item rating
0 0
Cylindrical gear - paired - z85 m1 D87 d10
$3.00

Royalty Free License
Cylindrical gear - paired - z85 m1 D87 d10
$3.00

Royalty Free License
Response - % in - h
3D Modeling
3D Print Modeling
Rendering
Rigging
Skinning
UV mapping
Texturing
Animating
PBR modeling
Hire me

3D Model formats

Format limitations
Native
  • SolidWorks 2020 (.sldprt, .sldasm, .slddrw)873 KB
Exchange
  • Stereolithography (.stl)56.3 MB
  • IGES (.ige, .igs, .iges)4.73 MB
  • Autodesk FBX (.fbx)9.85 MB
  • STEP (.stp)3.33 MB

3D Model details

  • Publish date2022-06-14
  • Model ID#3814827
