Cylindrical gear - paired - z84 m1 D86 d10

Cylindrical gear - paired - z84 m1 D86 d10 3D print model

Description

High precision gear - ready for manufacturing/printable. This gear can be paired with any of the 90 other gears that we upload on the site with the same normal module (m). We uploaded gears from 10 teeth to 100 teeth, so you can create the necessary combination.

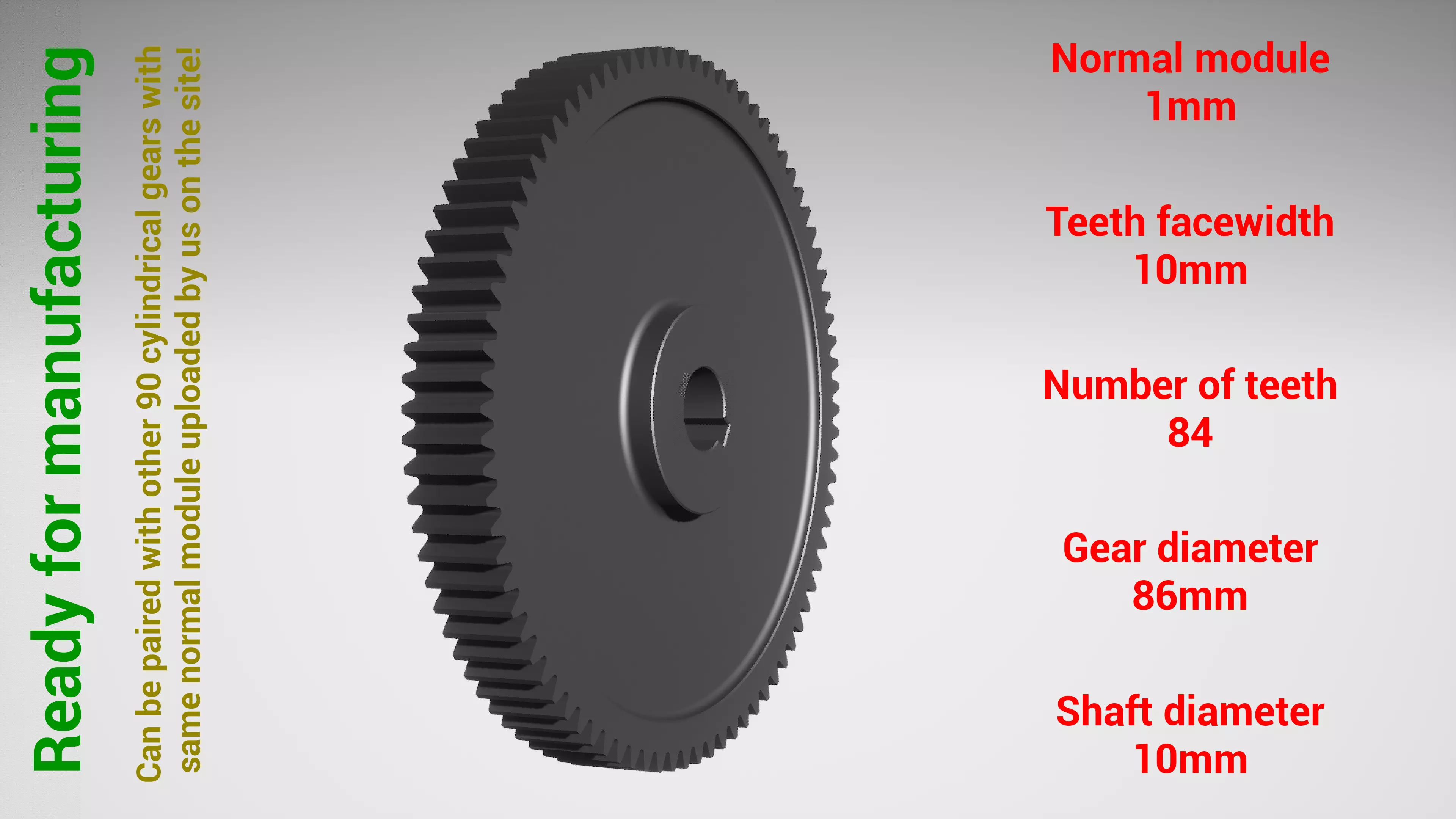

  • Number of teeth (z) = 84

  • Normal module (m) = 1mm

  • External diameter (D) = 86mm

  • Internal diameter (d) = 10mm (the same gear with other variations of the shaft uploaded: 15mm and 20mm)

All the gears that will be uploaded on the site can be found on the link below:

https://docs.google.com/document/d/14TF4ElVvJZOPYGqzJ7M7w4xhbq6pLIw6/edit?usp=sharing&ouid=102940960935982922564&rtpof=true&sd=true
