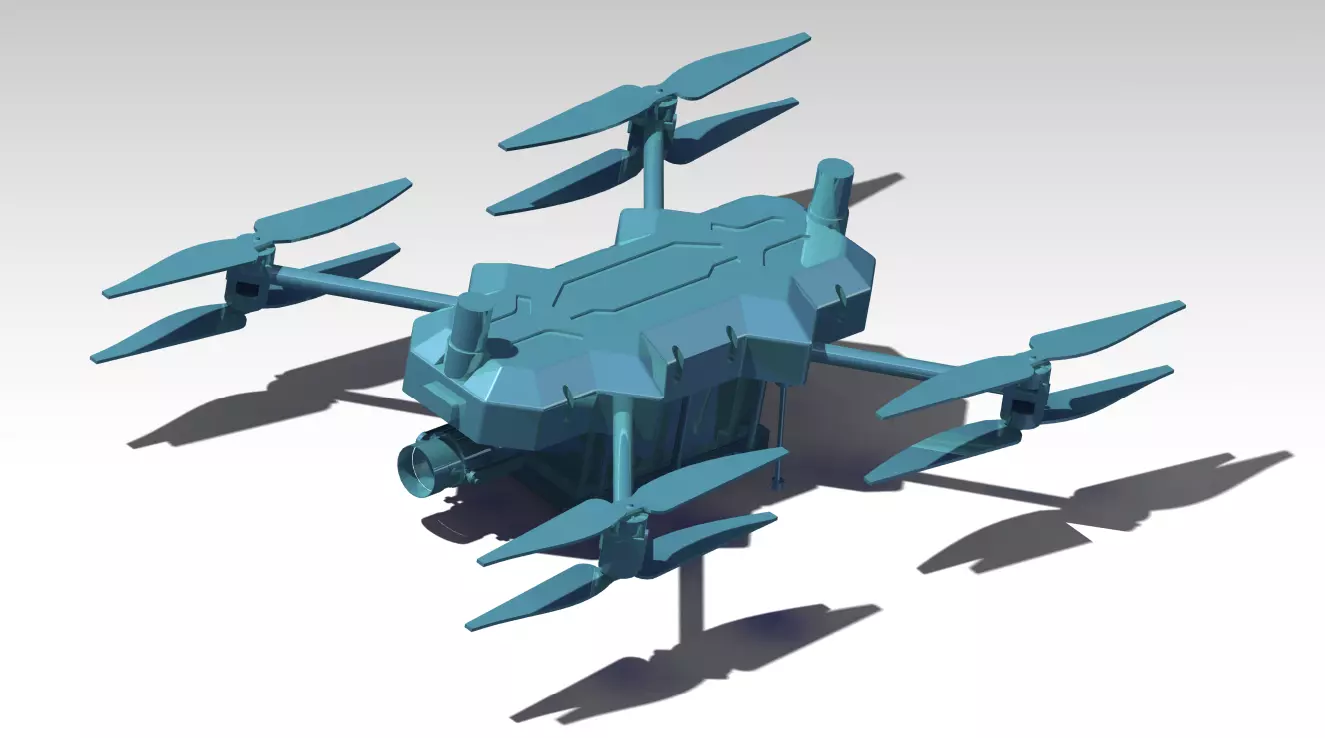

This is a custom-designed quadcopter drone frame modeled in CATIA V5. The design is optimized for robustness, modularity, and aerodynamic efficiency, making it suitable for UAV development, simulation, and educational purposes.
The model includes:
- A strong central body with smooth aerodynamic contours
- Four extended arms designed to mount dual-blade propellers
- A front-facing housing for FPV or surveillance cameras
- A modular structure with designated areas for battery, ESCs, and additional payloads
The geometry is clean and organized, ideal for integration in simulation environments (CFD, FEA), academic demonstrations, or conceptual drone builds. No moving parts or electronics are included.
Applications:
- Custom UAV design and prototyping
- Academic and student drone projects
- Simulation and structural testing
- 3D visualization and CAD integration
- Tactical drone development mock-ups
File formats:
- CATIA V5 (.CATPart)
- STEP (.stp)
- IGES (.igs)
- STL (optional for preview or basic rendering)
