CNC lathe plans Easy to make 3D print model

Who Needs a CNC Lathe

If you want to work with Round objects or making threads on a Rod or inside a Cylinder you definitely need a CNC Lathe.

Why Buy Our Product

• Our Plans are easy to Build. • The Lathe Runs with Mach3 Lathe and have excellent Performance • with 0.01 mm Accuracy on both X and Z Axis. • *** Our Design incorporates Magnetic Rotary Encoder which allows you to *** • cut precise threads both External and Internal Threads.

Don't Be Fooled by Many Plans on a Disk

• Most CNC Lathe conversion kits donot allow you to cut threads since they dont have a Rotary Encoder.

What We Supply !

• We Supply complete Original CAD Files in Solidworks ,STEP and STL Format so you view the models in 3D and see all the dimensions. • You can open the Files in Solidworks,Fusion360 or any other 3D Modelling software. • We Also Supply complete Electrical wiring Diagram You need Basic Electrical wiring skills to do it. • We Also supply complete Part List with supplier links .So its very easy to get all the parts you need for the Project. • Now you make your own CNC Fully functional Lathe that can do all the things a professional CNC lathe can do.

You can Do it

• You can make one part a day with 2-3 hours of work and before you know it you will have your lathe ready.

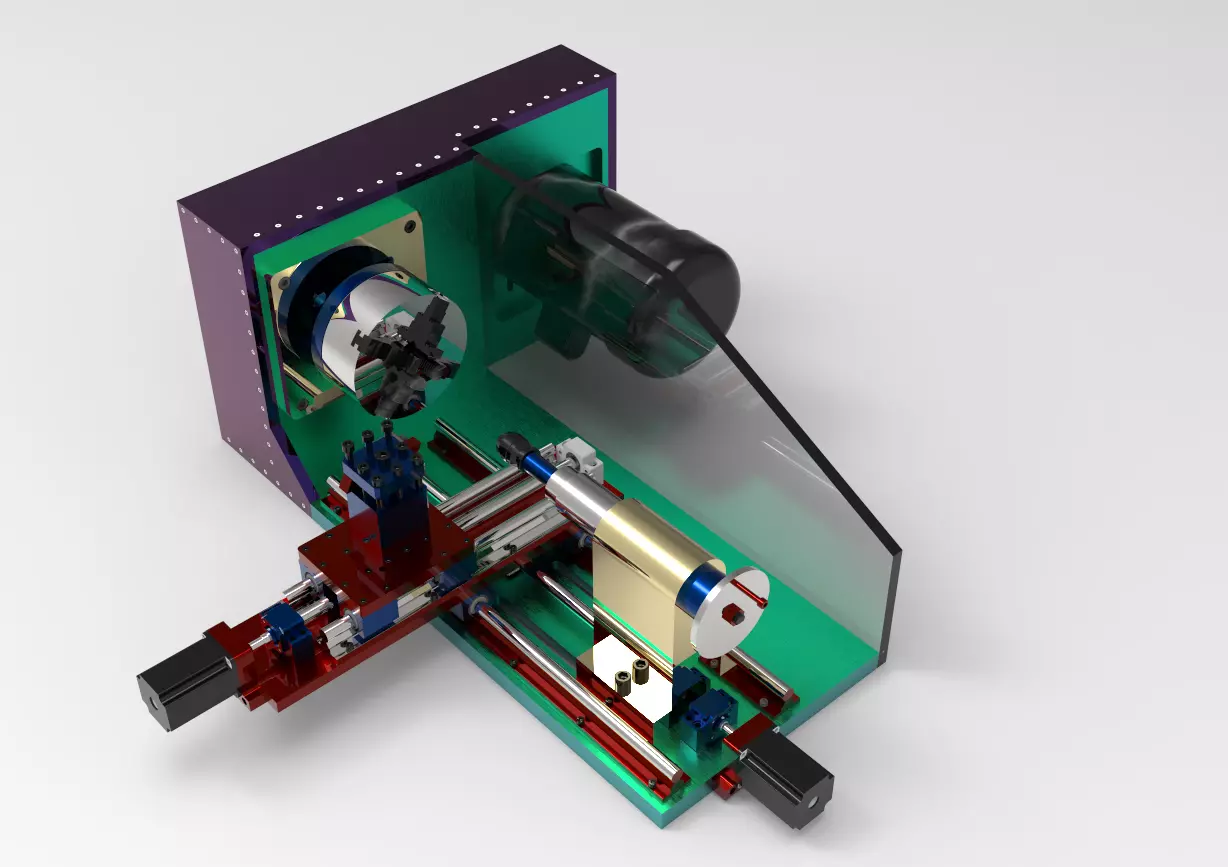

About the Lathe

• The lathe is powered by a 1 HP Ac Motor with 3500 RPM. with such a large motor you get almost constant RPM even when cutting so you have great surface finish on parts and you can also get very precise threads.

• X-Axis is Powered by Nema 23 stepper motor with 4NM of Torque. • X-Axis is driven by 16mm Ballscrew. • X-Axis Travel is 8 Inches.

• Y-Axis is Powered by Nema 23 stepper motor with 4NM of Torque. • Y-Axis is driven by 16mm Ballscrew. • Y-Axis Travel is 13 Inches.

• Tools Post has standard configuration you can high speed tools 10 mm x 10 mm or 12 mm x 12mm.

• We have custom designed Tail stock that is easy to make and is more Accurate at drilling and centering than conventional lathe tail stocks. • Tail stock Accepts M3 Morse Taper.

Rotary Encoder is PNP Magnetic rotary encoder that is very accurate and easily available.Mounting the Rotary encoder is easy and you are supplied with complete mach3 settings manual.

• Tadino CNC Lathe makes for an Excellent project whether you are a hobbyist or a professional ,its compact size and Large workpiece Envelope allows you to make parts you havent been able to make with your manual lathe or cnc Router.

• All the parts for the lathe require manual drilling and small CNC Router or a Milling Machine. • The Chuck is 6 Inches and Maximum work piece is 100 mm Diamter with 300 mm length. • The chuck i solidly mount on 2 Large Double Row Angular Contact Bearings making it very precise and Reliable.
