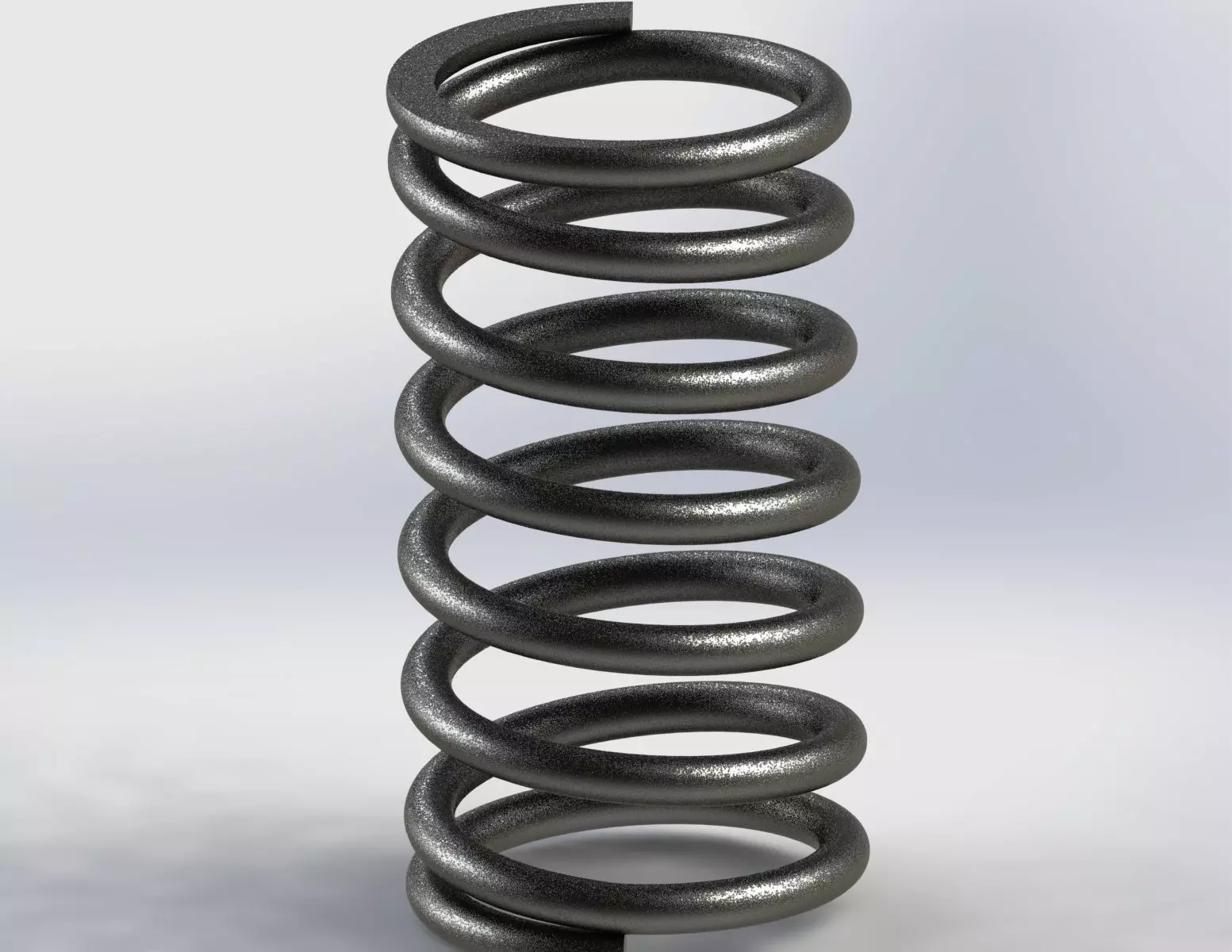

This isn't just a spring; it's a precision-engineered mechanical asset. Designed natively in SolidWorks, this adaptive component utilizes compliant mechanism logic to provide predictable compression and return, optimized specifically for additive manufacturing.

Fully Parametric & Support-Free Engineering

This model is built on adaptive geometry and is specifically engineered to be printed without any wasted material or tedious post-processing.

100% Support-Free Design: The geometry is calculated to stay within standard FDM overhang limits. Both the base and the spring arms print perfectly without any support structures, ensuring a clean, professional finish straight off the build plate.

Dynamic Customization: If you have the native SolidWorks file, you can instantly modify the stiffness, height, and diameter by simply changing the driving dimensions. No more scaling that ruins wall thickness—this is professional CAD logic.

Optimized Flex Geometry: The unique leaf-spring stack design ensures uniform stress distribution, preventing the snapping common in traditional 3D-printed coil springs.

Technical Specifications:

Native File: Includes the original .sldprt (SolidWorks) with a clean, labeled feature tree.

High-Fidelity Formats: Provided in STEP and IGES for seamless integration into Fusion 360, Rhino, or Inventor.

Print-Ready: Includes optimized STL and 3MF files for immediate slicing.

Recommended Print Settings:

Supports: NONE (Designed for 100% success without supports).

Material: PETG or Nylon for maximum springiness and fatigue resistance. PLA is excellent for tactile/fidget applications.

Perimeters: 3-5 walls (this defines the spring constant or stiffness).

Layer Height: 0.16mm - 0.20mm for optimal mechanical strength.
