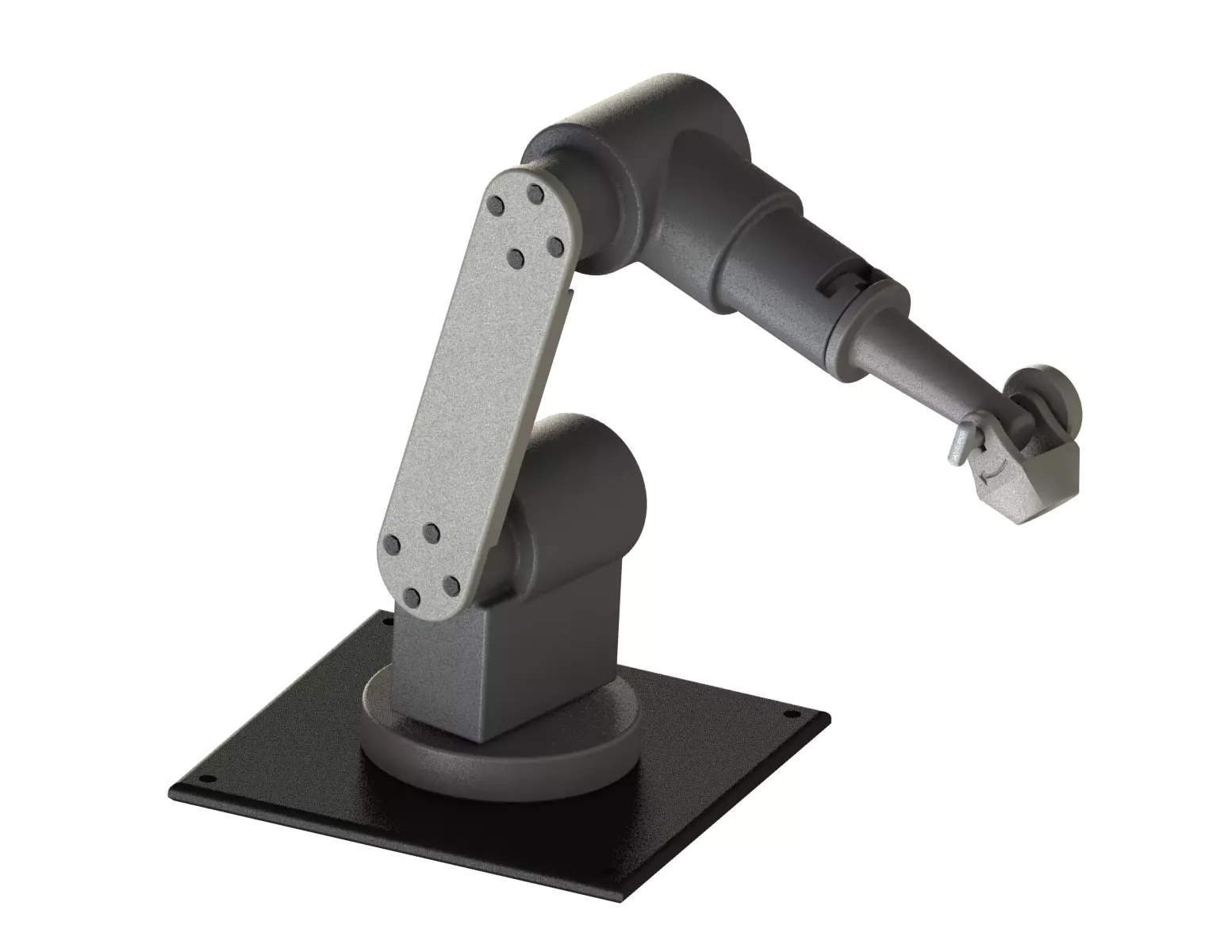

About the ModelThis industrial robotic arm is more than just a desk toy—it's a fully articulated mechanical model with carefully designed kinematics, engineered specifically for 3D printing enthusiasts.

The project was designed with the physics of the FDM process in mind: every joint is optimized for strength, and tolerances are calculated for smooth, play-free movement right off the build plate. No screws, nuts, bearings, or glue needed—the entire assembly is 100% 3D printed!

Key Engineering FeaturesZero-Tolerance Aesthetic: The model features faux countersunk bolts modeled completely flush (0 mm) with the surface. By printing these faces directly against the build plate, you achieve a perfectly smooth, injection-molded look that mimics professional factory assembly.

Modular Threaded Extension System: The forearm links (Parts 6 and 7) connect using a heavy-duty, 3D-printed thread. This not only ensures maximum rigidity but also hides the seams, creating the illusion of a solid, continuous beam. It also allows for future custom extensions!

Unique Quick-Release Bayonet Lock: The end-effector (Parts 8 and 9) features a custom quick-change mechanism with a T-shaped locking pin. Thanks to precise clearances and optimized print orientation, the key withstands high torsional loads and locks in place with a satisfying, tactile mechanical click.

Try It Before You Buy (Free Tolerance Test)!Want to test your 3D printer's tolerances and dimensional accuracy before purchasing the full project? I’ve uploaded the Top Mount Lock Assembly (Parts 8 & 9) for free! Download it, print it, and feel the flawless kinematics of the locking mechanism for yourself![https://www.cgtrader.com/free-3d-print-models/science/engineering/quick-release-lock-mechanism-tolerance-test-free-demo]

General Print SettingsMaterial: PETG (highly recommended for joint flexibility and thread strength), PLA, or ABS/ASA.Perimeters/Walls: 4 to 6 walls. This is crucial! The mechanical strength of the levers and threads depends entirely on the thickness of the outer shell, not the infill percentage.Infill: 20-30% (Gyroid or Cubic pattern).Layer Height: 0.2 mm (0.16 mm is optional for smoother threads).Post-Processing: The built-in tolerances are $0.2\text{--}0.3\text{ mm}$. If the joints feel too tight initially, apply a drop of silicone lubricant to the axes and threads, and work the mechanism back and forth a few times to break it in.

Part-by-Part Printing GuidePlease follow the recommended orientations carefully—the structural integrity of the robotic arm depends on proper layer alignment!

1_Workbench_pr (Base Platform)

Orientation: Flat on the bed (largest face down).

Settings: No supports. A Brim (8-10 mm) is strictly required to prevent corner warping. 100% infill is recommended for the central square peg for maximum base strength.

2_Base_pr (Swivel Base)

Orientation: Vertical (square hole facing down).

Settings: No supports. Use at least 5 perimeters to reinforce the 20mm top axis.

3_Base_motor_pr (Main Shoulder Joint)

Orientation: Vertical (round hole facing down on the bed).

Settings: Enable Tree Supports (Touching Buildplate Only) to support the side square peg. Add a Support Blocker inside the square hole to keep it clean.

4_Shoulder_pr (Main Arm - 2 Versions included)

Orientation: Flat on its side. Important: For the with_m4 version, place the side with the faux bolts face down directly on the build plate for a perfectly smooth finish!

Settings: Use local Tree Supports for the overhanging connection ears.

5_Motor_2_pr (Elbow Motor)

Orientation: Flat on the bed, resting on the flat face of the largest cylinder. This ensures maximum layer-adhesion strength for the side levers.

Settings: Supports required for the overhanging side axes/ears. Enable Ironing for the top layer to achieve a premium look.

6_Extension_cord_1 (Forearm Beam 1)

Orientation: Strictly horizontal (flat)! The layer lines must run along the length of the part for bending strength.

Settings: Local supports for the joint connections at both ends.

7_Extension_cord_2 (Forearm Beam 2 - Threaded)

Orientation: Vertical (standing upright). This is the only way to print perfectly functional threads.

Settings: Absolutely NO supports on the threads! A Brim is mandatory for stability, as the part is tall. Maximize perimeters for thread strength.

8_Top_pr (Wrist / Lock Mount)

Orientation: Flat on the side cheek (follow the arrow indicator on the model). This ensures perfect hole concentricity and a clean internal lock profile.

Settings: Supports are needed between the two ears. Use a dense Support Interface (Support Roof) for a clean surface. No supports are needed inside the locking mechanism itself.

9_keypin_pr (T-Lock Pin)

Orientation: Horizontal (resting flat like a T on the bed) to maximize torsional strength.

Settings: Tree Supports under the round shaft. Use 100% infill or max perimeters to make the pin practically indestructible.
