NVIDIA Tesla K80 V100 M40 cooling fan shroud duct

NVIDIA Tesla K80 V100 M40 cooling fan shroud duct 3D print model

Description

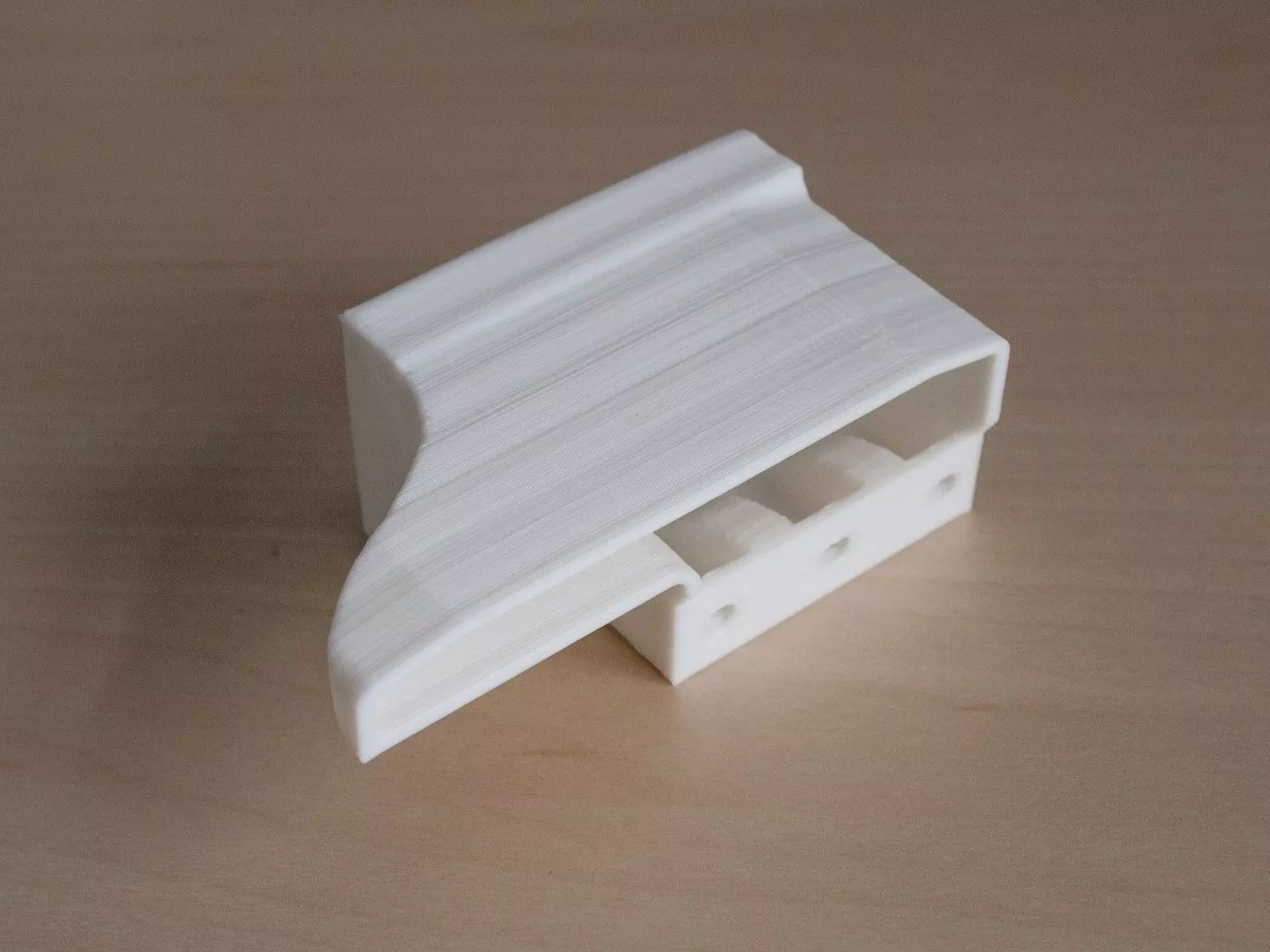

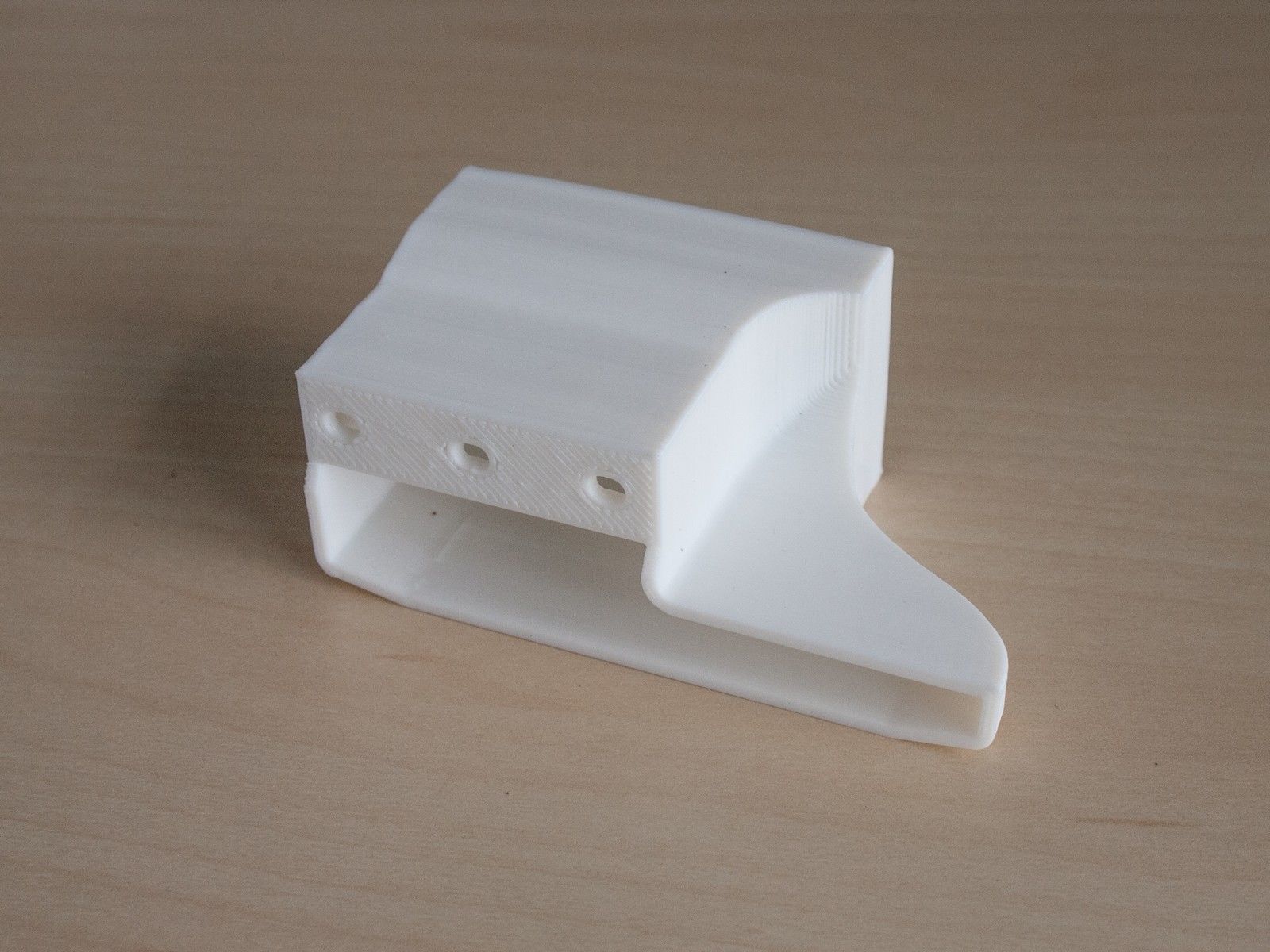

This is a cooling shroud for the NVIDIA Tesla K80 GPGPU. Also fits Tesla V100 and M40. Please note this is distinct from the GRID M40! This model will not fit the GRID M40.

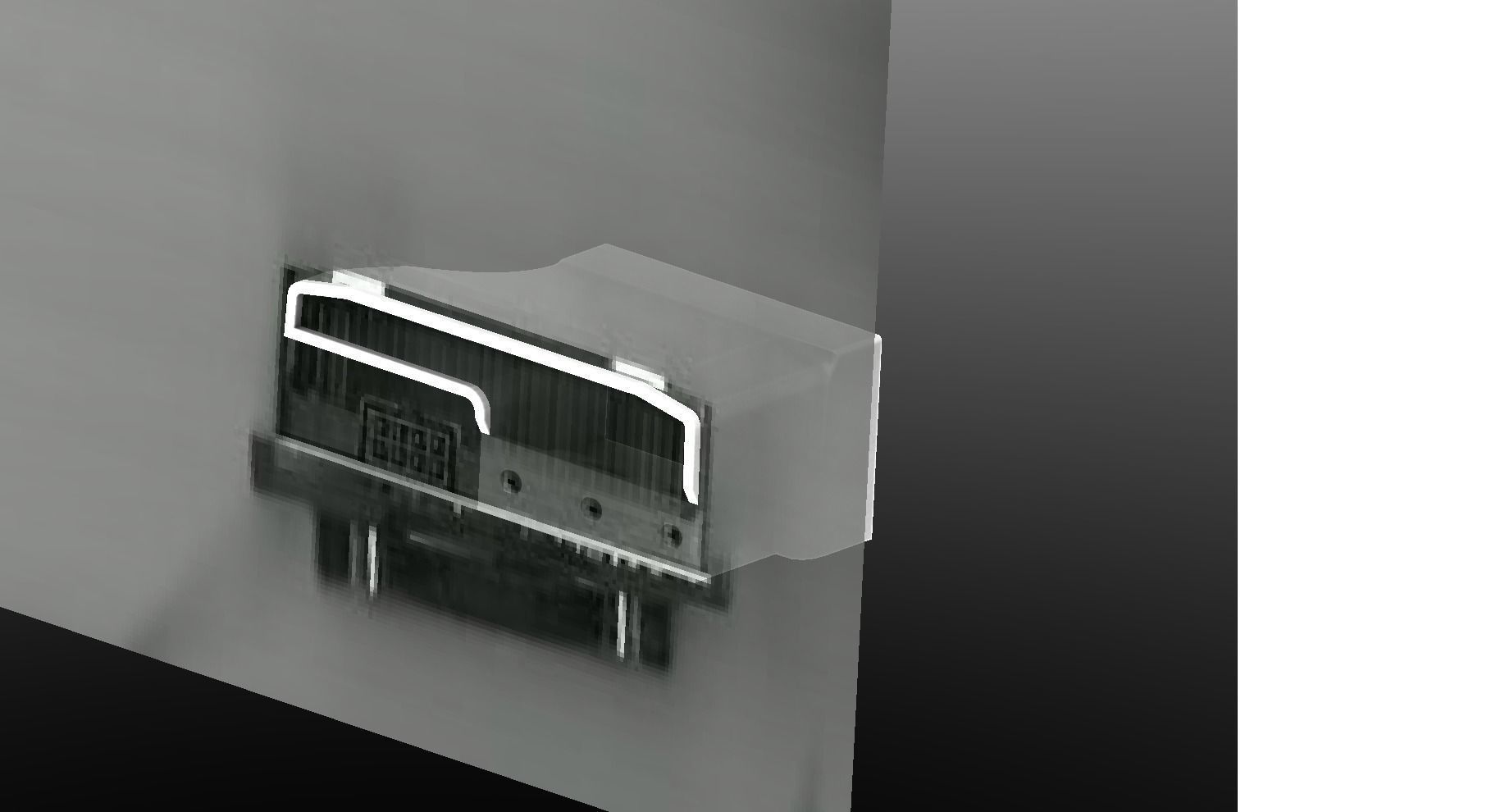

This custom designed shroud is a perfect way of cooling a passive-heatsink NVIDIA Tesla K80 GPGPU (not included) in a desktop case. This shroud (together with the fan, not included) is engineered to fit precisely to the card, provide ample clearance for power cables, and to meet/exceed the card's cooling requirements. It can be 3D printed using PLA.

Item dimensions: 62mm x 90mm x 37mm. When installed, the shroud + fan assembly adds about 14cm to the length of the card.

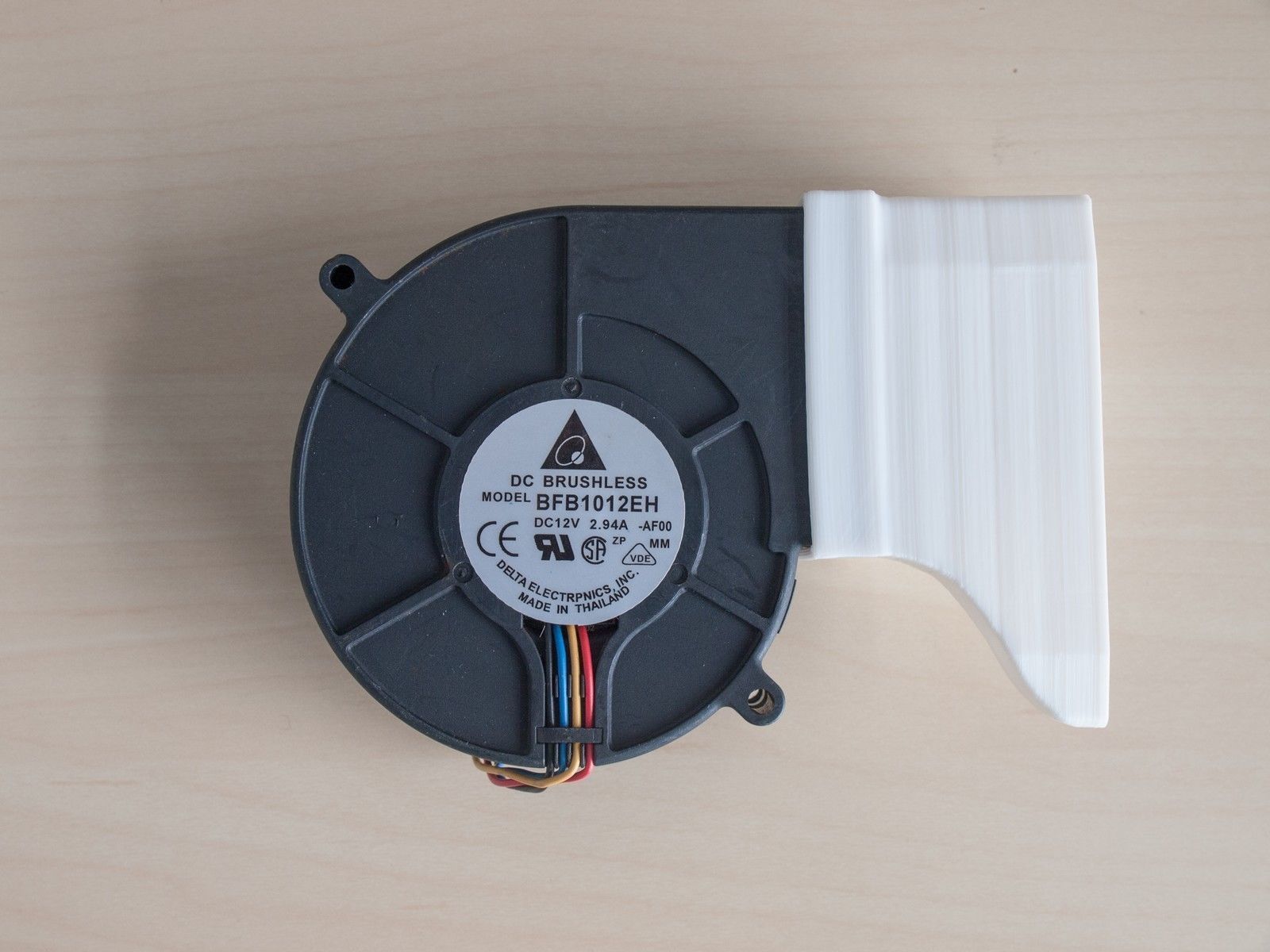

Recommended Fan specifications: http://partner.delta-corp.com/products/FanUploads/Specification/BFB1012EH-AF00(REV01).pdf

Item rating
2 0
E
eyecannon 2019-02-27 19:48:54 UTC
Recommended
Worked really perfectly on a hot Tesla K80... thing is stable at ~40 deg C under load now.
NVIDIA Tesla K80 V100 M40 cooling fan shroud duct
$35.00

Custom License
NVIDIA Tesla K80 V100 M40 cooling fan shroud duct
$35.00

Custom License
Response 33% in 48.0h

3D Model formats

Format limitations
  • Stereolithography (.stl)2.49 MB

3D Model details

  • Publish date2018-05-12
  • Model ID#897046
  • Ready for 3D Printing
