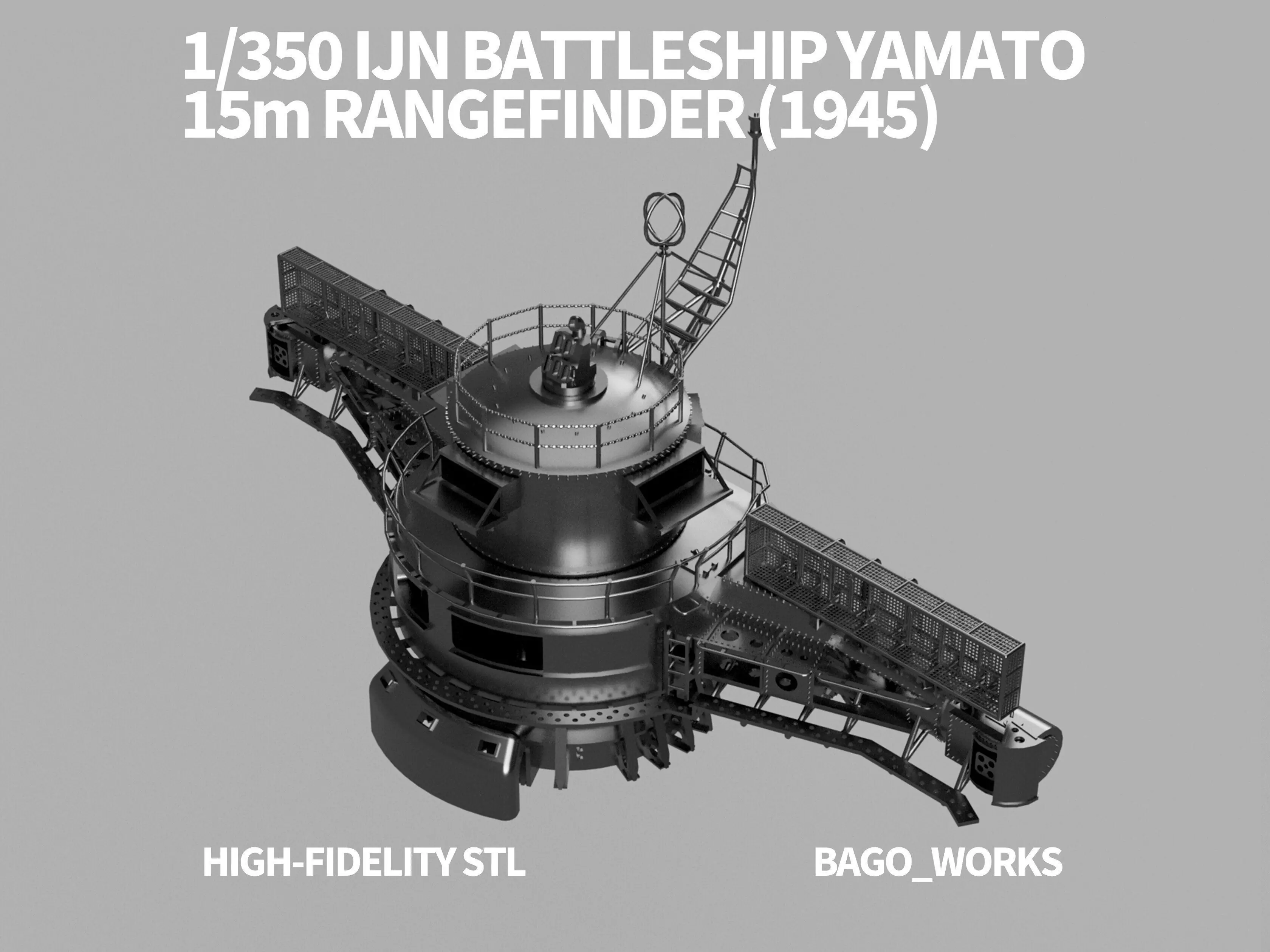

A highly detailed 3D model of the Main 15m Rangefinder for the 1/350 Battleship Yamato, reproducing the final 1945 configuration.Designed by a professional mechanical engineer, this model features open observation windows and internal structural details.
Key Features
- Open Observation Windows: The shutters are modeled in the open state, revealing the internal structure.
- Selectable Radar Options:
- With Radar Version: Includes the Type 21 Radar and the reinforcement girders added during the refit. Note that printing these parts is extremely difficult due to their delicacy.
- No Radar Version: A version without the radar and girders is included for modelers who prefer to use Photo-Etched (PE) parts for these fine details.
- Historical Accuracy & Detailing:
- Base: Reproduces the reinforced base structure, believed to be a lesson learned from the Battle of Leyte Gulf.
- Signaling Station (Transmission Room): Modeled based on the Battleship Musashi diving survey data. While some theories suggest Yamato's station lacked observation windows, this model includes them to enhance the visual detail and presence of the finished kit.
Note for Advanced Modelers:This model features delicate parts to maintain scale accuracy. High-resolution resin printing is required.
Included Files (6 Files)
- yamato_15m_rangefinder_base (Base)
- yamato_15m_rangefinder_inner (Rangefinder Interior)
- yamato_15m_rangefinder_no_radar (Rangefinder - No Radar Ver.)
- yamato_15m_rangefinder_with_radar (Rangefinder - With Radar Ver.)
- yamato_main_gun_control_room (Fire Control Director / Tower)
- yamato_main_gun_control_room_inner (Fire Control Director Interior)
