[¯`·..·[ V7 WLTOYS 144 & 124 RC CAR TRUGGY 1:14 1:12 ]·..·´¯]

FRANÇAIS :

Voiture RC Ultra performante Imprimable en 3D, utilisant les pièces standard WLTOYS.Le design est amélioré, et bien plus résistant que l'original.

Dans ce kit il y a deux types de direction,Direction Ackermann system ou Direct Drive system.Si vous choisissez l'une ou l'autre n’imprimer que les pièces avec le nom correspondant.Les pièces sont rangées dans des dossiers avec des noms logiques mais il est préférable de lire le build guide.

Démontez simplement les anciennes pièces du système de direction Ackermann et du renfort de châssis, remplacez-les par la direction Direct Drive et vous obtenez un système de direction direct drive robuste et précis.

Nouveau moyeu de coupelle de direction (steering cup Hub) robuste, porte-moyeu avant et tringleries de direction inclus.

Vous pouvez également simplement prendre le nouveau moyeu de coupelle de direction lourde et le porte-moyeu avant lourd si vous préférez l'ancien système Ackerman.

Pas besoin de tout réimprimer

ENGLISH :

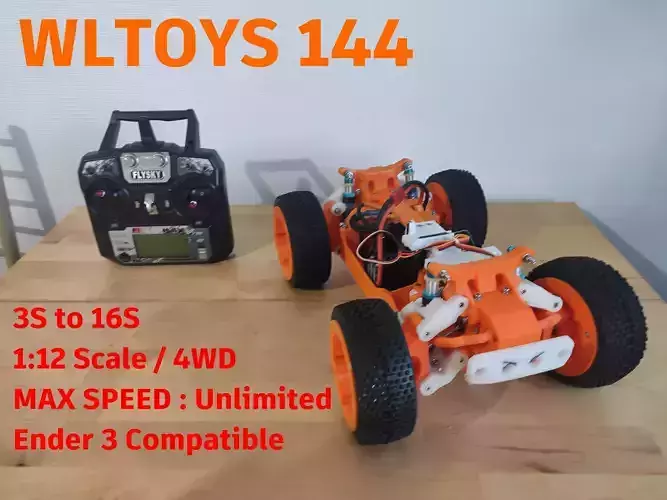

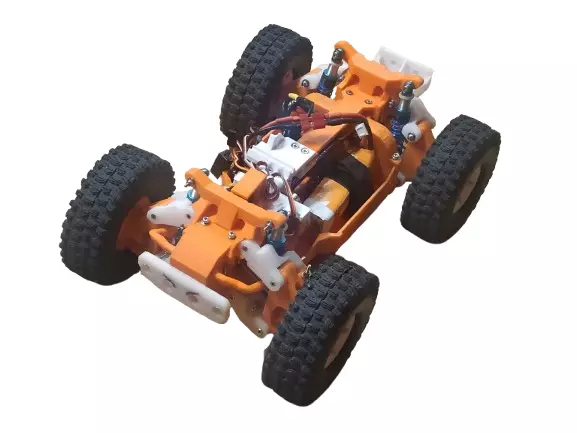

Ultra-high performance 3D printable RC car, using standard WLTOYS parts.The design is improved, and much more durable than the original.

In this kit there are two types of steering,Steering Ackermann system or Direct Drive system.If you choose one or the other only print the parts with the corresponding name.The parts are stored in folders with logical names but it is best to read the build guide.

Simply Unmount The old parts of the Ackermann Steering System and the Chassis brace, replace by the direct drive steering and you got a Heavy and precise Direct Drive Steering System.

New Heavy Steering Cup Hub and Front Hub Carrier and steering linkages included.

You can also just take the New Heavy Steering Cup Hub and Heavy Front Hub Carrier if you prefer the old ackerman system.

No need to reprint all

BUILD GUIDE :

https://docs.google.com/presentation/d/1xQednf_rth1foSpnl_zI8gsLzxE91GRotefnCwp8eBw/edit?usp=sharing

BUILDING VIDEO :

https://www.youtube.com/watch?v=ltlX8YH-RXE

*DRIVE TEST : *

https://www.youtube.com/watch?v=eYnTohvDwP8

PREMIUM VERSION GOT :

• New REVERSE ACKERMANN STEERING SYSTEM
• New DIRECT DRIVE STEERING SYSTEM
• New Slim / Wide Chassis
• New Body Mount + Body upper protection
• New Wheelie Bar
• All Type Motors Mounts D36 D42 D49 D56
• All RIMS Sizes and offsets STL kit
• DUAL Motors Capability PLA or Metal
• DUAL Motors Transmission Cover PLA or Metal
• Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place Capability
• FPV Protection
• Protection Plate
• More adjustment holes
• Fresh Update and Upgrade
• Thanks from the Creator

PREMIUM LINKS :

Official website :

https://www.myshopkit.fr

FREE DEMO VERSION GOT :

• Slim Version of the Chassis
• PLA Motor Mount D36 D42
• Metal Motor Mount Capability
• Mono Motor Transmission Cover For PLA and Metal (but dual motors D36 D42 capability :)
• RIMS 1.9p 2.2p 3.2p Hexa 12mm
• Standard ESC Place Capability
• ALL PARTS TO RUN A GOOD DEMO VERSION ;)
• New DIRECT DRIVE STEERING SYSTEM
• New REVERSE ACKERMANN STEERING SYSTEM

LIST OF COMPATIBILITY (and retro compatibility)

Transmission gear always from :

• Wltoys 144 or 124
• Official
• Mod 1mm
• Update Sleeper gear

Dogbone M3 diam 4mm and transmission gear and diff from :

• 14401 14402 144010
• 124007 124016 124017 124018 124019probably : 124008 (+124010) not tested but why notBearing : MR84ZZ OR 684ZZ

Dogbone M4 diam 5mm(best choice)

• 12428 12427 12423Bearing : 688ZZ AND MR115ZZ

There are two types of CVD, M3 4mm or M4 5mm.

if you choose CVD M3 4mm official or enhanced from WLtoys 144 or 124 then you will need to choose 4mm bearings, and so you have the choice between two types of bearings, either the small official 4x8x3 MR84ZZ ABEC7 OR the recommended 4x9x4 684ZZ ABEC7 for more performance.

if you choose CVD M4 5mm from WL toys 12428 12427 12423 then you will need 8x16x5 688ZZ ABEC7 AND 5x11x4 MR115ZZ ABEC7 bearings

Tips : CVD M4 5mm from WL toys 12428 12427 12423 is the best choice, with no change from direction, arms, transmission and diffs and diffs cups only change the CVDs and hub cup carriers front/rear and the bearings and that's all. You have the strongest CVD now.

NEEDS :

• TPU ( 500g )ArmsBumpers

• PLA Plus ( 1Kg )All the Rest

TOOLS :

Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion) Long Nose Pliers ThreadLocker Grease Clamp Gaskets

HARDWARE STORE :

BEARINGS For CVD M3 4mm : 4x8x3 MR84ZZ ABEC7 ( X 8) OR 4x9x4 684ZZ ABEC7 ( X 8)

BEARINGS For CVD M4 5mm : 8x16x5 688ZZ ABEC7 AND 5x11x4 MR115ZZ ABEC7

Washers M3 ( X 100) Lock Nuts M3 ( X 100) Screws M3 x 5mm Hexa ( X 10) (Motor Mount) M3 x 8mm Hexa (X 10) (Steering Cup Hub) M3 x 14mm Hexa ( X 10) (Steering Servo) M3 x 20mm Hexa ( X 60) (ALL THE REST) M3 x 30mm Hexa ( X 20) (Shocks Absorbers / Reverse Ackermann Steering) M3 x 40mm Hexa ( X 20) (ARMS / Reverse Ackermann Steering)

TAGS :

• WLTOYS 144-124
• Ender 3 compatible
• PreOriented STL PARTS
• 3D Printed RC Car
• Reverse Ackermann Steering Compact System or direct drive steering
• Full Metal transmission
• Metal Steering Linkages Compatible
• Brushless Motor 2200KV MAX 3650 up to 4268 (3650 recommended)
• 3S -4S - 6S
• DUAL3S = 6S / DUAL4S = 8S / DUAL6S = 12S
• ESP Front Gyroscope
• Pinion and Gearing 1mm Module M1 (1mm Diametral Pitch) - No cogging issues
• Metal Differential mechanism Central axis Central drive shaft Motor-Gear
• Printed Beadlock Rims 2.2p or 3.2p
• Dogbones Hexa 12mmm
• Strong modulable design easy replace
• Standarts parts
• 4 Arms = 1 Arm (Lowers and Uppers)
• 4WD -2WD -4x4 -2x4
• With or Without Anti roll Bar
• 1:12 Hardware
• No Glue Only M3 Screws Washers and LockNuts
• LED Light System Front and Rear
• Drift
• GoPro Mount
• Body Mount + upper protection
• Wheelie Bar
• Original dogbones and Wheel Nuts and upgrades

If you like it please buy it ;)

ENJOY

TAGS :

RC car, WLTOYS, 1:14, 4WD, Ender3, WLTOYS 144 124
