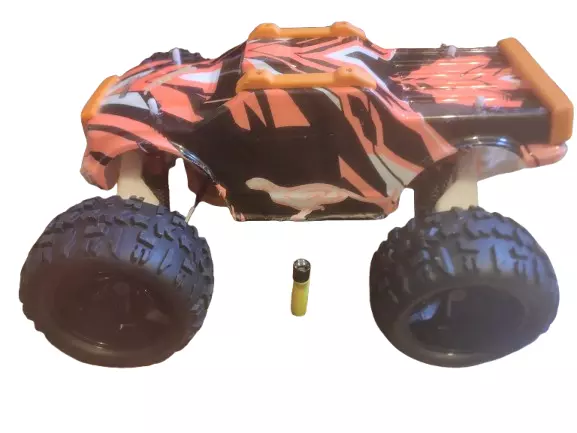

ARRMA 6S NOTORIOUS / KRATON / BIGROCK X ZDRACING TRUGGY 1:7 4WS 4WD RC CAR
RC CAR PRINTED ARRMA X ZDRACING TRUGGY 1:7 4WS 4WD(4 WHEEL STEERING X CENTRAL DIFF)
Ultra-high-performance 1/7 scale RC car, 3D printable, using standard ARRMA central diff and ARRMA 6S NOTORIOUS / KRATON / BIGROCK drive shaft.ZDRACING better big diff partsand many CVD 1/7 (ZD EX07-DBX07, ZD MX07, ARRMA KRATON 6S CVD)The design is improved, and much more durable than the original. Easy Fix, Strong, Modulable, Big battery place, Speed 100Km/h in 4S.4WD And 4WS
- Ender 3 compatible (NOTORIOUS ONLY)
- STL Pré-oriented (ready to print),
- Full Metal transmission,
- 4 arms = 1 arm (Lowers and Uppers),
- Modulable,
- Only M3 Screws / Washers / Nuts (kit mod M4 for premium)
- 17mm Wheel Hub
Recommended Electronic hardware :
- D3660 3150KV 5mm (or more)
- 4S 4500mah 60C (or more)
- ESC 10BL120 (or more)
- Servo DS3218 PRO 180deg
Recommended Mechanical hardware : (with REF code for search Aliexpress)
- M1 Steel Pinions Gears 14T - 20T
- Rolling ABEC 7 (for CVD ARRMA and MX07 : cf tuto / for CVD EX07-DBX07 : cf tuto)
- (X2) Front Gear for Diff (REF: cf tuto)
- ARRMA or HSP MOTOR MOUNT (REF: cf tuto)
- CENTRAL DIFF (REF: cf tuto)
- TRANSMISSION DOGBONES (ARRMA NOTORIOUS / KRATON / BIGROCK drive shaft)
- (X2) Differentials (ZD EX07-DBX07 or ZD MX07)
- CVD (many possibility cf tuto)
BUILD GUIDE :
https://docs.google.com/presentation/d/10uAzJ0vI9sMLNTcA77r8GpKWMWLQf-Jbxnl2-MbjN_k/edit?usp=sharing
BUY LIST :
https://docs.google.com/spreadsheets/d/1piXwtkfFu0PJRzFdoeHAftRf8_TKC_VpkX-Zx3VPCWU/edit?usp=sharing
BUILDING VIDEO LINK :
https://youtu.be/ltlX8YH-RXE
DRIVE TEST :
https://youtu.be/R_dJ-n3_QSA
Drive test 3 :https://youtu.be/SvWld79_sfc?si=IxgxMczxTGTEKQea
Drive test 2 :https://youtu.be/yqldffKXP6s?si=-j6Je2f98ZwKowQO
Drive test 1 :https://youtu.be/OAT00DGrQRY?si=kfoROmn45r2Mdgoa
PREMIUM VERSION GOT :
– Bumpers– New Body Mount– Body Lower Protection Plate– New Wheelie Bar– All RIMS Sizes and offsets STL kit– Motors Transmission Cover PLA– FPV Protection– More adjustment holes– Fresh Update and Upgrade– Thanks from the Creator
- More adjustment holes
- Fresh Update and Upgrade
- Thanks from the creator
FREE VERSION GOT :
- ALL PARTS TO RUN A GOOD DEMO VERSION ;)
- New REVERSE ACKERMANN STEERING SYSTEM Best for max angles
- Slim Version of the Chassis– Metal Motor Mount Capability– No Transmission Cover PLA– No Bumpers– No Body Lower Protection Plate– No Wheelie Bar– Less adjustment holes– No additional parts– RIMS 3.2p Hexa 17mm– Standard ESC Place Capability– …
PREMIUM LINKS :
Official websitehttps://myshopkit.fr/
NEEDS :
- TPU ( 500g )ArmsBumpers
- PLA Plus ( 1Kg )All the Rest
TOOLS :
- Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion)
- Long Nose Pliers
- ThreadLocker
- Grease
- Clamp Gaskets
HARDWARE STORE :
Bearing Rolling ABEC 7 (for ARRMA and MX07 : cf tuto / for EX07-DBX07 : cf tuto) ( X 8)Metal Steering Linkages ( X 2)Washers M3 ( X 100)Washers M3 ( X 100)Lock Nuts M3 ( X 100)
Screws :
- M3 x 14mm Hexa ( X 10) (STEERING)
- M3 x 20mm Hexa ( X 60) (ALL THE REST)
- M3 x 30mm Hexa ( X 10) (SHOCKS ABSORBERS / REVERSE ACKERMANN STEERING)
- M3 x 40mm Hexa ( X 20) (ARMS / REVERSE ACKERMANN STEERING)
- M4 x 40mm Hexa ( X 20) (ARMS IF KIT M4) (+Washers+Lock Nuts)
3D PRINT PARAMETERS :
- PRE ORIENTED MODELS
- PLA + : 40% Min - 95% MAX
- TPU : 40% Min - 95% MAX
TAGS :
- ARRMA - ZD
- Ender 3 compatible
- PreOriented STL PARTS
- 3D Printed RC Car
- Reverse Ackermann Steering Compact System or direct drive steering
- Full Metal transmission
- Metal Steering Linkages Compatible 105mm
- Brushless Motor 3660 3150KV Recommended up to 4268 (3650 min 3150KV max)
- 3S - 4S - 6S - 8S
- ESP Front Gyroscope
- Pinion and Gearing Module 1mm (1mm Diametral Pitch) - No cogging issues
- Metal Differential mechanism Central axis Central drive shaft Motor-Gear
- Printed Beadlock Rims 2.2p or 3.2p
- Dogbones Hexa 17mmm
- Strong modulable design easy replace
- Standards Parts
- 4 Arms = 1 Arm (Lowers and Uppers)
- 4WD -2WD -4x4 -2x4
- With or Without Anti roll Bar
- 1:8 Hardware
- No Glue Only M3 Screws Washers and LockNuts
- LED Light System Front and Rear
- Drift
- GoPro Mount
- Body Mount + upper protection
- Wheelie Bar
CONCEPTION / ADVANTAGES :
- Cup hub : type kyosho + all tires + flexible + fixation proto36
- Arms : réversible 1 pour 4, flexible type traxxas, adjustable chassis height, locked by screws and lock nuts.
- Arms mount : KIT M4 + Quick replace
- Reenforcement : triple deck
- Shocks absorbers : max diam 36mm + extra reinforced + flexible + protected
- Steering : flexible + 45deg + compact + gyro place + centered + 4ws
- Transmission : solid + covered + full steel + cvd + bearing oversized + M1mm
- Battery : 8000mah 4S place
- Multiples bodies mount
- Willie bar
- Only Standards parts
