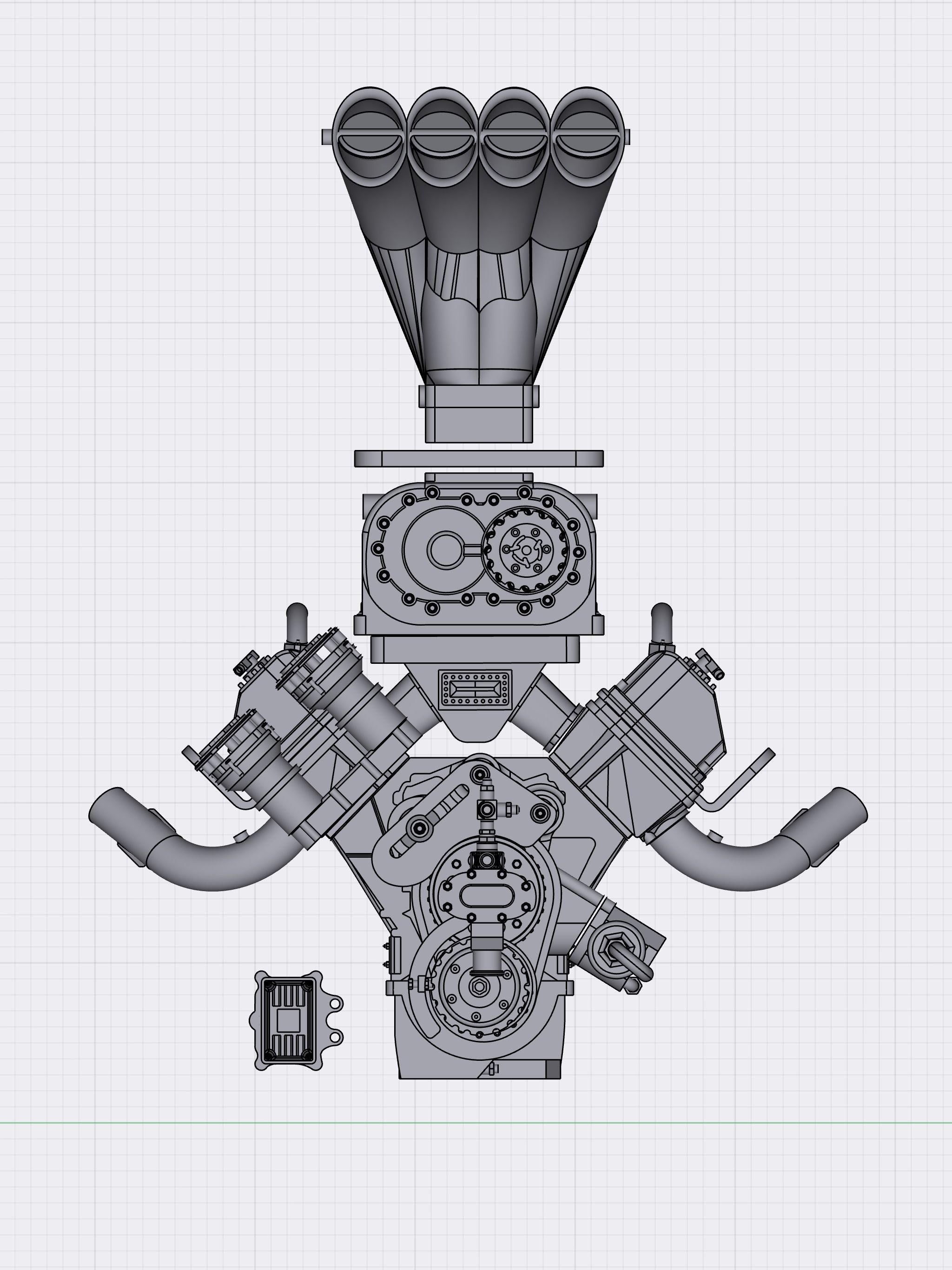

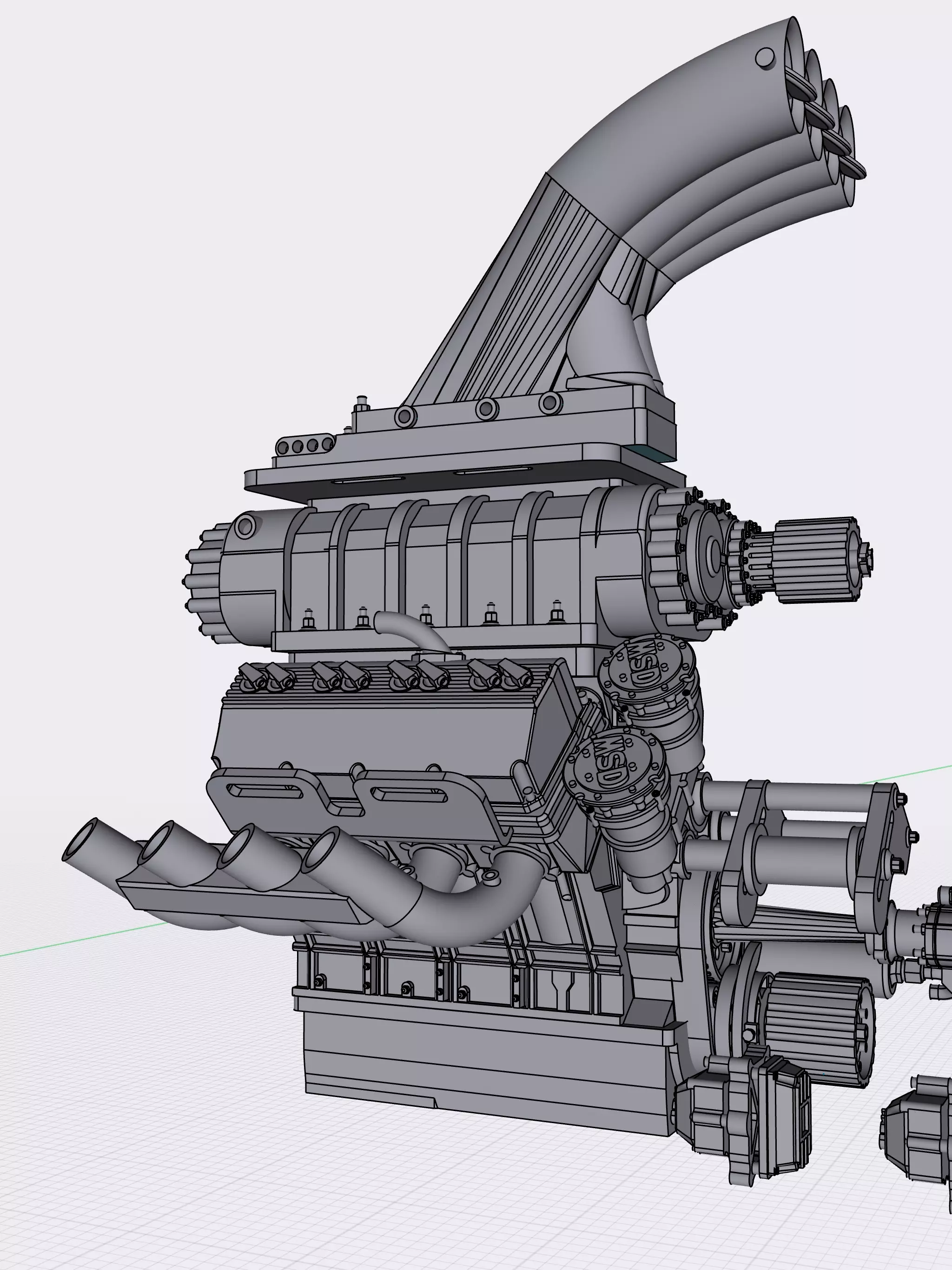

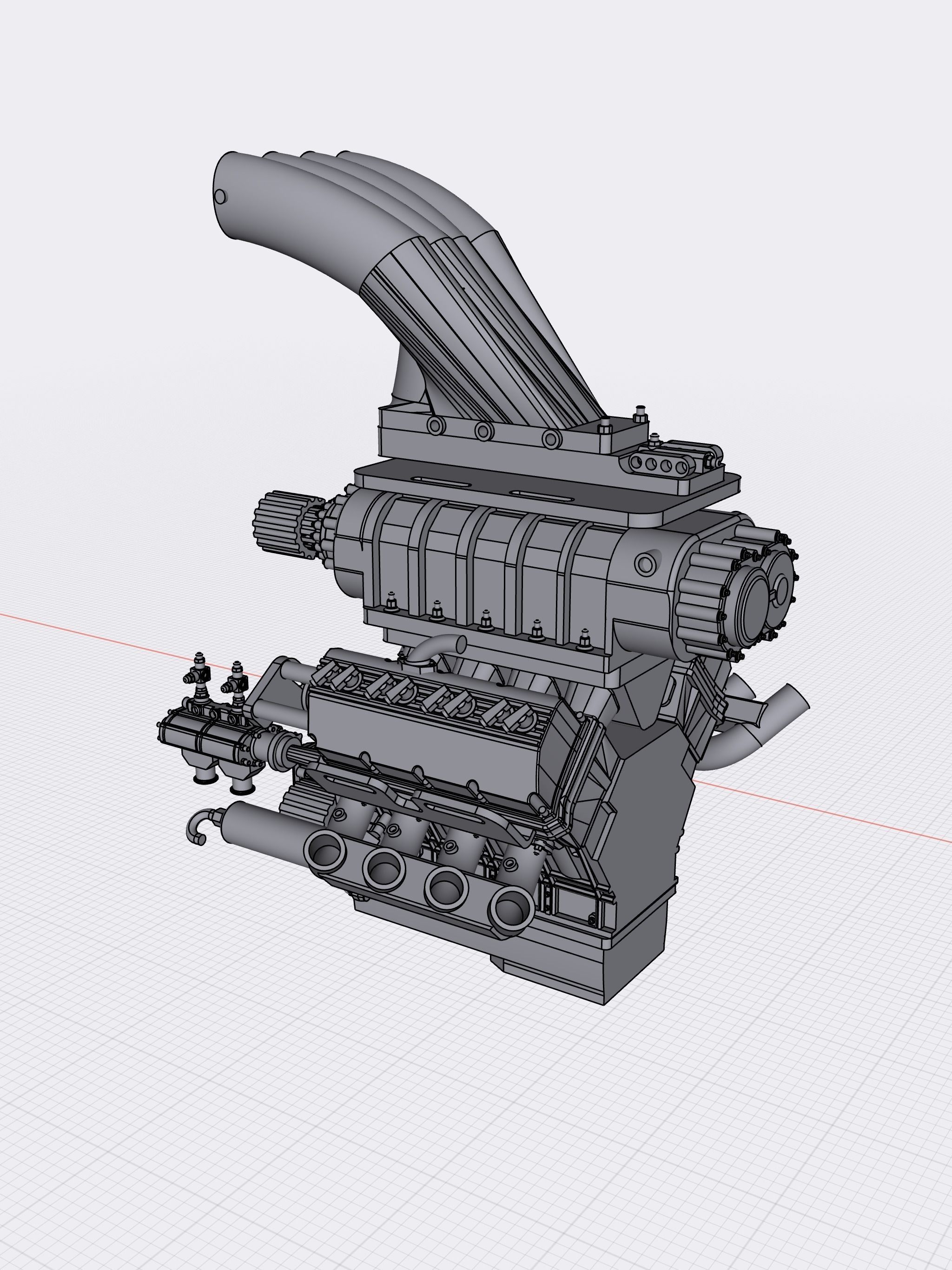

TOP FUEL Blower Supercharger and Injector Hat Assembly

TOP FUEL Blower Supercharger and Injector Hat Assembly 3D print model

Description

Designed from scratch a full detail Top Fuel Supercharger with accessories, high in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).

Perfect for those show winning Top Fuel and drag racing builds!

Multi-piece design for better detailing, holes for oil hoses, fuel hoses, ignition wires etc. Includes;

  • 14/71 Supercharger
  • Blower strap brackets - 1 above blower and 2 between heads & valve covers
  • Big injector hat with part-opened butterflies, rear located fuel block, holes for fuel lines (6 in base plate and 2 in rear of supercharger)
  • Crank pulley (separate to allow better detailing to gear drive assembly)
  • Blower belt tensioner (3 locating holes in block to position correctly

Be sure to tag @mattys_custom_scale on Instagram with your finished prints & projects!

Intended for personal use, not to be redistributed without consent

Item rating
0 0
TOP FUEL Blower Supercharger and Injector Hat Assembly
$7.99

Custom License
TOP FUEL Blower Supercharger and Injector Hat Assembly
$7.99

Custom License
Response 99% in 36.4h

3D Model formats

Format limitations
  • Stereolithography (.stl) (5 files)37.2 MB

3D Model details

  • Publish date2021-11-03
  • Model ID#3363979
  • Ready for 3D Printing
