PRO TOURING MCS Low-Pro Chassis with Pushrod Suspension

PRO TOURING MCS Low-Pro Chassis with Pushrod Suspension 3D print model

Description

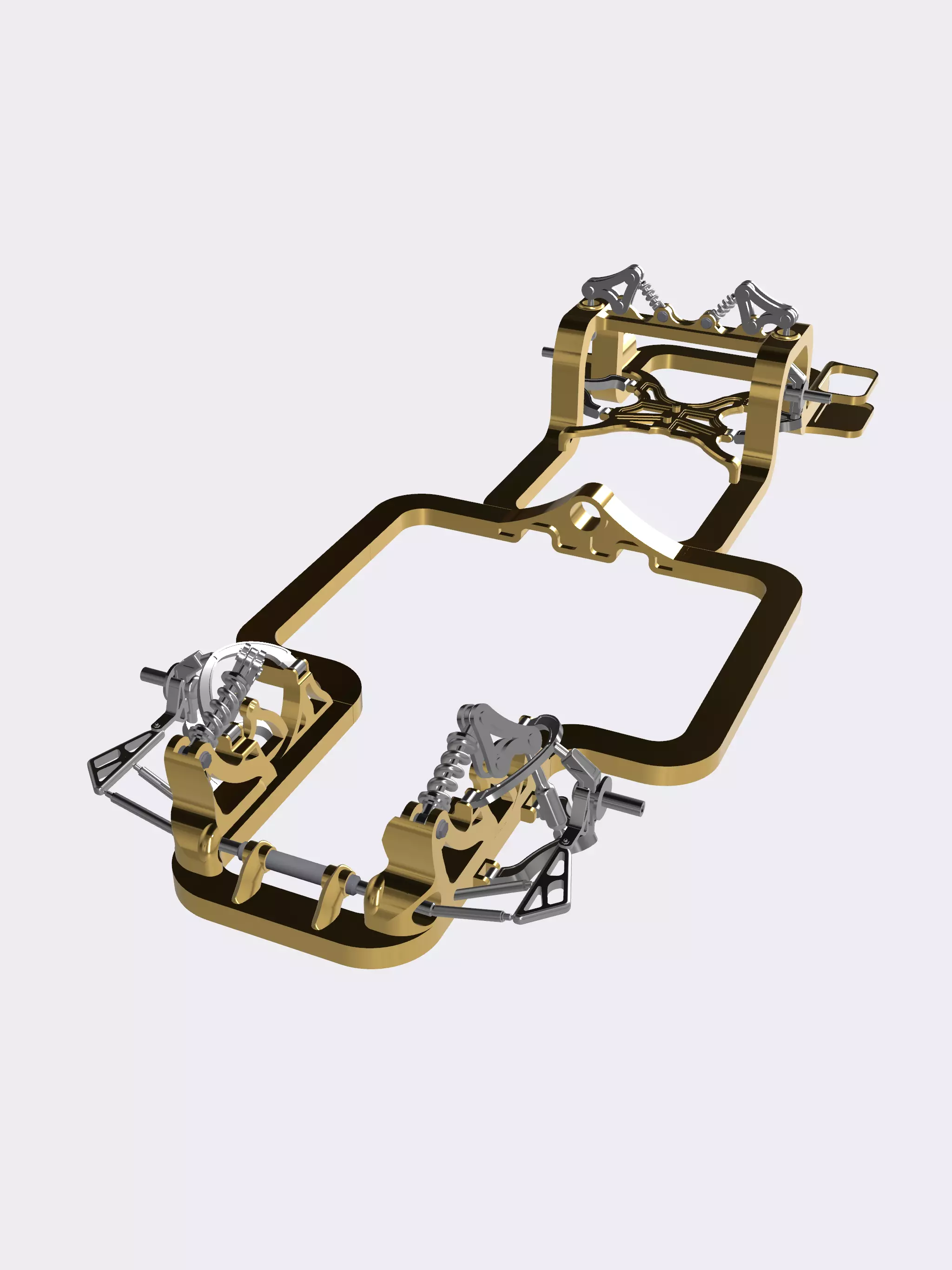

Designed from scratch is a Pro Touring Chassis platform with racing inspired Push-rod cantilevered suspension. The chassis is rectangular in shape for a low profile, and has radiused curves for a show car or truck look. The chassis is 3 pieces to allow adjusting middle section depending on your build. Each front suspension assembly is 1 piece which seats neatly into the chassis mounts. The rear suspension is 2 pieces to allow it to pass through the rails. The rear cradle accepts a transaxle or another differential of your preference. Other items in build photos are not included & are for reference only. High in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).

Perfect for those customized show builds!

Photos form part of the assembly instructions, or you can find finished builds on my instagram account - mattys_custom_scale Be sure to tag me in your prints & builds too.

Where both sides of parts are identical, i have provided the Right-hand side parts, and mentioned R in the file description. For the opposite side, use your slicer to mirror them. Any problems please let me know

Intended for personal use, not to be redistributed without consent

Item rating
2 0
C
carbonkid3 2023-07-01 22:52:49 UTC
Recommended
This one is complete great model to bad some engine files are incomplete
PRO TOURING MCS Low-Pro Chassis with Pushrod Suspension
$14.99

Custom License
PRO TOURING MCS Low-Pro Chassis with Pushrod Suspension
$14.99

Custom License
Response 98% in 37.1h

3D Model formats

Format limitations
  • Stereolithography (.stl) (6 files)34.3 MB

3D Model details

  • Publish date2022-07-09
  • Model ID#3863800
  • Ready for 3D Printing
