Printable Piston and connecting rod 3D print model

Description

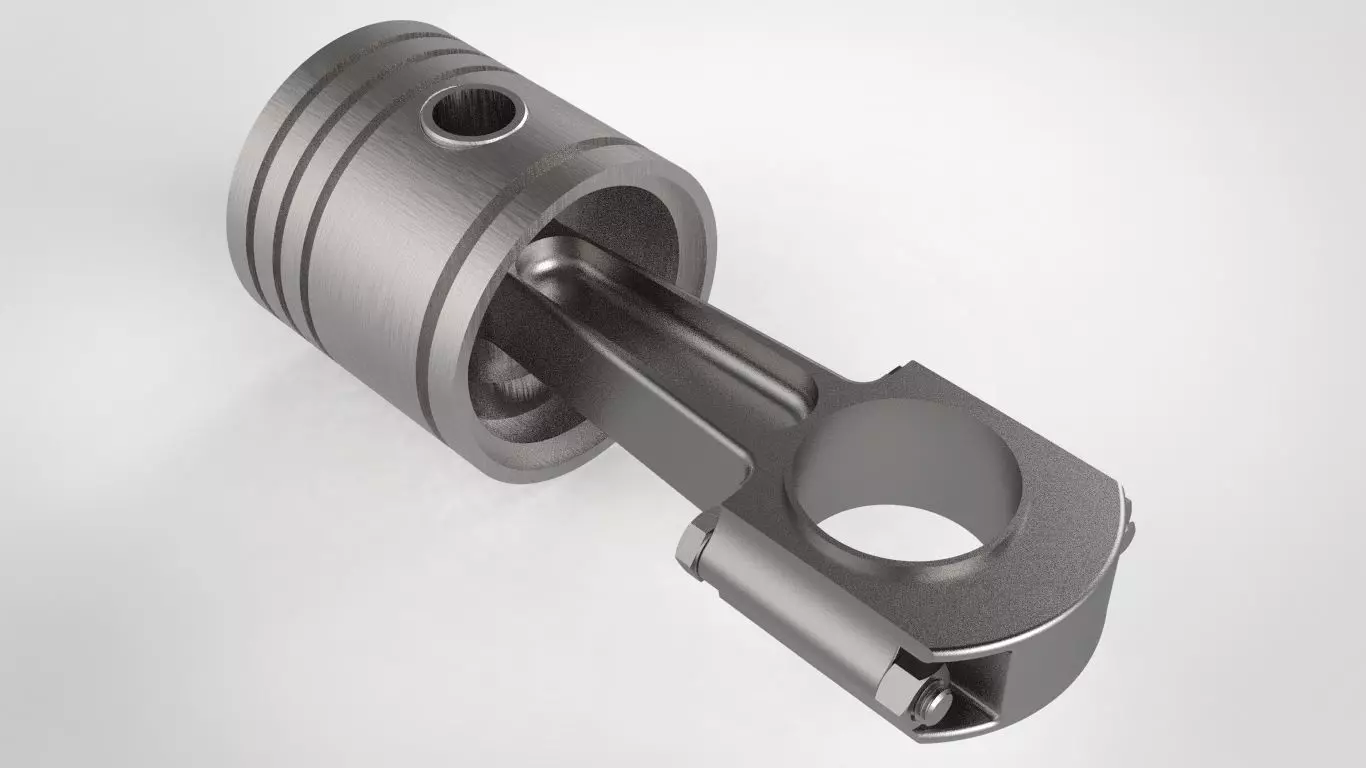

This is a assembly of piston, conection rod, screws, pin and nuts, all was modeled in SolidWorks and imported to .PLY, .XT and .STL, all is functional and printable, the thread of the screw and nut is in a real dimensions based in engineering rules.

The dimensions of the assembly:diamiter: 8cmheight: 21cm

Buying this model you'll recieve:The assembly and all parts to print.

Write comment
Item rating
0 0
Printable Piston and connecting rod
$5.00

Royalty Free No Ai License
Printable Piston and connecting rod
$5.00

Royalty Free No Ai License
TTheMEngineer
TheMEngineer
(0 reviews)
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl)867 KB
  • Ply (.ply)718 KB
  • Parasolid (.x_t, .x_b)330 KB

3D Model details

  • Ready for 3D Printing
  • Publish date2025-03-25
  • Model ID#5994949
